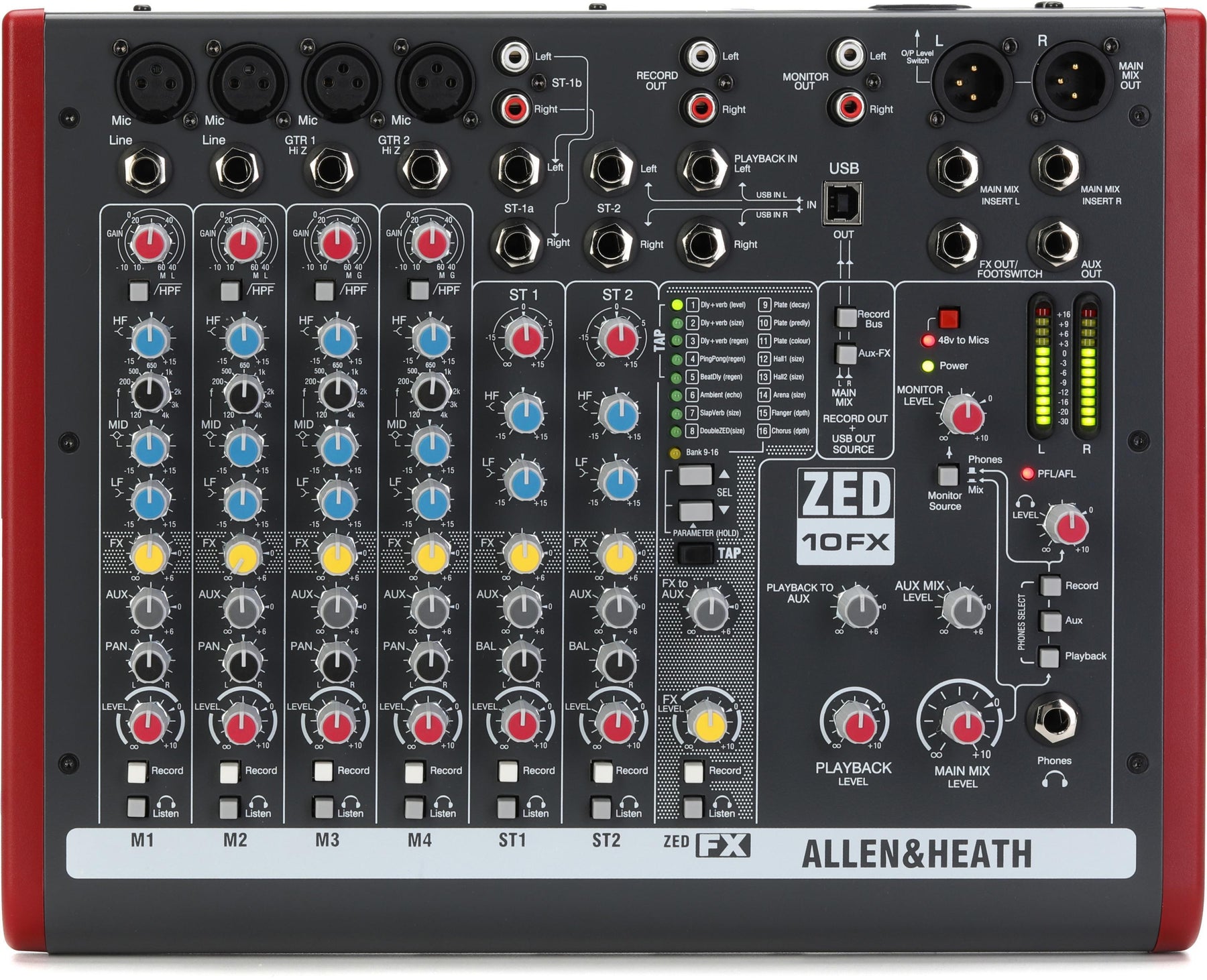

The ZED‑10FX is a hybrid analog mixer + USB interface, built to combine hands‑on mixing control with digital recording/playback and built‑in effects.
It caters to musicians, small studios, live rigs, and content creators who want a compact all‑in‑one unit: analog mixing, USB multitrack interface, plus onboard FX.
Key Features and Specifications:
| Feature | Detail |
|---|---|
| Analogue Channels | 4 mono (mic/line) + 2 stereo line inputs |
| Mic Preamps | 4 GSPre style preamps |
| Instrument Inputs | 2 Hi‑Z / DI capable channels |
| EQ / Filters | 3‑band EQ on mono channels + low‑cut filters |
| Effects | Onboard FX engine (reverb, delay, modulation, combinations) with tap‑tempo |
| USB Interface | 4 in / 4 out at 24‑bit / 96 kHz |
| Routing | Flexible USB routing, analog/USB mix overlapping options |
| Main Outputs | Balanced XLR, plus monitor / RCA outs |
| Phantom Power | 48V available for condenser mics |
| Metering / Controls | LED metering, 60mm main fader, assignable routing, durable controls |
| Dimensions & Weight | ~ 332.7 × 274.3 × 96.5 mm, ~ 2.3 kg |
