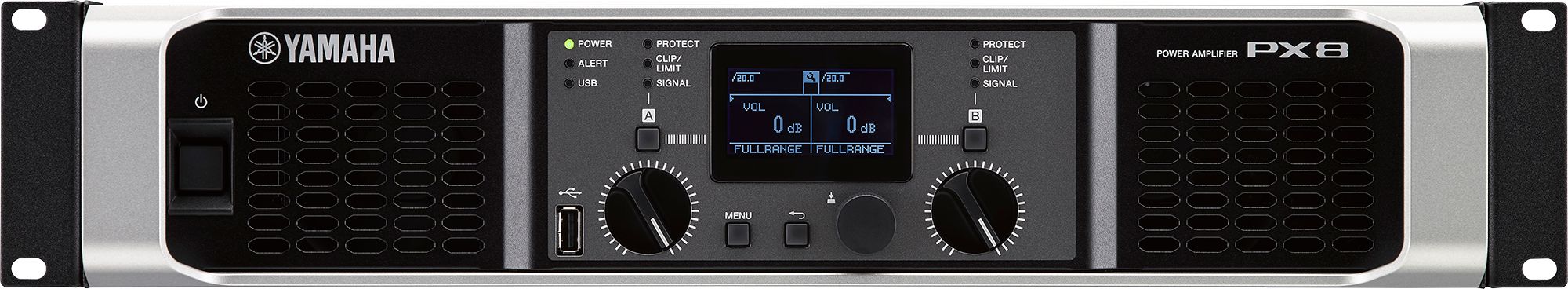

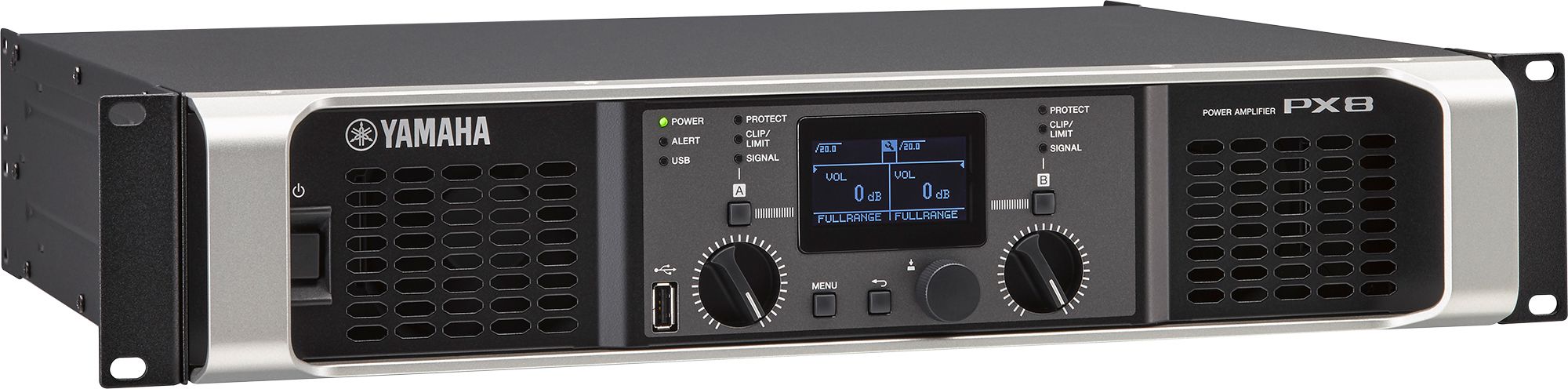

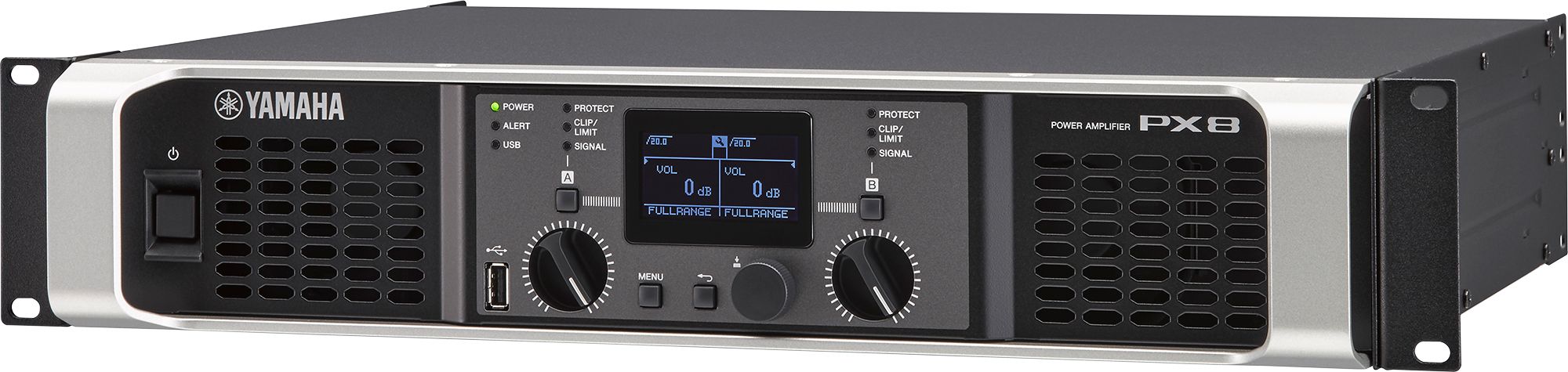

Yamaha PX8 Power Amplifiers

Yamaha’s PX8 dual-channel Class D power amplifier gives you more than great-sounding amplification. It packs powerful built-in processing that would normally require an external PA management processing. We’re talking onboard equalization for fine-tuning outputs, crossovers for integrating subs and fills, delays for correcting phase issues in large rigs, and a speaker-saving limiter. Factor in stellar sound quality, easy control via the LCD display, and its ultra-light weight, and it’s clear the Yamaha PX8 stands out among power amps in its class.

Tech Specifications

• Number of Channels:2
• Power Class:Class D
• Watts/Side @ 8 ohms:800W
• Watts/Side @ 4 ohms:1050W

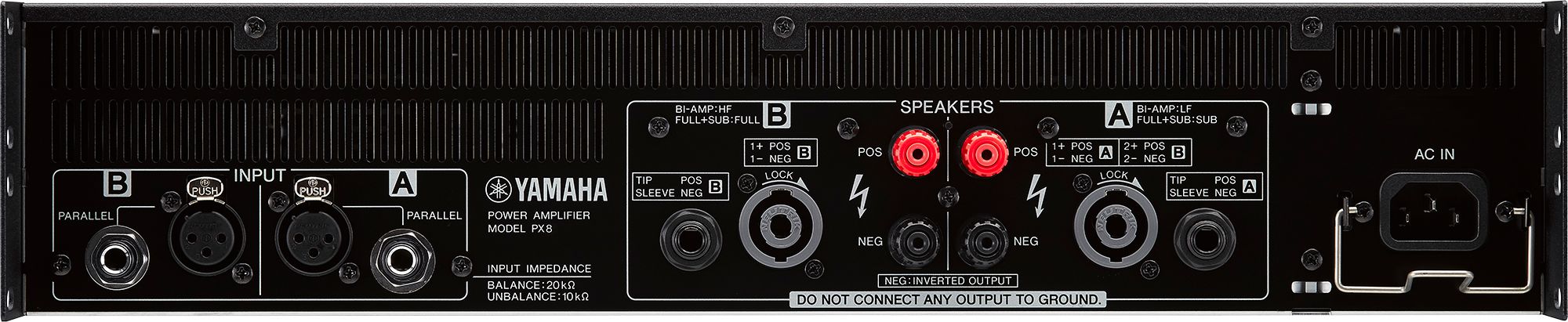

• Inputs:2 x XLR, 2 x 1/4″ TRS
• Outputs:2 x Neutrik speakON NL4, 2 x Binding Post, 2 x 1/4″ TS
• Cooling System:2 x 16-step variable speed fan, front to rear airflow
• DSP:EQ, Limiting, Delay, Crossovers
• Filters:Yes
• Rack Spaces:2U
• Height:3.46″
• Depth:15.25″
• Width:18.87″
• Weight:15.8 lbs.
