JBL Control 47HC High Ceiling Loudspeaker

JBL Control 47HC High Ceiling Loudspeaker

Name: JBL Control 47HC High Ceiling Loudspeaker
Brand: JBL
Price: 64399.0 INR
Availability: InStock

by JBL

Rs. 64,399.00

Quantity

Item #CONTROL 47HC

Consistent Coverage Extended Bass

The Control 47C/T features extended bass performance with a wide 120° of coverage that allows fewer speakers to cover a large space. Ideal for a wide variety of applications, the Control 47C/T is perfect for settings ranging from restaurant and retail to large casinos and beyond.

Features

Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
Flat Frequency Response and Superior Performance
Large Backcan for Bass Response to 55 Hz
Elegant design fits any décor

Specifications

Frequency Range	55 Hz - 17 kHz
Power Rating	IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power 75 Watts Continuous Pink Noise (300W peak), 100 hrs
Sensitivity	93 dB (1kHz - 16 kHz)
Transformer Taps	60 W, 30 W, 15 W, (& 7.5 W @ 70 V), plus transformer bypass
Coverage Angle	75° conical, constant directivity
Impedance	8 ohms (in bypass mode)
Drivers	LF Driver: 165 mm (6.5 in) HF Driver: 25 mm (1 in)

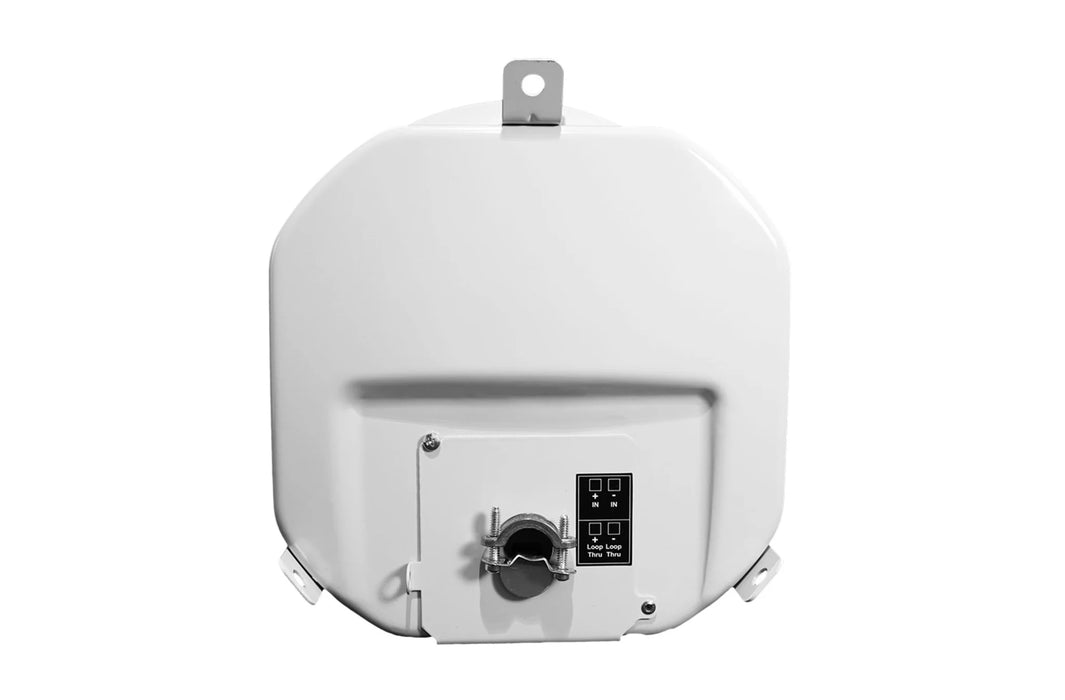

Input Connectors	Two removeable locking 2-pin connectors with screwdown terminals.
Included Accessories	C-rings, tile rails, paint shield, cutout template, Grille
Suspension Tabs	Three, on top panel
Dimensions (Diameter x Depth)	332mm Diameter x 351mm Diameter Depth (13.1 in x 13.8 in)
Maximum SPL (1m)	112 dB (low-impedance, 118 dB peak) 111 dB (top 70V/100V tap)
Color	White
Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

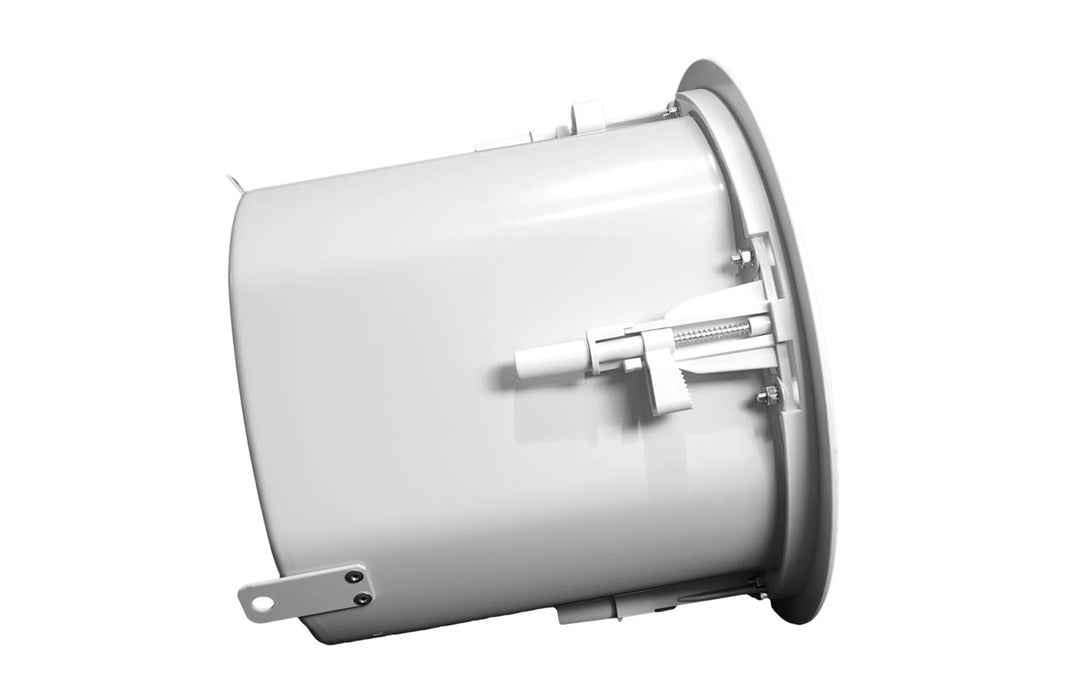

Backcan	formed steel (included "blind-mount")
Baffle/Rim	ABS baffle with UL94-V0 flame class fire rating.
Ceiling Cutout Size	307 mm Diameter (12.1 in) diameter (cardboard cutout template included)
Optional Accessories	MTC-19NC New Construction Bracket MTC-19MR Mud Ring Construction Bracket
Plenum Usage	Yes, backcan included
