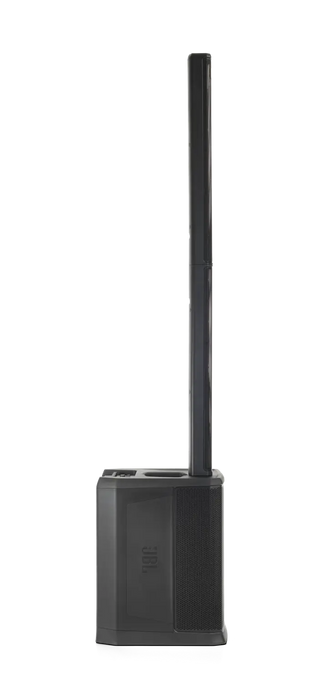

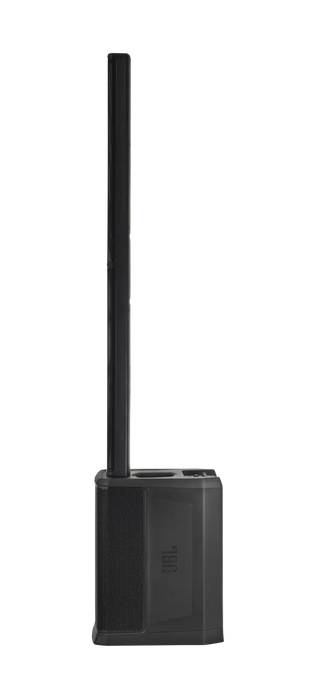

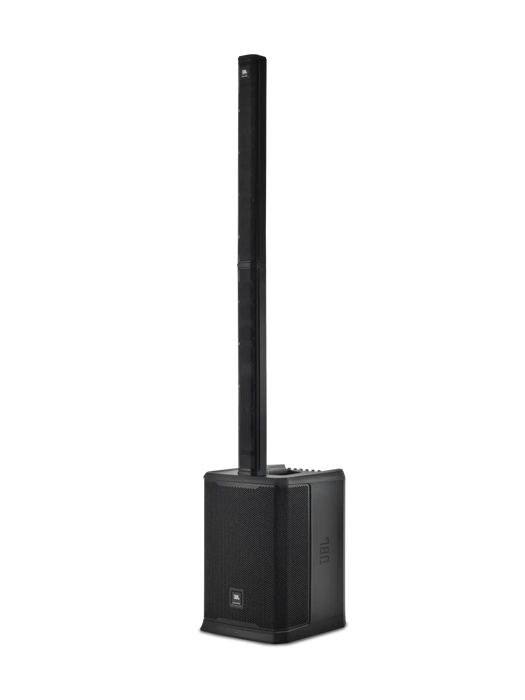

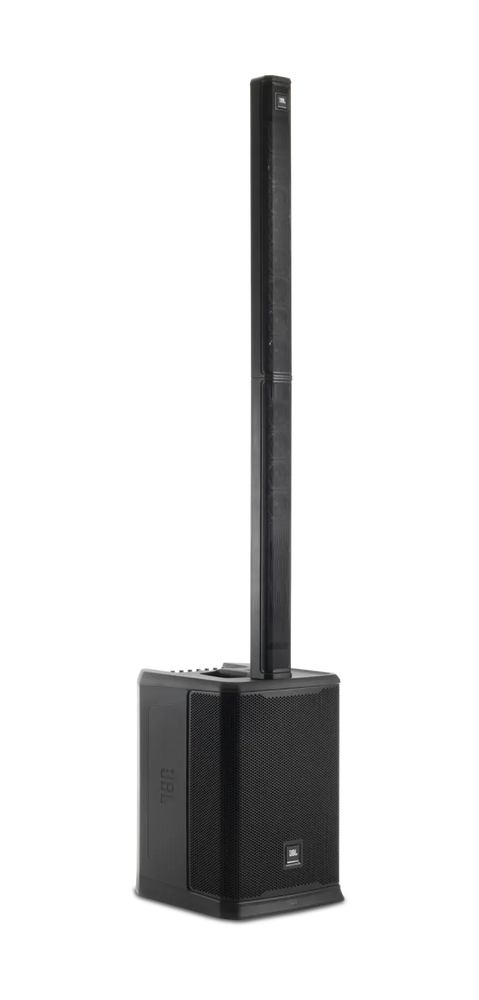

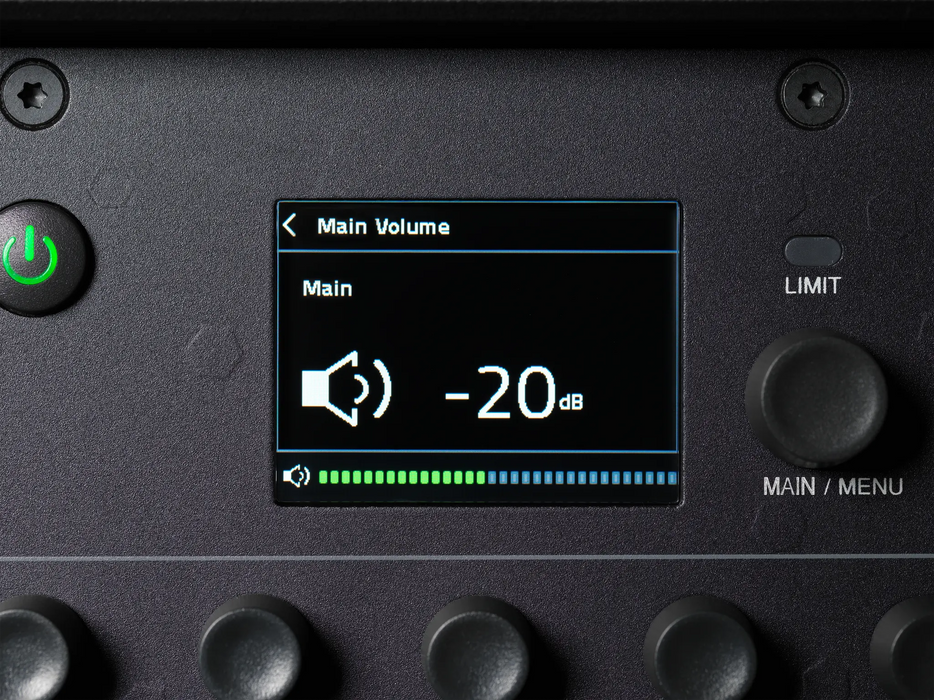

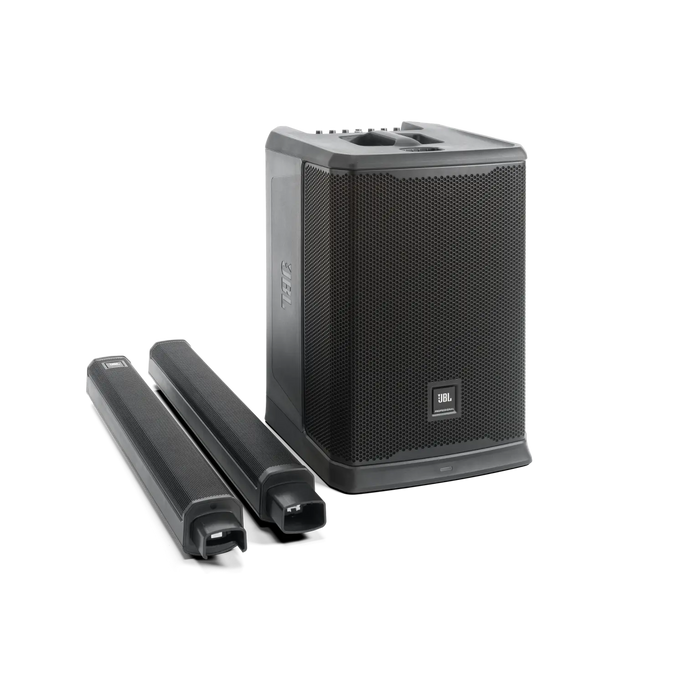

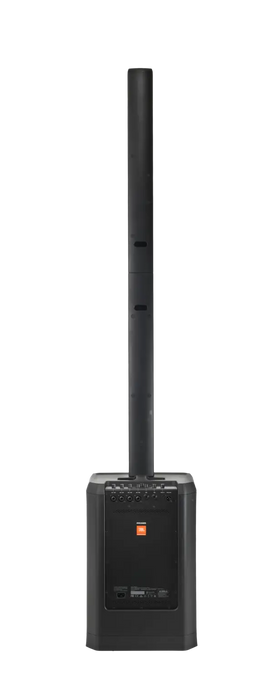

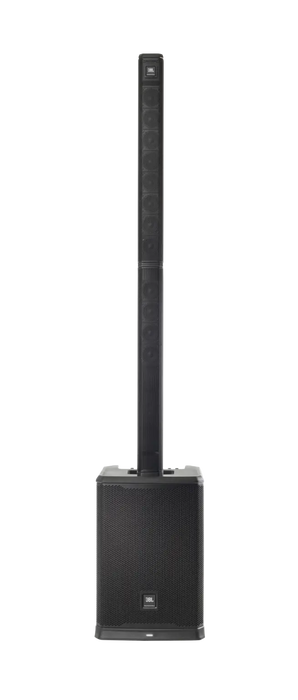

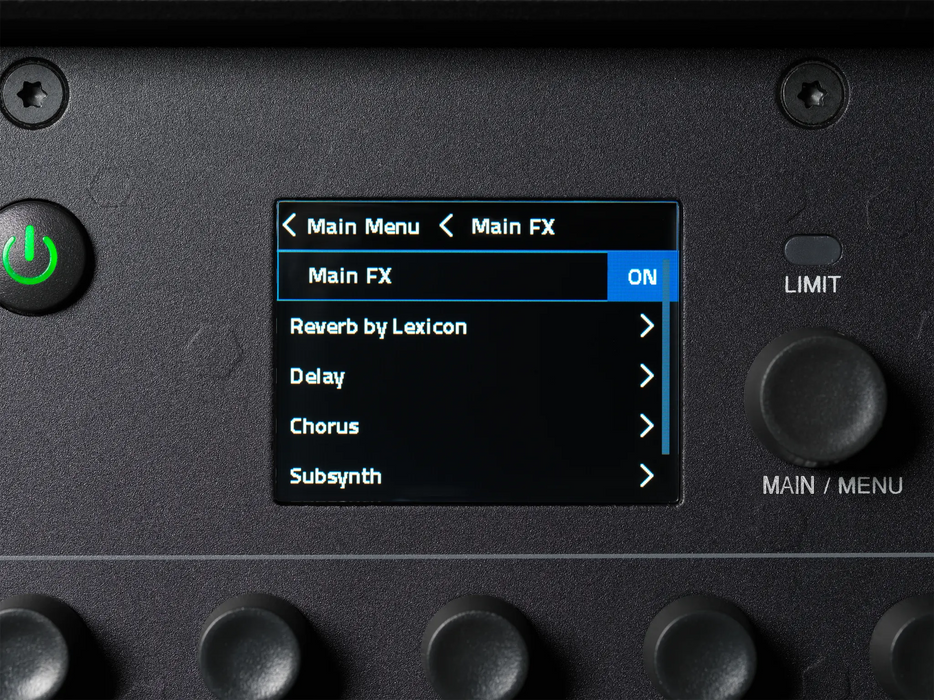

The JBL PRX ONE all-in-one powered column PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control.

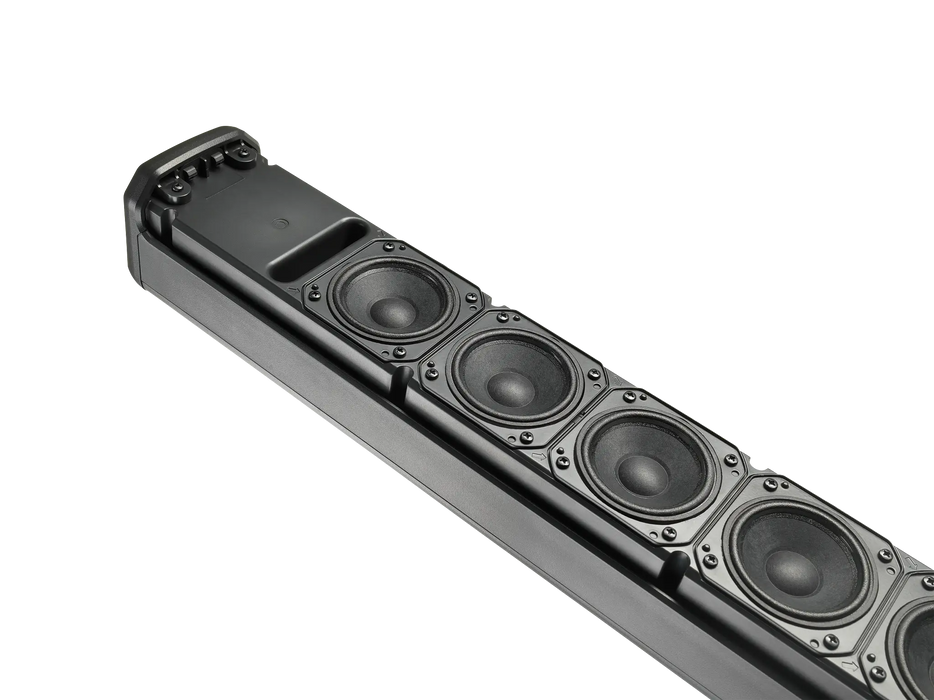

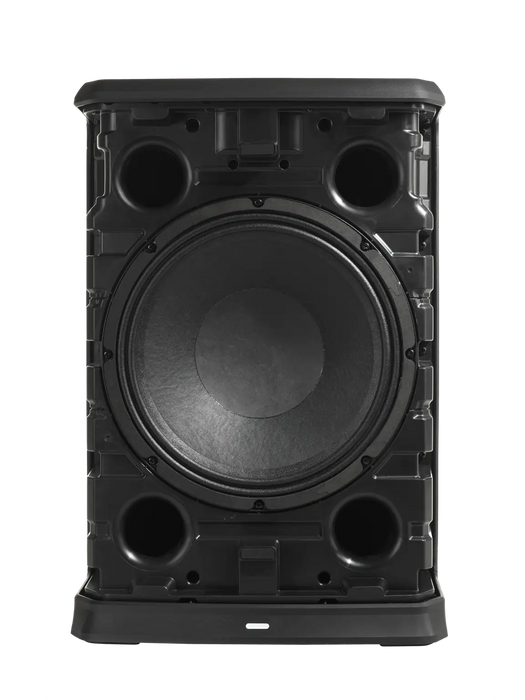

Enjoy unmatched power and performance in a sleek, compact package: PRX ONE delivers a stunning 130db max SPL, with consistent front-to-back throw, thanks to its custom-engineered 12-tweeter column array featuring JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt (peak) amplifier.
Product Specifications
| System Type | Powered Column PA Speaker |
| Woofer Size | 12" |
| Tweeter Size | 2.5" |
| Tweeter Count | 12 |
| Max SPL | 130dB |
| Freq Range -10 | 35-20kHz |
| Freq Range -3 | 40-20kHz |
| Hor Dispersion | 130° |
| Vert Dispersion | 30° |
| Power Rating | 2000W Peak 1000W RMS |
| AC power input | 300W 100-230V AC 50-60Hz |
| Input Impedance |
4kΩ balanced Combo4kΩ balanced Combo 2MΩ balanced Hi-Z Jack2MΩ balanced Hi-Z Jack 10kΩ 3.5mm single ended 2 channel.10kΩ 3.5mm single ended 2 channel. |
| Crossover Frequency | 260Hz |

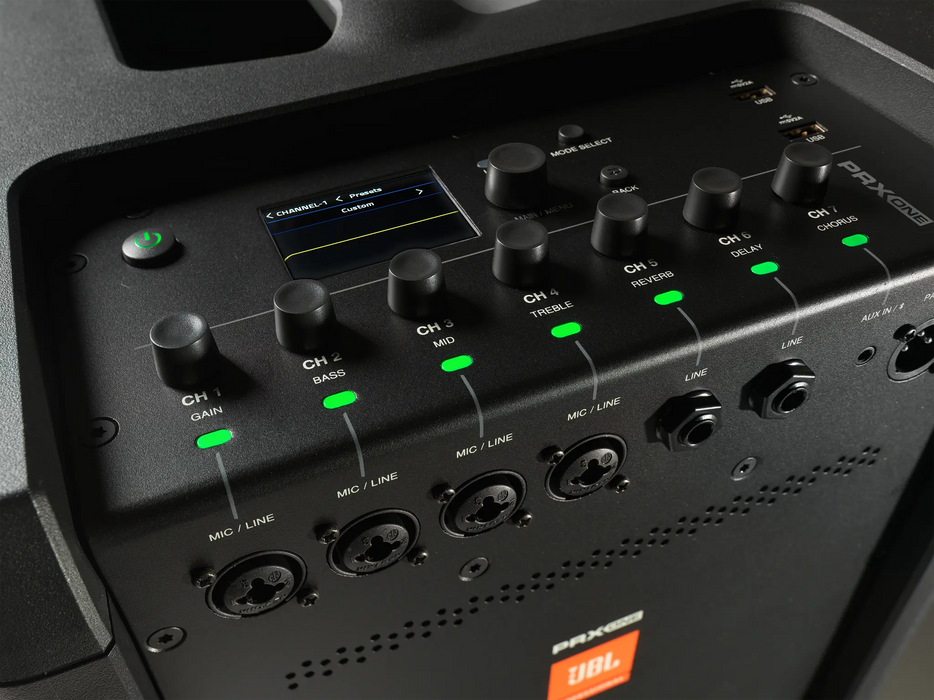

| I/O | 4 XLR Combo Jacks 2 1/4” Hi-Z 1 1/8”/BT Summed 1 XLR Pass Through |
| Cabinet | PP |
| Net Weight | 25.7 kg (56.6 lbs) |
| Gross Weight | 31.75 kg (69.9 lbs) |
| Dimensions (H x W x D) | 850 mm x 482 mm x 647 mm (33.4 in x 18.9 in x 25.4 in) |
