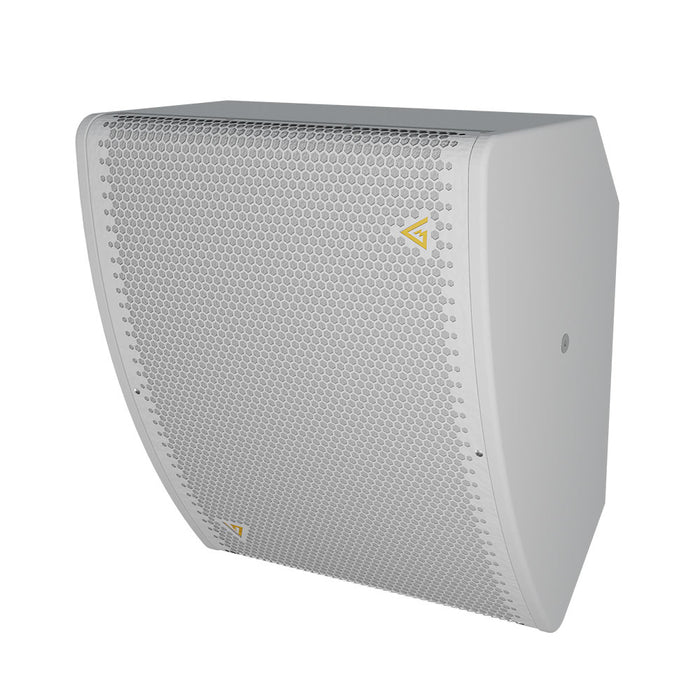

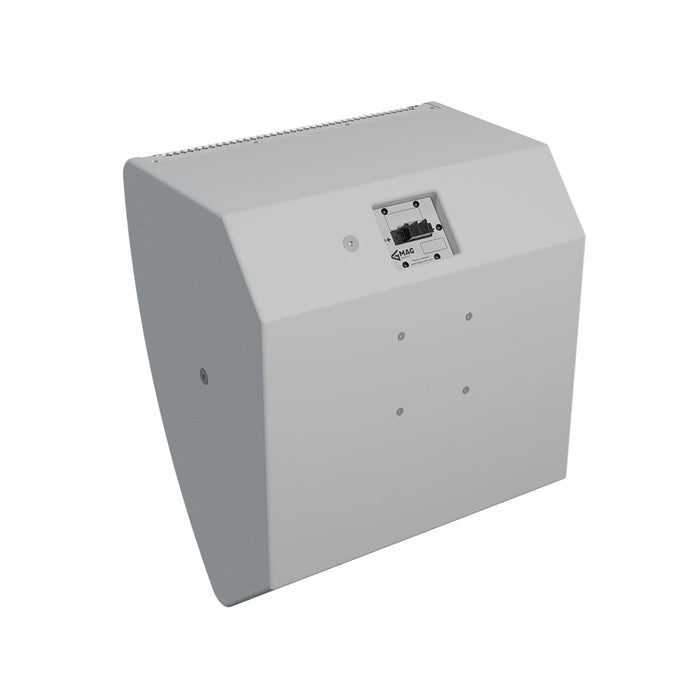

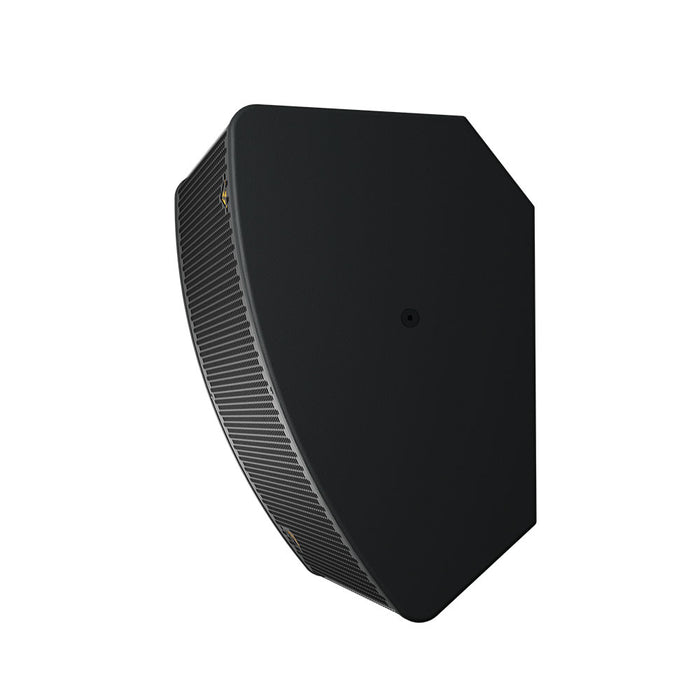

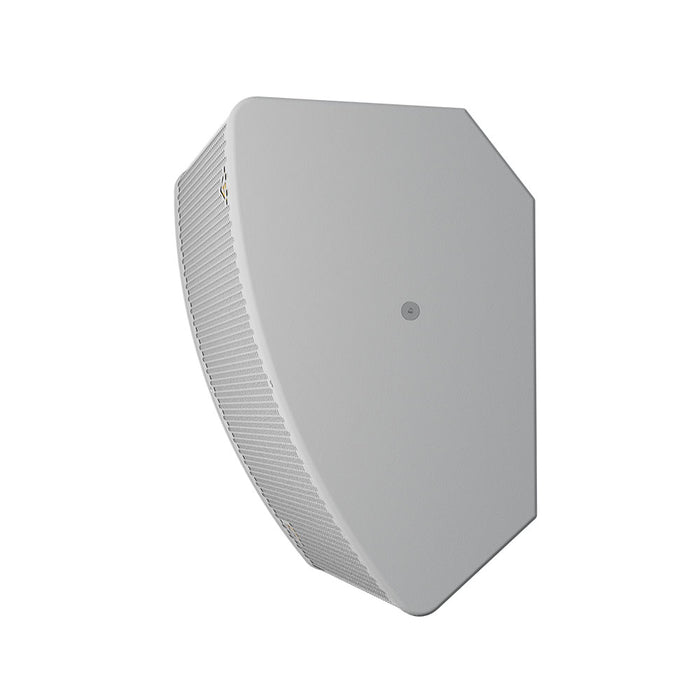

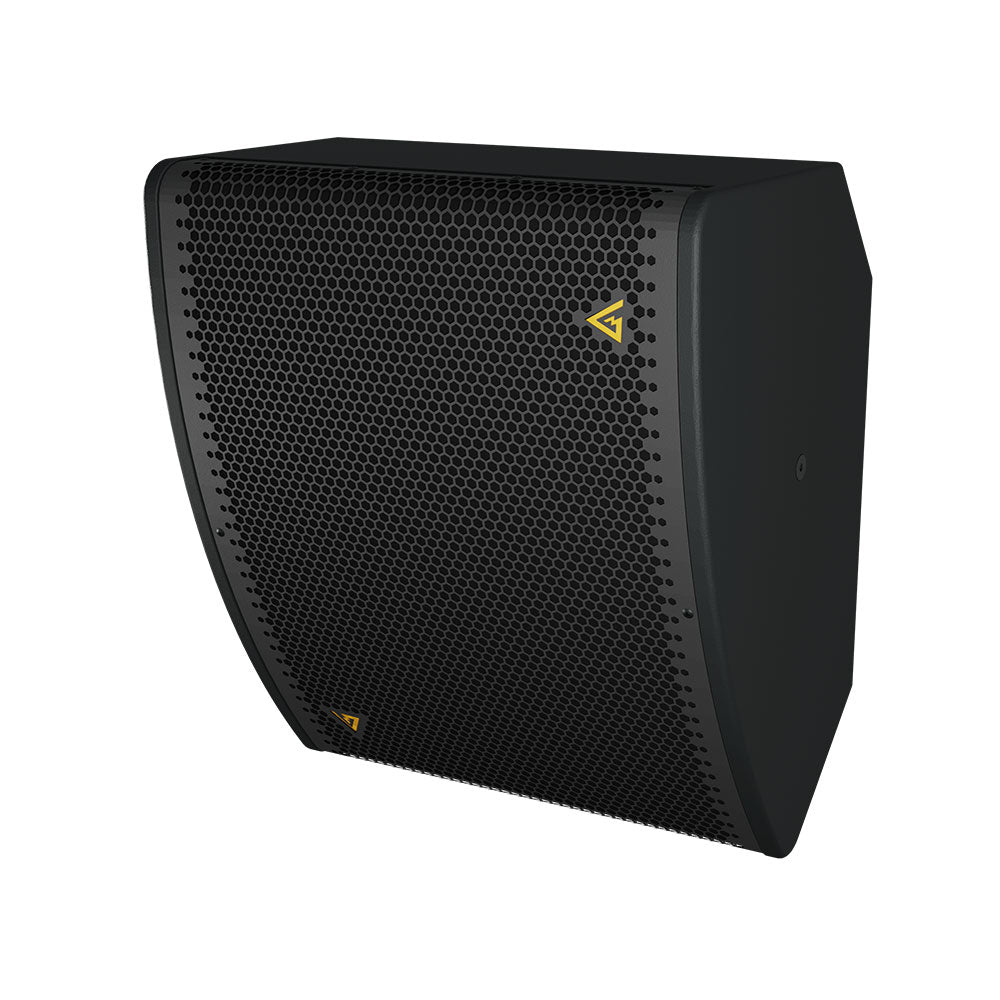

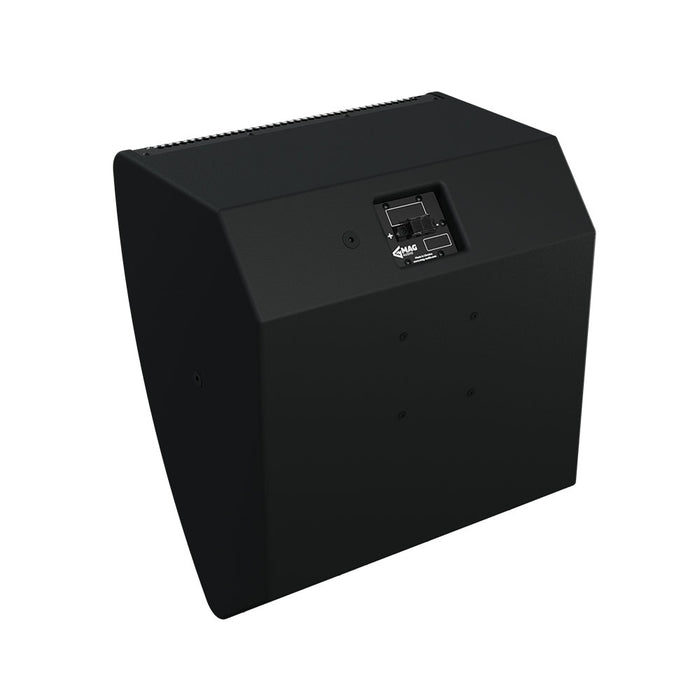

AIR-122 is a passive installation system based on 12” coaxial woofer. Compact size, light weight and numerous mounting options make AIR-122 a system of high usability that achieves most performance per the space occupied.
Product description:
Іnstallation speaker
Main features:
• 500 W nominal power
• 12” coaxial driver
• 132 dB Max SPL
• VESA 100x100, M10 mounting points
Specification
| Main | |
|---|---|
| Type | Іnstallation speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 55 - 18000Hz |
| Max SPL 1 | 132 dB |
| Sensitivity (1W/1m) | 96 dB |
| LF Driver | 12" coaxial |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 80 deg |
| Impedance | 4 / 8 Ohm |
| Nominal power 2 | 500 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 470 x 554 x 344 mm |
| Net weight | 24 kg |
| Shipping weight | 27 kg |
| Mounting | VESA 100 x 100; 2 x M10 Mounting points; M10 safety point |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
