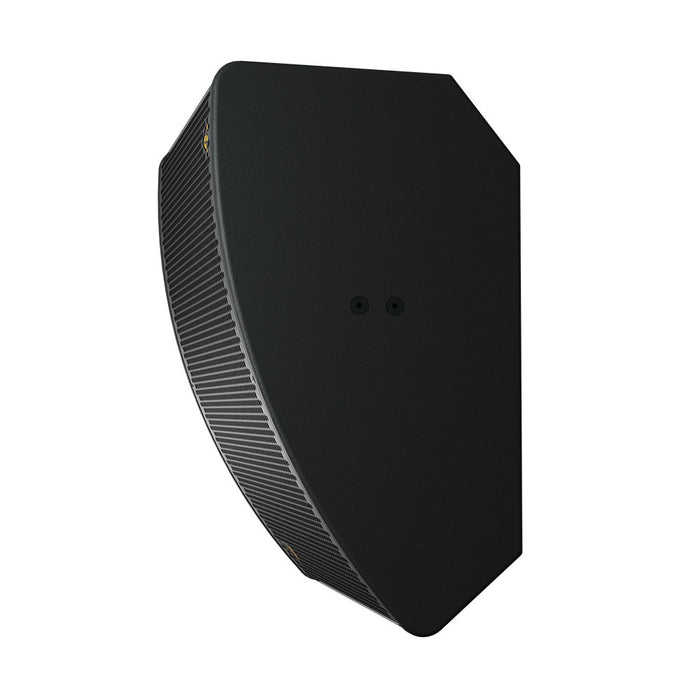

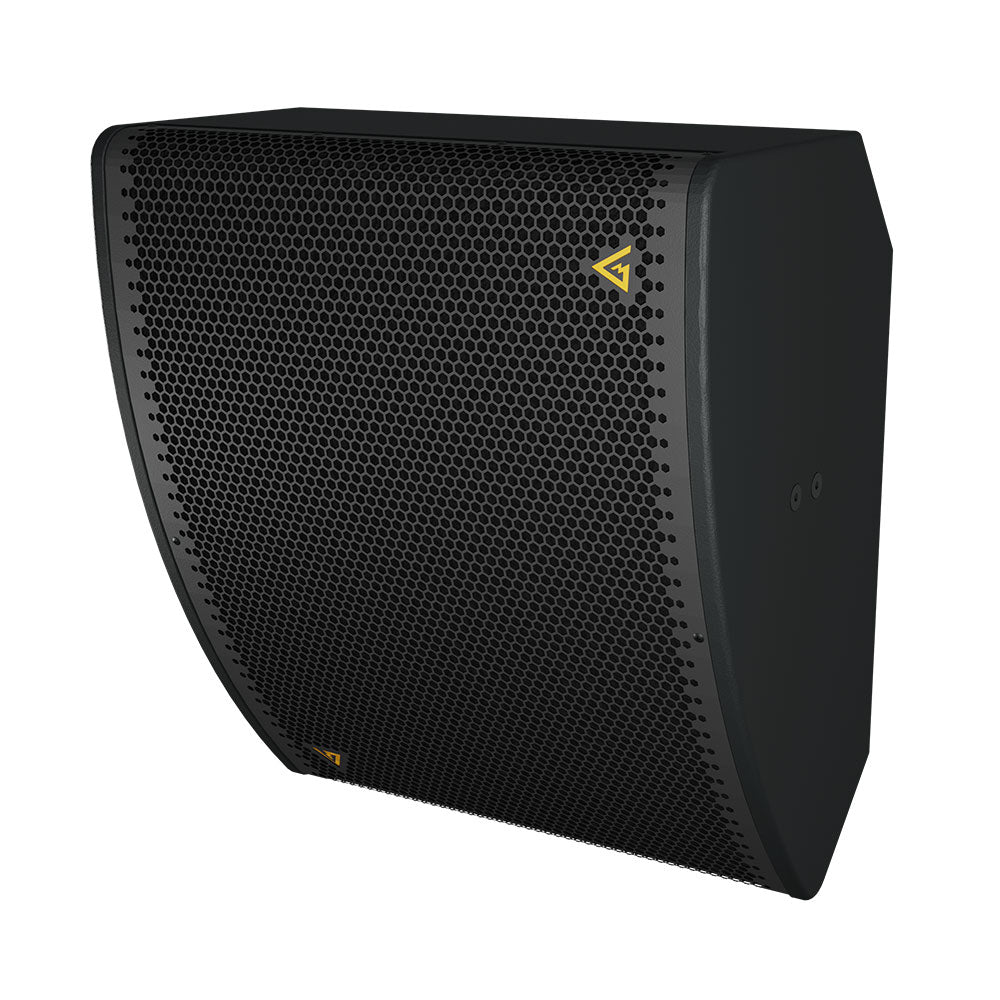

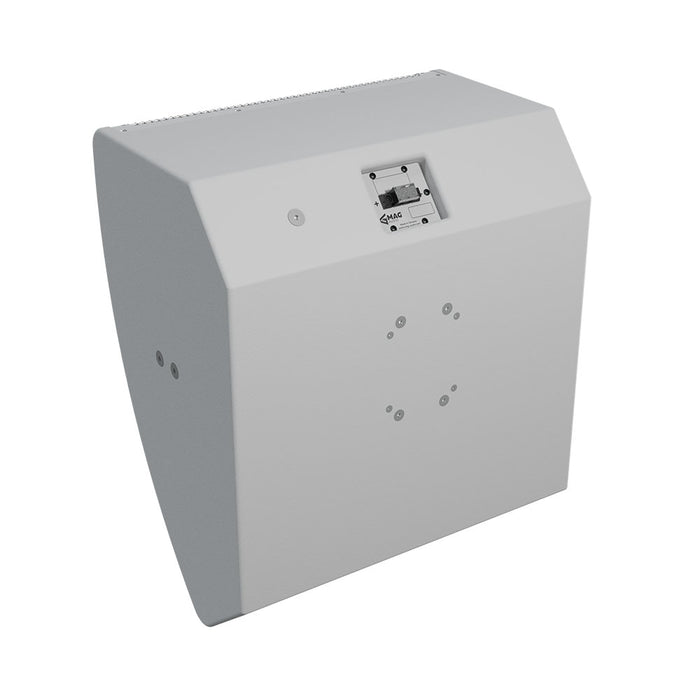

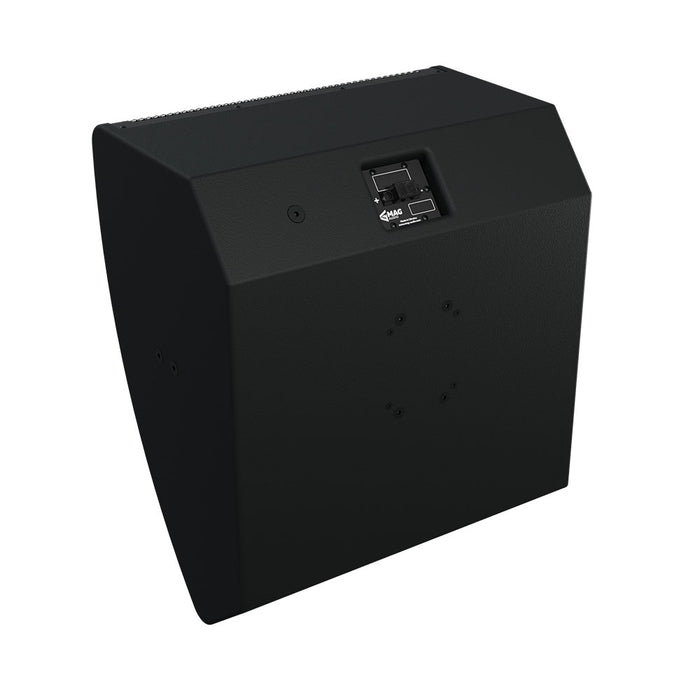

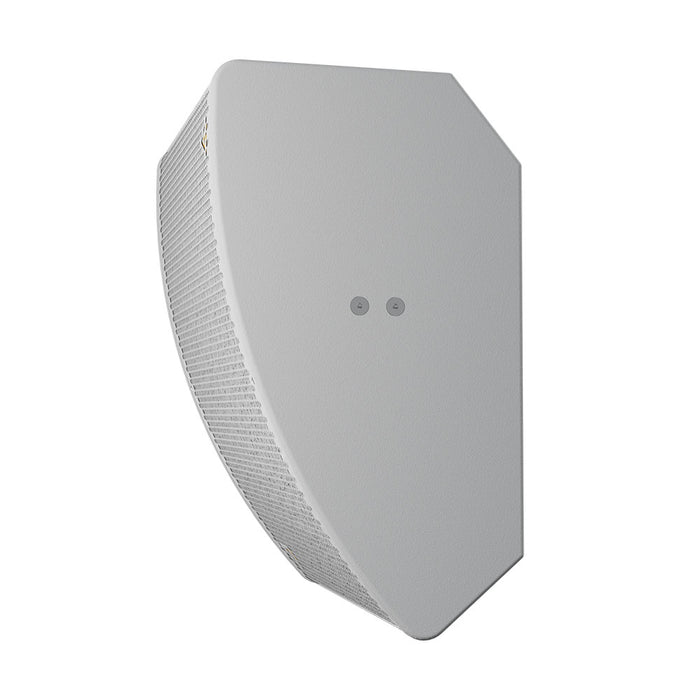

Powerful installation-dedicated system with 15'' coaxial woofer. Compact and carefully optimized enclosures have been designed to make the model fit into any interior, achieving most performance per the space occupied.
Product description:
Іnstallation speaker
Main features:
• 600 W nominal power
• 15” coaxial driver
• 134 dB Max SPL
• VESA 100x100, M10 mounting points
Specification
| Main | |
|---|---|
| Type | Installation speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 50 - 18000 Hz |
| Max SPL 1 | 134 dB |
| Sensitivity (1W/1m) | 97 dB |
| LF Driver | 15" coaxial |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 80 deg |
| Impedance | 4 / 8 Оhm |
| Nominal power 2 | 600 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 530 x 619 x 348 mm |
| Net weight | 25,5 kg |
| Shipping weight | 27,5 kg |
| Mounting | VESA 100 x 100; 4 x M10 Mounting points; M10 safety point |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
