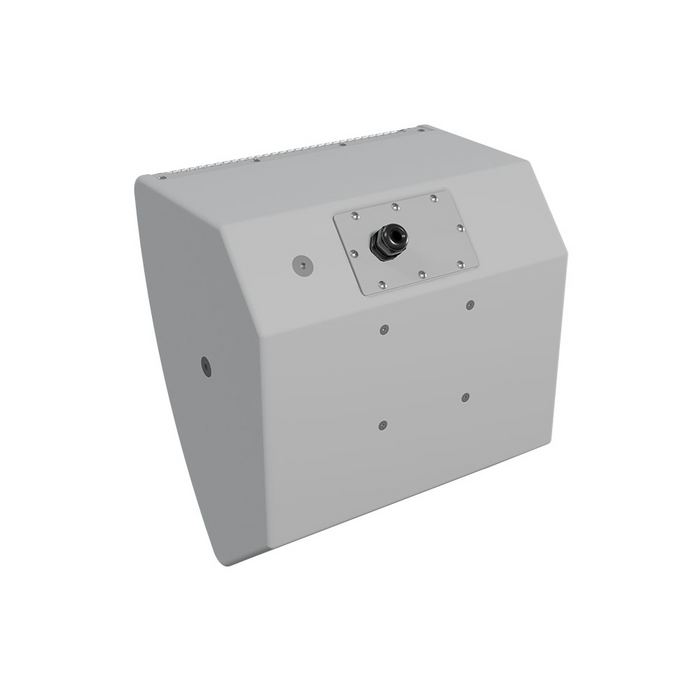

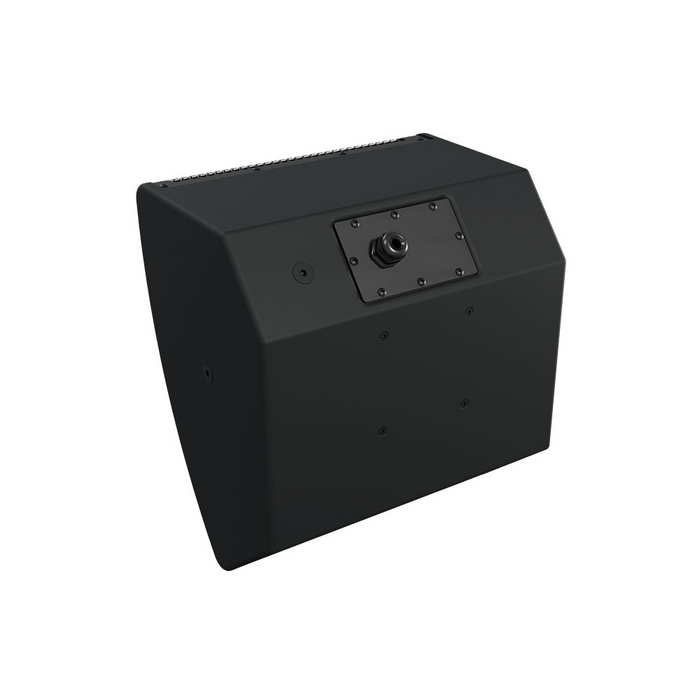

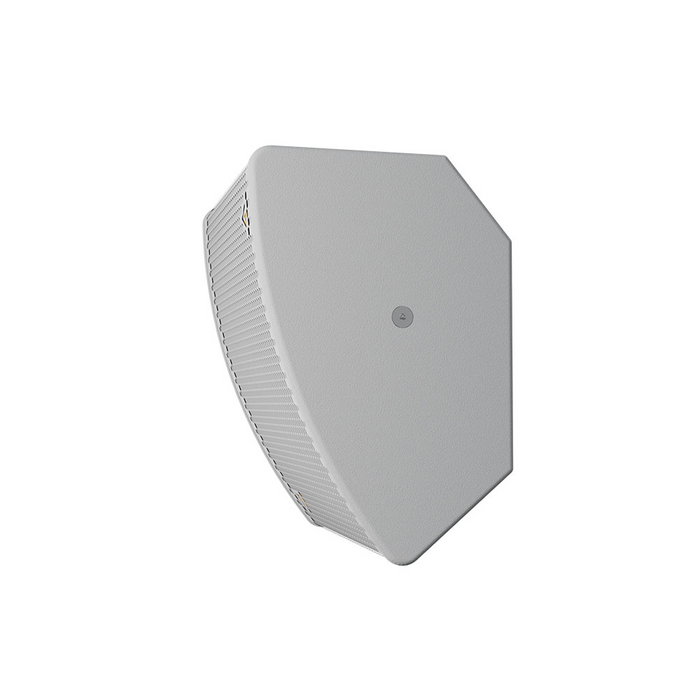

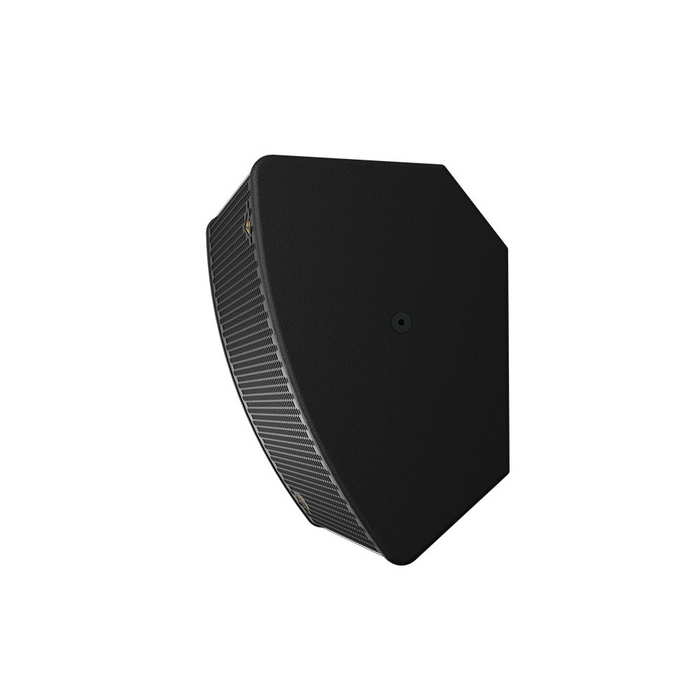

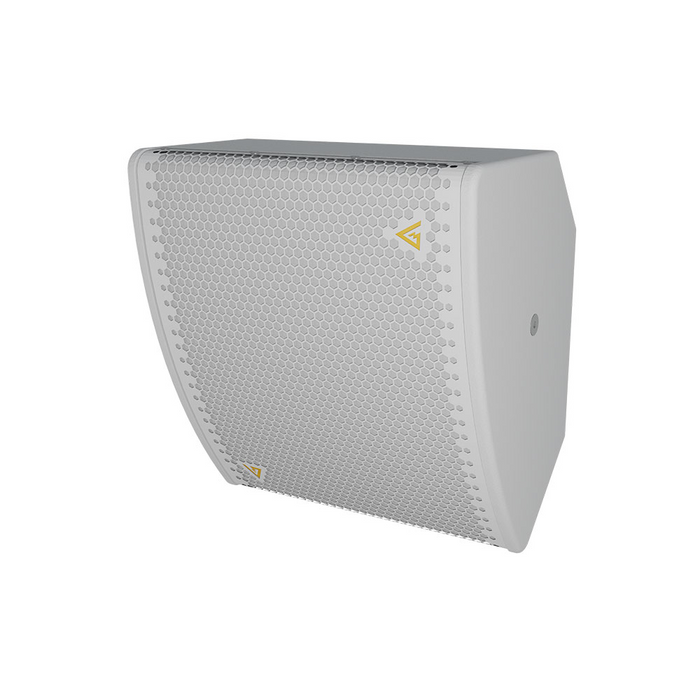

Weather-resistant speaker, AIR-82 IP comes in extremely compact size, featuring 8” coaxial woofer. The model has numerous mounting options, providing usability for each and every project.
Product description:
Weather-resistant speaker
Main features:
• 250 W nominal power
• 8” coaxial driver
• 127 dB Max SPL
• VESA 75x75, M10 mounting points
Specification
| Main | |
|---|---|
| Type | Weather-resistant speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 80 - 18000 Hz |
| Max SPL 1 | 127 dB |
| Sensitivity (1W/1m) | 94 dB |
| LF Driver | 8" coaxial |
| Nominal Coverage Angle (Horizontal × Vertical) | 90 x 90 deg |
| Impedance | 4 / 8 / 16 Ohm |
| Nominal power 2 | 250 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 354 x 383 x 254 mm |
| Net weight | 9,5 kg |
| Shipping weight | 10,5 kg |
| Mounting | VESA 75 x 75; 2 x M10 Mounting points; M10 safety point |
| Weather protection | IP 54 weather-protection |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
