Product description:

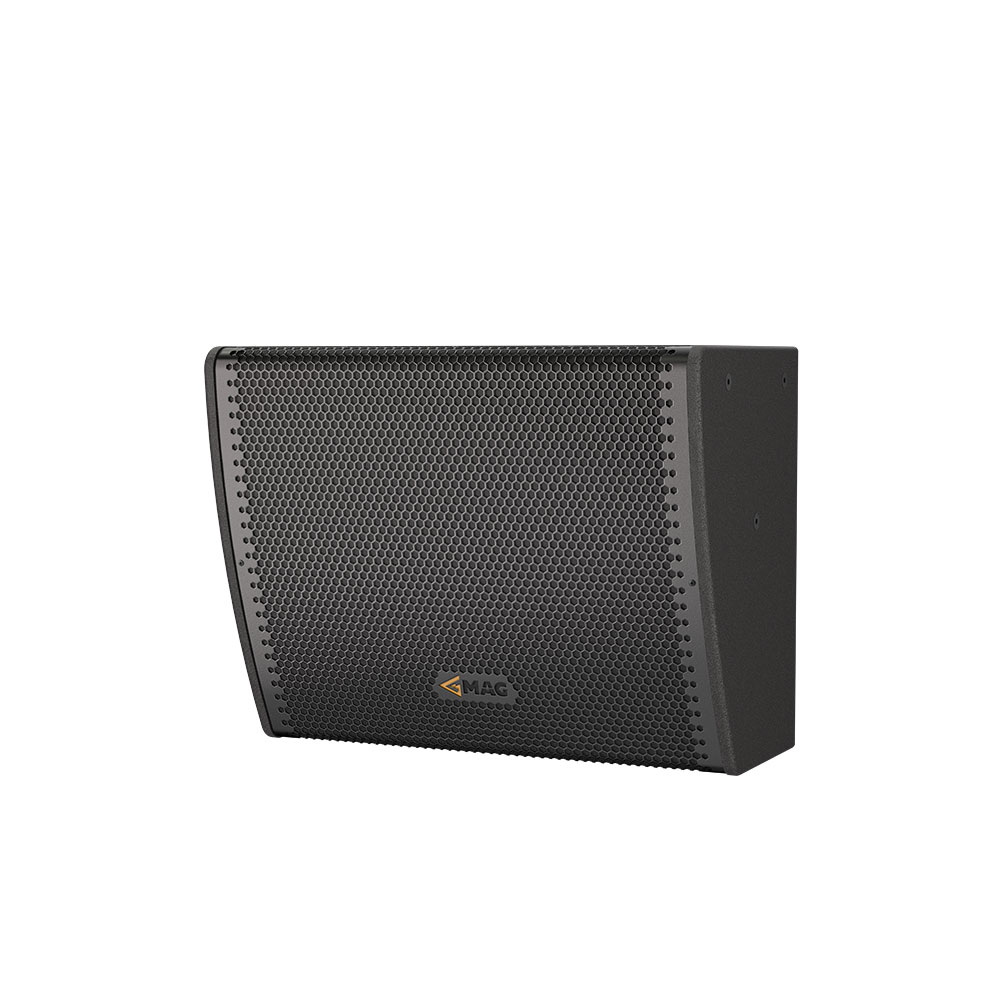

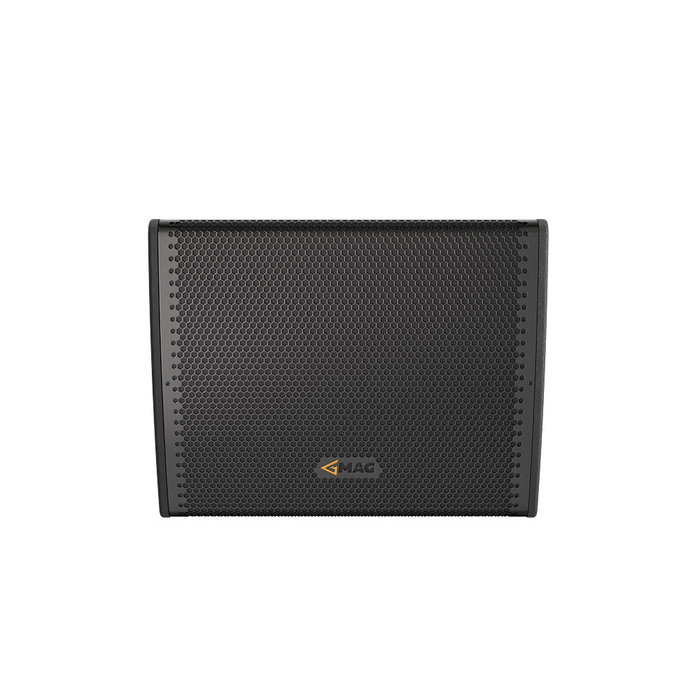

Installation subwoofer
Main features:
• 450W nominal power
• 12” woofer with 3” voice coil
• 130,5 dB Max SPL
Specifications
| Main | |
|---|---|
| Type | Installation subwoofer |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 45 - 300 Hz |
| Max SPL 1 | 130.5 dB |
| Sensitivity (1W/1m) | 95 dB |
| LF Driver | 12", 3" VC |
| Impedance | 4 / 8 Ohm |
| Nominal power 2 | 450 W |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 620 x 486 x 350 mm |
| Net weight | 29 kg |
| Shipping weight | 33 kg |
| Mounting | 8 x M10 mounting point; 2 x M10 safety points; VESA 200 x 200 |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
