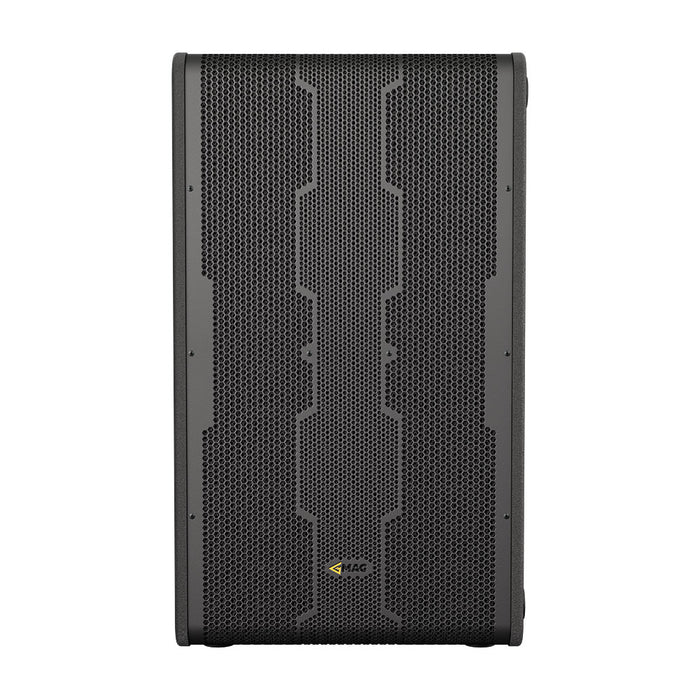

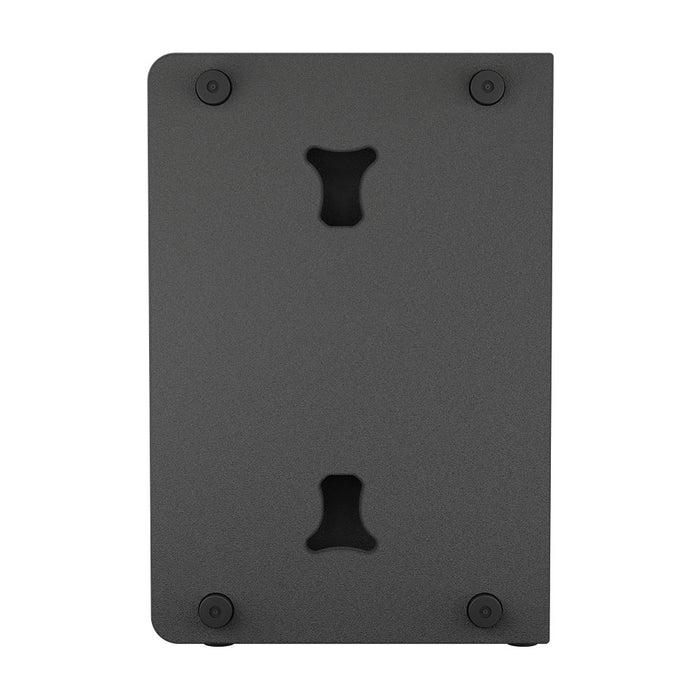

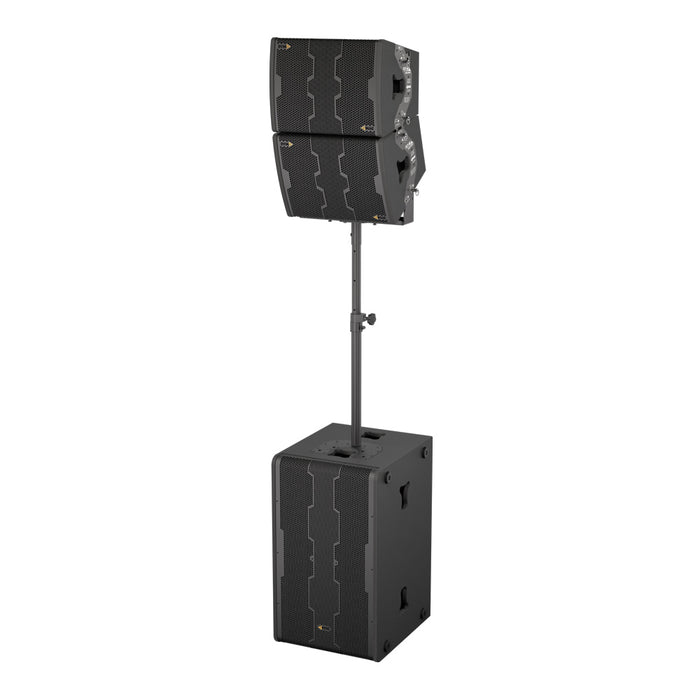

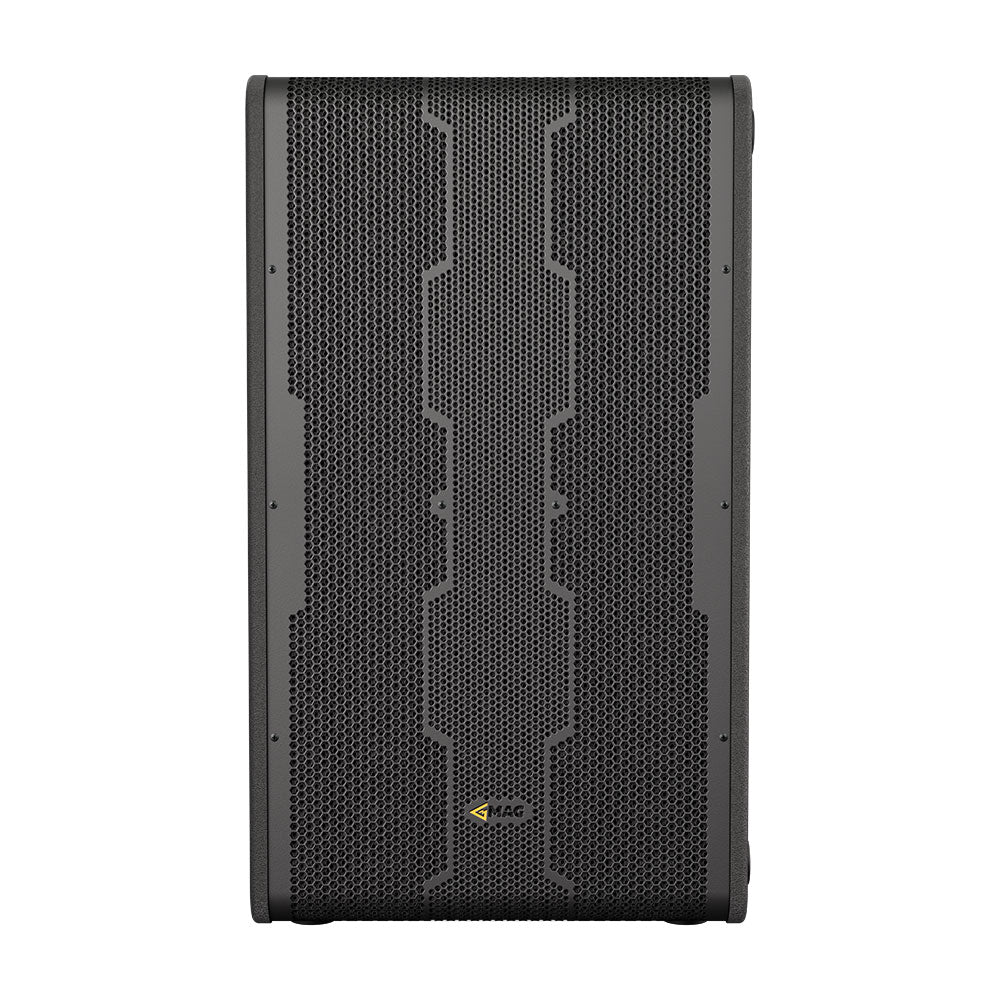

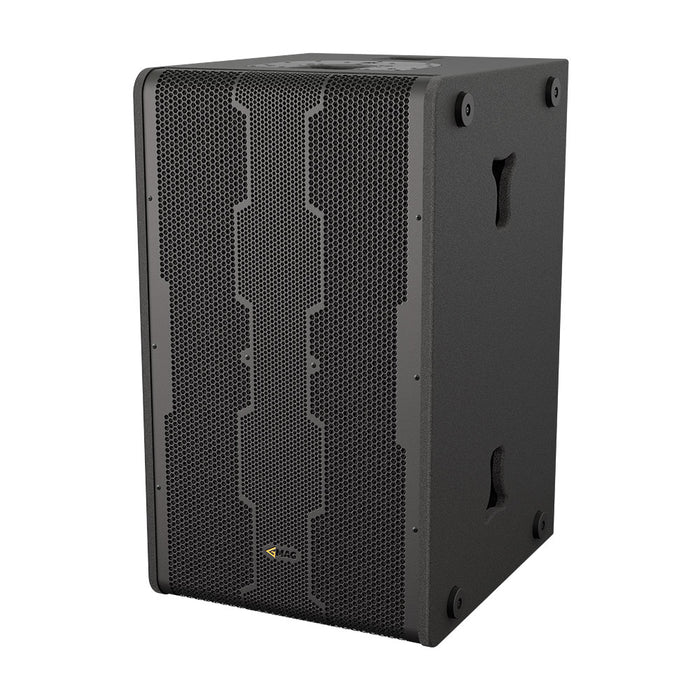

Fly-Sub-15 is a double 15’’ subwoofer for Fly-6 line array, designed for low-end supports for the entire system. With two high-excursion 15’’woofers and built-in Powersoft modules, Fly-Sub-15 delivers 137 dB of sound pressure, extending from 45 to 200 Hz. With thoroughly designed hardware, Fly-Sub-15 can be easily set-up, adjusting to any configuration required.
Product Description:
Powered subwoofer
Main Features:
-
2000W power
-
Powersoft® amplifier
-
Two 15” woofers with 4” voice coil
-
137 dB Max SPL
- Two M20 and Fly array bracket adapters
Product Specifications
| Main | |
|---|---|
| Type | Powered subwoofer |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 45 – 200 Hz |
| Max SPL (calculated) | 137 dB |
| LF Driver | 2 x 15”, 4” VC |
| Amplifier power | 2000 W |
| Amplifier | Class D, fan cooling, DSP |
| Input sensitivity | +4 dBV |
| Settings | 4 switchable presets |

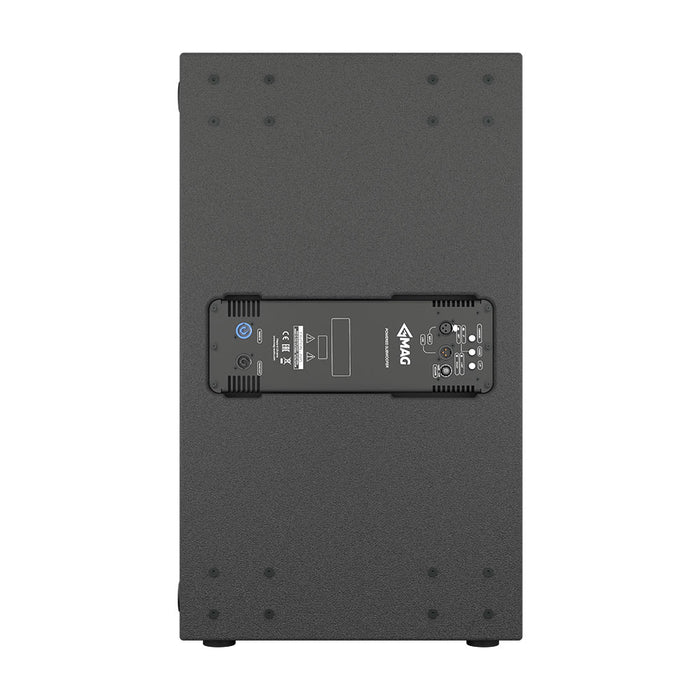

| Connectors | XLR in + XLR out, Powercon mains in, Powercon mains out |
| Connections and physical data | |
| Dimensions (W x H x D) | 506 х 860 х 578 mm |
| Net weight | 59 kg |
| Shipping weight | 63 kg |

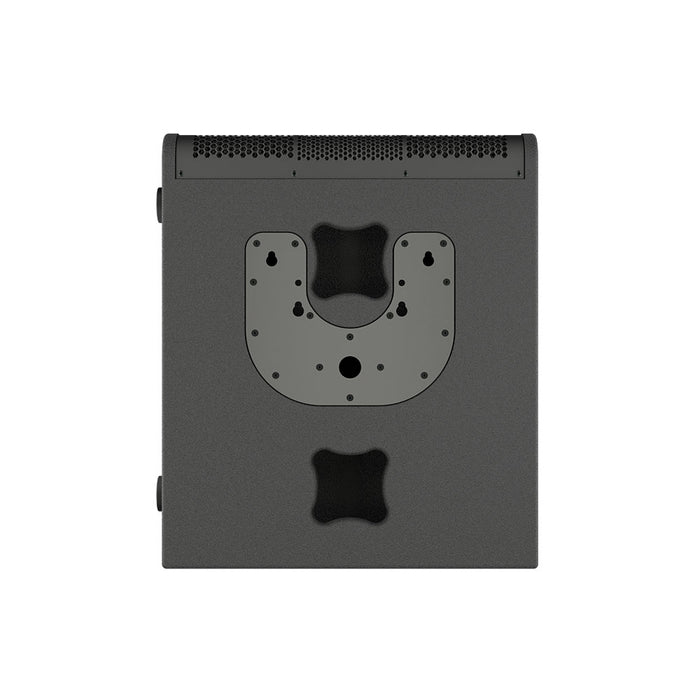

| Mounting | Two M20 distance pole adapter; Fly array U-bracket adapter |
| Enclosure material | Plywood; wear-resistant paint |
| Grill | Steel grill, acoustically transparent backing |
