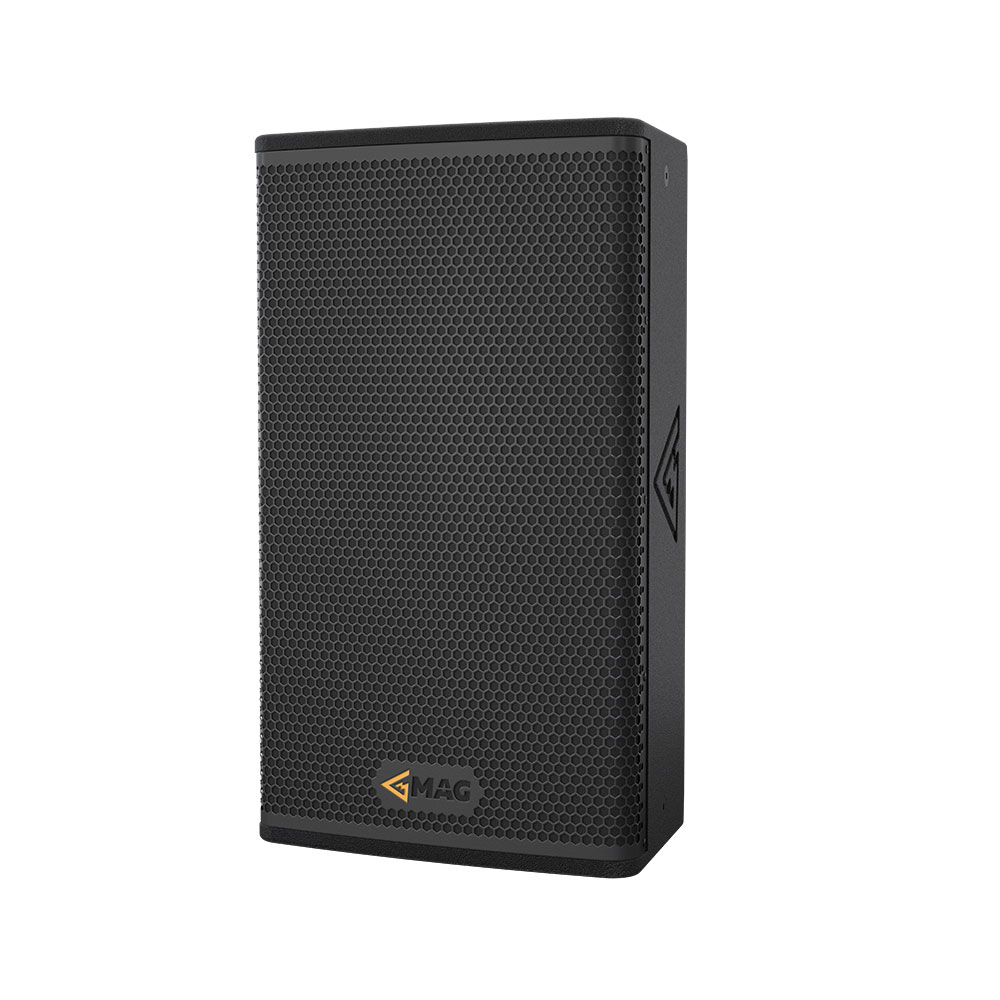

Extremely versatile, powerful, and compact NX 12 speaker features low distortion 12” neodymium woofer and 1,5” neodymium HF driver. Due to compact dimensions and considerable power output, NX 12 is great speaker for rental, touring, or a complete sound reinforcement solution.
Product Description:
Passive full-range speaker
Main features:
• 500W nominal power
• 12” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 134 dB Max SPL
• Pole mount adapter, M10 mounting points
Specifications
| Main | |
|---|---|
| Type | Passive full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) |
|
| Max SPL 1 | 134 dB |
| Sensitivity (1W/1m) | 98 dB |
| LF Driver | 12”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Impedance | 8 Ohm |
| Nominal power 2 | 500 W |
| Connectors | 2 x NeutrikSpeakon |
| Connections and physical data | |
| Dimensions (W x H x D) | 379 x 655 x 367 mm |
| Net weight | 22 kg |
| Shipping weight | 24 kg |
| Mounting | 10 x M10 mounting points, 35 mm pole socket, carrying handles, plastic feet |
| Enclosure material | Plywood; wear resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
