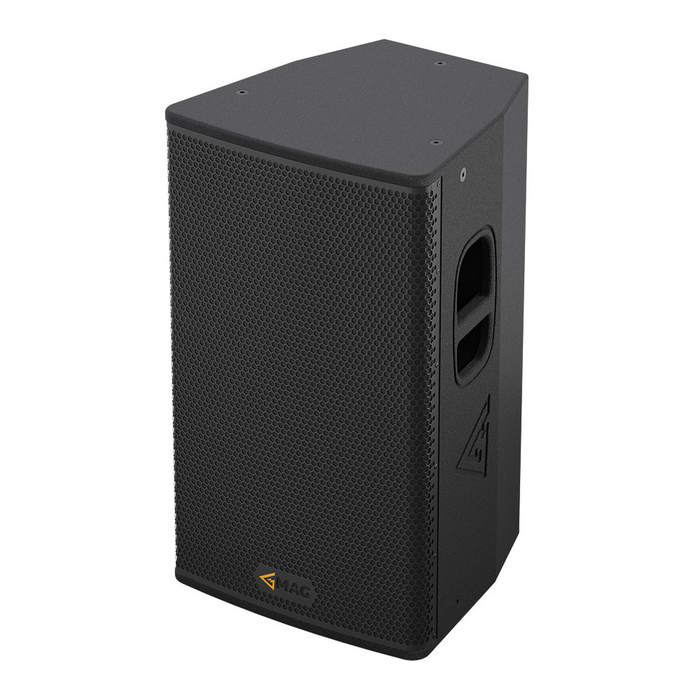

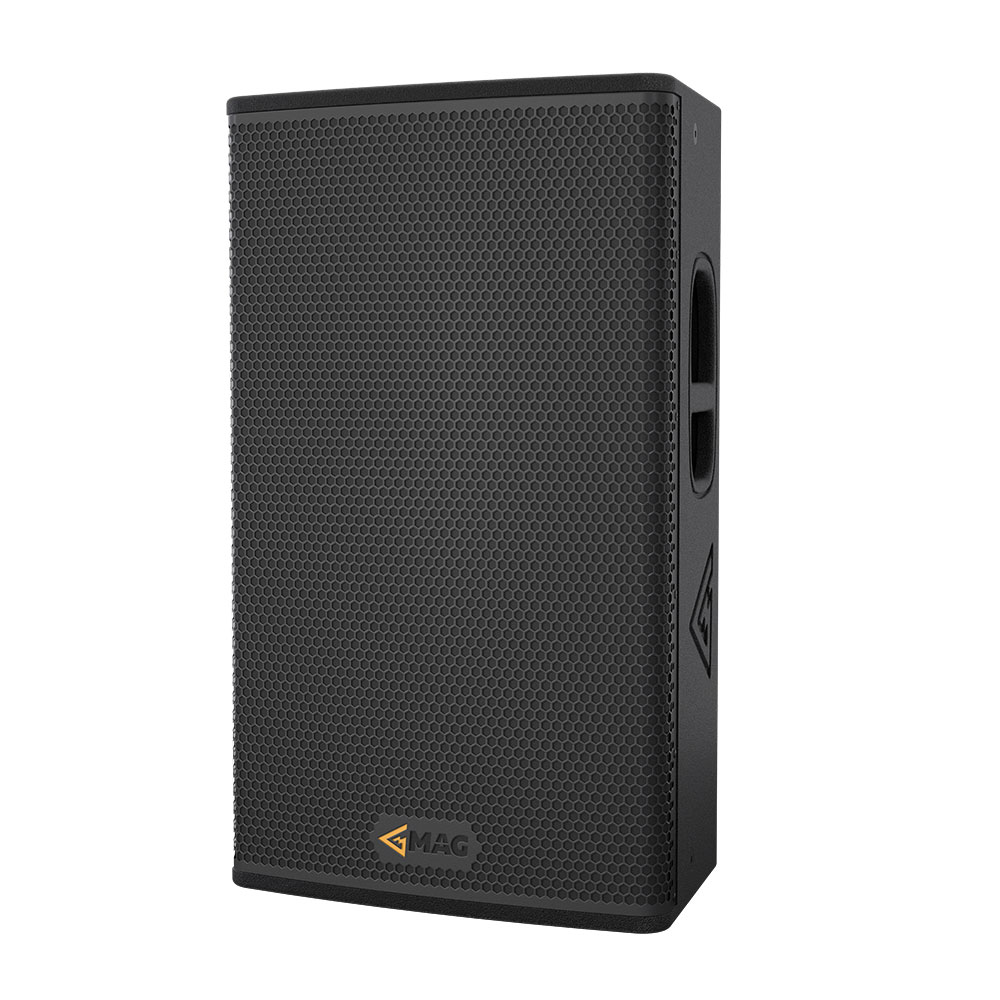

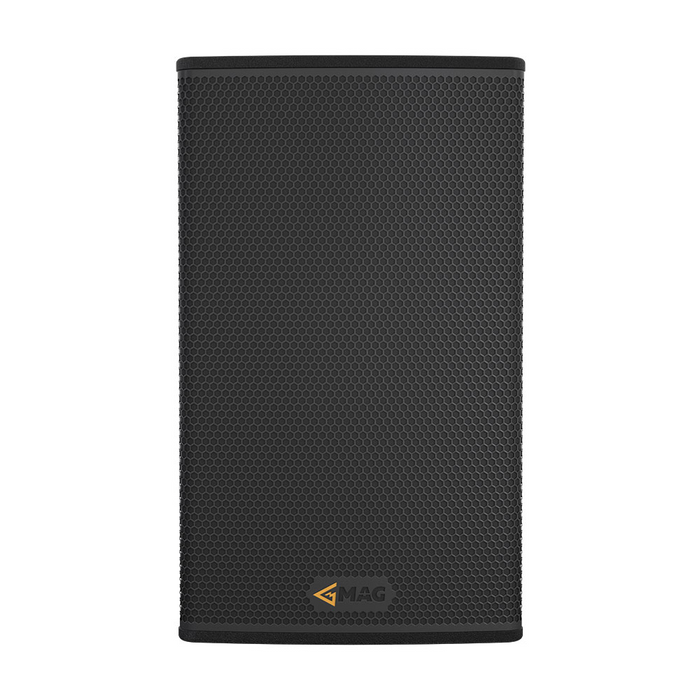

NX 15 is a passive full-range speaker, based on low distortion high performance 15” neodymium woofer and 1,5” neodymium HF driver. Powerful, lightweight, sonically superior and great looking – NX 15 is the speaker of choice of innovative rental companies, tour sound providers and complete sound reinforcement solution designers.
Product description:
Passive full-range speaker
Main features:
• 500W nominal power
• 15” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 134,5 dB Max SPL
• Pole mount adapter, M10 mounting points
Specifications
| Main | |
|---|---|
| Type | Passive full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) |
|
| Max SPL 1 | 134,5 dB |
| Sensitivity (1W/1m) | 98,5 dB |
| LF Driver | 15”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Impedance | 8 Ohm |
| Nominal power 2 | 500 W |

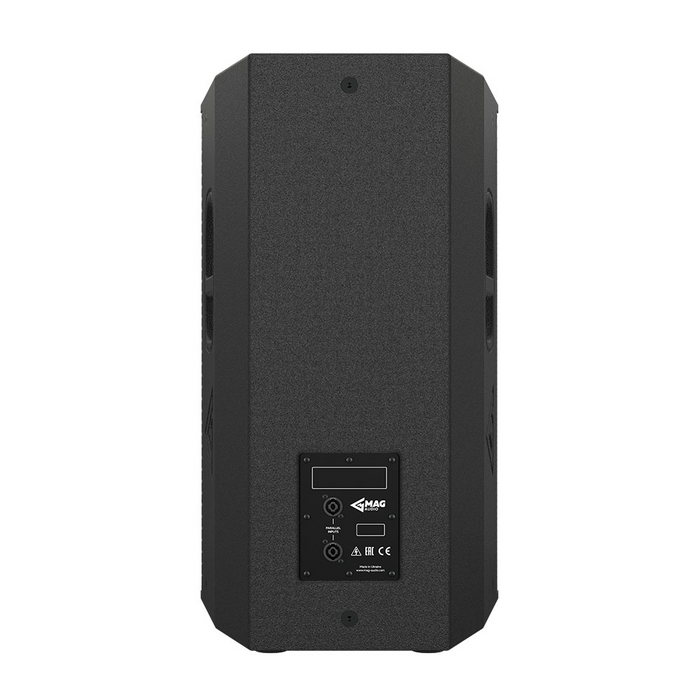

| Connectors | 2 x NeutrikSpeakon |
| Connections and physical data | |
| Dimensions (W x H x D) | 436 x 735 x 423 mm |
| Net weight | 26 kg |
| Shipping weight | 28 kg |

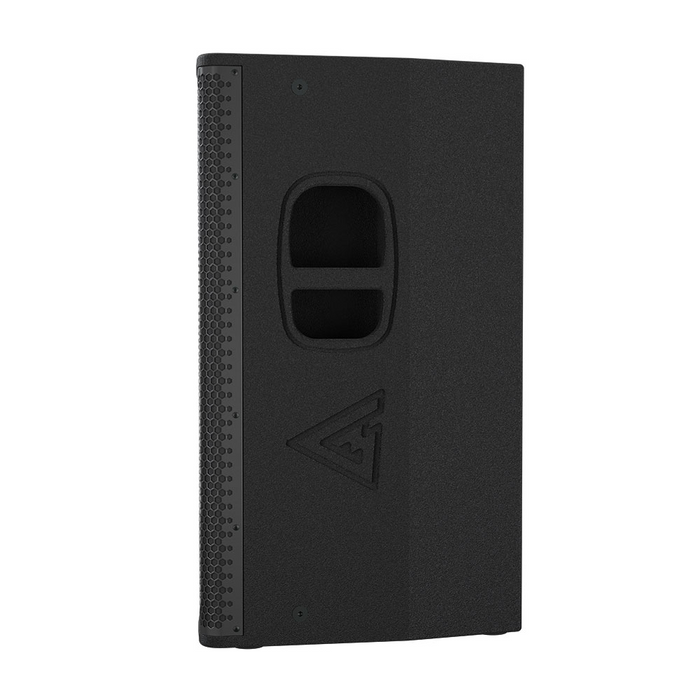

| Mounting | 10 x M10 mounting points, 35 mm pole socket, carrying handles, plastic feet |
| Enclosure material | Plywood; wear resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
