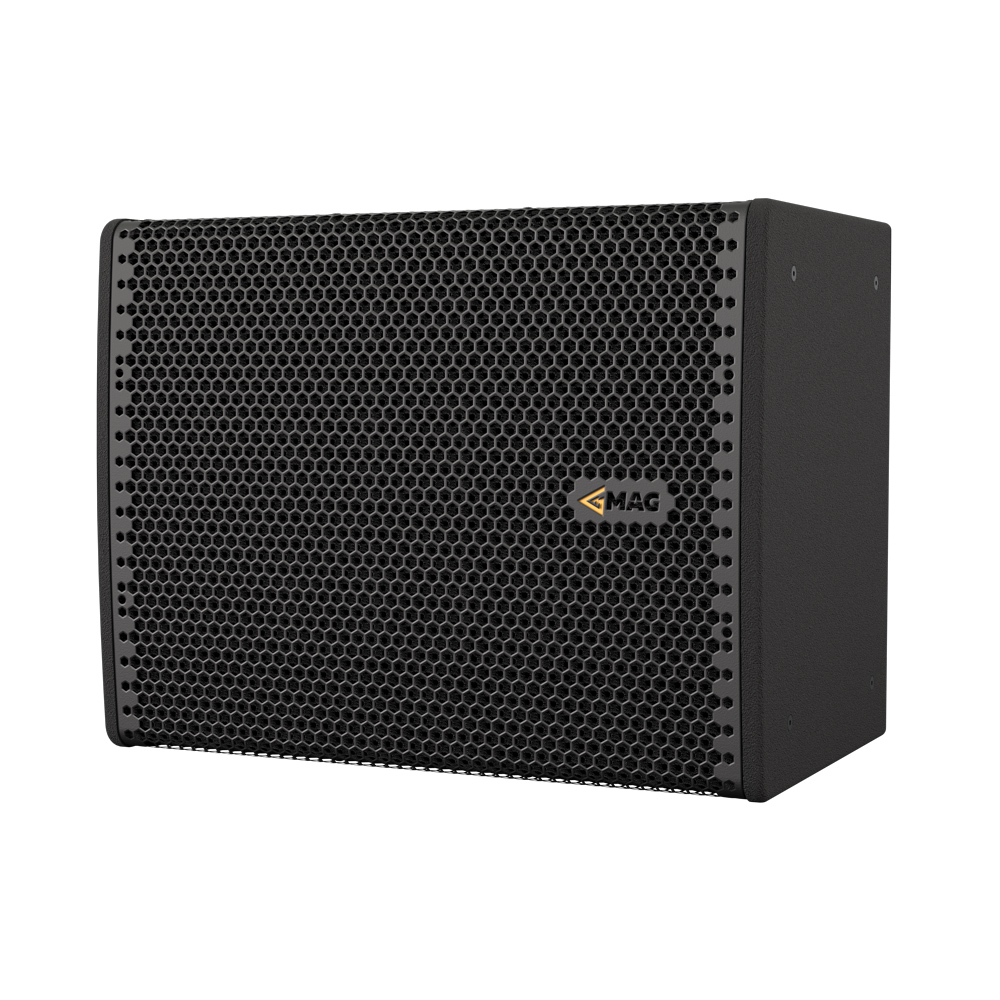

Cluster Q is an installation line array module, based on 4x 6" LF drivers and 2x 1" HF drivers with 1,75 voice coil each. Reliable enclosure and carefully designed components make the system perfect option for fixed installations of different sizes. Available in waterproof version.
Product description:
Installation line array module
Main features:
• 620W nominal power
• Four 6” woofers with 1,75” voice coil
• Two 1” HF driver with 1,75” voice coil
• 138 dB Max SPL
• Integrated flying hardware
Specifications
| Main | |
|---|---|
| Type | Installation line array module |
| Acoustical & Electrical data | |
| Frequency response (-10dB) |
|
| Max SPL 1 | 138 dB |
| Sensitivity (1W/1m) | 98 dB Low |
| Sensitivity (1W/1m) (in detail) | 98 dB Low / 113 dB High |
| LF Driver | 4 x 6", 1,75" VC |
| HF Driver | 2 x 1", 1,75" VC |
| Horizontal coverage | 60 deg |
| Vertical splay angle | 0 deg |
| Impedance | 8 Ohm Low / 16 Ohm High |
| Nominal power 2 | 520 W Low |
| Nominal power (in detail) 2 | 520 W Low / 100 W High |

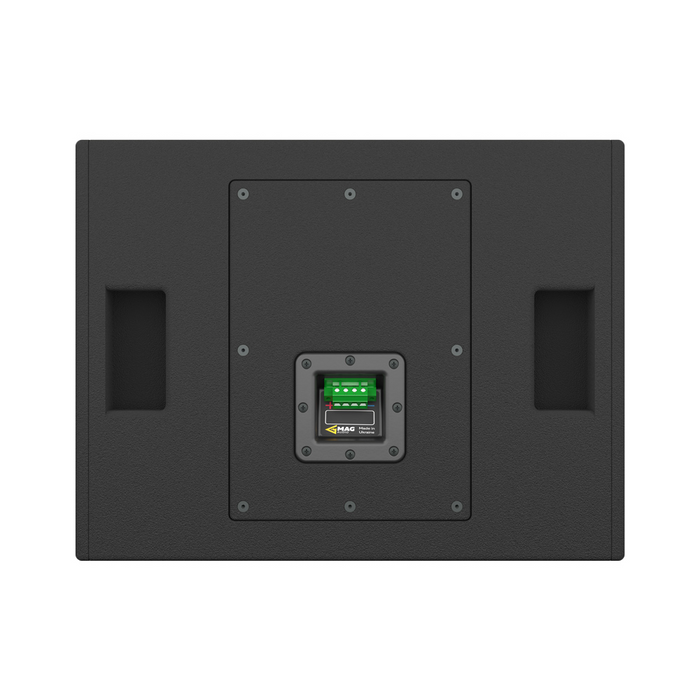

| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 480 x 368 x 295 mm |
| Net weight | 24 kg |
| Shipping weight | 26,5 kg |
| Mounting | Integrated rigging hardware |
| Enclosure material | Plywood; wear resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
