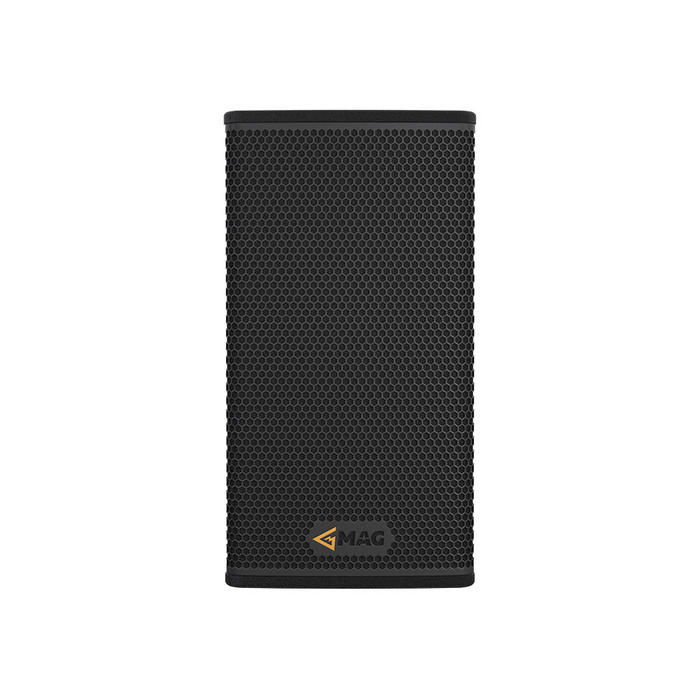

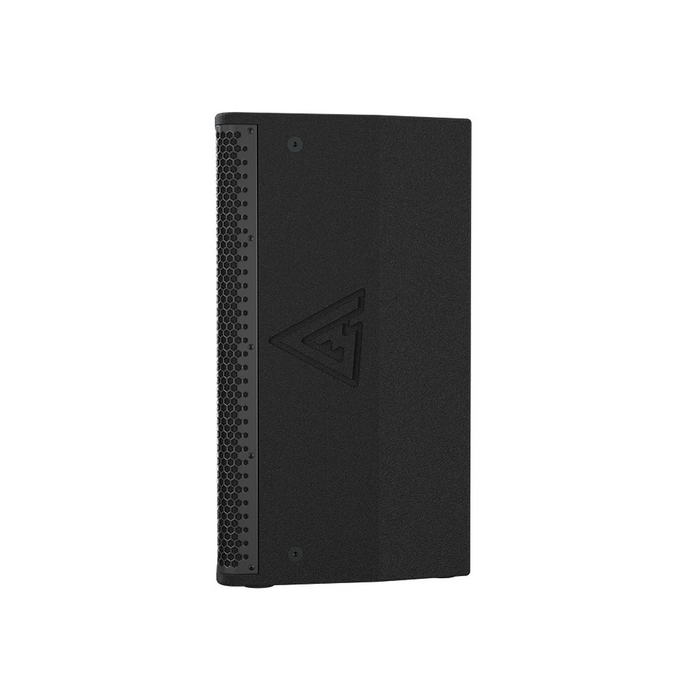

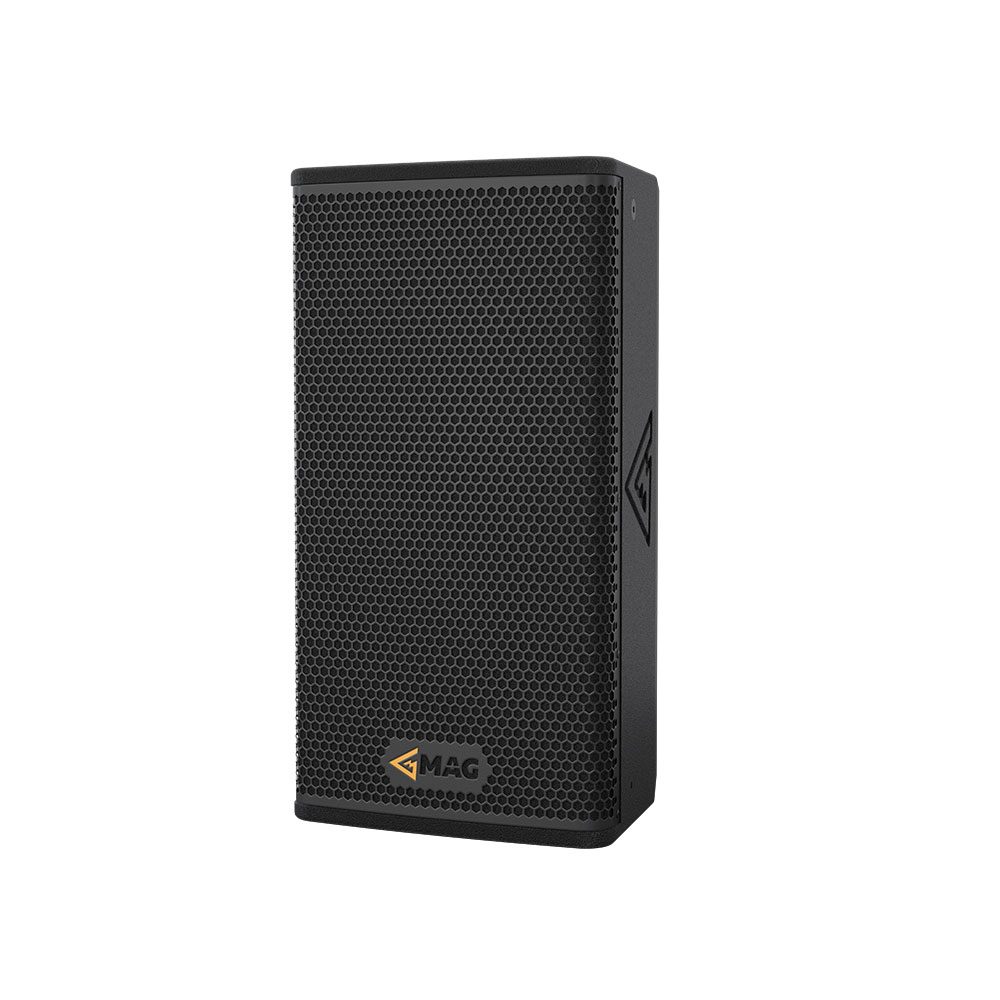

NX 10 is a passive full-range speaker, based on low-distortion 10” neodymium woofer and 1,5” neodymium HF driver. Small, transportation friendly, lightweight all neodymium speaker, the NX 10 adds immense value to any rental, touring rider or complete sound reinforcement set. It offers considerable power, smooth sonic performance, and compact dimensions.
Product description:
Passive full-range speaker
Main features:
• 500W nominal power
• 10” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 133 dB Max SPL
• Pole mount adapter, M10 mounting points
Specification
| Main | |
|---|---|
| Type | Passive full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 55 - 19000 Hz |
| Max SPL 1 | 133 dB |
| Sensitivity (1W/1m) | 97 dB |
| LF Driver | 10”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Impedance | 8 Ohm |
| Nominal power 2 | 500 W |

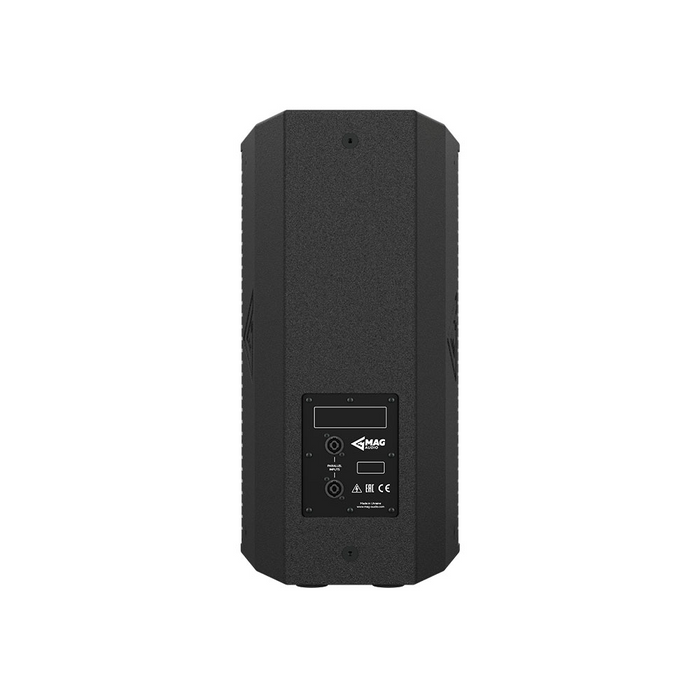

| Connectors | 2 x Neutrik Speakon |
| Connections and physical data | |
| Dimensions (W x H x D) | 319 x 605 x 336 mm |
| Net weight | 19 kg |
| Shipping weight | 21 kg |

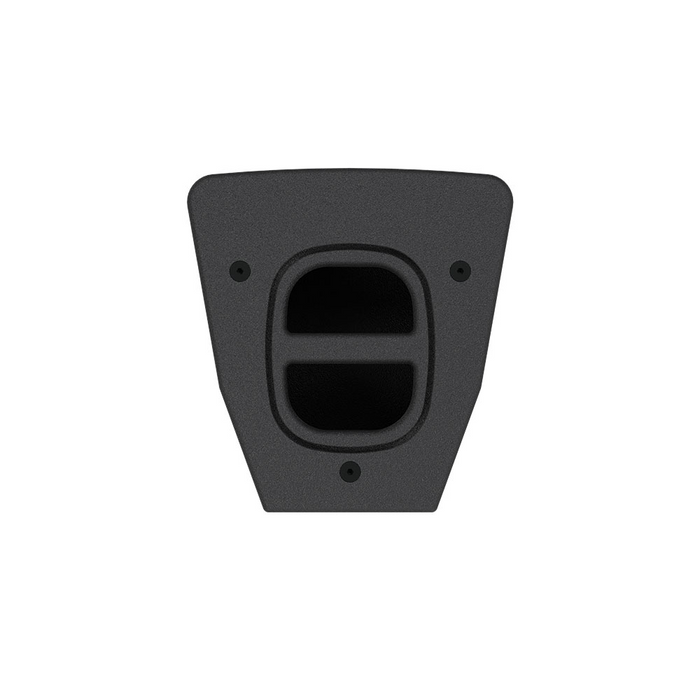

| Mounting | 10 x M10 mounting points, 35 mm pole socket, carrying handles, plastic feet |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
