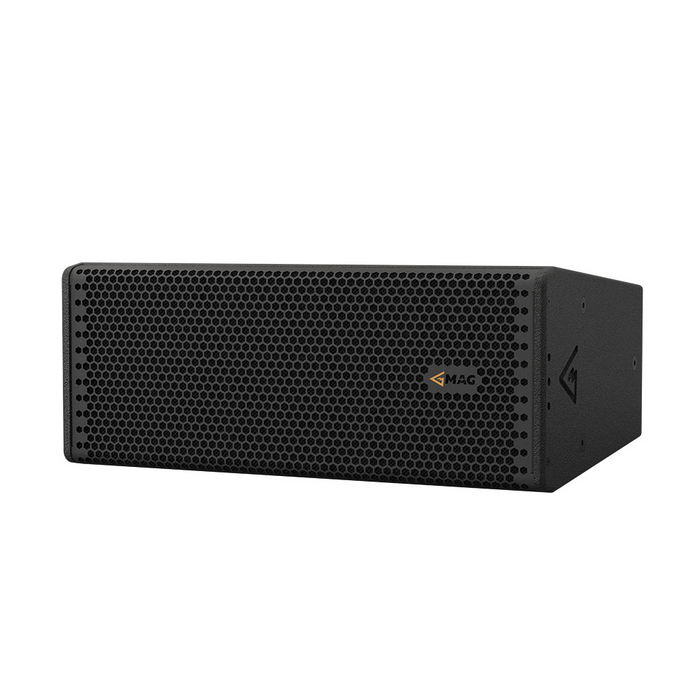

A tailored custom solution for specific projects based on WASP-8. Installation line array module, based on dual 8’’ woofers with 1,4’’ throat HF driver. Compact size, significant power and performance, and numerous installation options – it’s what make MAG Wasp-8i an ultimate solution for different applications, from small clubs to concert halls for a few thousand people.
Product Description:
Custom installation line array module
Main features:
- 600 W nominal power
- 2x8” woofers with 2,5” voice coil
- 1,4” HF driver with 2,8” voice coil
- 138 dB Max SPL
- Integrated flying hardware
Specifications
| Main | |
|---|---|
| Type | Installation line array module |
| Acoustical & Electrical data | |
| Frequency response (-10dB) |
|
| Max SPL 1 | 138 dB (single cabinet) |
| Sensitivity (1W/1m) | 98 dB Low |
| Sensitivity (1W/1m) (in detail) | 98 dB Low / 110 dB High |
| LF Driver | 2x 8", 2,5" VC |
| HF Driver | 1,4", 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 100° (WASP-8i-T110) / 70° (WASP-8i-T070) x Depends on the number of cabinets |
| Impedance | 16 Ohm LF, 16 Ohm HF |
| Nominal power 2 | 600 W Low |
| Nominal power (in detail) 2 | 600 W Low / 100 W High |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 608x244x364 mm |
| Net weight | 20 kg |
| Shipping weight | 23 kg |
| Mounting | Integrated mounting hardware |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
