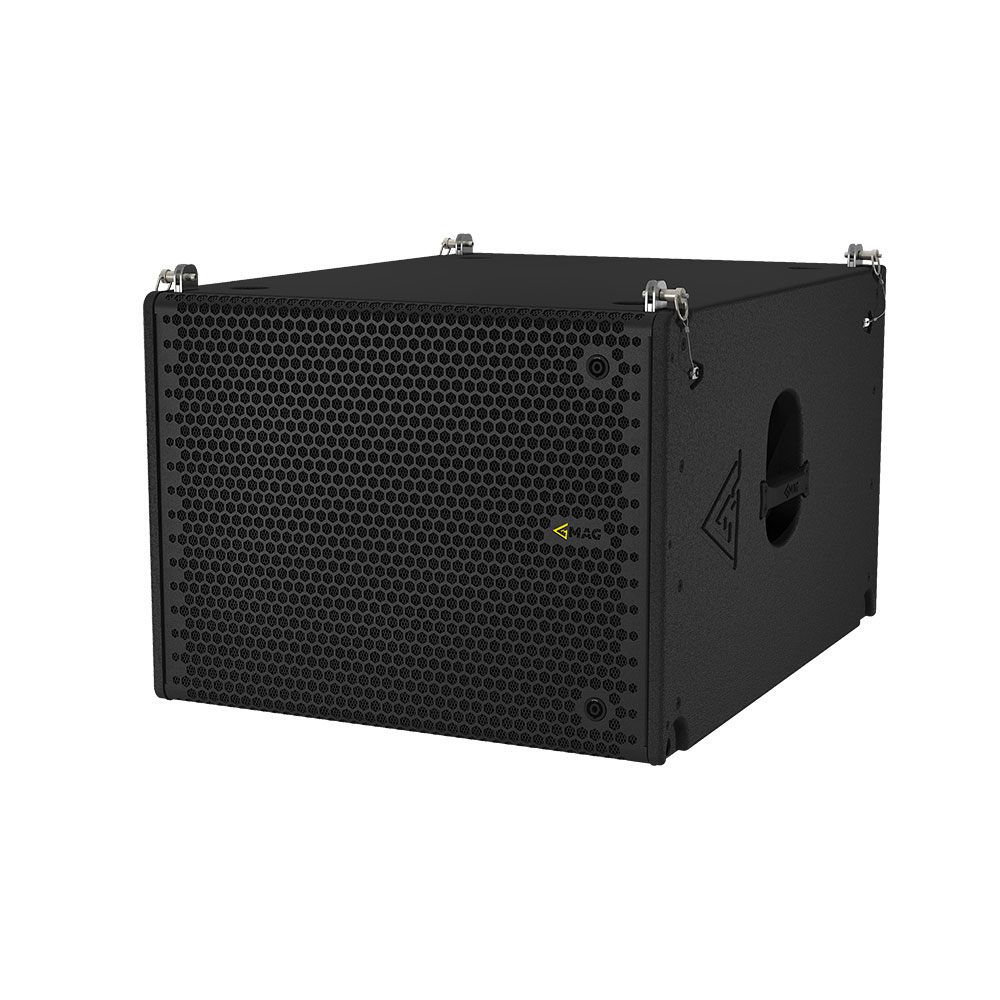

Purpose-made WASP-S12 has been designed to be a reliable low-frequency support for Wasp line array. Based on 12'' LF woofer, the system delivers 140 dB of sound pressure. Featuring specifically designed integrated hardware, WASP-S12 can be used both in a stack or in a flown cluster.
Product description:
Passive arrayable subwoofer
Main features:
• 950W nominal power
• 12” woofer with 4” voice coil
• Efficient hybrid horn design
• 140 dB Max SPL
• Integrated flying hardware
Specifications
| Main | |
|---|---|
| Type | Passive arrayable subwoofer |
| CONECTORS, INPUTS and OUTPUTS | |
| Connectors | 4x NeutrikSpeakon |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 42 - 140 Hz |
| Peak SPL 1 | 140 dB |
| Sensitivity (1W/1m) | 101 dB |
| LF Driver | 12", 4" VC |
| Impedance | 8 Ohm |
| Nominal power 2 | 950 W |
| Connections and physical data | |
| Dimensions (W x H x D) | 622x493x765 mm |
| Net weight | 44,6 kg |
| Shipping weight | 47,6 kg |
| Mounting | Intergrated flying hardware |
| Enclosure material | Plywood; wear-resistant paint |
| Grill | Steel grill, synthetic acoustically transparent cloth |
