The PD-2T604 is a power distributor that allows you to connect several sound amplifiers and serves to branch the main power cable for the most correct distribution of power during the mounting and installation of various acoustic systems.

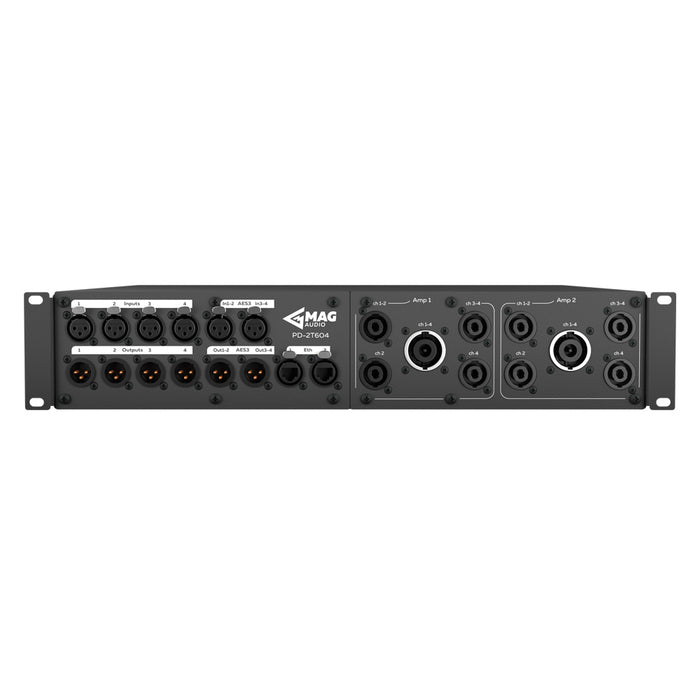

PD-2T604 has a metal case standard 19” with a 2U front connecting panel, providing ultimate mounting convenience for any installation.
The PD-2T604 can be used with a wide range of MAG Audio systems. This Power Distributor is installed in MN Mounting racks, in a touring-grade AmpRack, and MAG Audio WAR universal fly racks hanging for group setups in the sound systems. It has a wide range of different applications for the most correct distribution of power during the mounting.
Inputs and Outputs:
Power Input:
- AC 16A 230V
Analog signal connection:
- 4 x XLR input;
- 4 x XLR link
AES/EBU:
- 2 x XLR input;
- 2 x XLR link
Ethernet:
- 2 x EtherCon
Speaker outputs:
- 8 x Speakon 4 pin,
- 2 x Speakon 8 pin
Main connections:
- CEE 32 3P+N+E (32A) input;
- CEE 32 3P+N+E (32A) link
Power output:
- 2 x C19,
- 1 x AUX SHUCKO
Connectors:
- Neutrik
- PCE
