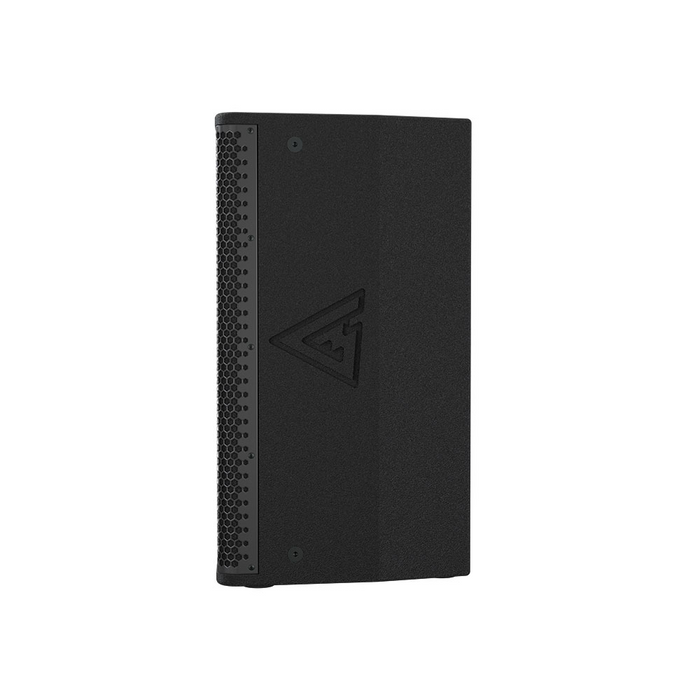

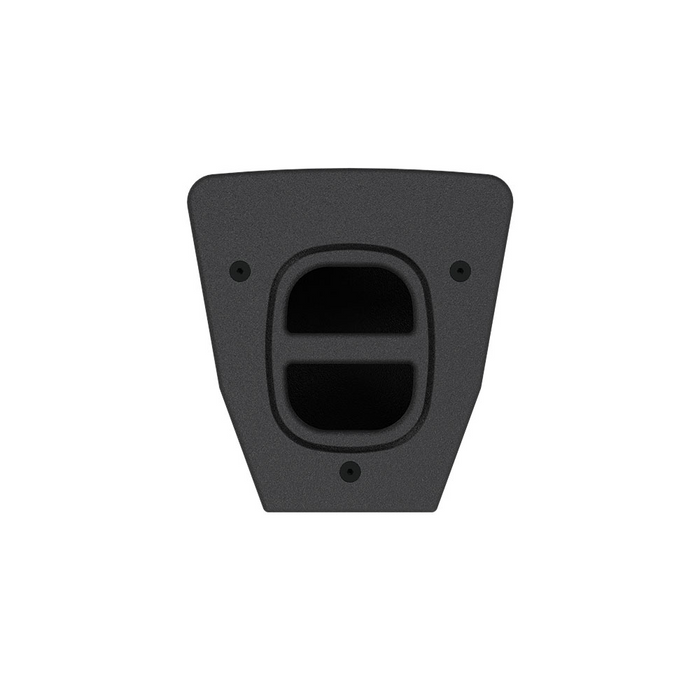

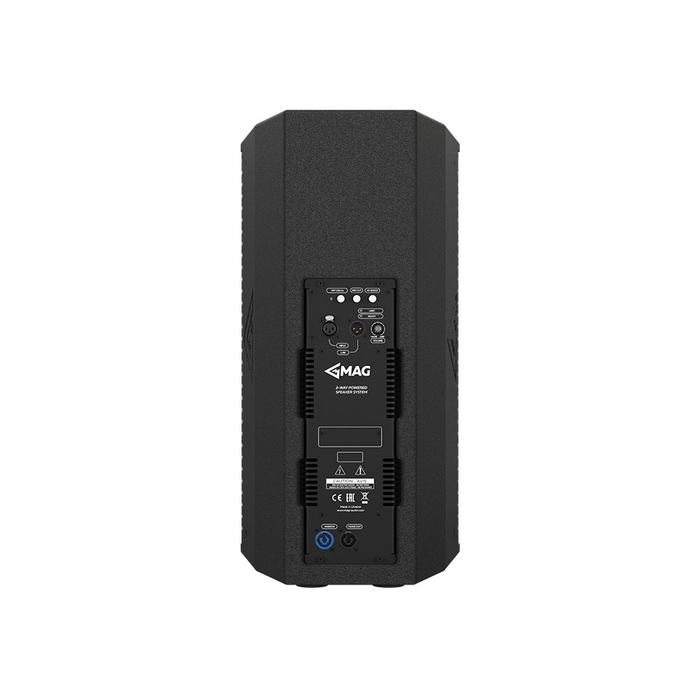

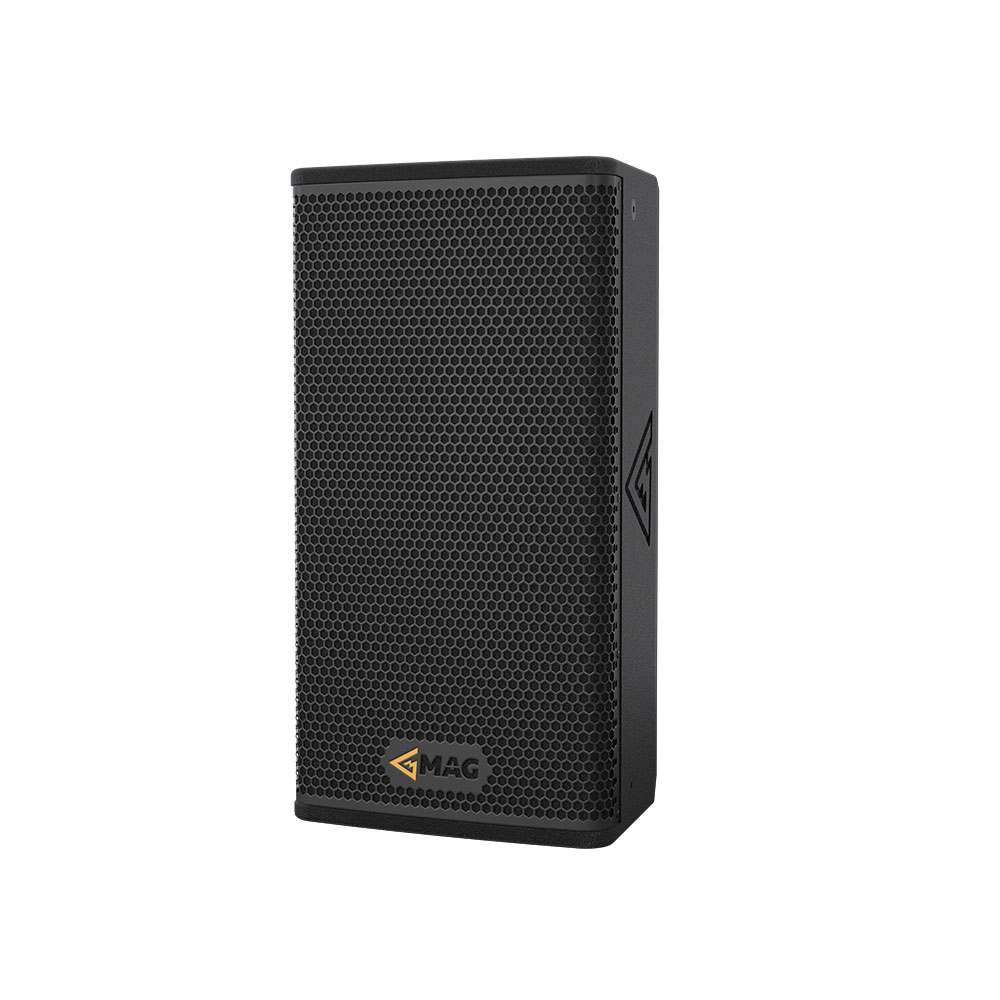

NX 10A is a powered full-range speaker, based on low-distortion 10” neodymium woofer and 1,5” neodymium HF driver. Small, transportation-friendly, lightweight all neodymium speaker, the NX 10A adds immense value to any rental, touring rider or complete sound reinforcement set. It offers considerable power, smooth sonic performance, and compact dimensions.
Product description:
Powered full-range speaker
Main features:
• 900 + 500 W nominal power
• 10” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 134 dB Max SPL
• Pole mount adapter, M10 mounting points
Specification
| Main | |
|---|---|
| Type | Powered full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 55 - 19000 Hz |
| Max SPL (calculated) | 134 dB |
| LF Driver | 10”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Amplifier power | 900+500 W |
| Input sensitivity | 0 dBV (1 V RMS) |
| Amplifier | Class D, fan cooling, DSP with phase-linear FIR |
| Connectors | XLR input, XLR output, Powercon mains |
| Connections and physical data | |
| Dimensions (W x H x D) | 319 x 605 x 336 mm |
| Net weight | 22 kg |
| Shipping weight | 24 kg |
| Mounting | 10 x M10 mounting points, 35 mm pole socket, Carrying handles, Plastic feet |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
