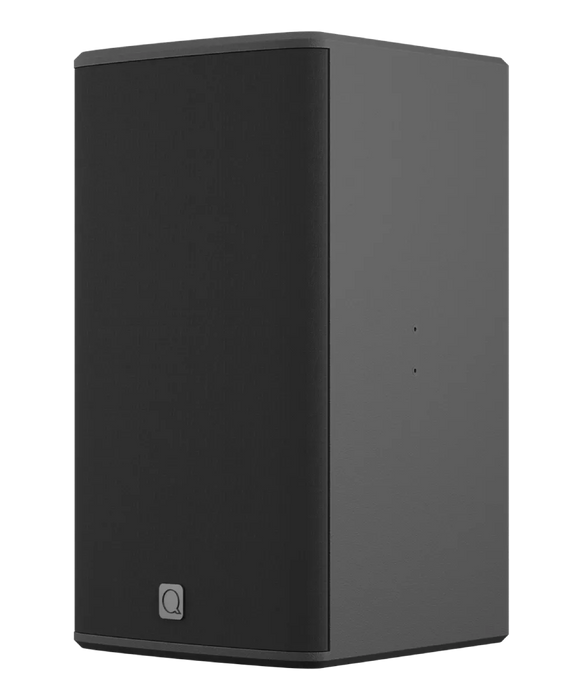

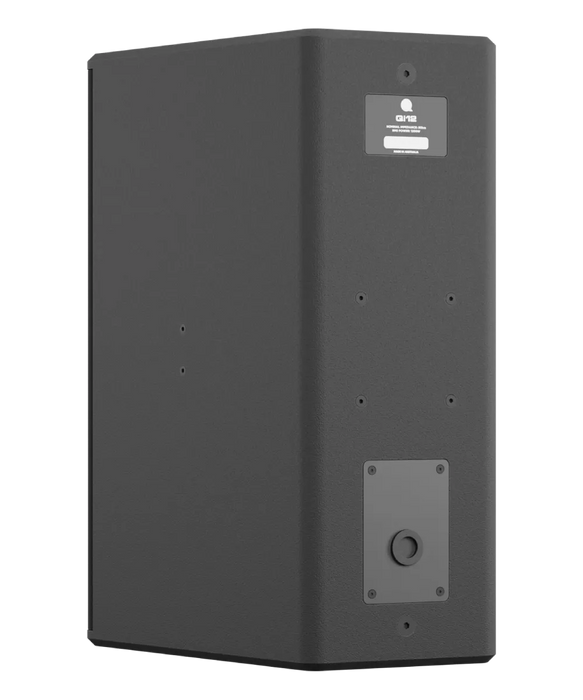

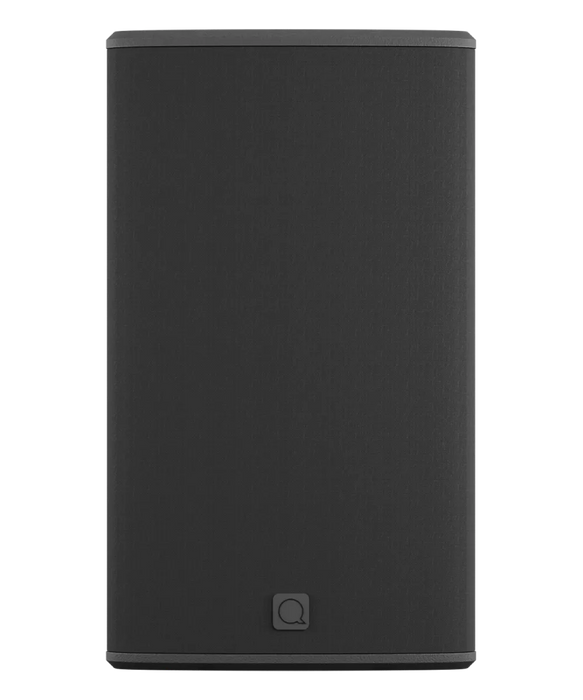

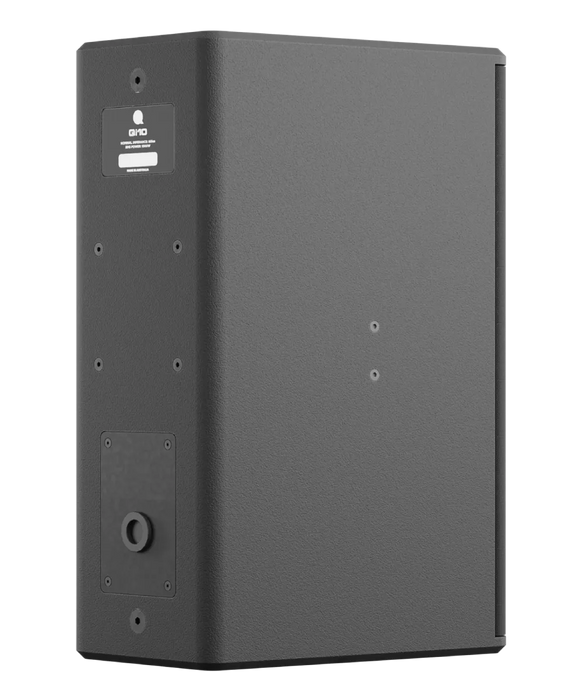

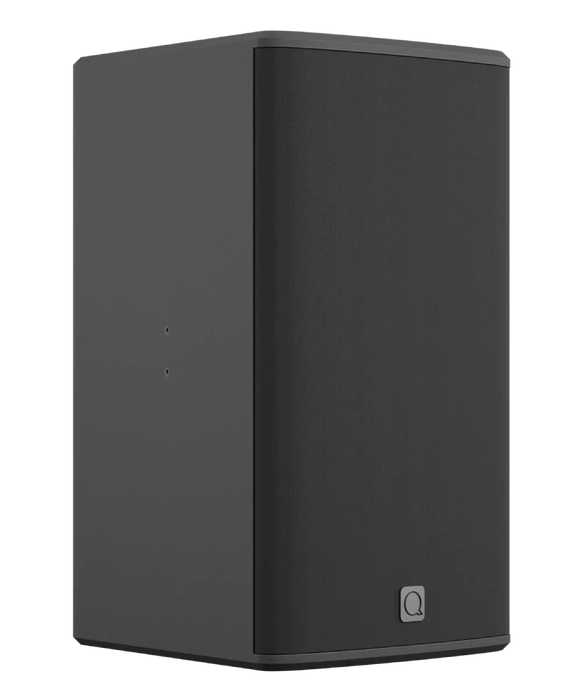

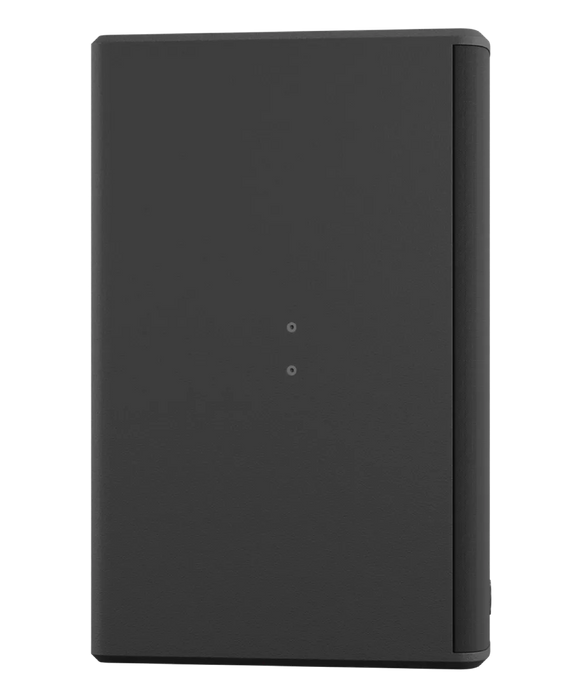

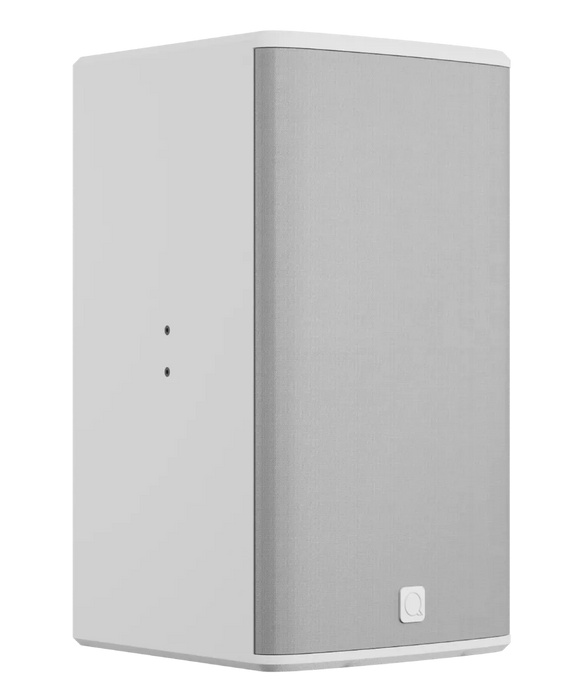

The Quest Qi12 represents a sophisticated evolution in permanent installation audio, combining precision engineering with elegant design. Its finely crafted timber cabinet and smooth acoustic grille integrate discreetly into architectural spaces. The 80° x 50° rotatable waveguide, paired with an integrated bi-amp/passive switch, provides flexible configuration options. Designed for seamless integration with Quest QXD amplifiers—equipped with comprehensive digital control and DSP pre-sets—the Qi12 delivers reliable, high-fidelity performance across diverse applications.
Key Specifications:
- Impedance: 8 Ω
- Transducers: 1.4″ HF & 12″ LF
- Dispersion: 80° x 50°
- Horn: Rotatable
- Power: 300W RMS
- Mounting: Horizontal & Vertical Brackets
Specifications:
| FREQUENCY RESPONSE (-6 dB) |
60Hz to 18kHz
|
| SENSITIVITY - 1 W @ 1 m |
96dB
|
| MAXIMUM SPL @ 1 m |
126dB
|
| POWER HANDLING (RMS/PEAK) |
300W / 600W
|
| NOMINAL IMPEDANCE |
8Ω
|
| TRANSDUCERS |
HF: 35mm (1.4") Compression Driver / LF: 305mm (12") Woofer
|
| DISPERSION (H° x V°) |
80° x 50°
|
| ROTATABLE HORN |
Yes
|
| CONNECTIONS |
4-Pin Euroblock/Phoenix Connector - 7.62mm Pitch (In/Thru)
|
| RIGGING POINTS |
Yes
|
| DIMENSIONS (H x W x D) |
620 x 360 x 398mm (24.4" x 14.2" x 15.7")
|
| WEIGHT |
24.8kg (54.7lb)
|
| SHIPPING WEIGHT |
25.5kg (56.2lb)
|
| SHIPPING DIMENSIONS (H x W x D) |
755 x 490 x 450mm (29.7” x 19.3” x 17.7”)
|
| CABINET MATERIAL & FINISH |
Marine Plywood with Polyurea Coating
|
| GRILLE MATERIAL & FINISH |
Steel mesh with Polyester Fiber Fabric
|
| RECOMMENDED POWER AMPLIFIER |
Quest QX or QXD Amplifiers
|
| ACCESSORIES (INCLUDED) |
Euroblock/Phoenix Connector, Cover Plate
|
| ACCESSORIES (AVAILABLE SEPARATELY) |
Horizontal Bracket (HBRQi12) Vertical Bracket (VBRQi12)
|
