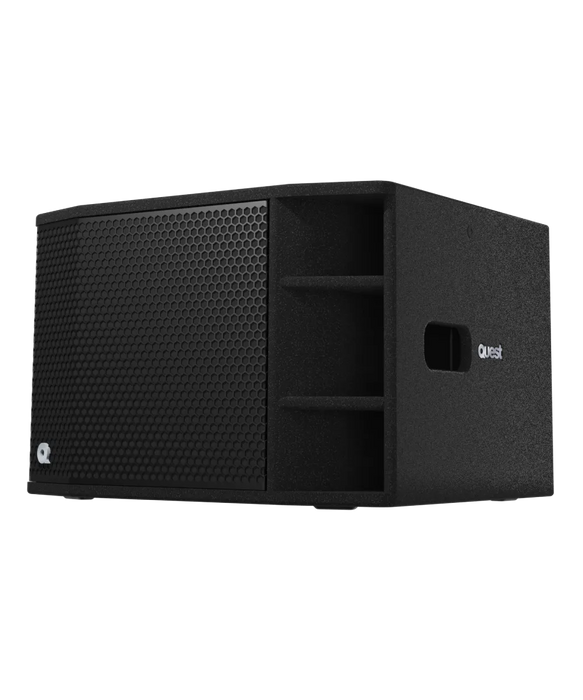

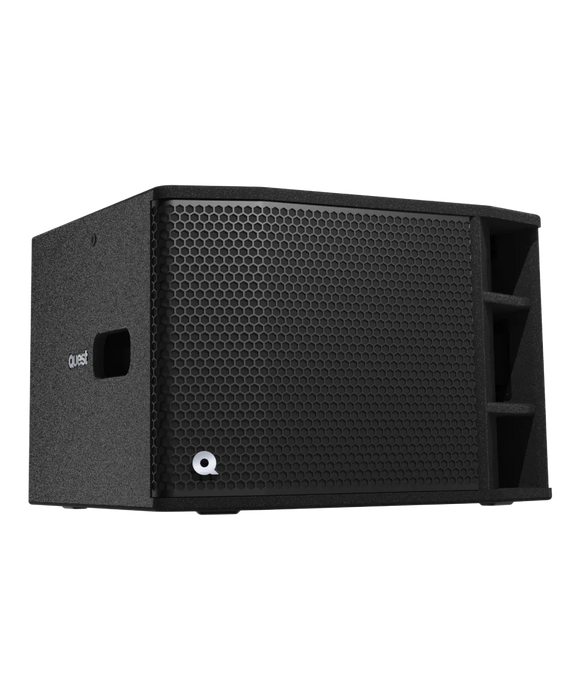

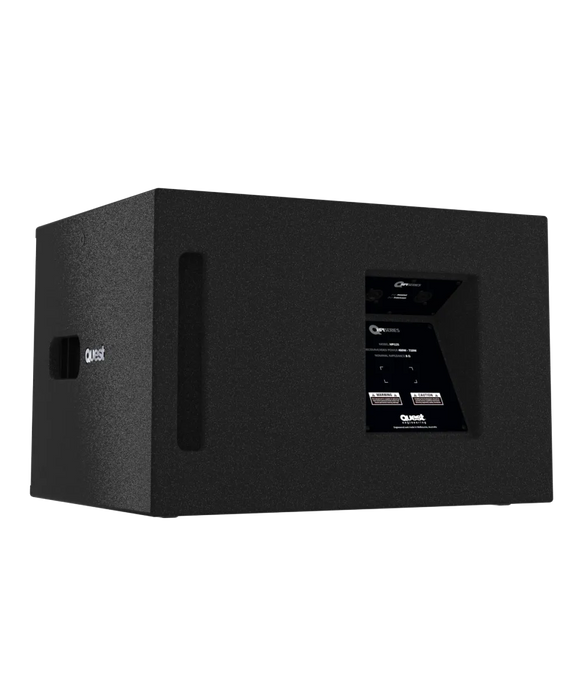

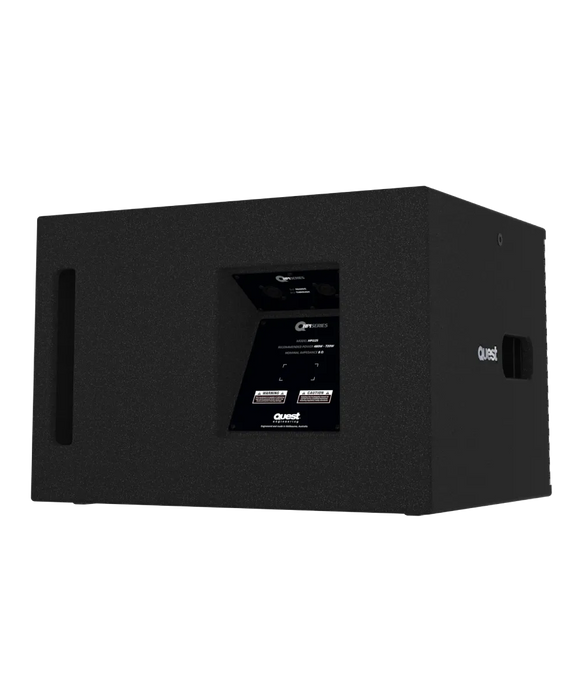

The Quest HPI12S is an ultra-compact sub-bass solution engineered to deliver substantial low-frequency output from a minimal footprint. Despite its small size, it produces robust, authentic bass that complements all HPI speakers. Its driver, designed and developed in Australia using eucalyptus pulp, not only delivers exceptional sonic performance but also reflects a commitment to sustainable engineering. With a streamlined design that maintains a low visual profile, the HPI12S integrates seamlessly into both mobile and permanent installations.
Key Specifications:
- Impedance: 8 Ω
- Transducer: 12″ LF
- Power: 600W RMS
Product Specifications:
| FREQUENCY RESPONSE (-6 dB) |
40 Hz to 160 Hz
|
| SENSITIVITY - 1 W @ 1 m |
92 dB
|
| MAXIMUM SPL @ 1 m |
128 dB
|
| POWER HANDLING (RMS/PEAK) |
480 W / 720 W
|
| NOMINAL IMPEDANCE |
8 Ω
|
| TRANSDUCERS |
LF: 305 mm (12") Woofer
|
| DISPERSION (H° x V°) |
Omnidirectional
|
| CONNECTIONS | |
| CONNECTIONS |
2 x speakON Connector (In/Thru)
|
| RIGGING POINTS |
None
|
| DIMENSIONS (H x W x D) |
470 x 540 x 365 mm (18.5" x 21.2" by 14.3")
|
| WEIGHT |
20.5 kg (45.2 lb)
|
| SHIPPING WEIGHT |
22.2 kg (48.9 lb)
|
| SHIPPING DIMENSIONS (H x W x D) |
660 x 550 x 470 mm (26" x 21.6" x 18.5")
|
| CABINET MATERIAL & FINISH |
Plywood Cabinet with Polyurea Coating
|
| GRILLE MATERIAL & FINISH |
N/A
|
| RECOMMENDED POWER AMPLIFIER |
Quest QX Amplifiers
|
| ACCESSORIES (INCLUDED) |
None
|
| ACCESSORIES (AVAILABLE SEPARATELY) |
None
|
