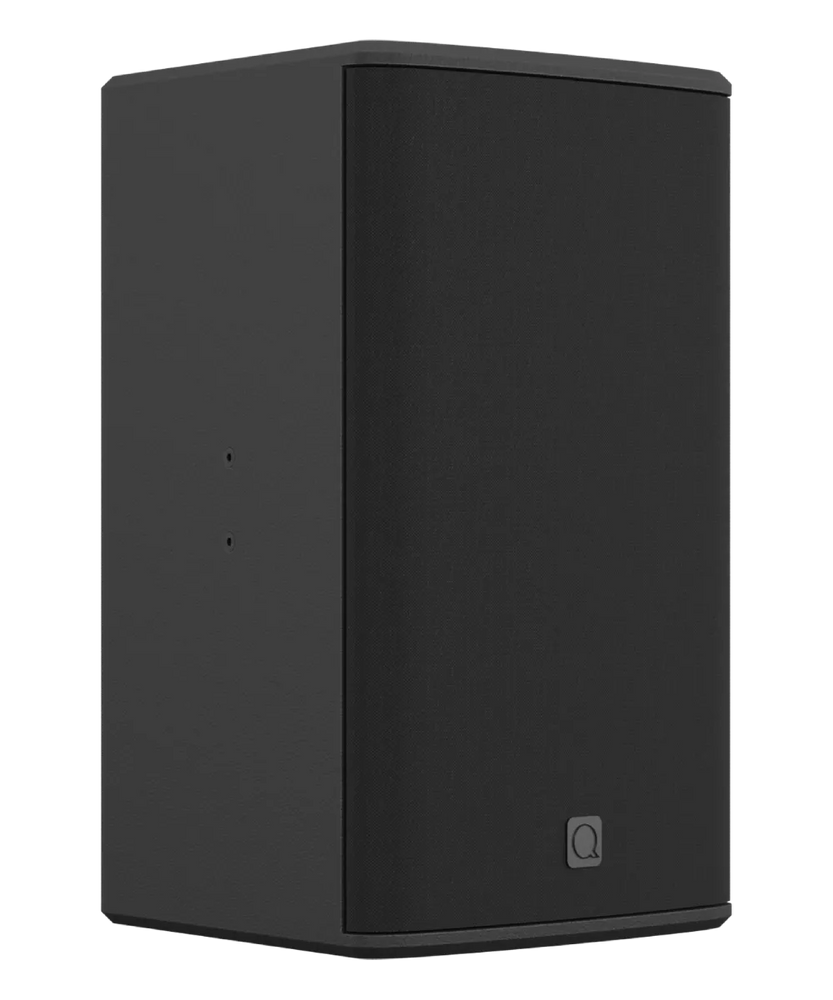

The Quest Qi8E extends the performance and refined aesthetics of the Qi8 into into environments requiring enhanced durability and weather resistance. Constructed from premium marine-grade plywood and coated inside and out with a rugged, waterproof polyurea finish, the Qi8E is engineered to withstand harsh environmental conditions while preserving its acoustic integrity. All fasteners and the grille are stainless steel, ensuring maximum corrosion resistance. Delivering powerful, articulate audio performance with discreet, weather-resistant construction, the Qi8E is an ideal solution for outdoor hospitality, retail, and commercial spaces.
Key Specifications:
- Impedance: 8 Ω
- Transducers: 1″ HF & 8″ LF
- Dispersion: 90° x 70°
- Horn: Rotatable
- Power: 200W RMS
- Mounting: Horizontal & Vertical Brackets
- Weather Rating: IP55
Specifications:
| FREQUENCY RESPONSE (-6 dB) |
60Hz to 20kHz
|
| SENSITIVITY - 1 W @ 1 m |
92dB
|
| MAXIMUM SPL @ 1 m |
121dB
|
| POWER HANDLING (RMS/PEAK) |
200W / 400W
|
| NOMINAL IMPEDANCE |
8Ω
|
| TRANSDUCERS |
HF: 25mm (1") Compression Driver / LF: 203mm (8") Woofer
|
| DISPERSION (H° x V°) |
90° x 70°
|
| ROTATABLE HORN |
Yes
|
| CONNECTIONS |
4-Pin Euroblock/Phoenix Connector - 5.08mm Pitch (In/Thru)
|
| RIGGING POINTS |
Yes
|
| IP RATING |
IP55
|
| DIMENSIONS (H x W x D) |
440 x 270 x 270mm (17.3" x 10.6" x 10.6")
|
| WEIGHT |
11.1kg (24.5lb)
|
| SHIPPING WEIGHT |
11.5kg (25.4lb)
|
| SHIPPING DIMENSIONS (H x W x D) |
535 x 340 x 340mm (21” x 13.4” x 13.4”)
|
| CABINET MATERIAL & FINISH |
Marine Plywood with Marine Grade UV Resistant Polyurea Coating
|
| GRILLE MATERIAL & FINISH |
Stainless Steel mesh with Polyester Fiber Fabric
|
| RECOMMENDED POWER AMPLIFIER |
Quest QX or QXD Amplifiers
|
| ACCESSORIES (INCLUDED) |
Euroblock/Phoenix Connector, Cover Plate
|
| ACCESSORIES (AVAILABLE SEPARATELY) |
Horizontal Bracket (HBRQi8) Vertical Bracket (VBRQi8)
|
