Field series' design allows for easy coupling allowing engineer to create a tailored solution for the best coverage and clarity in clustered distributed systems domed stadiums, arenas, and other large open-air spaces.
With a comprehensive range of mounting accessories engineered for permanent installation, the Field series is prepared to deliver controlled sound into the most difficult installations.

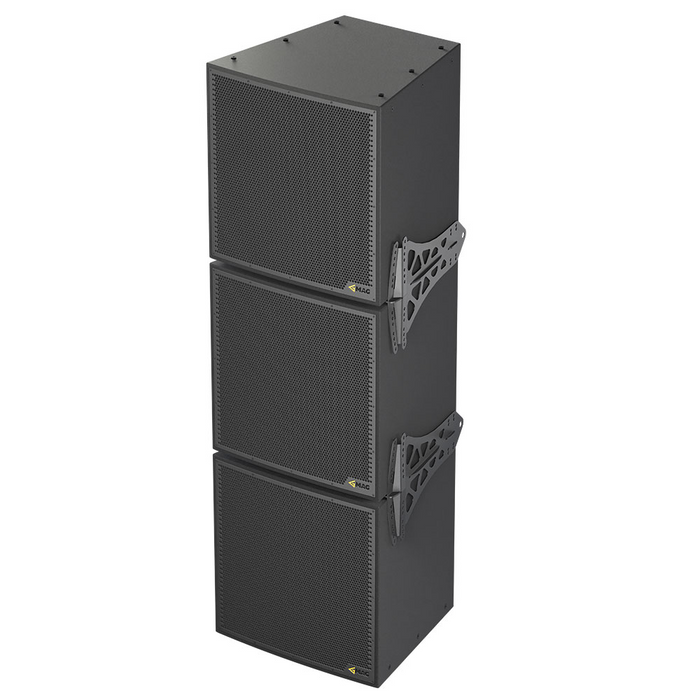

FD-S15 is a hybrid-horn subwoofer extending the operation of the Field series for truly full-range applications. Compatible IP55 enclosure allows to integration of FD-S15 straight into FD-52 clusters for convenience of system engineering, deployment, and amplification.
Product Description:
Weather-resistant installation subwoofer
Main features:
-
1000 W nominal power
- 15” woofer
- 141 dB Max SPL
Specification
| Main | |
|---|---|
| Type | Weather-resistant installation subwoofer |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 43 - 200 Hz |
| Max SPL 1 | 141 dB |
| Sensitivity (1W/1m) | 102 dB |
| Impedance | 8 Ohm |
| Nominal power 2 | 1000 W |
| Drivers | 15" woofer |
| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 760 x 762 x 708 mm |
| Net weight | 60 kg |
| Shipping weight | 63 kg |
| Mounting | 24 x M10 Mounting points |
| Enclosure material | Plywood; polyurethane environmental resistant paint |
| Weather protection | IP 55 |
| Speaker protection | Steel grill, acoustically transparent backing |
