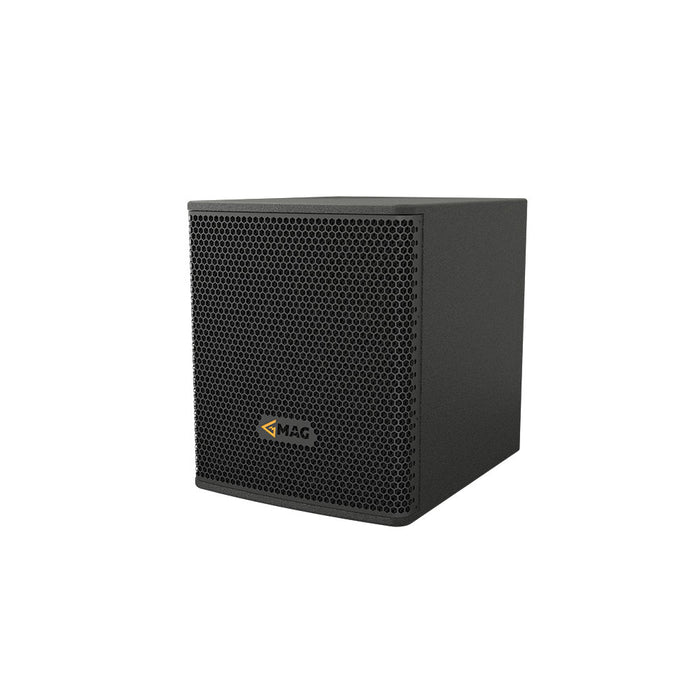

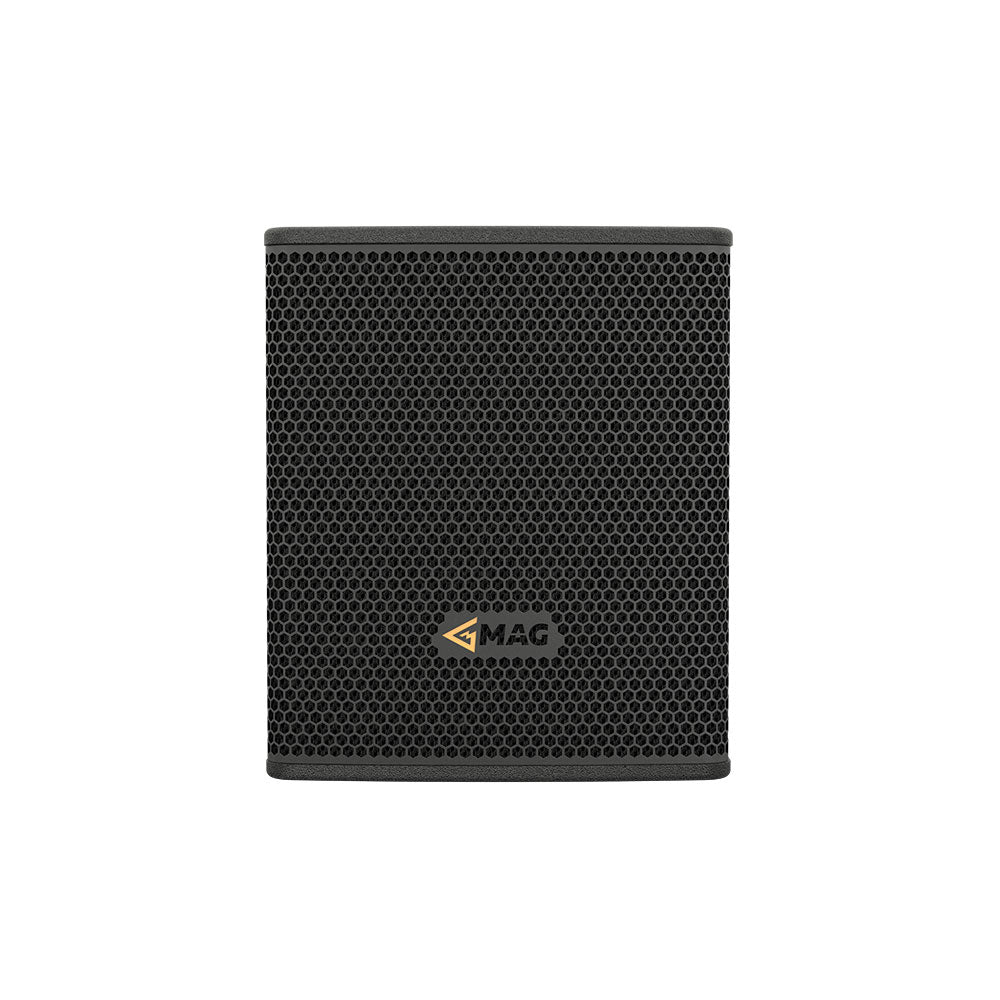

With significant sound pressure output and compact enclosure, Sub 12 IP is a versatile low-frequency extension loudspeaker for reinforcing full-range cabinets. Based on own produced long excursion 12” woofer, Sub 12 IP is perfect for mobile sound system or small-scaled installation due to its' compact enclosure and light weight.
Product description:
Weather-resistant subwoofer
Main features:
- 450W nominal power
- 12” woofer with 3” voice coil
- Efficient vented box design
- 133,5 dB Peak SPL
Specifications
| Main | |
|---|---|
| Type | Weather-resistant subwoofer |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 45 - 300 Hz |
| Peak SPL 1 | 133,5 dB |
| Sensitivity (1W/1m) | 95 dB |
| LF Driver | 12", 3" VC |
| Impedance | 4 / 8 Ohm |
| Nominal power 2 | 450 W |
| Connectors | Speakon |
| Connections and physical data | |
| Dimensions (W x H x D) | 400 x 480 x 494 mm |
| Net weight | 29 kg |
| Shipping weight | 32 kg |
| Weather protection | IP54 weather-protection |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
