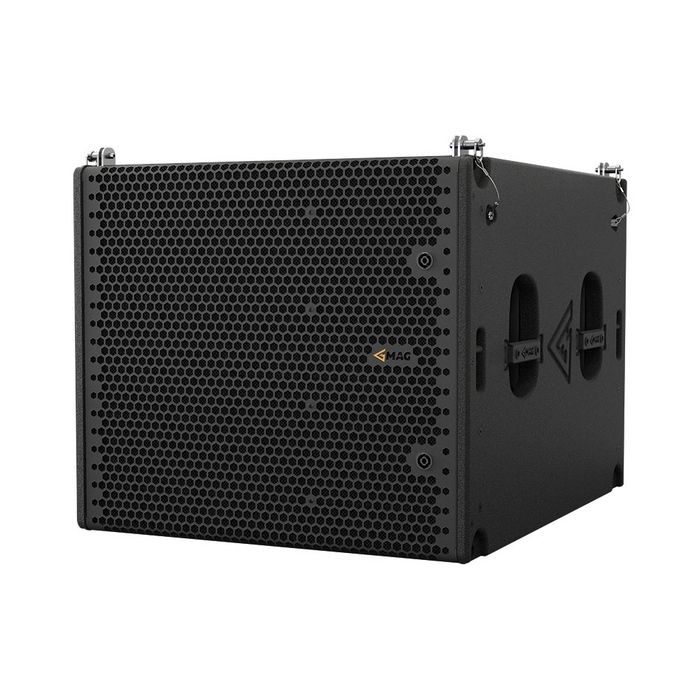

Purpose-made WASP-S18 has been designed to be a reliable low-frequency support for Wasp line array. Based on 18'' LF woofer, the system delivers 141 dB of sound pressure. Featuring specifically designed integrated hardware, WASP-S18 can be used both in a stack or in a flown cluster.
Product description:
Passive arrayable subwoofer
Main features:
- 1300 W nominal power
- 18” woofer with 4” voice coil
- 141 dB Peak SPL
- Efficient hybrid horn design
- Integrated flying hardware
Specifications
| Main | |
|---|---|
| Type | Passive arrayable subwoofer |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 32 – 200 Hz |
| Peak SPL 1 | 141 dB |
| Sensitivity (1W/1m) | 98 dB |
| LF Driver | 18", 4" VC |
| Impedance | 8 Ohm |
| Nominal power 2 | 1300 W |
| Connectors | 4 x NeutrikSpeakon |
| Connections and physical data | |
| Dimensions (W x H x D) | 622 x 567 x 765 mm |
| Net weight | 47,8 kg |
| Shipping weight | 50,8 kg |
| Mounting | Intergrated flying hardware, M20 distance pole adapter |
| Enclosure material | Plywood; wear-resistant paint |
| Grill | Steel grill, synthetic acoustically transparent cloth |
