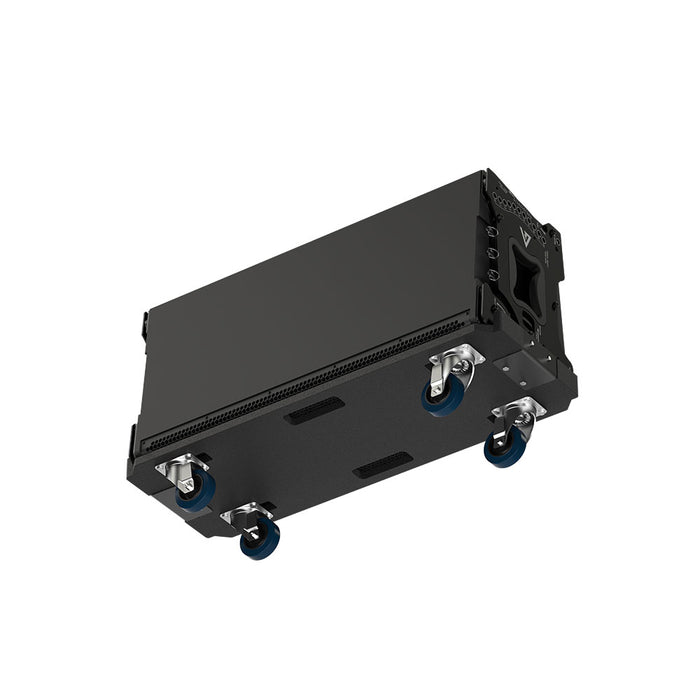

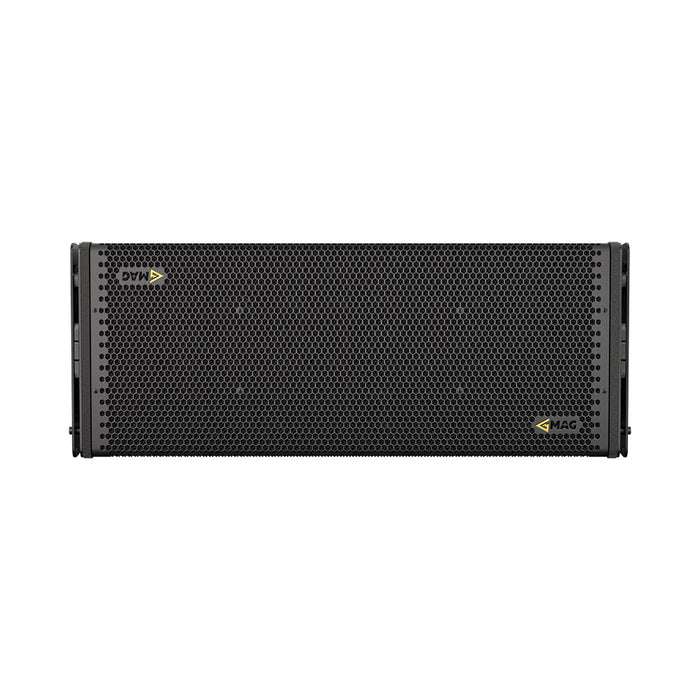

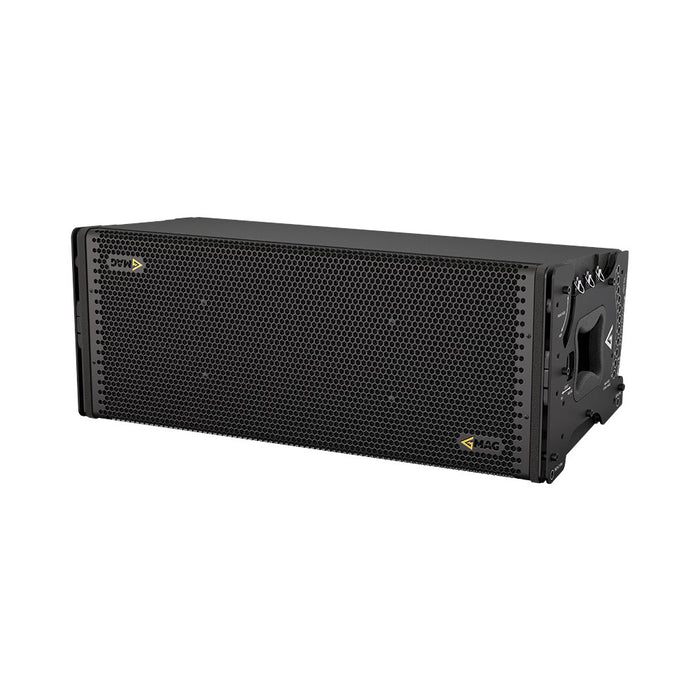

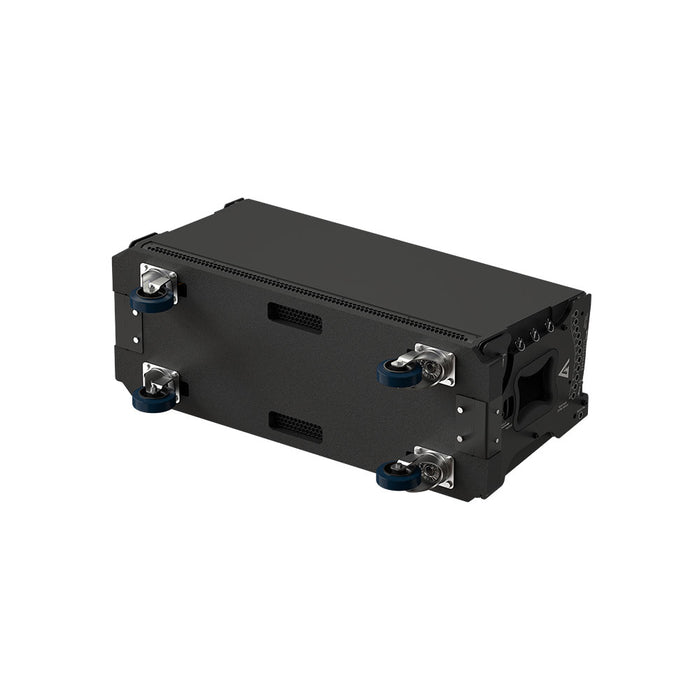

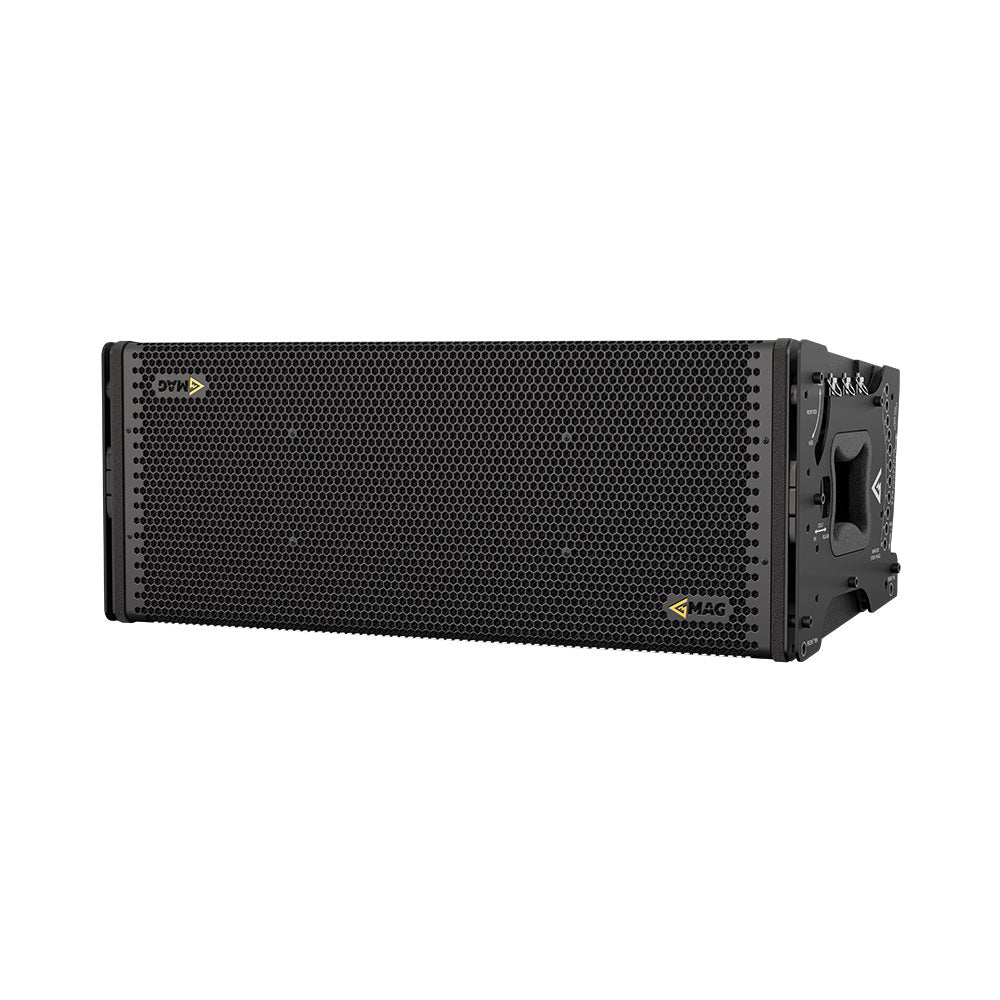

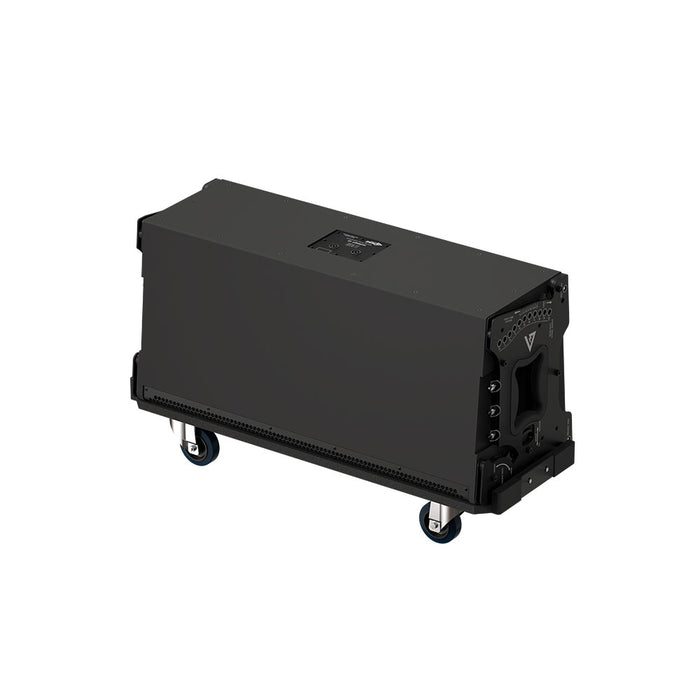

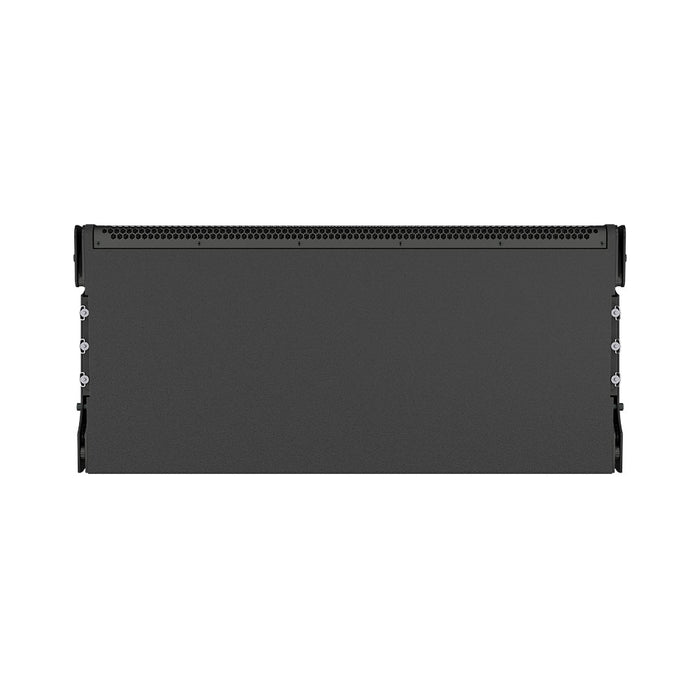

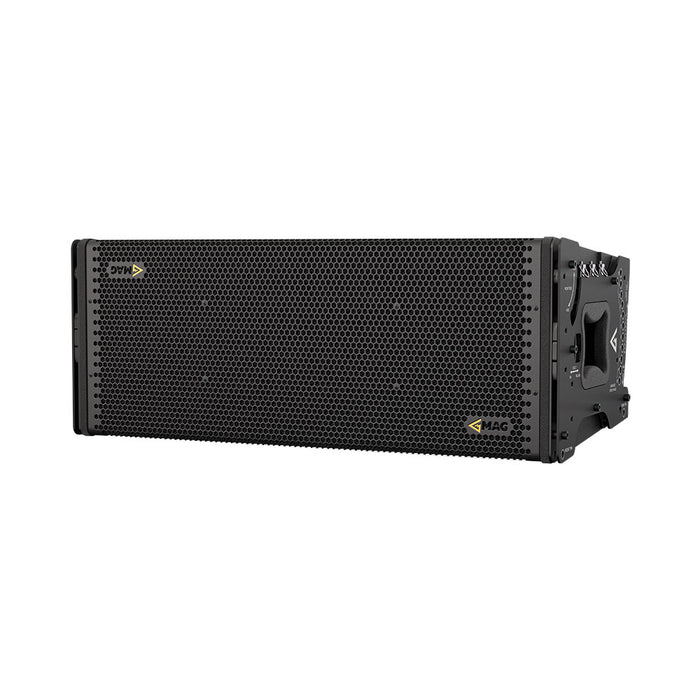

The ultimate mid-sized array line array module, HORNET 12 is dual 12”, quad 6”, dual 1,4” HF all-neodymium speaker with immense power handling capacity and maximum SPL output. Incorporating advanced flying hardware concept, HORNET 12 is rapidly mounted from ground carts, and is easily set and tuned-up due to natural, balanced sound and high quality, low distortion components.
Product Features:
-
2600 W nominal power
-
Two 12” woofers with 4” voice coil
-
Four 6” midranges with 1,5” voice coil
-
Two 1,4” HF drivers
-
144 dB Max SPL

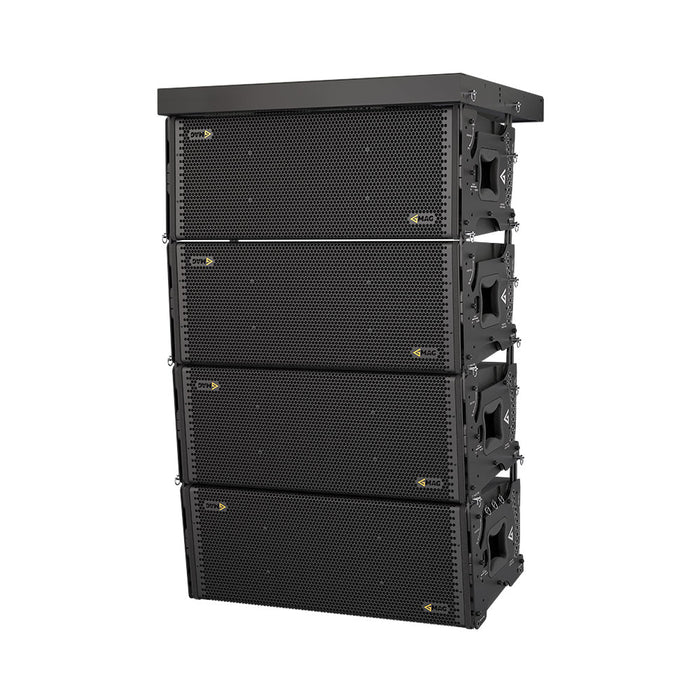

- Integrated flying hardware
Product Specifications
| Main | |
|---|---|
| Type | Passive line array module |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 45 – 18000 Hz |
| Peak SPL 1 | 144 dB |
| Sensitivity (1W/1m) | 99 dB |
| Sensitivity (1W/1m) (in detail) | 99 dB LF / 107 dB MF / 112 dB HF |
| LF Driver | 2 x 12”, 4" VC |
| MF Transducer | 4 x 6”, 1,5" VC |
| HF Driver | 2 x 1,4”, 2,8" VC |
| Nominal Coverage Angle H × V | 110° x Depends on the number of cabinets |
| Impedance | 8 Ohm LF1 / 8 Ohm LF2 / 8 Ohm MF / 8 Ohm HF |
| Nominal power 2 | 2600 W |
| Nominal power (in detail) 2 | 1000W LF1 + 1000W LF2 + 400W MF + 200W HF |

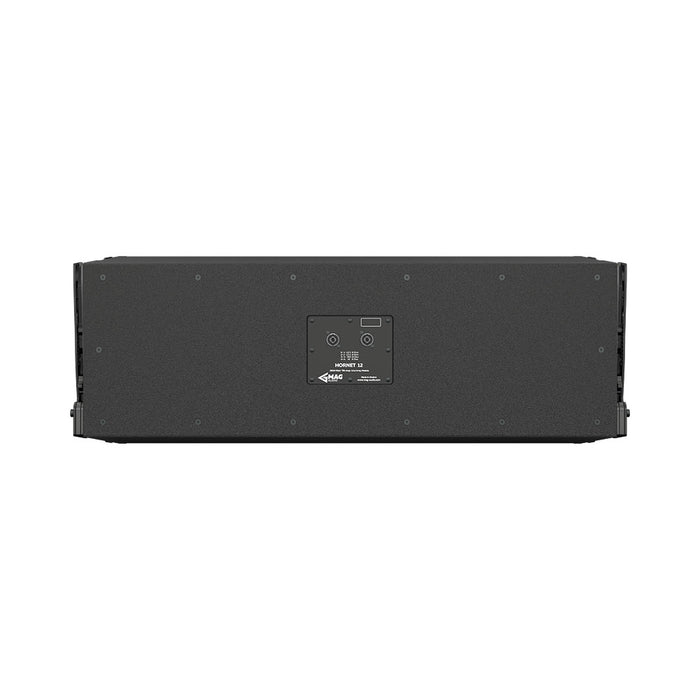

| Connectors | 2 x NL8MPR Neutrik Speakon |
| Connections and physical data | |
| Dimensions (W x H x D) | 992 x 381 x 446 mm |
| Net weight | 66 kg |
| Shipping weight | 70 kg |

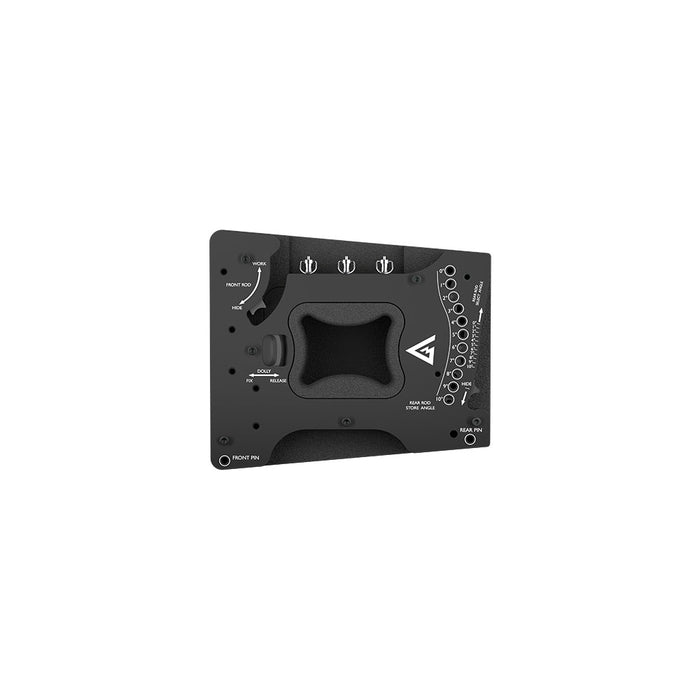

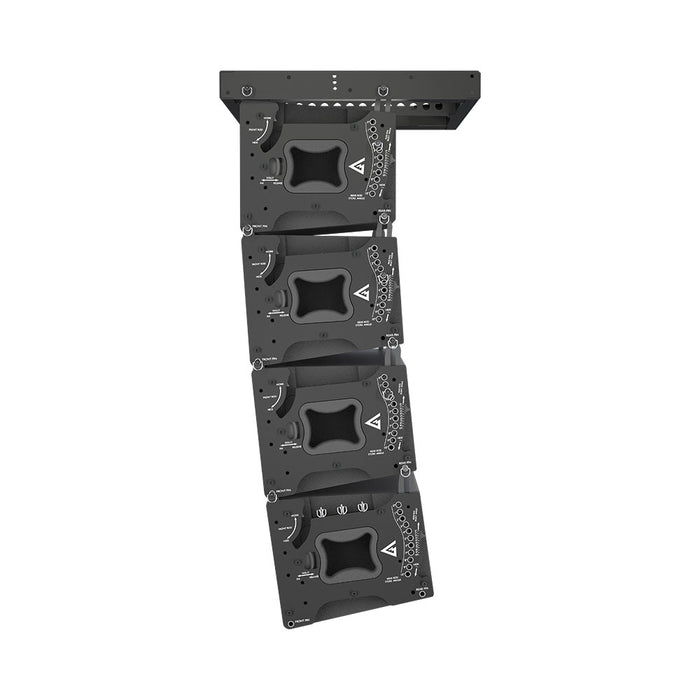

| Mounting | Integrated flying hardware; 0° - 10° Sply angle |
| Enclosure material | Plywood; wear-resistant paint |
| Grill | Steel grill, polymere protective net |
