The ME‑1 is a high‑end personal mixing solution from Allen & Heath’s ME Series, allowing individual performers to control their own monitor mix. It brings together many inputs, flexible controls, preset recall, and safety features in a compact, rugged unit.
Key Features:
| Feature | Description |
|---|---|
| Number of Sources | Can handle up to 40 sources (mono, stereo, groups) — enough for large bands, or lots of mixes (e.g. mics, instruments, outputs) without overloading. |
| Assignable Keys | 16 assignable keys (backlit) that each performer can map to a single channel (mono or stereo) or to a group of channels (e.g. whole drum kit). |

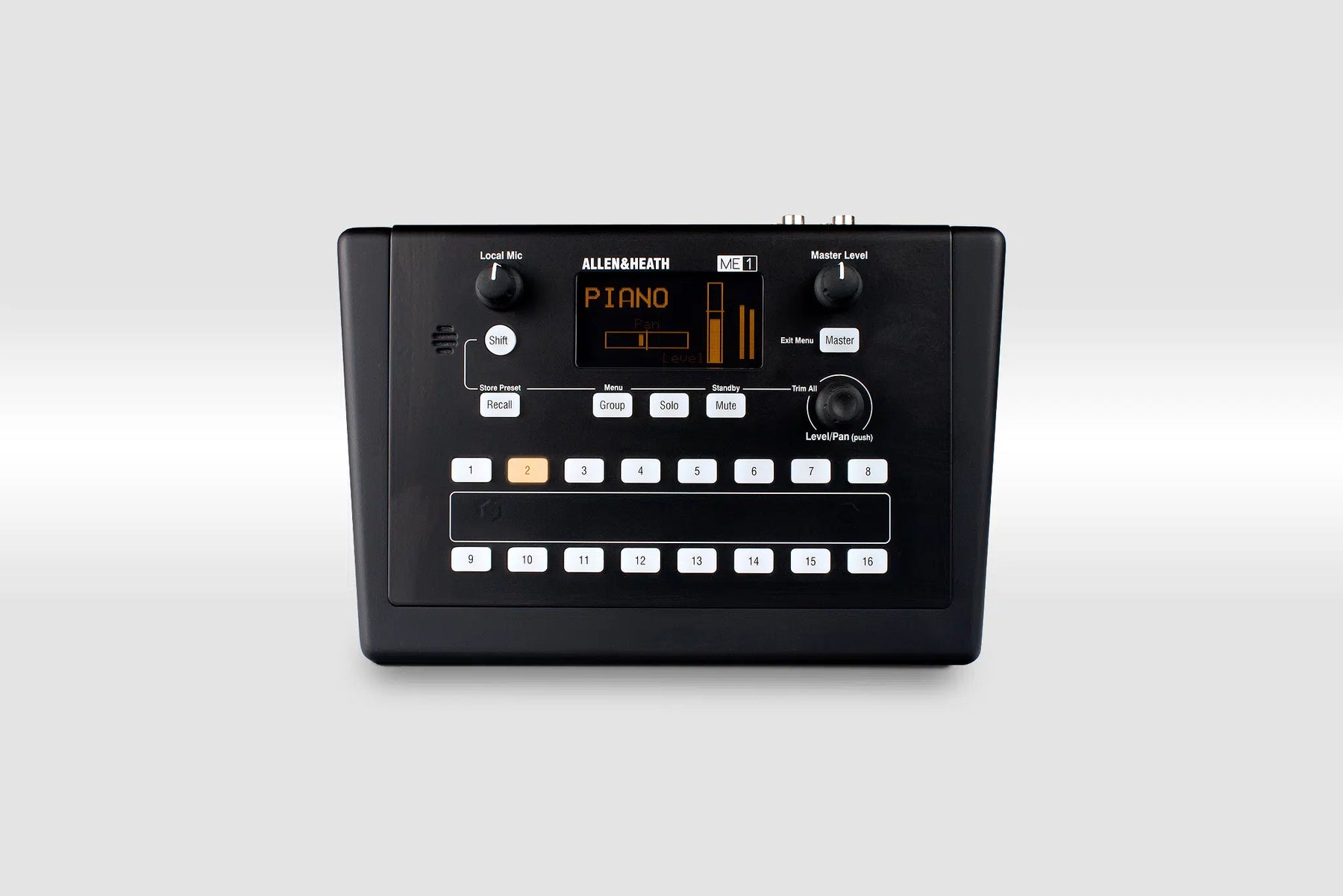

| OLED Screen | Has a dimmable OLED display showing the source name, level, panning, meters etc. Helps in low light and for clarity. |
| Master Controls | Includes master volume (for headphones), 3‑band EQ, and a Limiter (adjustable, helps protect ears). Also has mute/solo functions. |
| Ambient Mic | Built‑in ambient microphone so performer can still hear stage and audience without removing IEMs or headphones. |

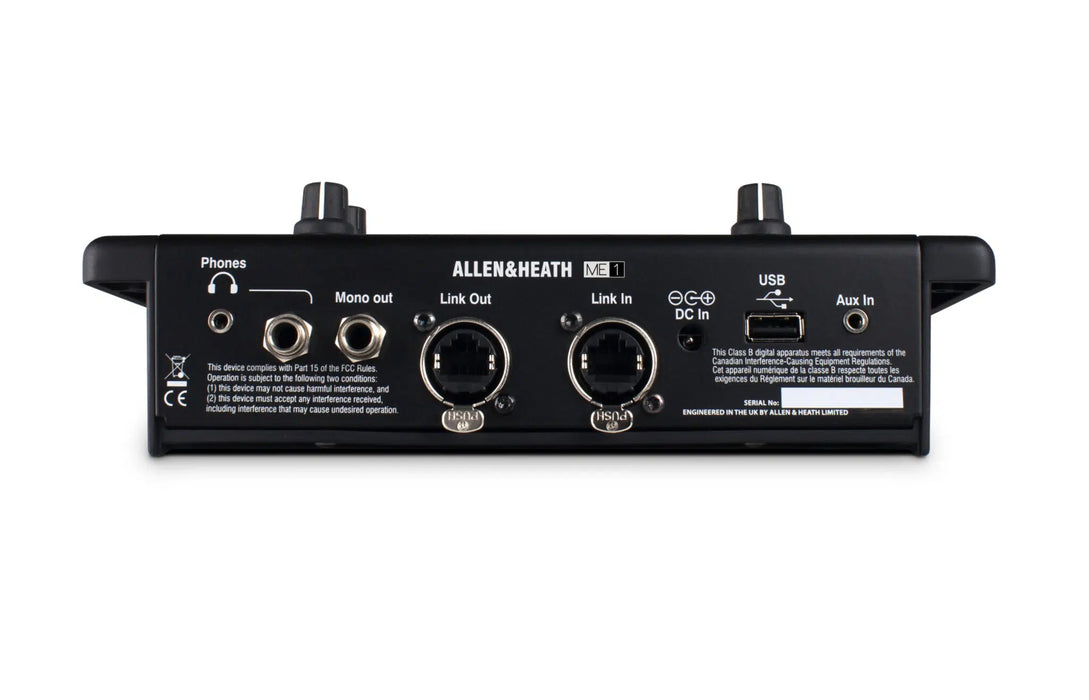

| Aux Input | A stereo aux input (3.5 mm) allows local sources like a phone, click track, or MP3 player to be added to the mix. |
| Groups & Pan Controls | Ability to group sources and control their levels/panning etc., which gives flexible mixing without needing each channel mapped individually. |
| Presets | 16 user presets storing levels, pan, mute, key assignments etc., which helps switching quickly between setups (for different songs / performers). Presets also transferable via USB. |
