The ME‑500 is a 16‑channel personal monitor mixer from Allen & Heath’s ME series. It lets individual performers control their own monitor mix (in‑ears or headphones) with minimal setup. It’s designed for live sound, touring, worship, studio, or any situation with multiple performers needing their own tailor‑made mix.
Key Features and Specifications:
| Feature | Details |
|---|---|
| Channels | 16 mono or stereo sources can be controlled. Each source has level and pan control. |
| User Presets | Up to 8 user presets can be stored and recalled. Mix, pan, mute settings are part of presets. Presets can be saved via USB. |

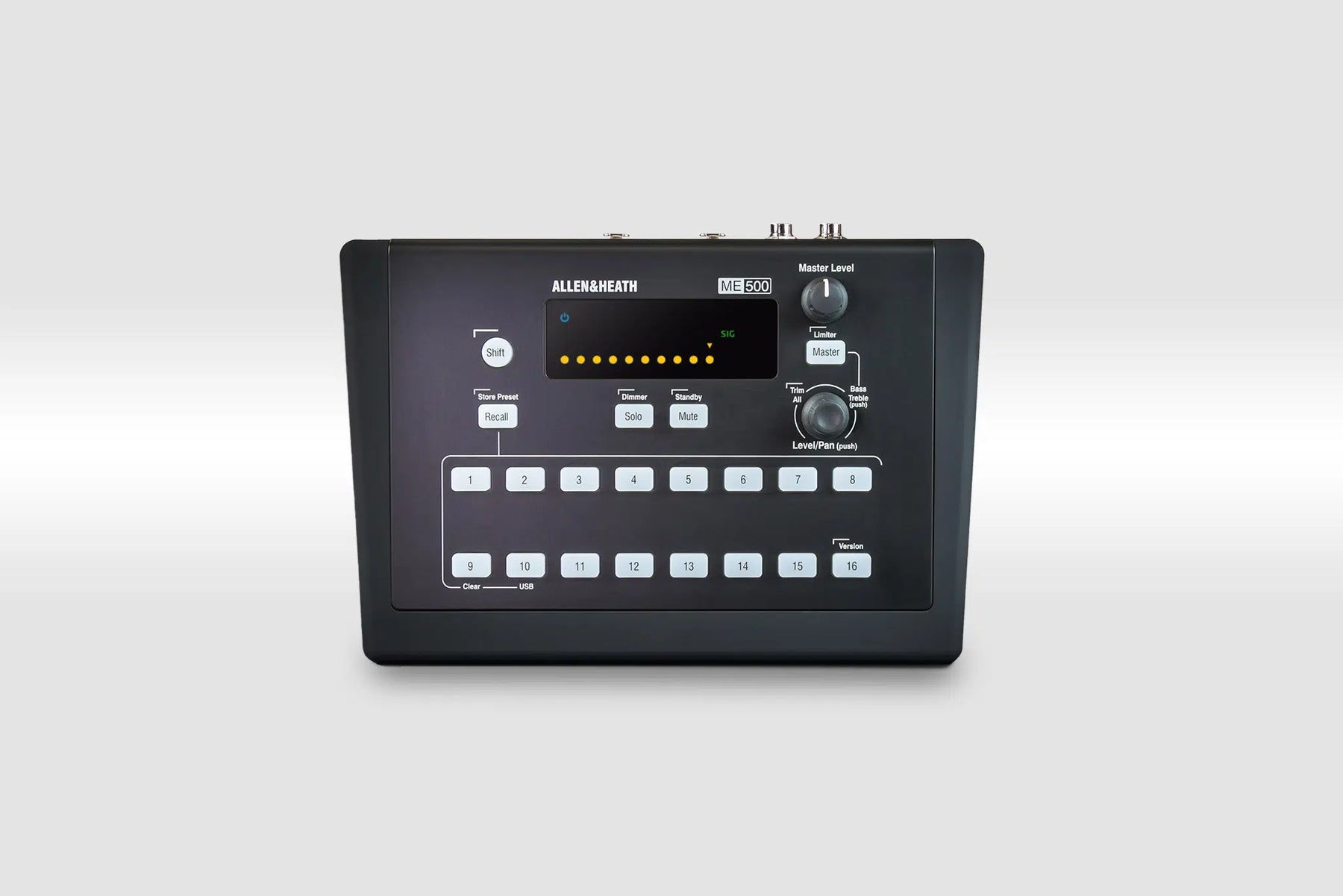

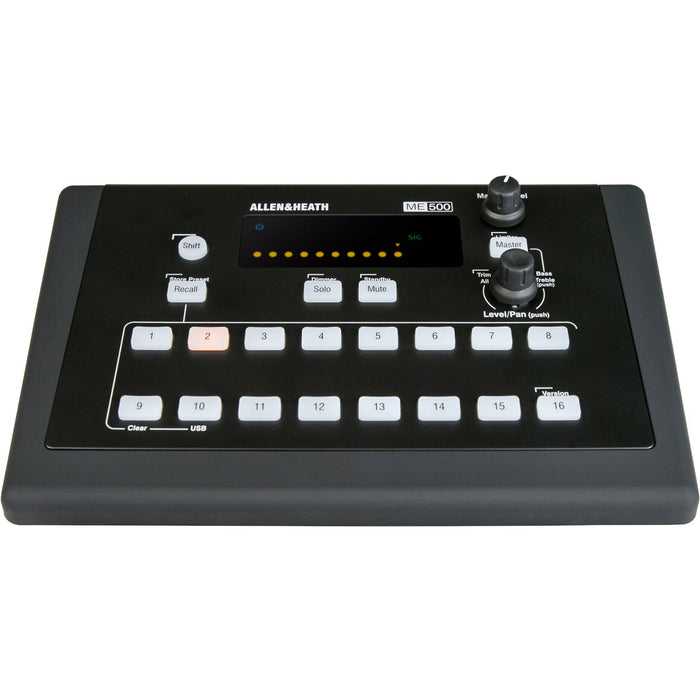

| Front Panel Controls | • 16 select keys (backlit) for choosing a source/channel. • Rotary encoder: turn to adjust level, push‑turn to pan. • Dedicated Mute & Solo buttons. • Master level control. • 2‑band master EQ + limiter to protect ears. |

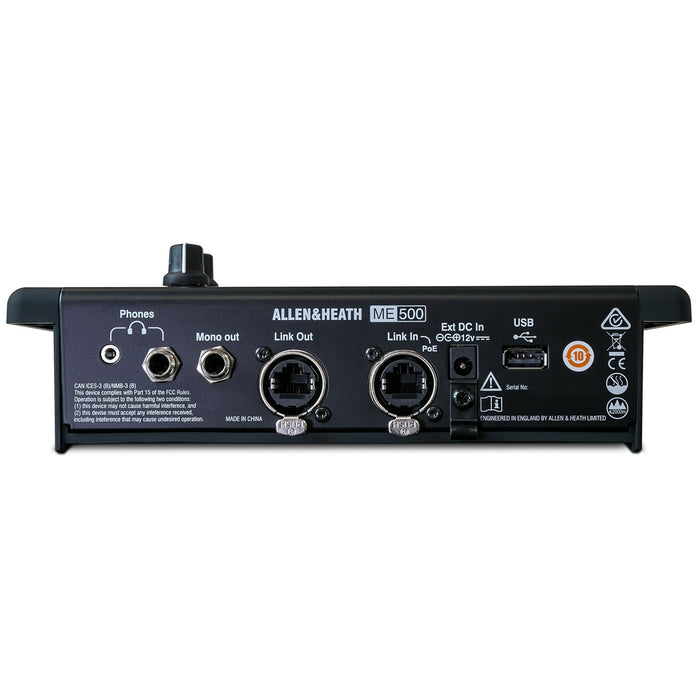

| Outputs | • Headphones: ¼″ (6.35mm) TRS and 3.5mm (1/8″) jack stereo outputs. • Mono balanced line‑out via ¼″ TRS, used for connecting a stage monitor or IEM transmitter. |
| Power / Connectivity | • Can be powered by Power over Ethernet (PoE) or via external DC supply (12 V). • Link‑in & Link‑out via locking EtherCon RJ45 connectors (Cat5/Cat cable) for daisy‑chaining or navigating network topology. • Compatible with Allen & Heath consoles like dLive, SQ, Avantis, Qu, and Aviom A‑Net 16; also via ME‑U hub with other digital systems. |
| Audio Specs |
• AD/DA conversion: 24‑bit Delta/Sigma, 48 kHz. • Frequency response: ~10 Hz to 20 kHz (+0/−1 dB) • Residual output noise: about −95 dBu. |
| Limiter & Safety | Built‑in limiter on the master output (adjustable from about −24 dB to 0 dB) to protect ears from unexpected loud signals. |
| Build & Mounting | Steel / metal chassis, locking connectors, rugged design for live use. Options for mounting: stand mount (top of mic stand), optional side mount bracket, and headphone hanger accessory. Front display is backlit / dimmable. |
