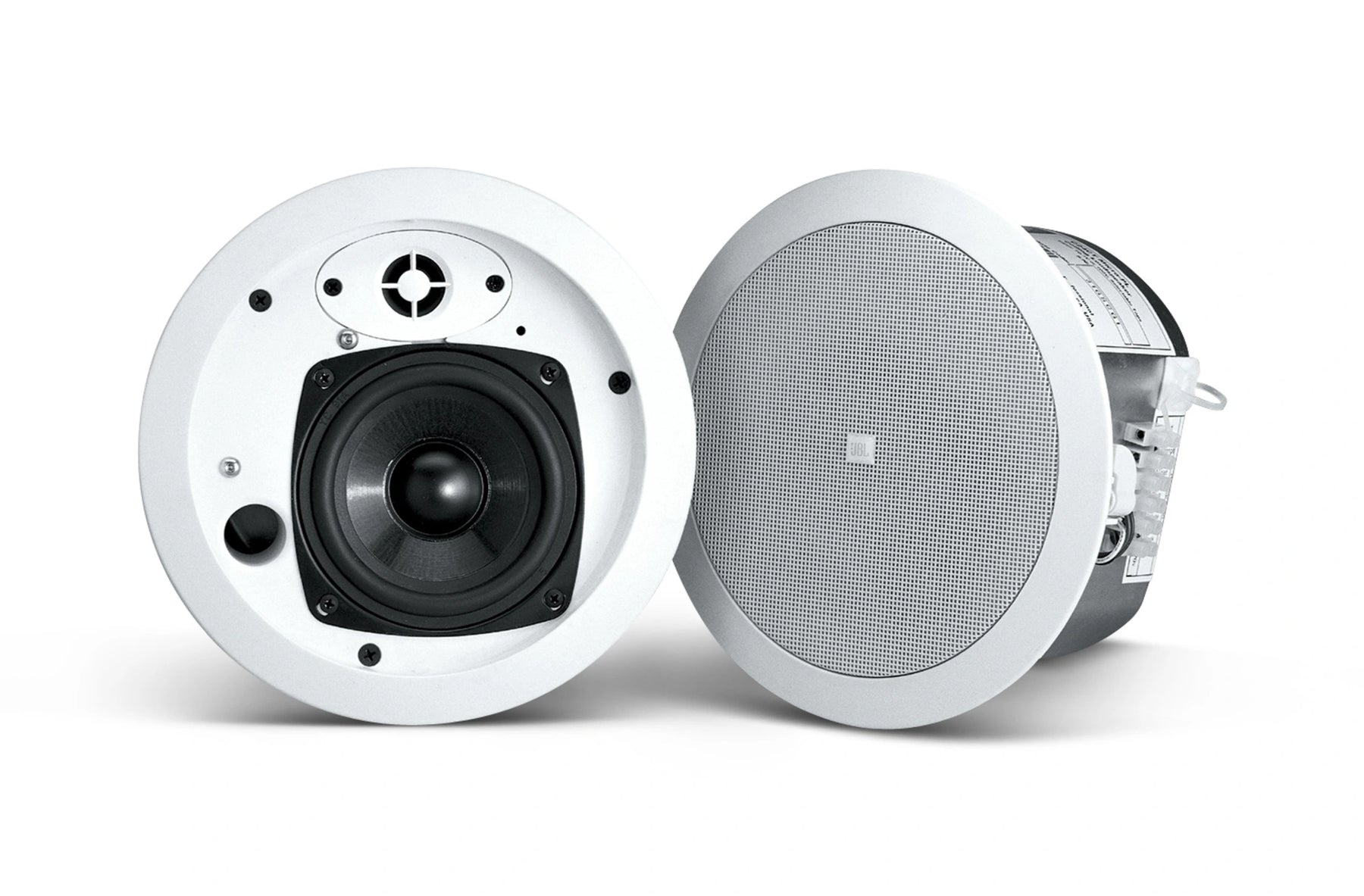

The Control 24CT MicroPlus is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems.
Product Specifications
| Frequency Range | 80 Hz - 25 kHz |
| Power Capacity | 30 W Continuous Program Power; 15 W Continuous Pink Noise |
| Transformer Taps | 70 V: 25 W, 12 W, 6 W taps100 V: 25 W, 12 W taps |
| Nominal Sensitivity | 85 dB SPL @ 1 m (3.3 ft) |
| Coverage Angle | 150° conical |
| Crossover Frequency | 3.5 kHz, 3rd order low-pass plus 3rd order high-pass with conjugate |
| Maximum SPL (1m) | 99 dB @ 1 m (3.3 ft), 25 W tap |
| Low Frequency | 115 mm (4.5 in) IMG (injection molded graphite), 24 mm (1 in) voice coil |
| High Frequency | 12 mm (0.5 in) polycarbonate |
