Coaxial 6.5" Full-Range Landscape Loudspeaker

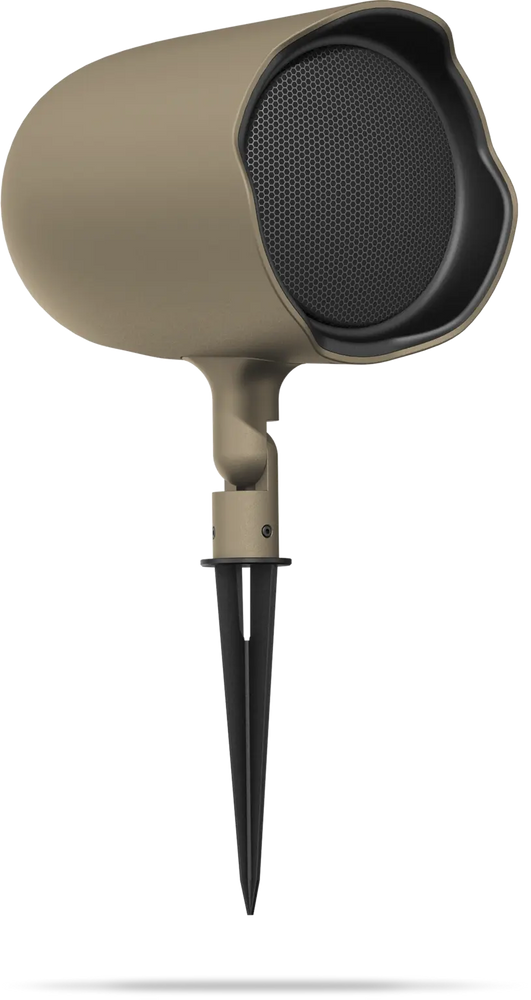

The mid-size, weather-resistant JBL GSF6 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 6.5-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 30-watt multi-tap transformer for use on 70V/100V distributed systems and is switchable for 8-ohm direct operation.
Features
- Transducers: 165 mm (6.5”) woofer with polypropylene cone and 25 mm (1”) voice coil on aluminum voice coil former; 25 mm (1.0”) titanium dome tweeter with neodymium magnet assembly and Kapton voice coil former
- Frequency range: 65 Hz–20 kHz
- Power handling (at 8Ω setting): 50W continuous pink noise, 100W continuous program
- Multi-tap 30W transformer is switchable for 8Ω direct operation or use in 70V/100V distributed systems
- IP66 rated against water and dust ingress
- Bottom drip hole provides drainage for drivers
- Pairs well with JBL GSB8 and GSB12 in-ground landscape subwoofers
- Aimable via adjustable hinge
- Includes ground stake and L-bracket for surface mounting
- Includes tap selector located on bottom of speaker, away from water incursion
- Available in hunter green or tan finish
Specifications
| Frequency Range (-10dB) | 65 Hz – 20 kHz |
| Frequency Response (+/-3 dB) | 90 Hz - 18 kHz |
| Power Rating | 100 W Continuous Program (2 hrs) 50 W (200 W Peak), Continuous Pink Noise (2 hrs) 30 W (120 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 87 dB (ave. 300 kHz – 12 kHz) |
| Maximum SPL | 110 dB peak (104 dB continuous, 2 hr) @ 1m |
| Coverage Pattern | 70° conical |
| Nominal Impedance | 8 Ω (at 8Ω tap) |
| Transformer Taps | 70V: 30 W, 15 W, 7.5 W 100V: 30W, 15 W |
| Drivers |
|
| Terminals | Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Pine Green RAL 6028, or Beige Grey RAL 7006 |
| Dimensions |
Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in). Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 (21.5 in) with ground stake base. |
| Net Weight | 3.5 kg (7.7 lbs) |
| Included Accessories | (1) Ground Stake Bracket; (1) L-Bracket |
