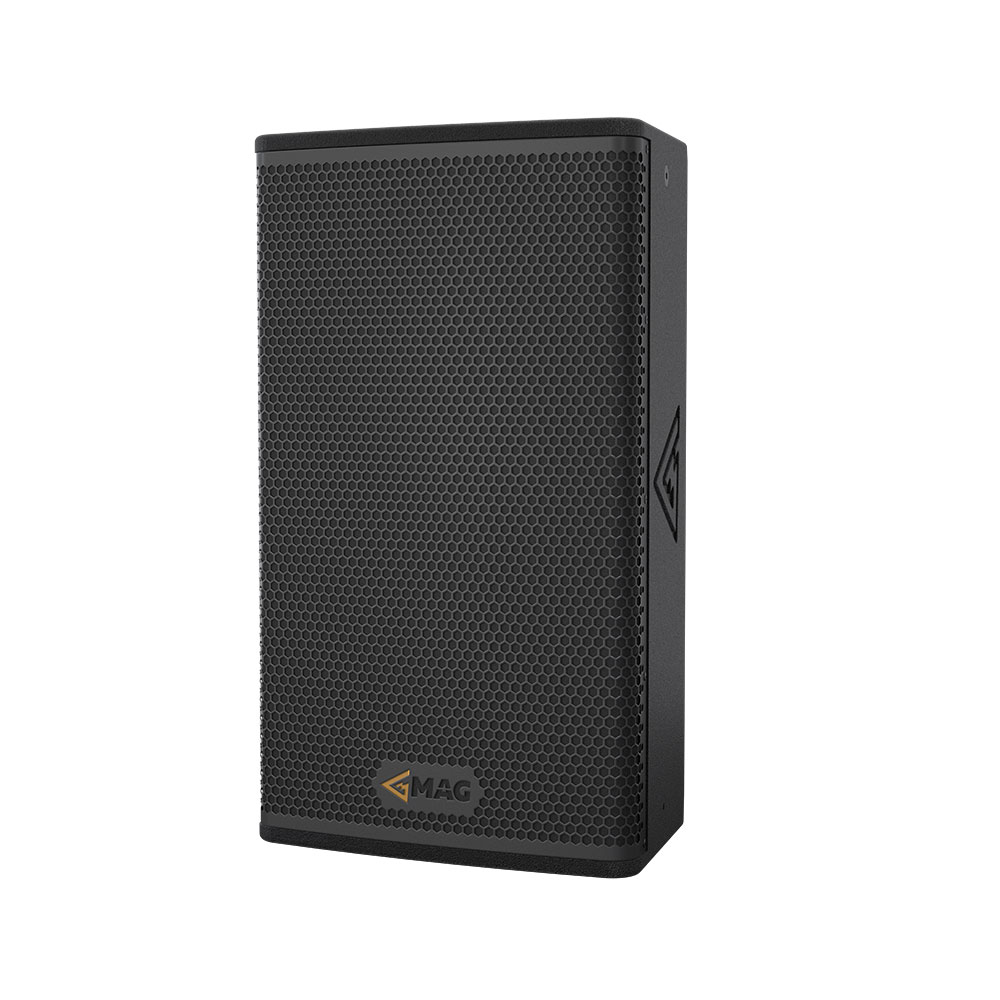

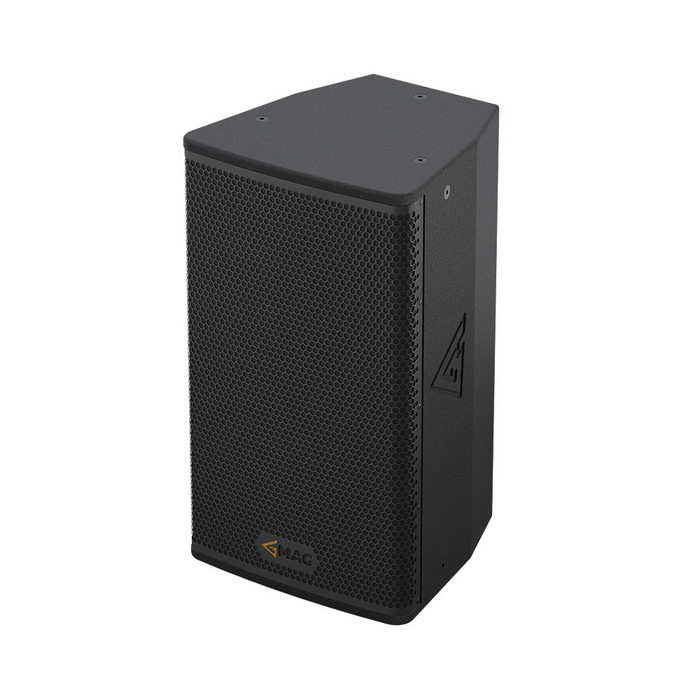

NX 12i is a passive full-range speaker, based on 12’’+1,5’ drivers, purpose-designed for installations. With well-thought-out construction, light weight and compact size, it provides considerable power and smooth sonic performance, fitting into any and all installations.
Product description:
Installation full-range speaker
Main features:
• 500 W nominal power
• 12” woofer with 3” voice coil
• 1,5” HF driver with 2,8” voice coil
• 134 dB Max SPL
• M10 mounting points
Specifications
| Main | |
|---|---|
| Type | Installation full-range speaker |
| Acoustical & Electrical data | |
| Frequency response (-10dB) |
|
| Max SPL 1 | 134 dB |
| Sensitivity (1W/1m) | 98 dB |
| LF Driver | 12”, 3" VC |
| HF Driver | 1,5”, 2,8" VC |
| Nominal Coverage Angle (Horizontal × Vertical) | 80 x 70 deg |
| Impedance | 8 Ohm |
| Nominal power 2 | 500 W |

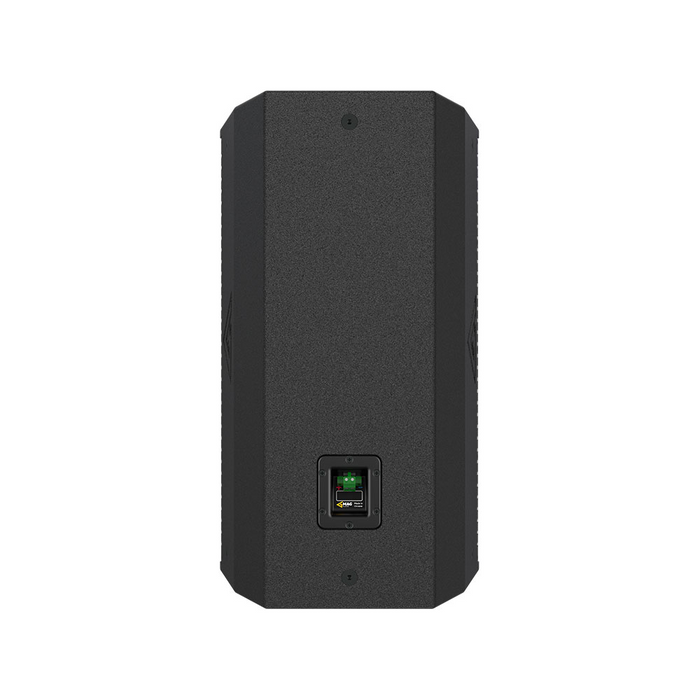

| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 379 x 650 x 367 mm |
| Net weight | 24 kg |
| Shipping weight | 26 kg |

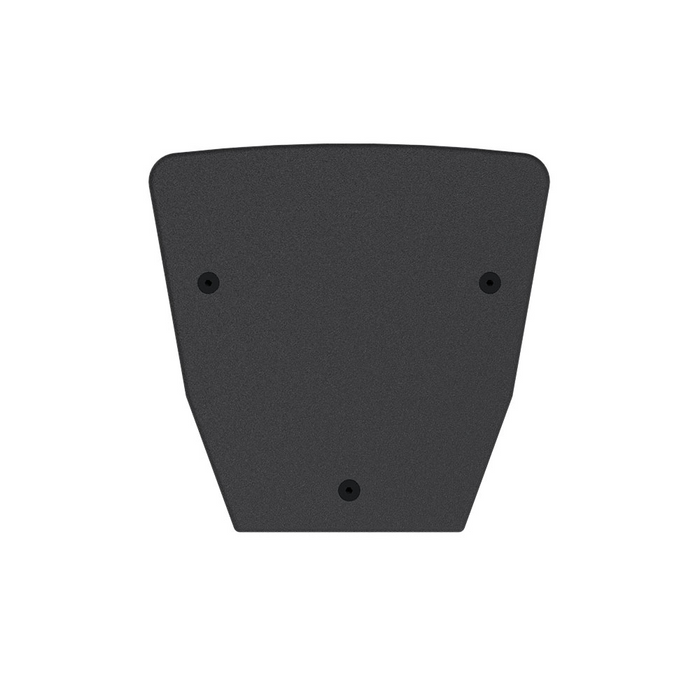

| Mounting | M10 mounting points |
| Enclosure material | Plywood; wear resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
