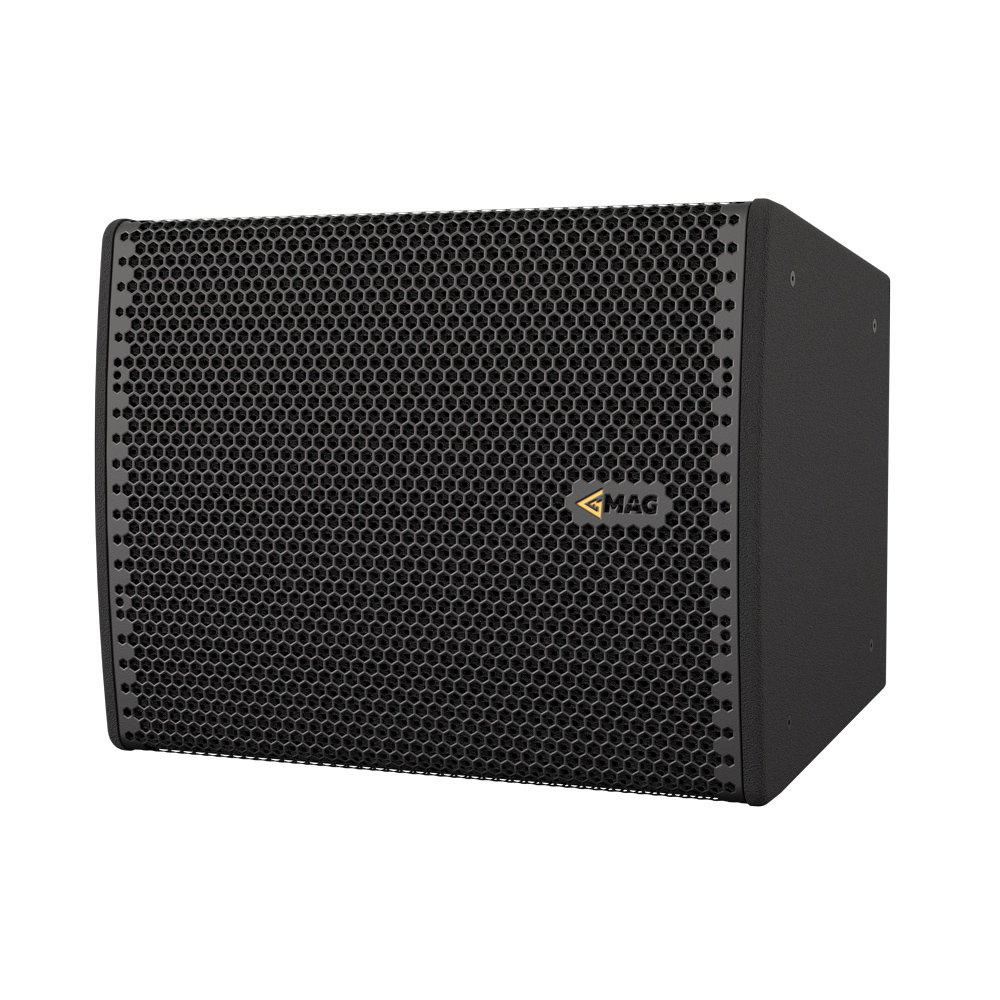

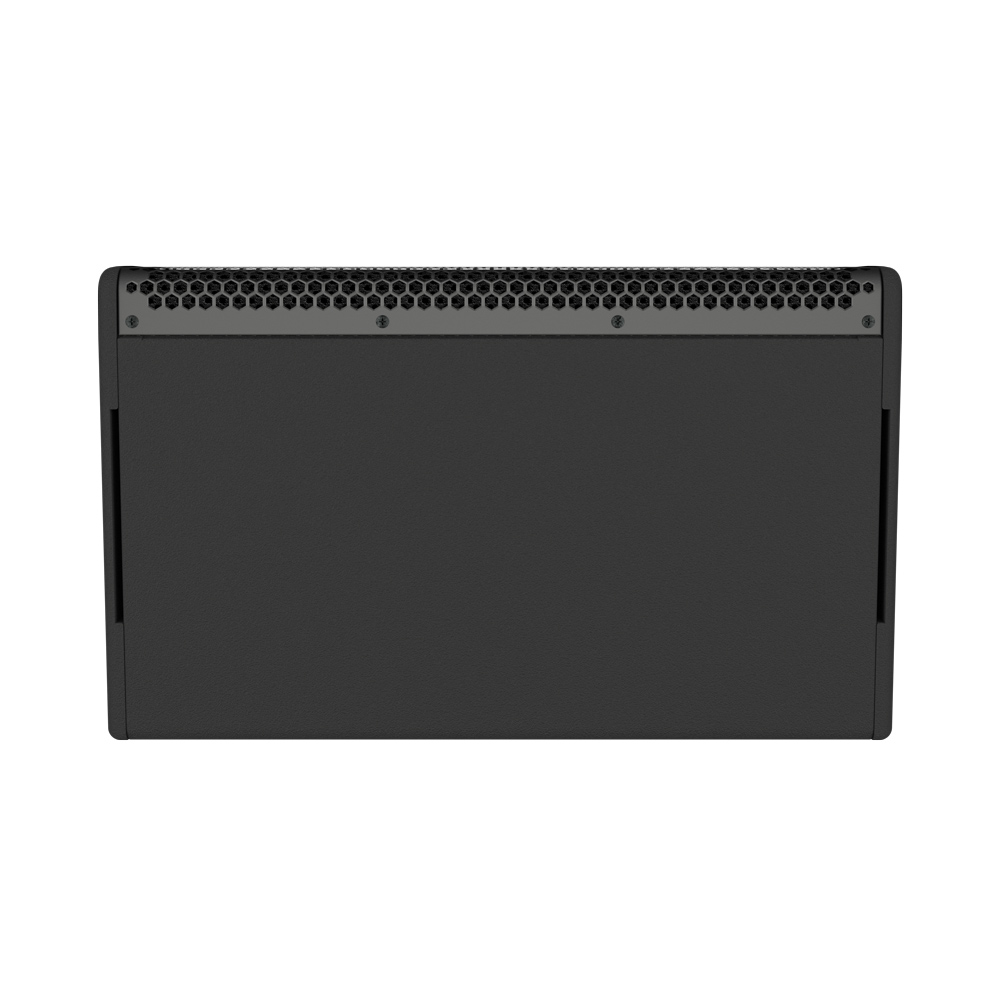

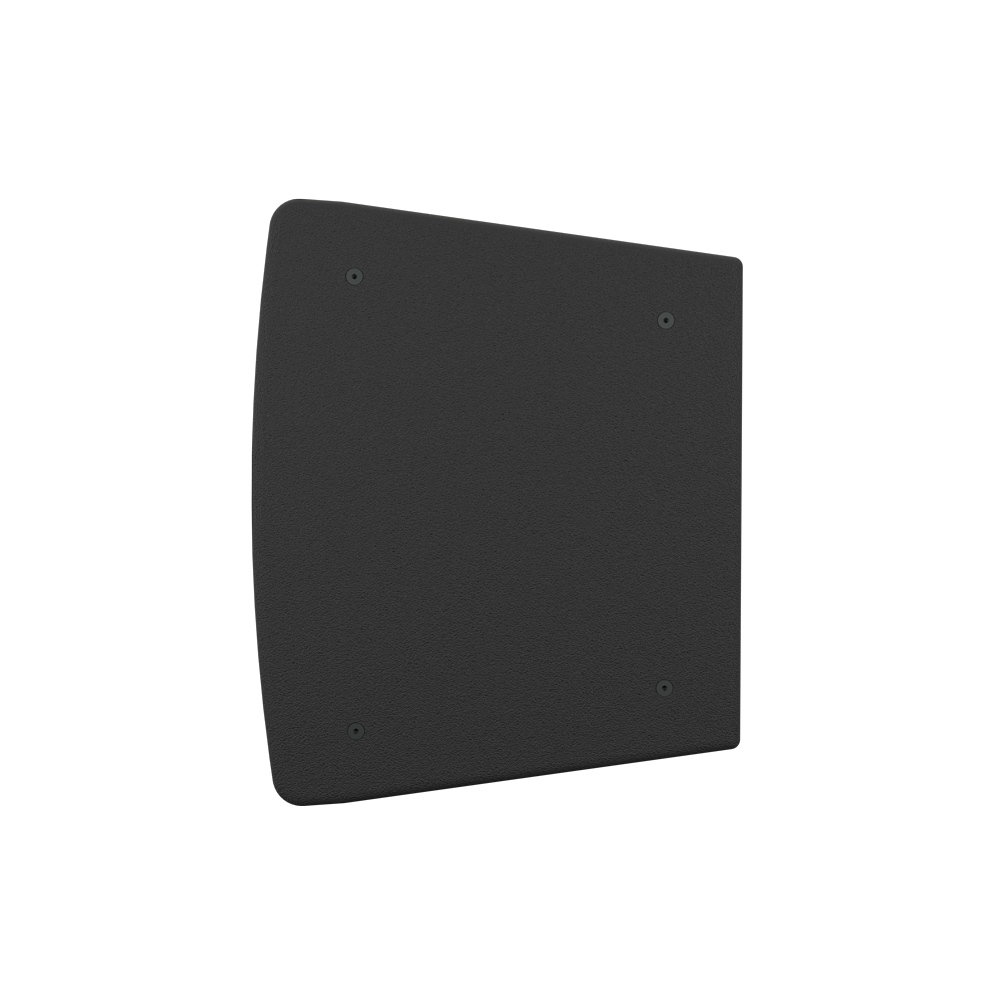

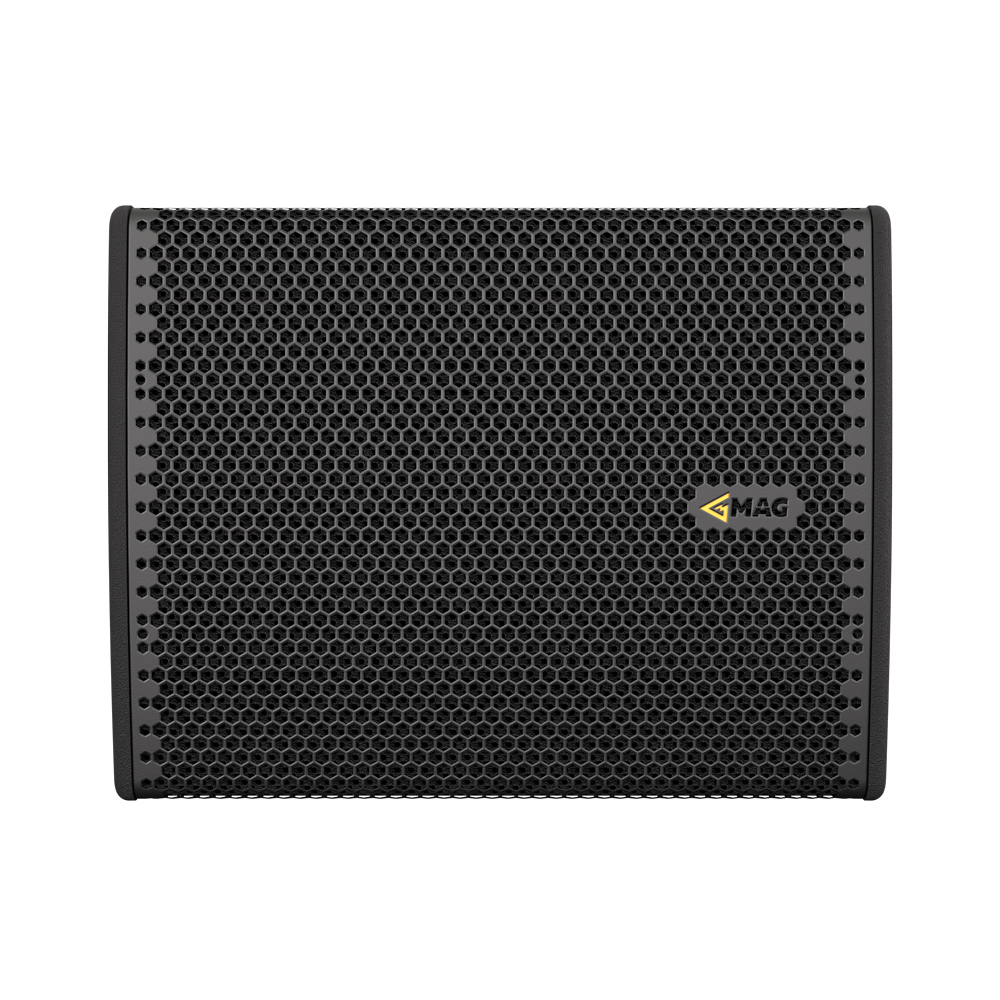

Cluster Q8 is an installation line array module, based on 4x 6" LF drivers and 2x 1" HF drivers with 1,75 voice coil each, providing 8-degree splay angle. Reliable enclosure and carefully designed components make the system perfect option for fixed installations of different sizes. Available in waterproof version.
Product description:
Installation line array module
Main features:
• 620W nominal power
• Four 6” woofers with 1,75” voice coil
• Two 1” HF driver with 1,75” voice coil
• 138 dB Max SPL
• Integrated flying hardware
Specifications
| Main | |
|---|---|
| Type | Installation line array module |
| Acoustical & Electrical data | |
| Frequency response (-10dB) |
|
| Max SPL 1 | 138 dB |
| Sensitivity (1W/1m) | 98 dB Low |
| Sensitivity (1W/1m) (in detail) | 98 dB Low / 113 dB High |
| LF Driver | 4 x 6", 1,75" VC |
| HF Driver | 2 x 1", 1,75" VC |
| Horizontal coverage | 100 deg |
| Vertical splay angle | 8° |
| Impedance | 8 Ohm Low / 16 Ohm High |
| Nominal power 2 | 520 W Low |
| Nominal power (in detail) 2 | 520 W Low / 100 W High |

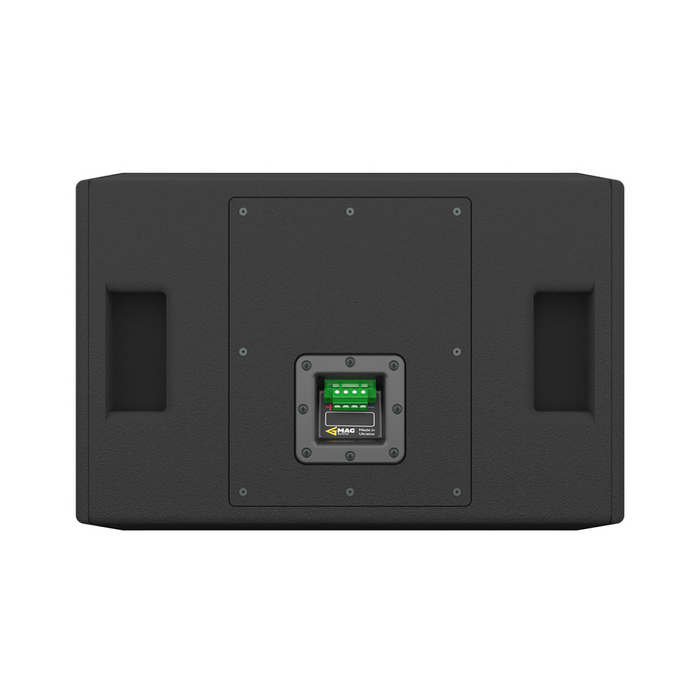

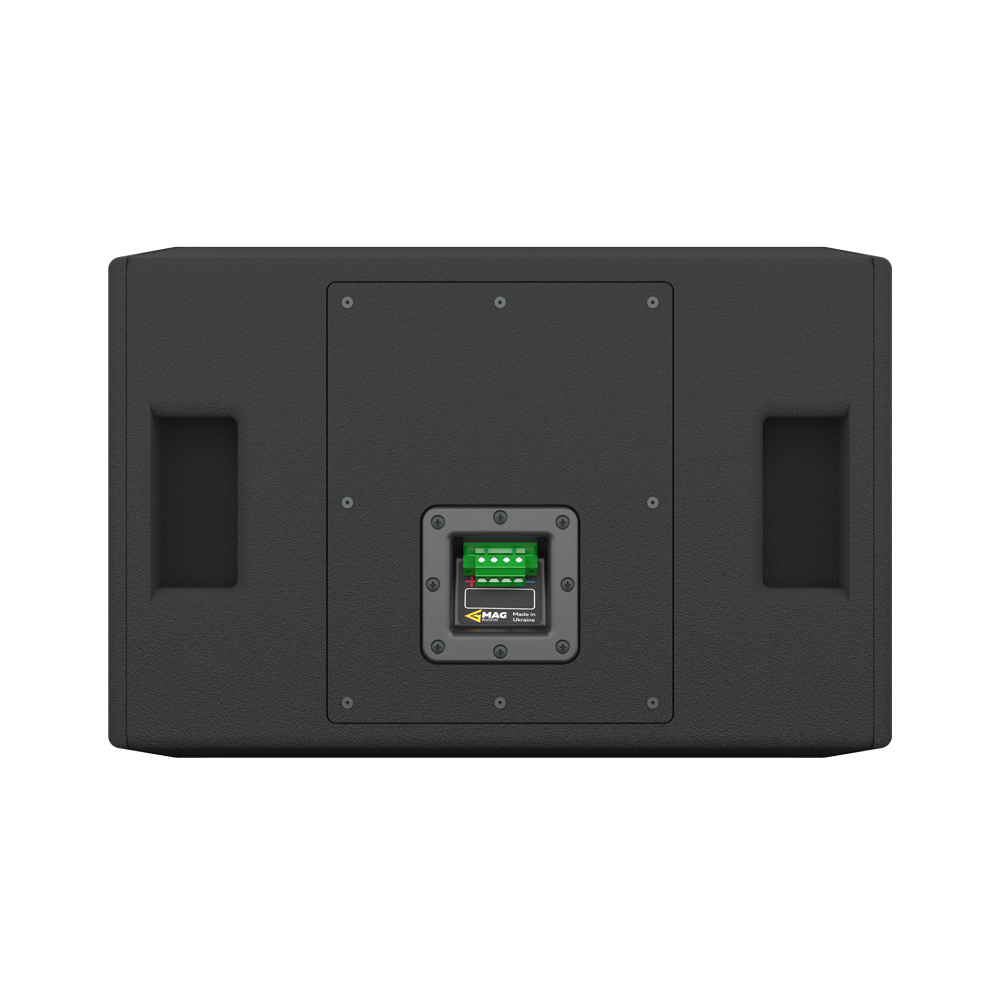

| Connectors | Phoenix |
| Connections and physical data | |
| Dimensions (W x H x D) | 480 x 370 x 296 mm |
| Net weight | 24 kg |
| Shipping weight | 26,5 kg |
| Mounting | Integrated rigging hardware |
| Enclosure material | Plywood; wear resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
