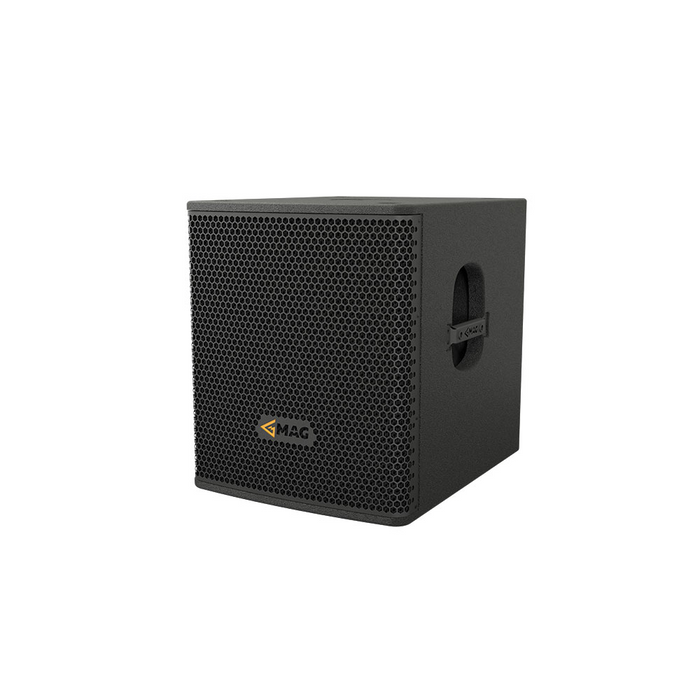

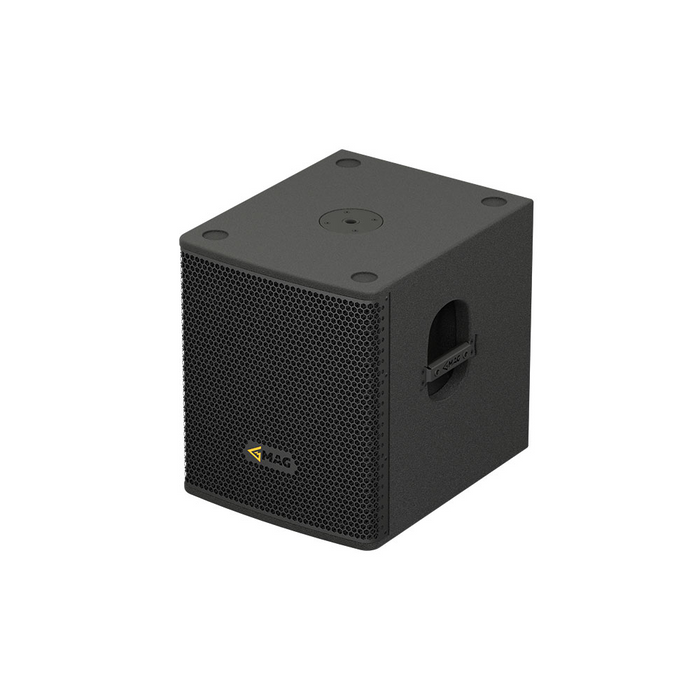

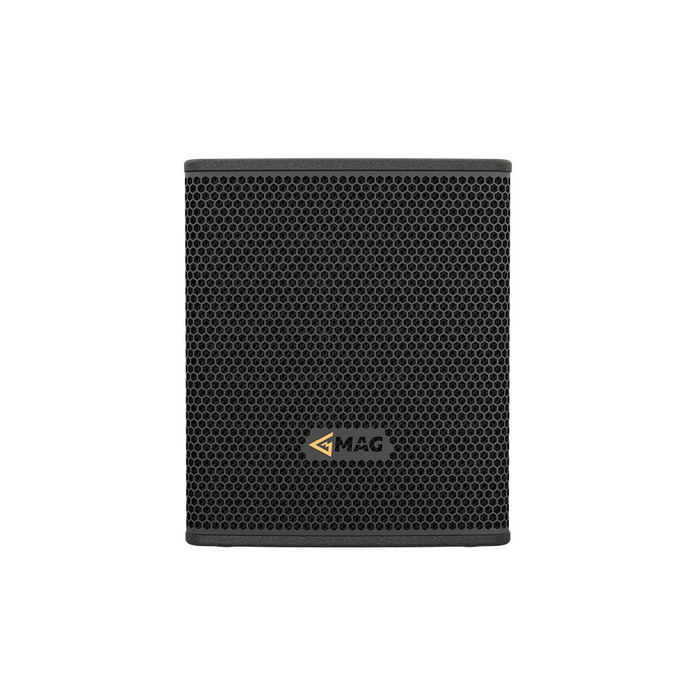

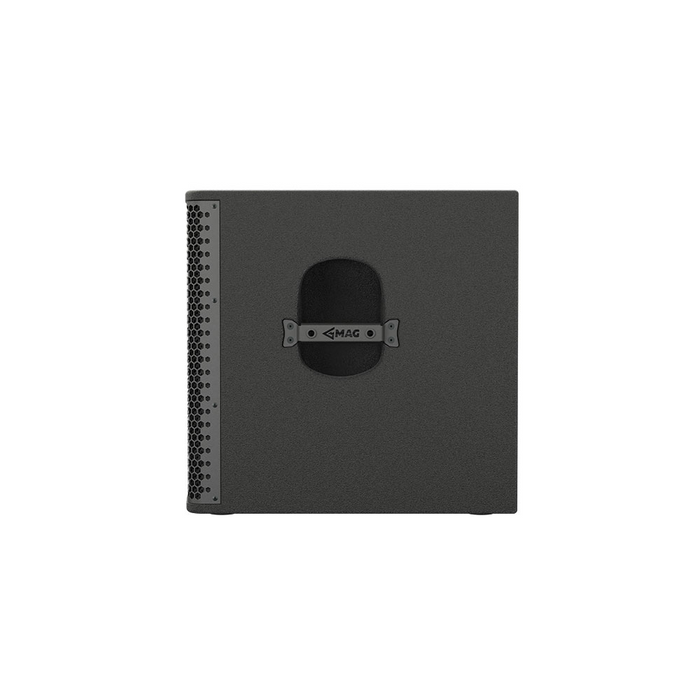

Compact, but yet powerful, Sub 12A is a low-frequency extension powered loudspeaker. With own-produced long excursion 12” woofer, Sub 12A is perfect for mobile sound system or small-scaled installation due to its dimensions and light weight. Built-in class D amplifier provides for ease of use even by inexperienced personnel.
Product description:
Powered subwoofer
Main features:
- 650 W amplifier power
- 12” woofer with 3” voice coil
- Efficient vented box design
- 127,5 dB Max SPL
- M20 distance pole adapter
Specifications
| Main | |
|---|---|
| Type | Powered subwoofer |
| Acoustical & Electrical data | |
| Frequency response (-10dB) | 43 - 170 Hz |
| Max SPL (calculated) | 127.5 dB |
| LF Driver | 12", 3" VC |
| Amplifier power | 650 W |
| Amplifier | Class D, fan cooling, DSP |
| Input sensitivity | 0 dBV (1 V RMS) |

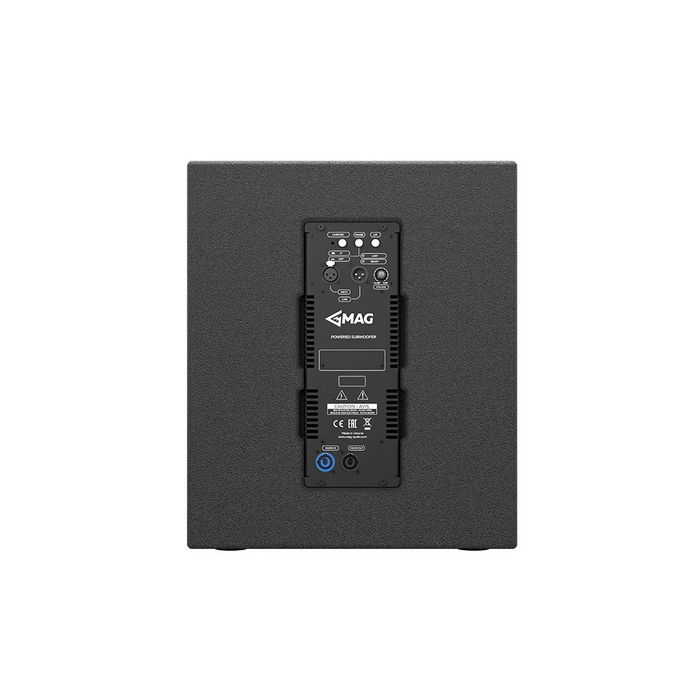

| Connectors | XLR input, XLR output, Powercon mains |
| Connections and physical data | |
| Dimensions (W x H x D) | 400 x 480 x 494 mm |
| Net weight | 32 kg |
| Shipping weight | 35 kg |

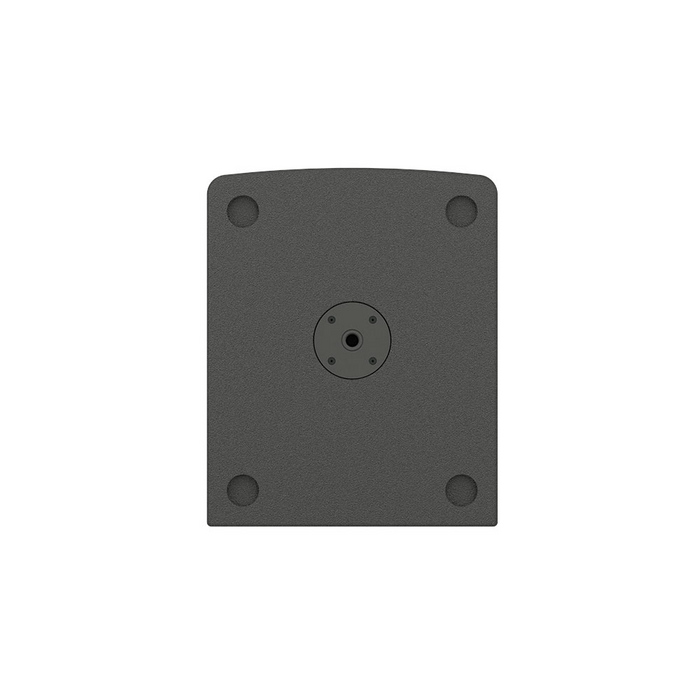

| Mounting | M20 distance pole adapter; 4 х 4 M10 mounting points for wheels |
| Enclosure material | Plywood; wear-resistant paint |
| Speaker protection | Steel grill, acoustically transparent backing |
