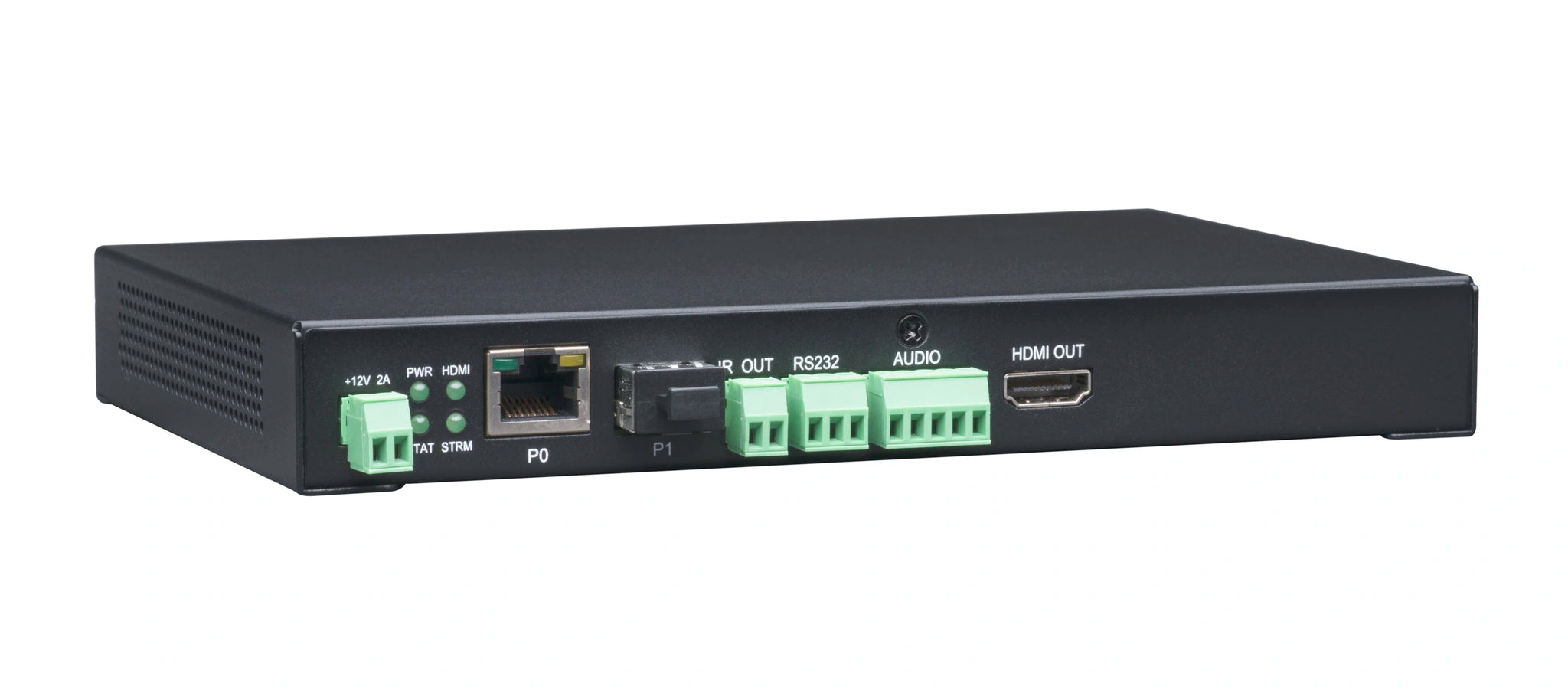

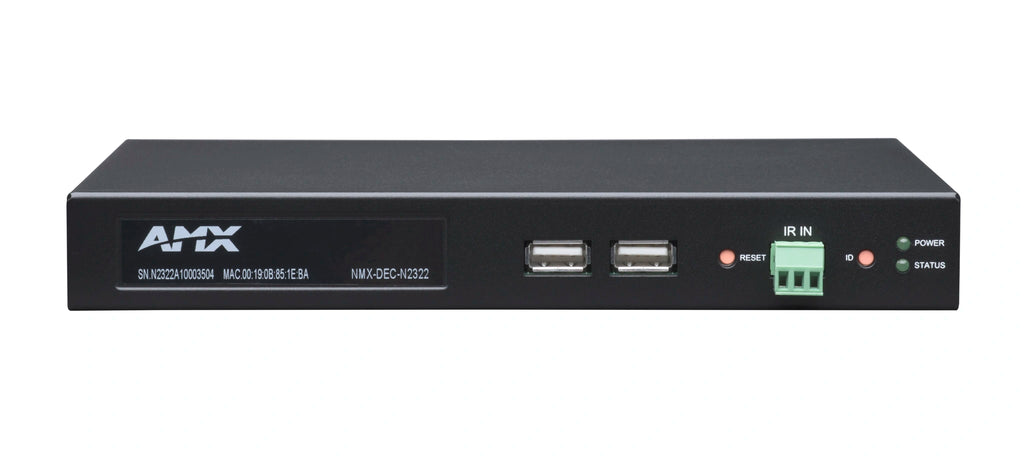

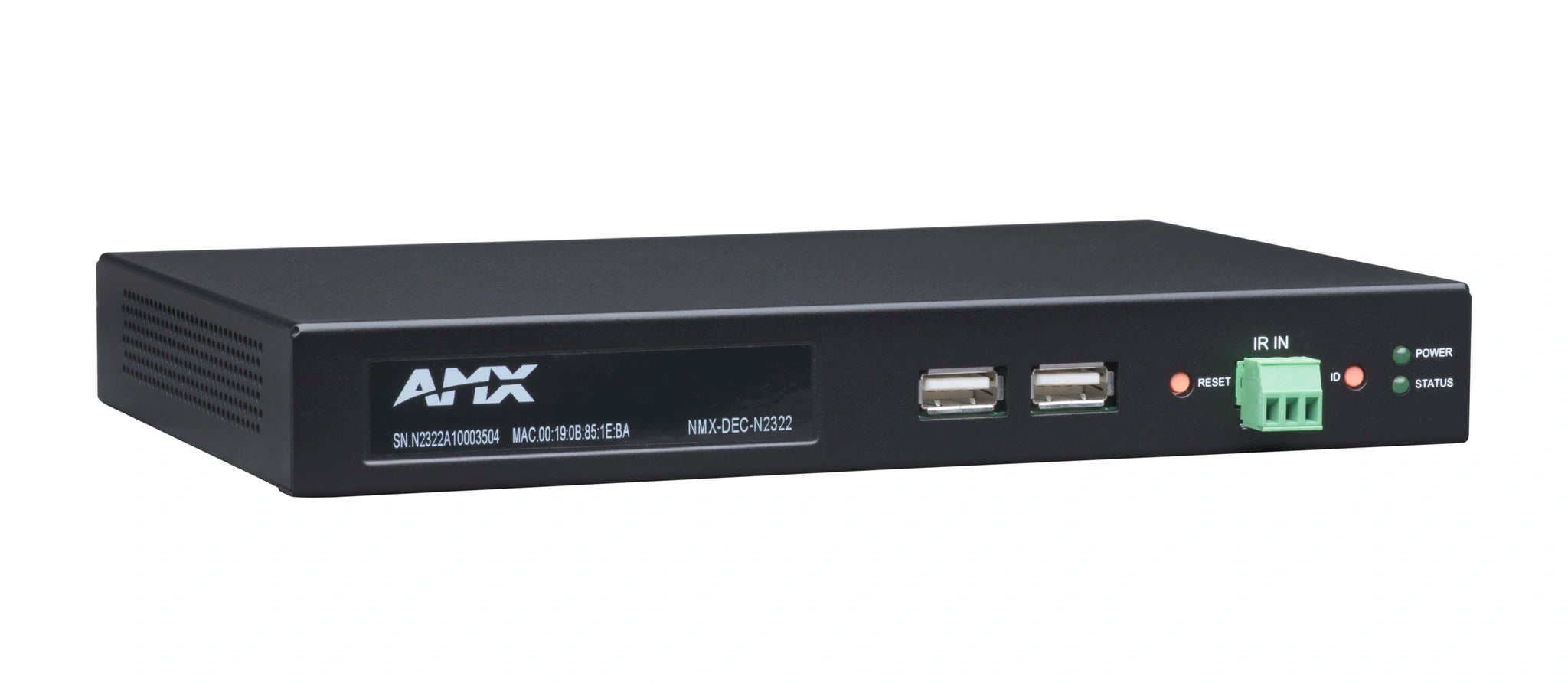

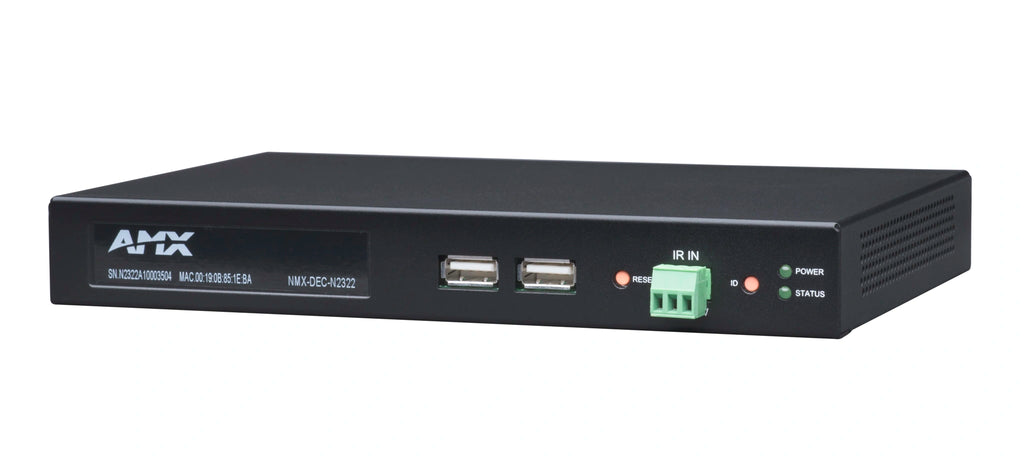

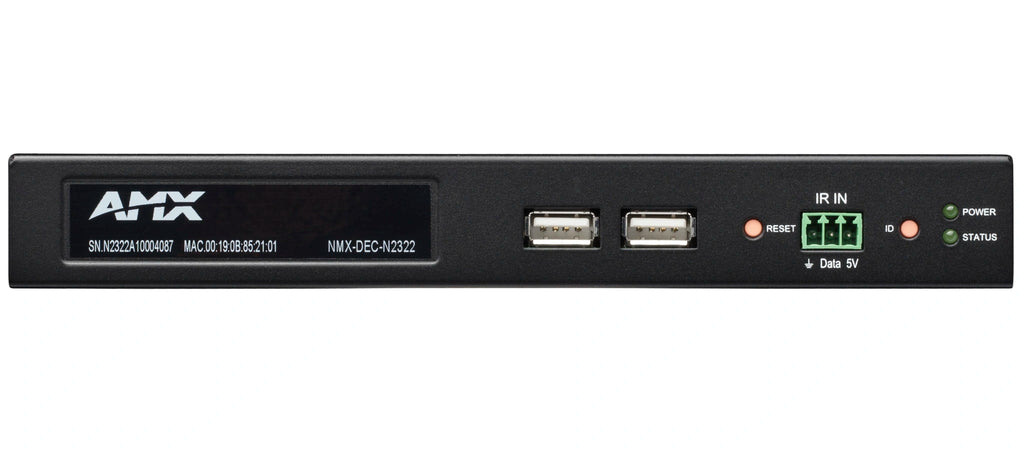

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution which can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.
Features
- Design Flexibility – Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
- Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
- Power Over Ethernet (POE) – eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
- Infrared (IR) – Emitter connection allows control of IR-only display devices

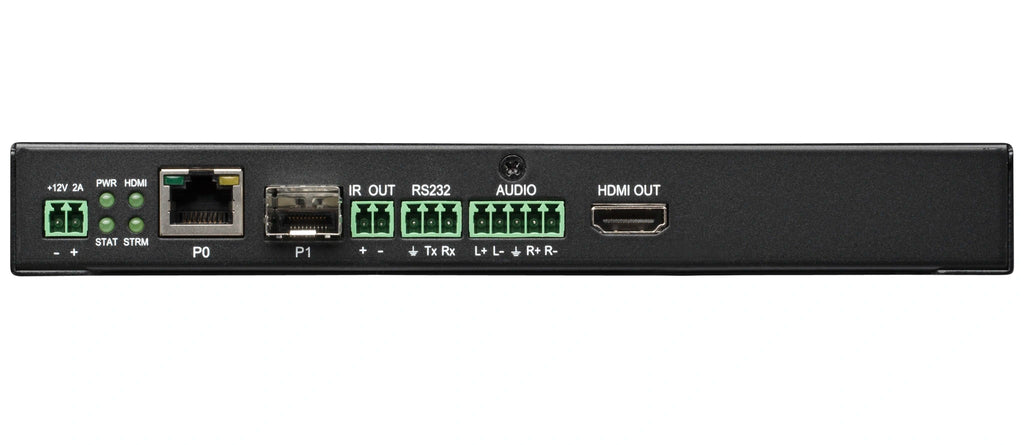

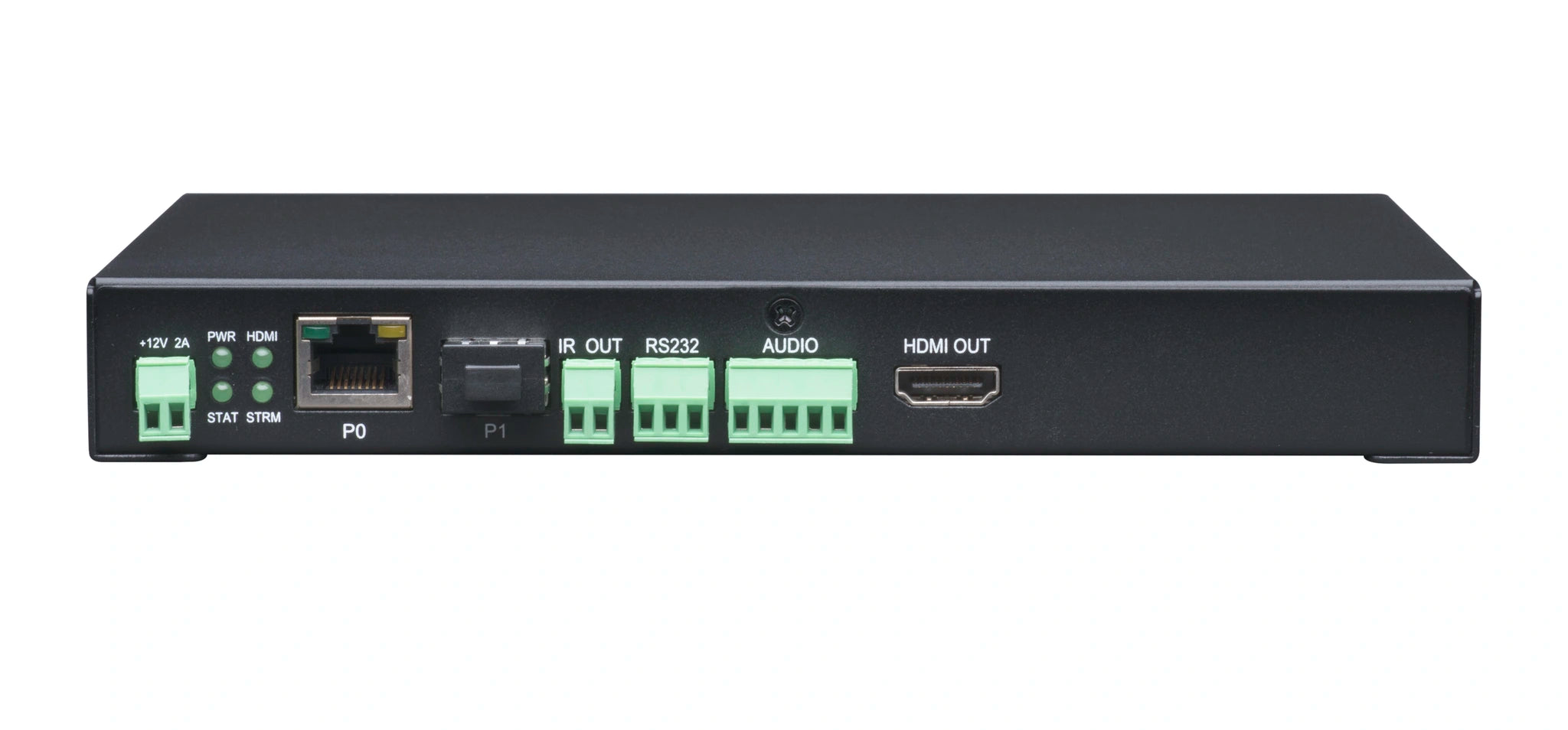

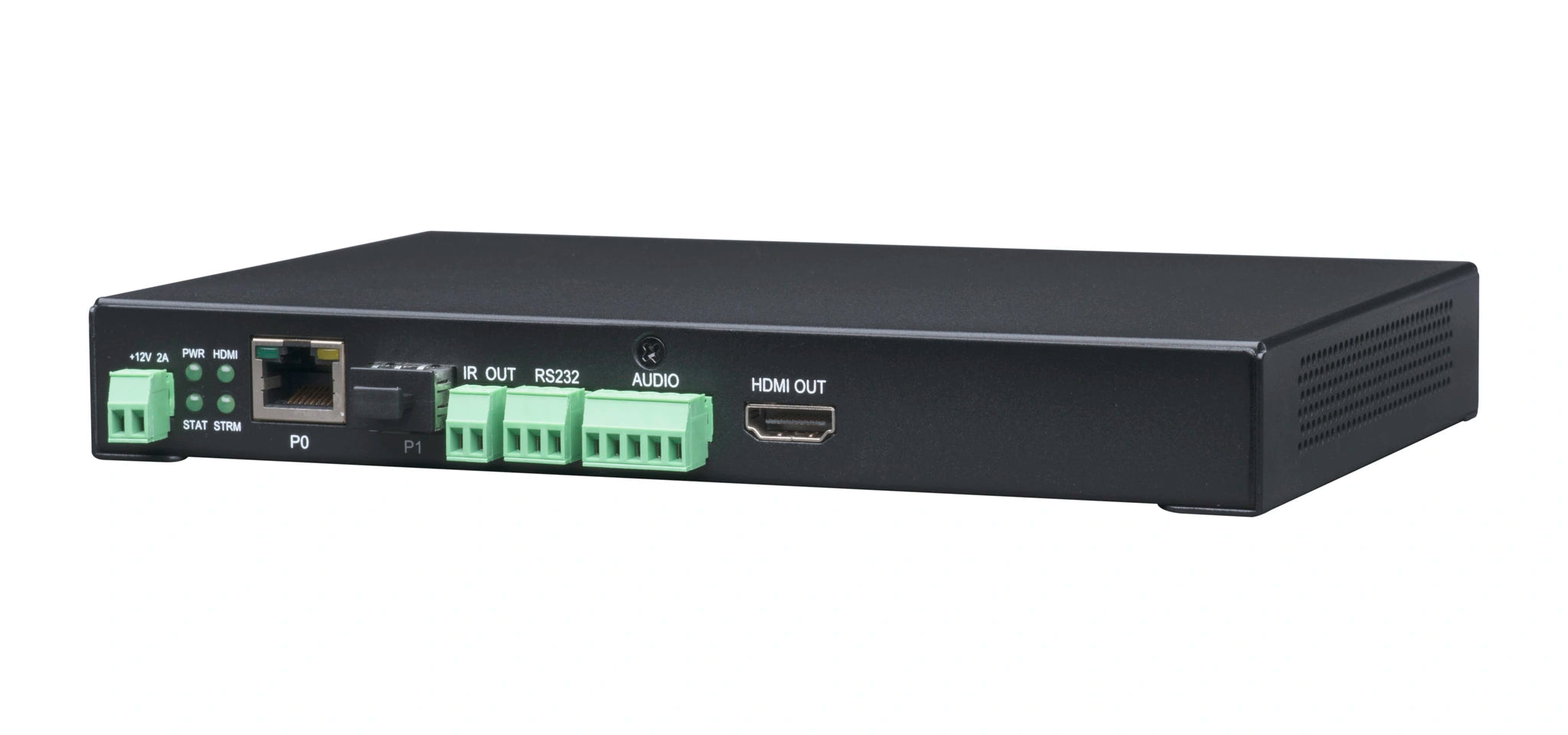

- Fast Install – With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
- Balanced and Unbalanced Audio – Embedded 7.1 digital audio or balanced/unbalanced analog audio
- Multiple Connection Options – RJ-45 and SFP network connectors and HDMI video connections
- KVM – Dual USB-A control for KVM applications
- Native NetLinx – NetLinx Studio can easily recognize the device
Specifications
| Digital Video Input | Network video over Ethernet via RJ45 port or fiber via 1G SFP port |
| Video Outputs | HDMI 2.0, DVI-D (through adapter) |
| Video Formats | HDMI 2.0, DVI-D (through adapter), HDCP 2.2 content protection support |
| Output Resolutions | 720p, 1080p, 4K30 or input resolution if scaler is disabled |
| Audio Input Signal Types | Network video over Ethernet via RJ45 |
| Audio Output Signal Types | Embedded audio on DVI-D or HDMI (through adapter), analog audio output |
| HDMI Audio Formats | 8ch PCM |
| Analog Audio Formats | Stereo 2-channel |
| Latency | 17-ms at 60fps for 1920x1080 and lower resolutions; 34-ms at 30 fps for 4K30 4K resolutions. See Data Sheet for details. |
| Communications | Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; 1 Gbps SFP port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling); HDMI: HDCP, EDID management |
