- Dual NIC – The LAN port is used to connect the master to an external network, and the ICSLAN ports connect to AMX or third-party A/V equipment isolated from the primary network, providing rock-solid security
- IPv6 – Supports Internet Protocol version 6 (IPv6), the communications protocol that provides an identification and location system for computers on networks and routes traffic across the Internet
- IEEE 802.1X – Supports IEEE Standard for Port-based Network Access Control with the ability to grant or deny network access to devices wishing to attach to a LAN based on credentials tied to the device rather than to a user
- X.509 Certificate Services – NX supports customer-provided certificates for access to protected networks
- Full LDAP Integration – Supports multiple user-defined login groups for accessing the master, as well as provides an AMX programmer the capability to require network login to access certain areas of the touch panel
- High Performance Architecture, Flexible Programming Platform (RPM, NetLinx and Java) – Easily scalable to support a wide range of applications for today and tomorrow
- Full Line Compatible (Backwards and Cross-Compatibility) – Standardized port numbers and new configuration import/export tools mean fewer coding changes
- TLS / SSH Client – Provides NetLinx programmers the ability to manage secure port TLS and SSH communications with a remote device or server
- Cryptographic Support – In accordance with FIPS 140-2, a U.S. government computer security standard used to accredit cryptographic modules for the protection of sensitive or valuable data
- Network Syslog – Supports standard device logging to a syslog server
- Enhanced Diagnostics On Serial and IR Ports – Provides real time error feedback when Serial and IR ports are disconnected or improperly wired
- File Import / Export From USB Drive – Backup and restore configuration and program data and update firmware from a standard USB flash drive
- Hardware / Software Built for 24/7/365 Operation – Provides outstanding reliability and improved diagnostics
- Ultra-Fast 1600 MIPS processor
- 512 MB Onboard RAM
- 1 M Non-Volatile Memory
- 8 GB SDHC FLASH Memory
- 1 RU
- 1 AXLink Interface
- 1 10/100 LAN Interface
- 4 Digital I/O Ports
- 1 RS232/422/485 Port
- 3 RS232-Only Ports
- 4 IR/Serial Output Ports
- 4 Relay Ports
AMX NX-2200 NetLinx NX Integrated Controller
Rs. 260,211.00
Sale price
Rs. 260,211.00
Regular price
Skip to product information

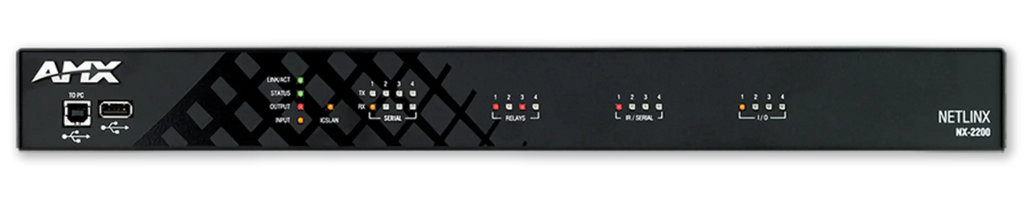

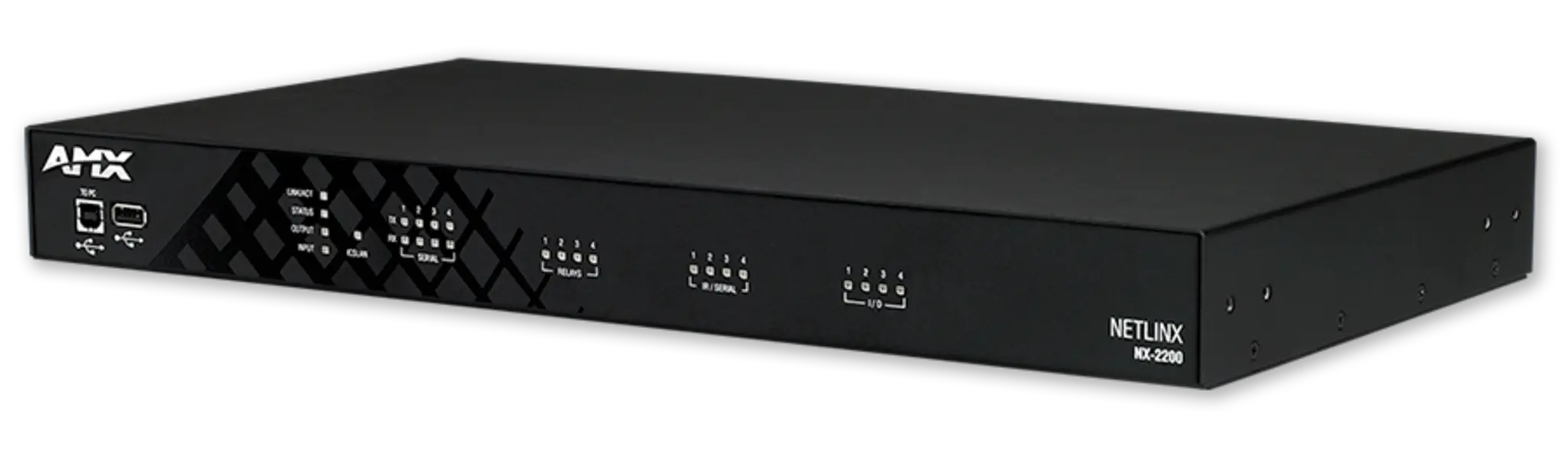

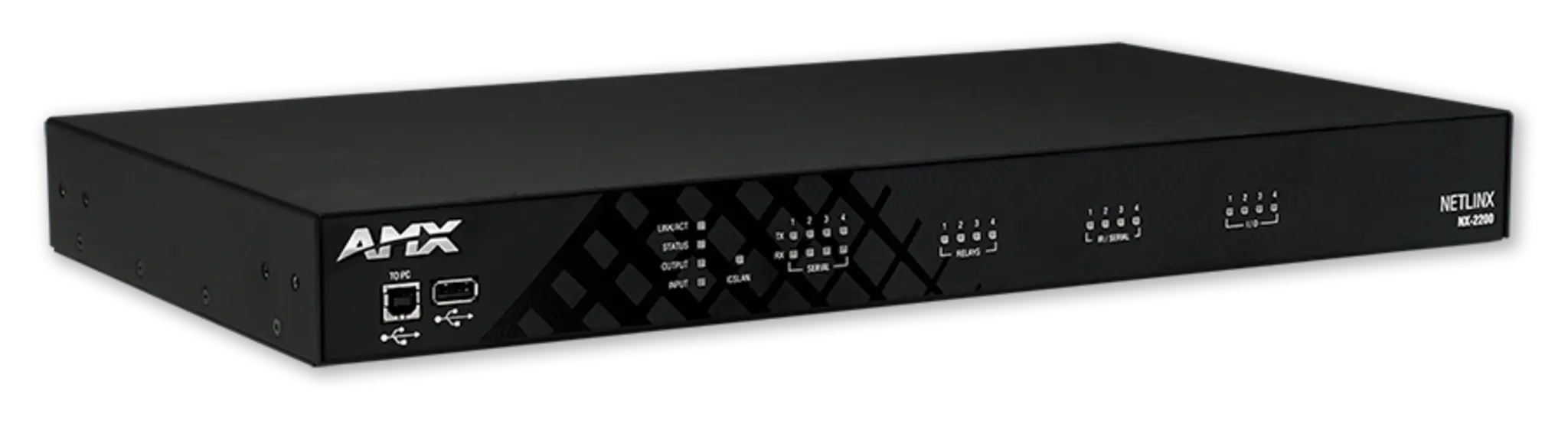

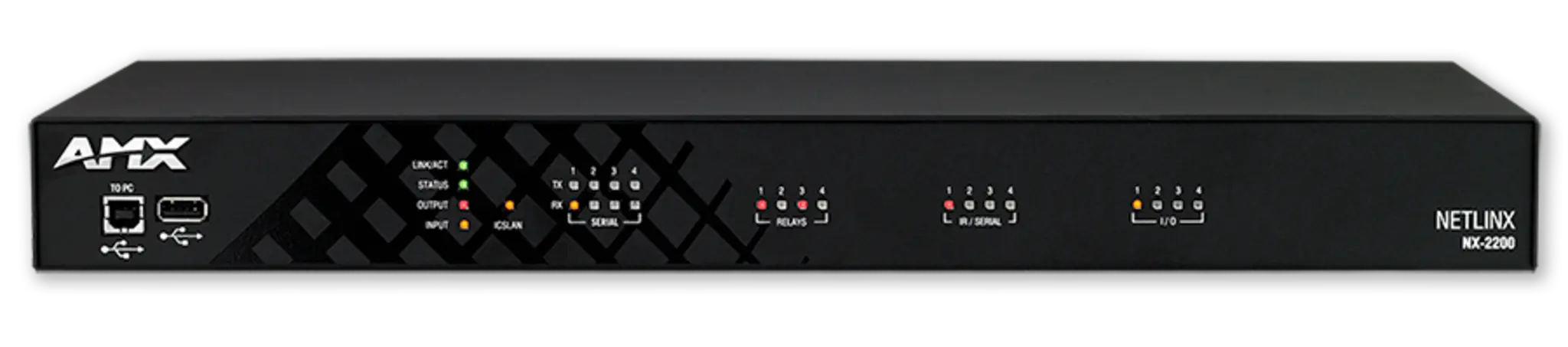

AMX NX-2200 NetLinx NX Integrated Controller
Rs. 260,211.00
Sale price
Rs. 260,211.00
Regular price
Taxes included.
Item #FG2106-02
The NX-2200 / NetLinx® NX Integrated Controller is a programmable network appliance specifically designed to control AV and building technology using multiple analog and digital formats. The NX-2200 provides a scalable platform for the future by combining high performance, backward compatibility and extensive network security features. The NX-2200 is ideal for control and automation of medium-sized rooms and multi-room applications, as it includes more ports and security capabilities than the NX-1200.
Features
Specifications
| Dimensions (HWD) | 1 4/5” x 17” x 9 1/8” (45.15 mm x 431.80 mm x 231.64 mm) |
| Weight | 6.08 lb. (2.758 Kg) |
| Memory | Memory Card: 8 GB SD, NVRAM: 1 MB, DDRAM: 512 MB, Note: Supports external USB Solid State Drives |
| Power Consumption | Active Power Consumption: 4.2 W |

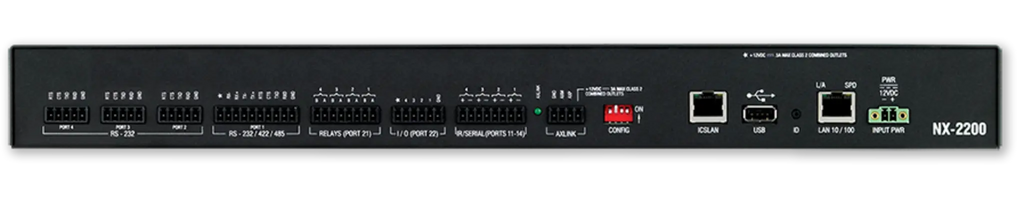

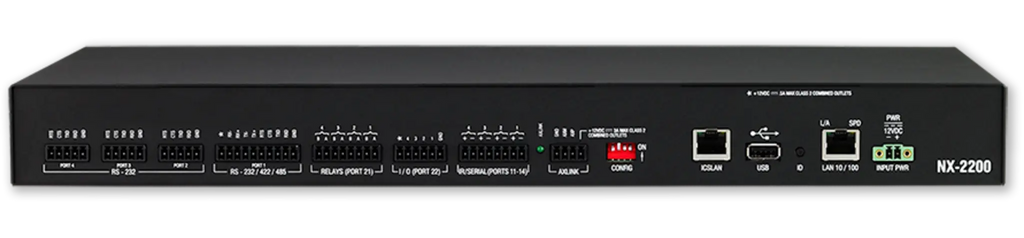

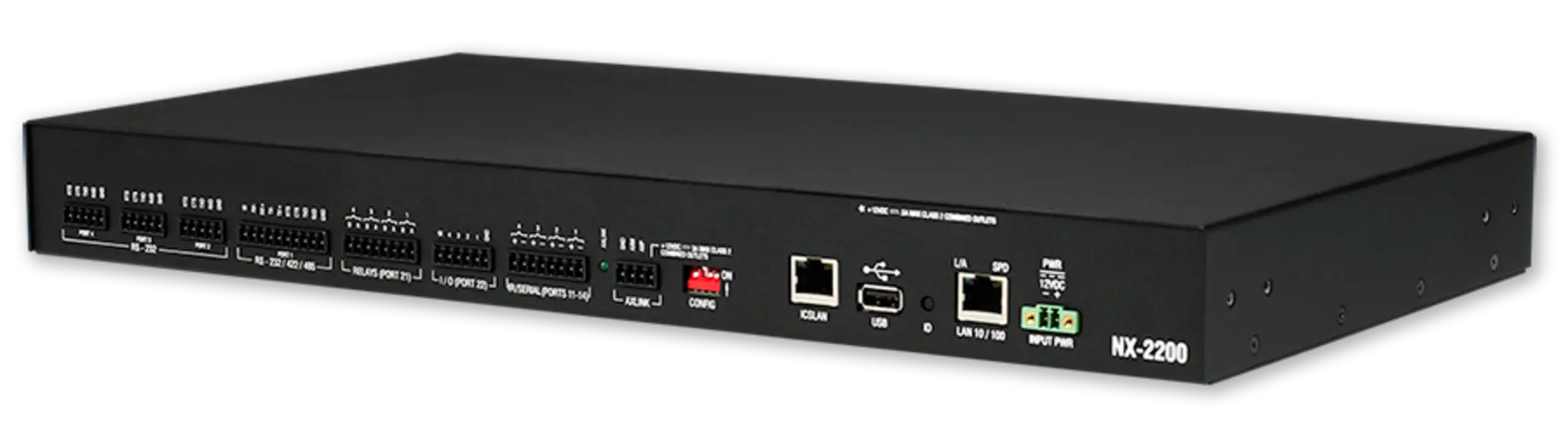

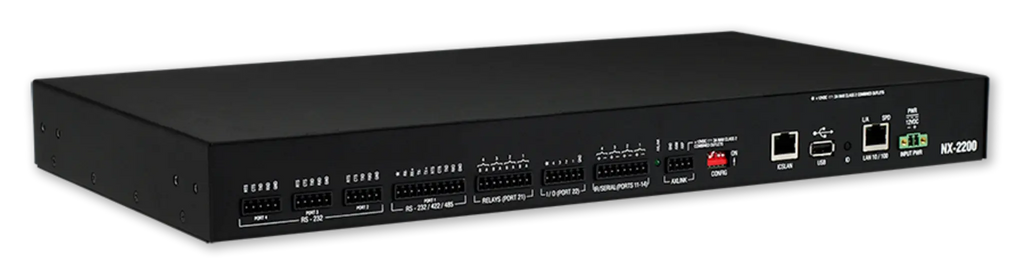

| AxLink Port | (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices |
| AxLink Indicator | (1) AxLink LED (green) indicates the state of the AxLink port |
| RS-232/422/485 Ports | (1) 10-position 3.5mm Screw Terminal, NetLinx Port 1, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud |
| RS-232 Port | (3) 2-position 3.5mm Screw Terminal, NetLinx Ports 2-4, XON/XOFF (transmit on / transmit off), CTS/RTS (clear to send/ready to send), 300 - 115,200 baud |
| Serial Indicator | (4) sets of LEDs (red/yellow) indicate when serial Ports 1 - 4 are transmitting and receiving data |
| IR/Serial | (4) 2-position 3.5mm Screw Terminal, 4 IR Transmit / 1-way Serial ports, NetLinx Ports 11-14, Support high-frequency carriers up to 1.142 MHz, 4 IR/Serial data signals can be generated simultaneously |
| IR/Serial Indicators | (2) LEDs (red) indicate when each of the IR/Serial ports (11-14) are transmitting control data |
| I/O Channels | (4) One 6-position 3.5mm Screw Terminal, 4-channel binary I/O port for contact closure with each input being capable of voltage sensing, NetLinx Port 22, Channels 1-4 |
| I/O Indicator | (4) LEDs (yellow) indicate each of the I/O channels (1-4) are active |
| Relays | (4) One 8-position 3.5 mm Screw Terminal, (4) single-pole, single-throw relays, NetLinx Port 21, Channels 1-4, Each relay can switch up to 24 VDC or 28 VAC @ 1 A, Each relay is independently controlled |
| Relay Indicators | (4) LEDs (red) indicate when each of the relay channels (1-4) are active (closed) |
