- Perfect HDMI 2.0 4K60 4:4:4 Video - Ideal for users running critical viewing applications such as casinos and courtrooms that can benefit from processing the full fidelity of their displays
- High Dynamic Range (HDR) Support – Support HDR10 in Matrix Mode
- HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
- Multi-windowing Processing - Up to four simultaneous, freely scalable windows can be processed using the 4x1+1 multi-windowing mode
- Seamless Switching – Ensures uninterrupted screen transitions during source selections when switching in 4x2 matrix mode
- Audio Pass-Through & De-Embedding – Empowers independent audio source selection and routing to HDMI outputs in all modes
- H-Control Upgradable – Ready to support H-control in the future by firmware re-writing via USB

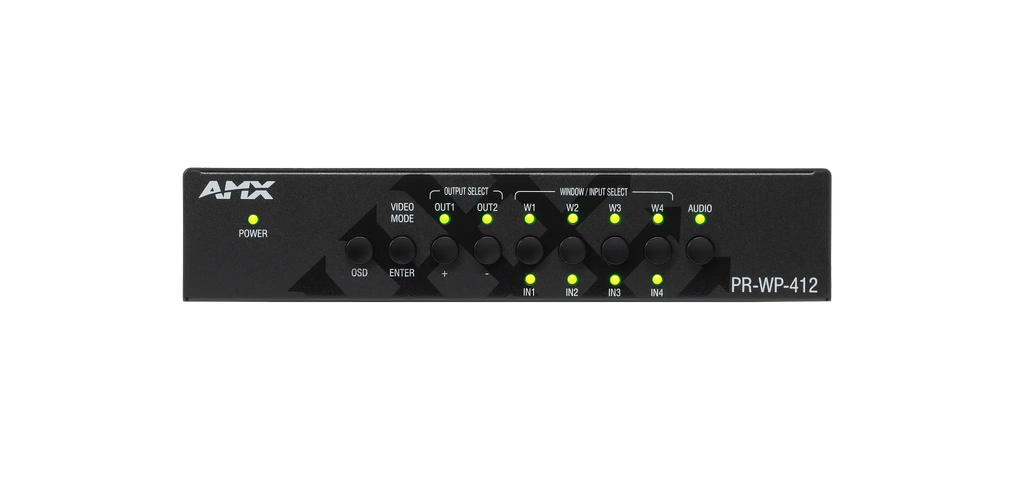

- Multiple Control Options – Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons
AMX PR-WP-412 Precis 4x1+1 4K60 HDMI Windowing Processor
Rs. 497,499.00
Sale price
Rs. 497,499.00
Regular price
Skip to product information
AMX PR-WP-412 Precis 4x1+1 4K60 HDMI Windowing Processor
Rs. 497,499.00
Sale price
Rs. 497,499.00
Regular price
Taxes included.
Item #AMX-PR-WP-412
The PR-WP-412 is an incredibly versatile and powerful AV solution that is both a fully featured 4x1+1 windowing processor with mirrored outputs and a 4x2 seamless matrix switcher. When configured as a windowing processor, the four video inputs can be arranged in any configuration and composited into a single output. In matrix switcher mode, the PR-WP-412 acts as a 4x2 seamless video switcher. It is loaded with best-in-class features, including truly seamless switching, class-leading 4K60 4:4:4 video quality, integrated audio breakaway, and extreme control flexibility with an open control API, a simple-to-manage HTML5 web interface, and front panel controls.
Features
Specifications
| Video Inputs | (4) HDMI; supports HDMI/HDCP |
| Video Outputs | (2) HDMI; supports HDMI/HDCP |
| Video Resolution Support | Various up to 4096 x 2160@ 60 Hz - Reference Data Sheet for Specific Resolution Support |
| Audio Inputs | Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, & DTS HD MA |
| Audio Outputs | (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo |

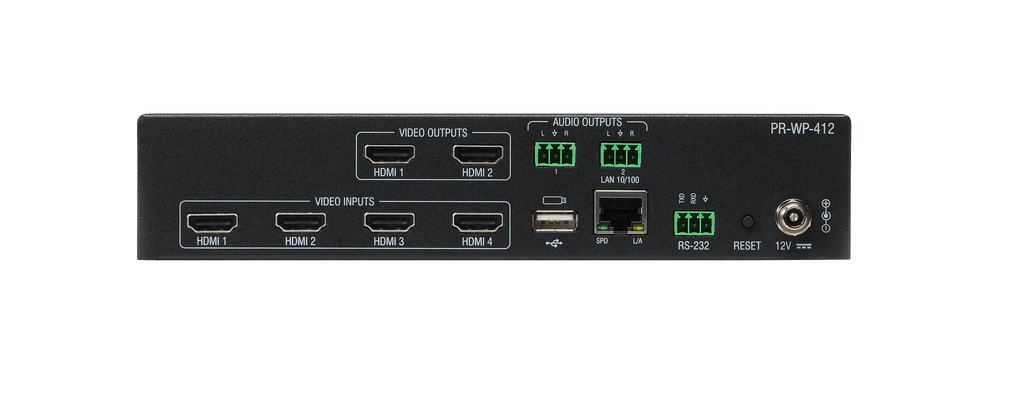

| Ports | 12V Power: (1) Screw Down Locking Power Connector; HDMI Input: (4) HDMI Type A Socket; HDMI Output: (2) HDMI Type A Socket; Ethernet: (1) RJ45 Connector; Analog Stereo Output: (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) 3 Position 3.5 mm pluggable Phoenix Terminal Block; Program Port: (1) USB Type A Socket |
| Environmental | Temperature (Operating): 32°F (0°C) to 122°F (50°C) Temperature (Storage): -4°F (-20°C) to 140°F (60°C) Humidity (Operating): 10% to 90% RH (non-condensing) Humidity (Storage): 10% to 90% RH (non-condensing) Thermal Dissipation (Typical): 77.1 BTU/hr |
