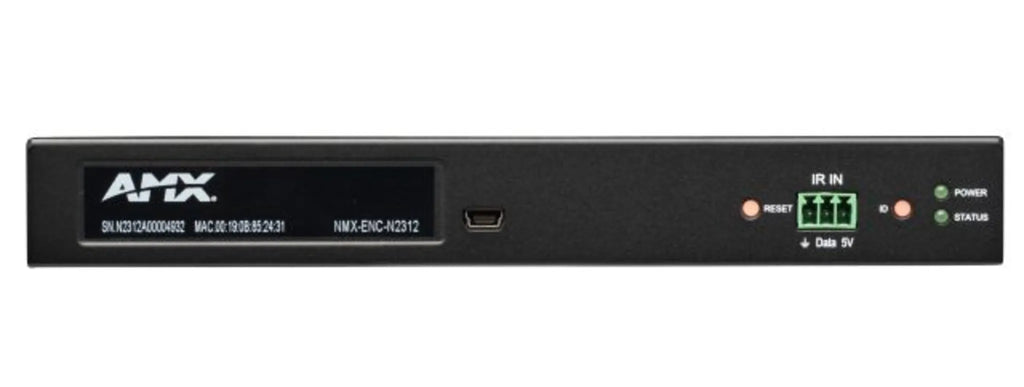

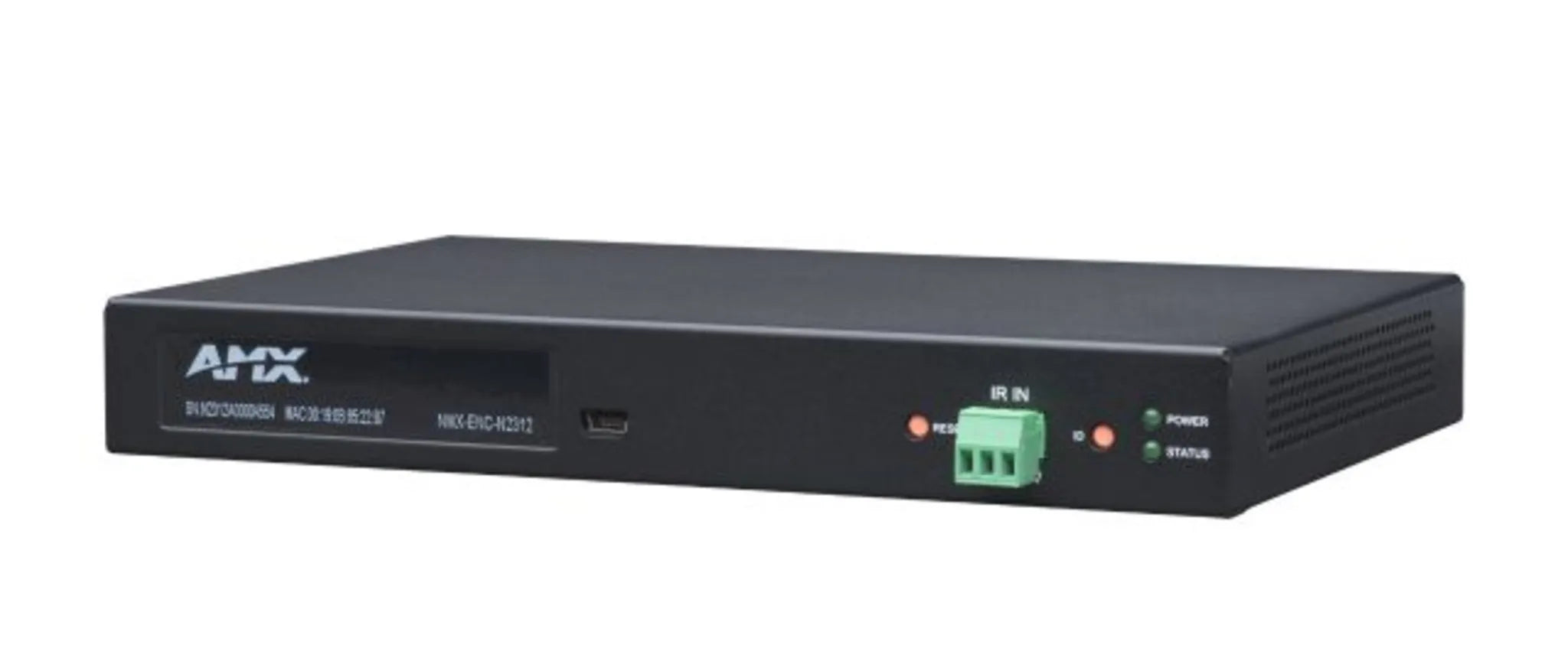

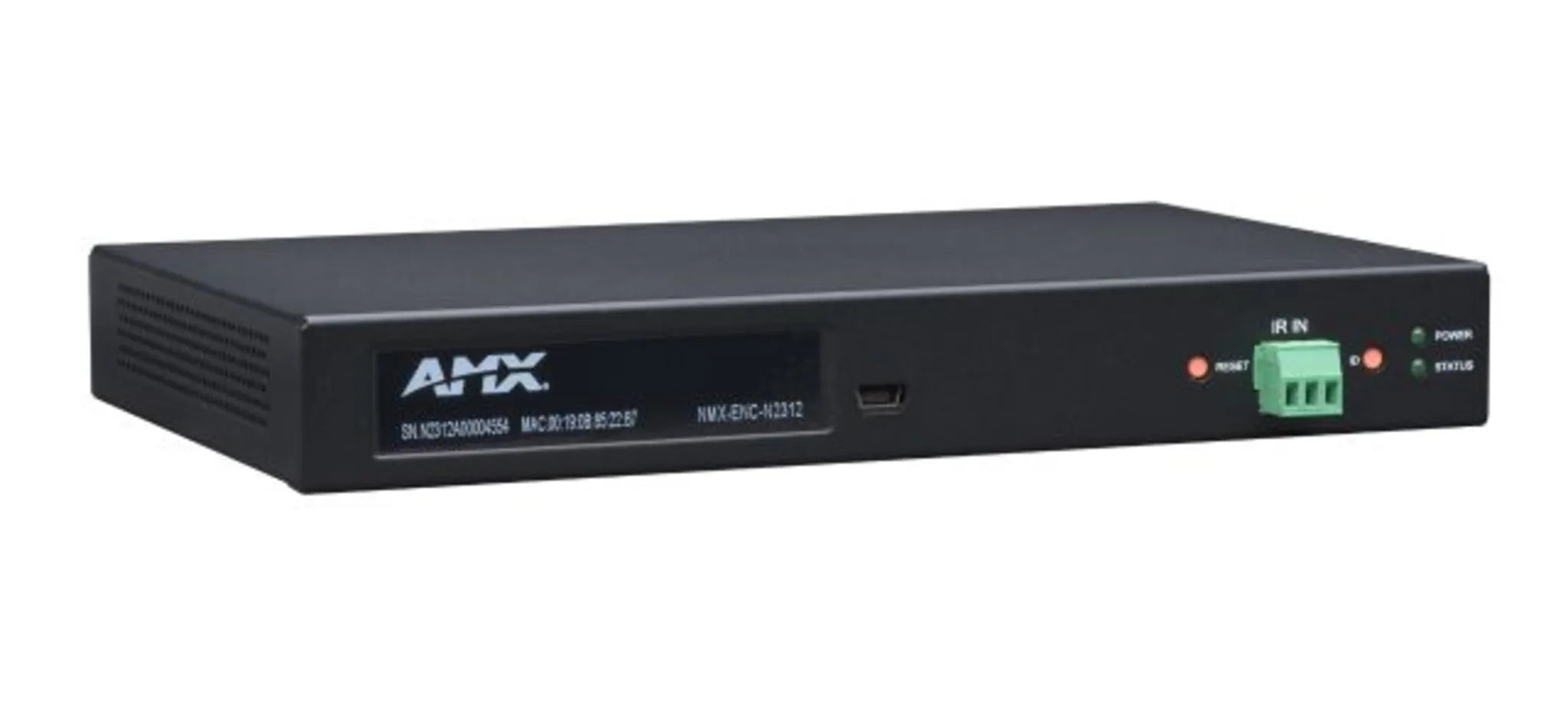

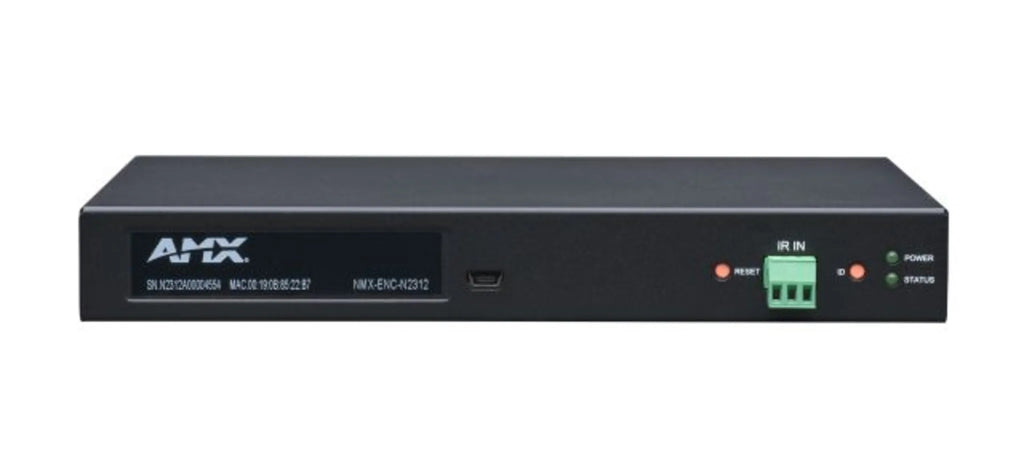

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. Utilizing JPEG2000 encoding, the N2312 and N2322 encoder and decoder deliver video with latency so low it supports extremely sensitive applications like live action.
Features
- Design Flexibility — Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
- Power Over Ethernet (POE) — eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, highdensity installations
- Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
- Infrared (IR) — Emitter connection allows control of IR-only display devices

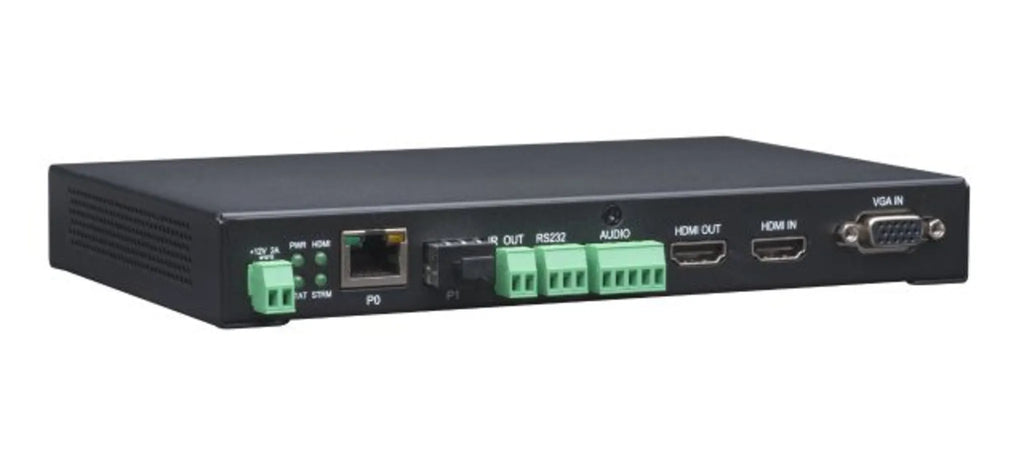

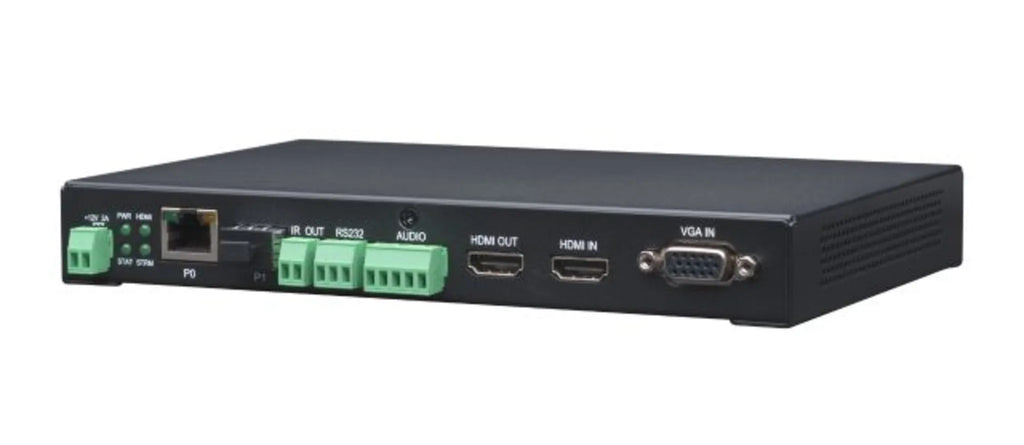

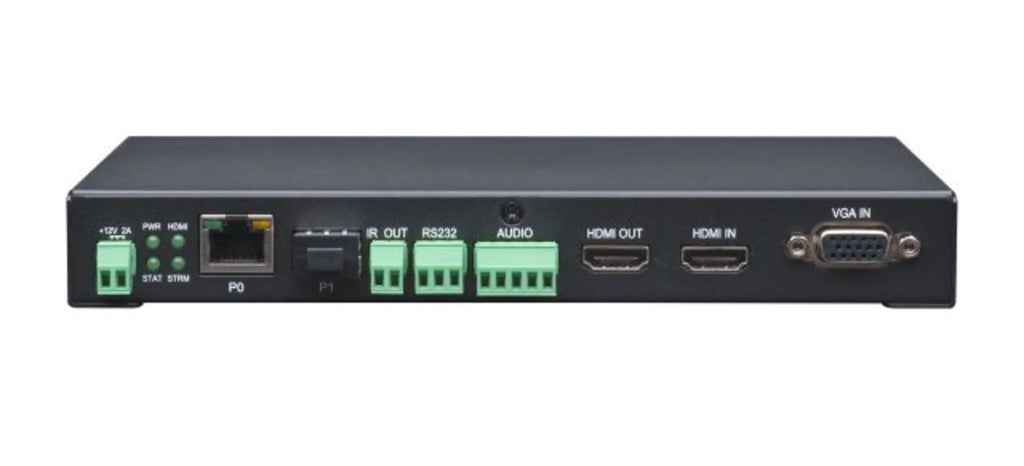

- Fast Install — With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
- Balanced and Unbalanced Audio — Embedded 7.1 digital audio or balanced/unbalanced analog audio
- Pass Through HDMI — allows easy installation with local display such as desktop PC applicaitons
- Multiple Connection Options — RJ-45 and SFP network connectors and HDMI video connections
- KVM — Single USB-B for KVM applications
- Native NetLinx — NetLinx Studio will easily recognize the device
Specifications
| Digital Video Input | HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++) (through adapter) |
| Analog Video Input | HD-15 VGA, Component, supported through a passive adapter |
| Video Outputs | Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D (through adapter) |
| Video Formats | HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV. DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter |
| Progressive Input Resolutions |
Supports 4K30 4:2:0 and most common HD resolutions up to 1920x1200. See Data Sheet for details. |
| Interlaced Input Resolutions | Supports 1080i60. See Data Sheet for details. |
| Analog Input Resolutions | Supports most common HD up to 1920x1200. See Data Sheet for details. |
| Analog-To-Digital Conversion | 8-bit 165 MHz per each of three color channels |
| Audio Input Signal Types | Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced) |
| Audio Output Signal Types | Ethernet, Embedded audio on HDMI or DVI-D (through adapter) |
| HDMI Audio Formats | 8ch PCM |
| Analog Audio Formats | Stereo 2-channel |
| Audio Analog-to-Digital Conversion | 48 kHz |
| Latency | 17-ms at 60 fps for 1920x1080 and lower resolutions; 34-ms at 30 fps for 4K30. See Data Sheet for details. |
| Communications | Ethernet: 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP; HDMI: HDCP, EDID management. See Data Sheet for details. |
