- HDMI 2.0 Support - HDMI video input supports resolutions up to 4096×2160p@60 4:4:4, HDR, and 10-bit per channel Deep Color
- USB 3.0 Capture - UVC video output supports resolutions up to 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010)
- Audio Input Embedded - Audio input support includes analog stereo audio and HDMI embedded audio
- Support for Popular OS Platforms - Windows 10 (64-bit), macOS (10.12 or newer)
- UVC Software Compatible - Supports Zoom, Teams, WebEx, Skype, Slack, Discord, BlueJeans, GoToMeeting, VLC, and more.
- Ideal TPC-TPI-Pro Companion - Works with AMX TPC-TPI-PRO professional in-room presentation management system to enable users to preview and control their presentation and environment from a single, third-party touch panel interface

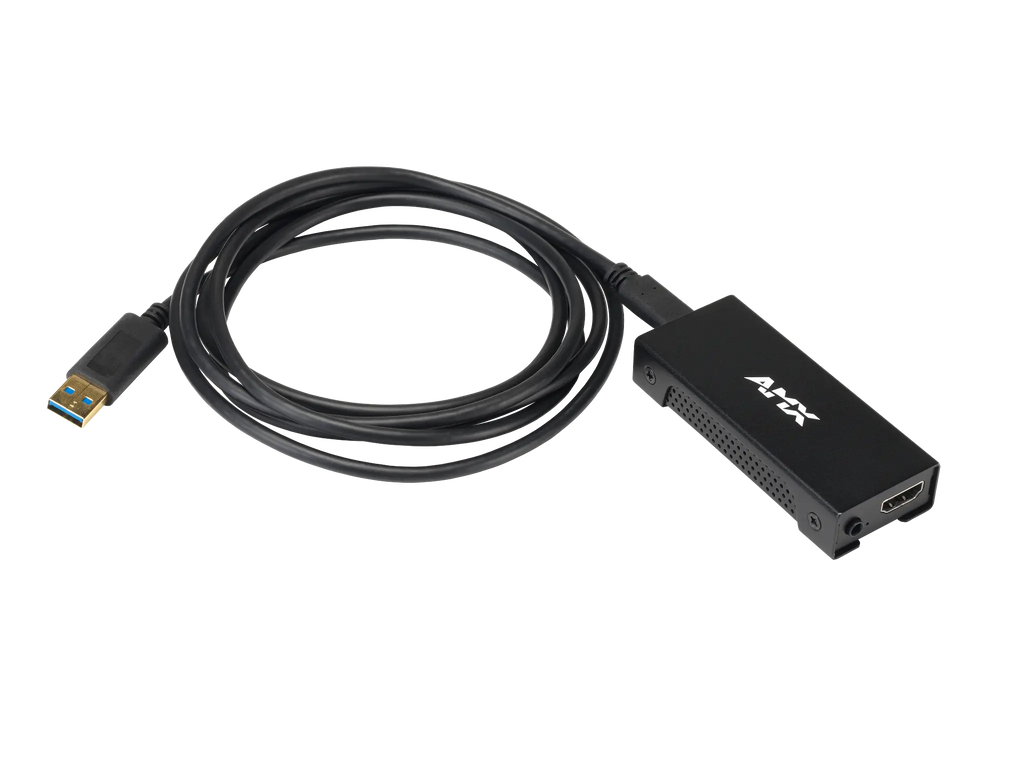

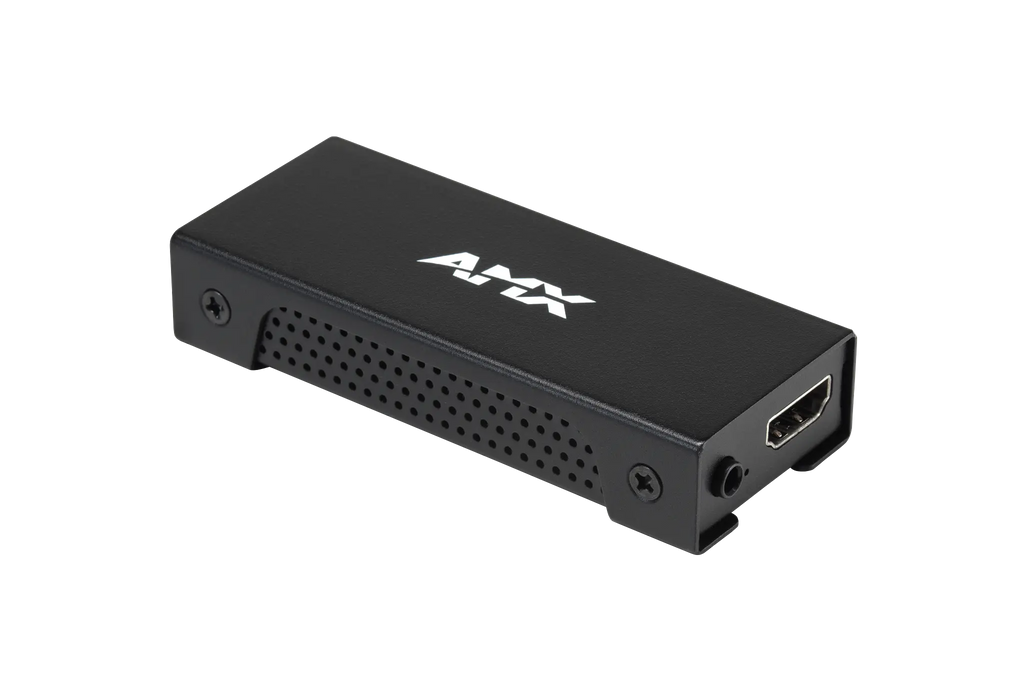

AMX UVC1-4K 4K HDMI to USB Capture Device
Rs. 156,199.00
Sale price
Rs. 156,199.00
Regular price
Skip to product information
AMX UVC1-4K 4K HDMI to USB Capture Device
Rs. 156,199.00
Sale price
Rs. 156,199.00
Regular price
Taxes included.
Item #AMX-UVC1-4K
The UVC1-4K solves the issue of PCs that lack HDMI or other video inputs for importing content from video cameras, document cameras, DVD players or other traditional video sources. It also serves as an ideal solution for users of the AMX TPC-TPI-PRO professional in-room presentation management system, offering the ability to preview and control their presentation and environment from a single, third-party touch panel interface.
Features
Specifications
| Video Inputs | (1) HDMI 2.0 |
| Video Outputs | (1) USB 3.0; supports UVC 1.1 |
| Video Input Resolutions | Up to 4096×2160p@60fps (4:4:4 10-Bit HDR) |
| UVC Output Resolution | 4096×2160p@60/50fps and 3840×2160p@60/50fps inputs will be output at 3840×2160p@30fps (NV12, I420) or 1920×1080p@60fps (YUY2, P010) For all inputs below 3840×2160p@30fps, UVC1-4K outputs will match the input resolution |
| Audio Inputs | HDMI Embedded Audio / 3.5mm Analog Stereo Audio |

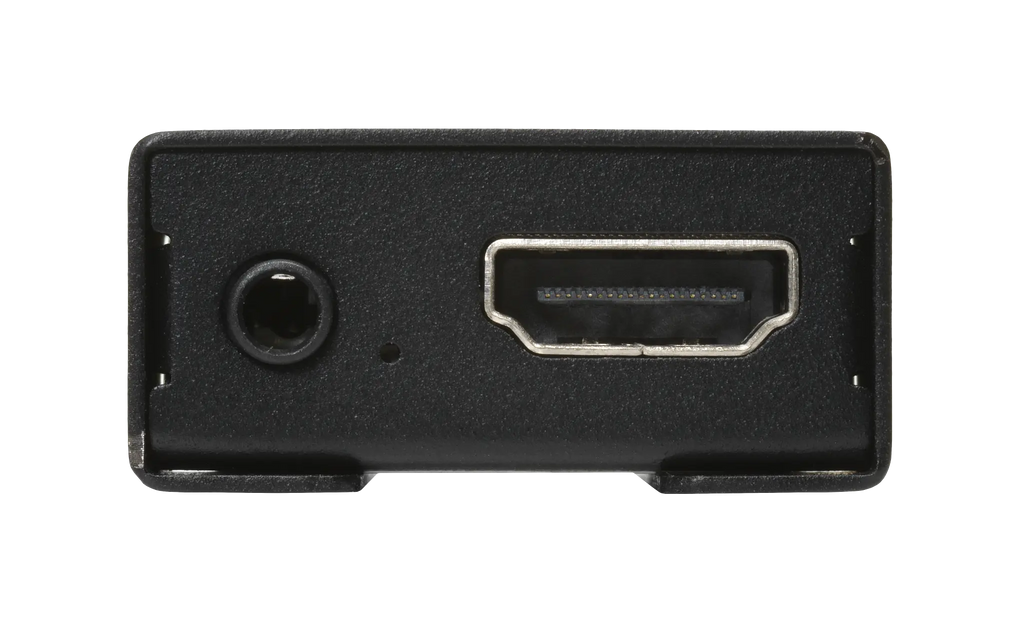

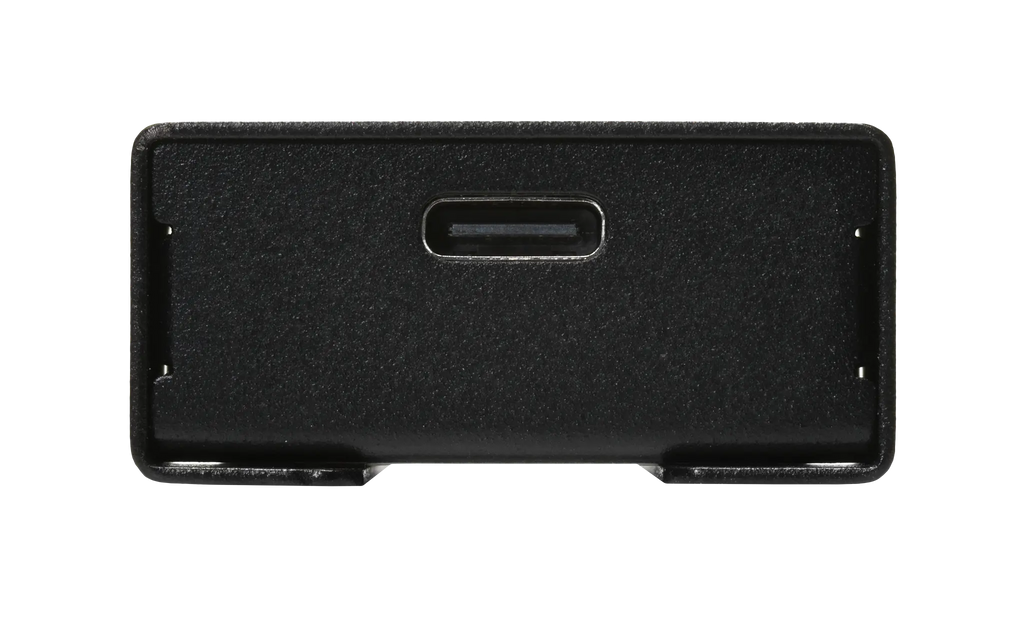

| Ports | HDMI Input: (1) HDMI Type A Socket; Analog Stereo Input: (1) 3.5 mm TRS audio jack; USB 3.0: (1) USB Type C Socket |
| Environmental | Temperature (Operating): 32°F (0°C) to 104°F (40°C) Temperature (Storage): -4°F (-20°C) to 158°F (70°C) Humidity (Operating): 10% to 90% RH (non-condensing) Humidity (Storage): 10% to 90% RH (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class B EN 55032 EN 55035 RoHS/REACH EMC (Australia) EMC (Canada) EMC (UKCA) Prop65 |
| Dimensions (H x W x D) | 0.66” x 1.43” x 3.44” (17 mm x 36.3 mm x 87.3 mm) |
| Weight | 3.3 oz (93.62 g) |
| FG Numbers | AMX-UVC1-4K |
