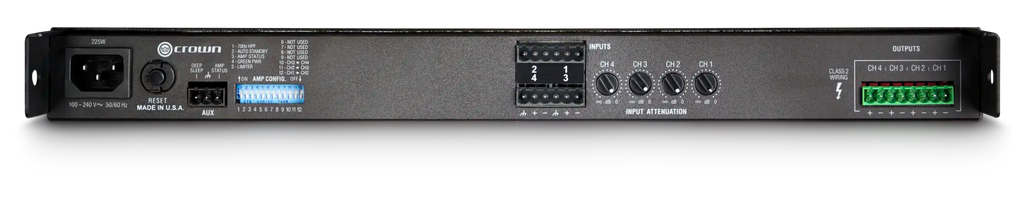

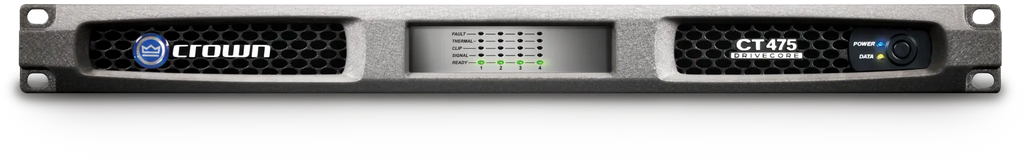

Crown CT 475, Four-channel, @ 4Ω 75W Power Amplifier
Rs. 0.00
Sale price
Rs. 0.00
Regular price
Taxes included.
Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.
- Flexible Input Routing
- Convection Cooled
- Universal Power Supply
- Integrated Life-Safety Features
- Up to 8X125W in 1U chassis with no fan
- DriveCore™ technology provides >90% efficiency with no compromise in performance
- Patented Feedback and Protection Circuits
- Amplifier is stable for 2 – 16 Ohm Loads
- XFMR 4/8 needed for 70V/100V Applications
| Channels |
4 |
| Sensitivity |
1.4 V |
| Rated Power Output (all channels driven) |
75W per CH @ 4 ohms, 75W per CH @ 8 ohms |
| Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) |
110 dB |
| THD (full rated power, 20 Hz - 20 kHz) |
< 0.05% |
| Intermodulation Distortion (from 0 dB down to -30 dB) |
< 0.05% |
| Frequency Response (at 1W, 4/8 ohms) |
+/- 0.5 dB |
| Crosstalk (below rated power) 20 Hz to 1 kHz |
> 70 dB |
| Common Mode Rejection (20 Hz to 1 kHz) |
> 55 dB, typically > 70 dB |
| Voltage Gain |
25 dB |
| DC Offset |
+/- 20mV |
| Idle Power Consumption (Standard Mode) |
15.0W |
| Dimensions |
1.75" x 19" x 15.19" |
| Weight |
10lbs/4.54kg |
| Shipping Weight |
15 lbs/6.8 kg |
| IEC Power Connector |
15A |
