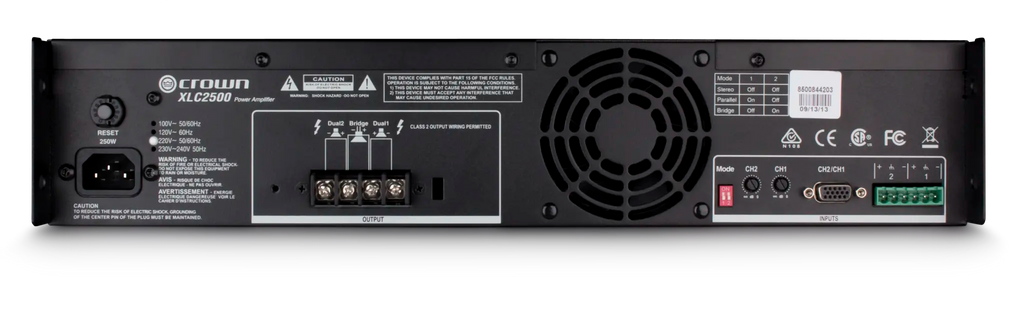

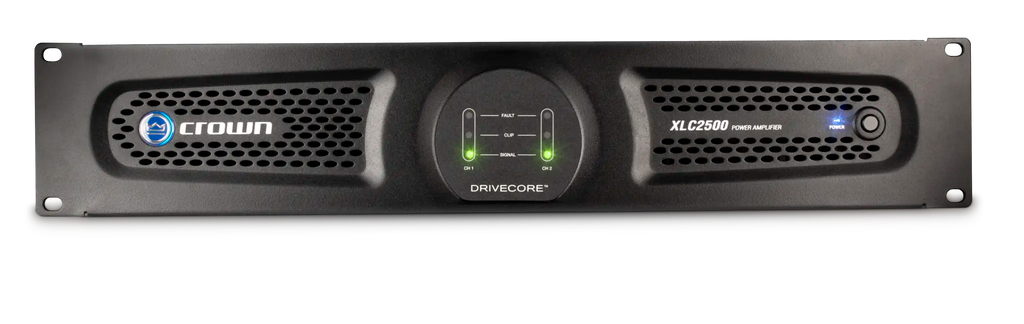

Crown XLC 2500, Two-channel, 500W @ 4Ω Power Amplifier
Rs. 0.00
Sale price
Rs. 0.00
Regular price
Taxes included.
Available in two models, the XLC2500 and XLC2800 incorporate Crown’s proprietary DriveCore™ Technology, which significantly reduces the amplifiers’ size, while yielding much more energy efficient operation – without sacrificing performance. Compact, powerful and cost-effective, the XLC Series provides ease of installation, outstanding sound quality and the unwavering reliability inherent in every Crown product. These amplifiers are powerful, affordable options for both the cinema and install markets.
Some important features for cinema applications:
- Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
- XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
- XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
- Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
- Support parallel connection of cinema surround speaker
- Indicators provide accurate diagnostics: Power, Signal, Clip and Fault
- Volume control on rear panel of amplifiers
- High performance, light weight
- DriveCore based amplifier – weighs less than 14lbs (6 kgs)
| AC Line Voltage and Frequency Configurations Available |
(+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz |
| Voltage Gain |
35 |
| Sensitivity |
1.4V (for full rated power at 4 ohms) |
| Signal to Noise Ratio |
(ref. rated power, 8 ohms, 1 kHz) > 103 dB |
| THD |
<0.5% |
| Damping Factor |
(8 ohms, 10 Hz to 400 Hz) >200 |
| Intermodulation Distortion |
(from full rated output to -30 dB) <0.3% |
| Frequency Response (at 1W, 20 Hz - 20 kHz) |
0 dB |
| Crosstalk |
>85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz) |
| Input Impedance (nominal) |
20 kilohms balanced, 10 kilohms unbalanced |
| Load Impedance |
2~8 ohms per channel in Stereo; 4~8 ohms in Bridge |
| Dimensions |
19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm) |
| Weight |
8.3 lbs (3.75 kg) |
| Shipping Weight |
10.7 lbs (4.85 kg) |
| IEC Power Connector |
15A |
