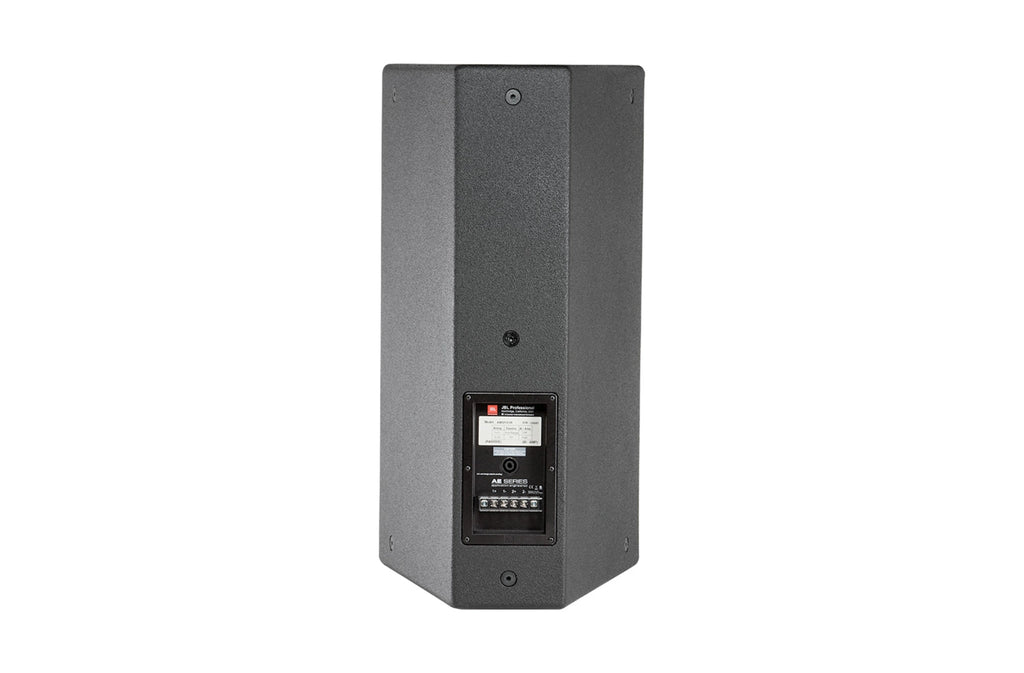

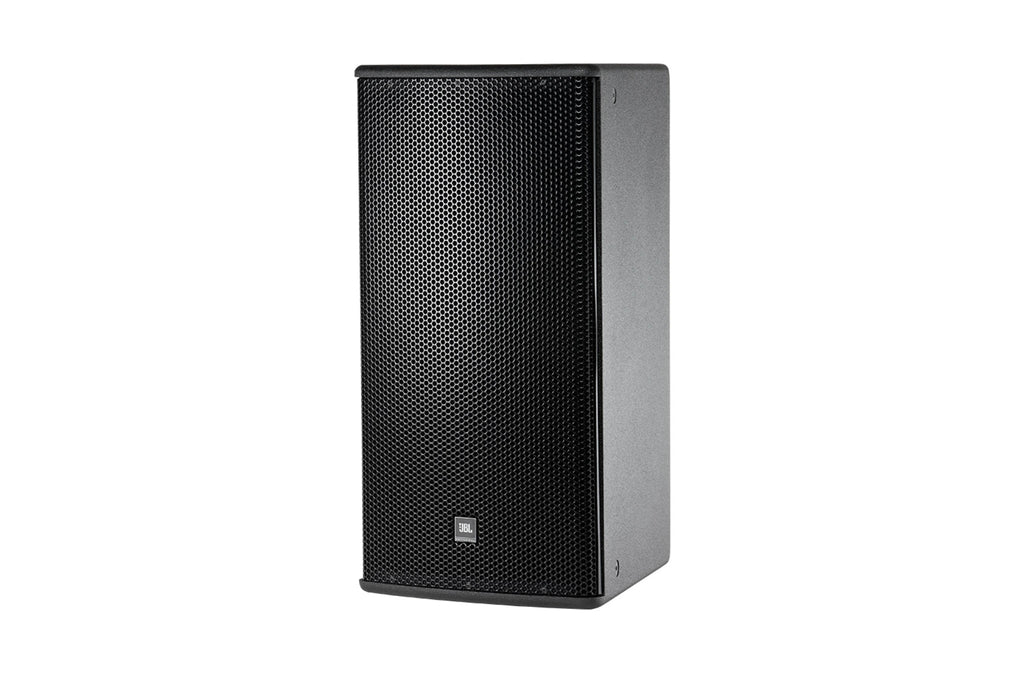

High Power 12-inch 2-Way Loudspeaker with 60° x 40° Rotatable Horn

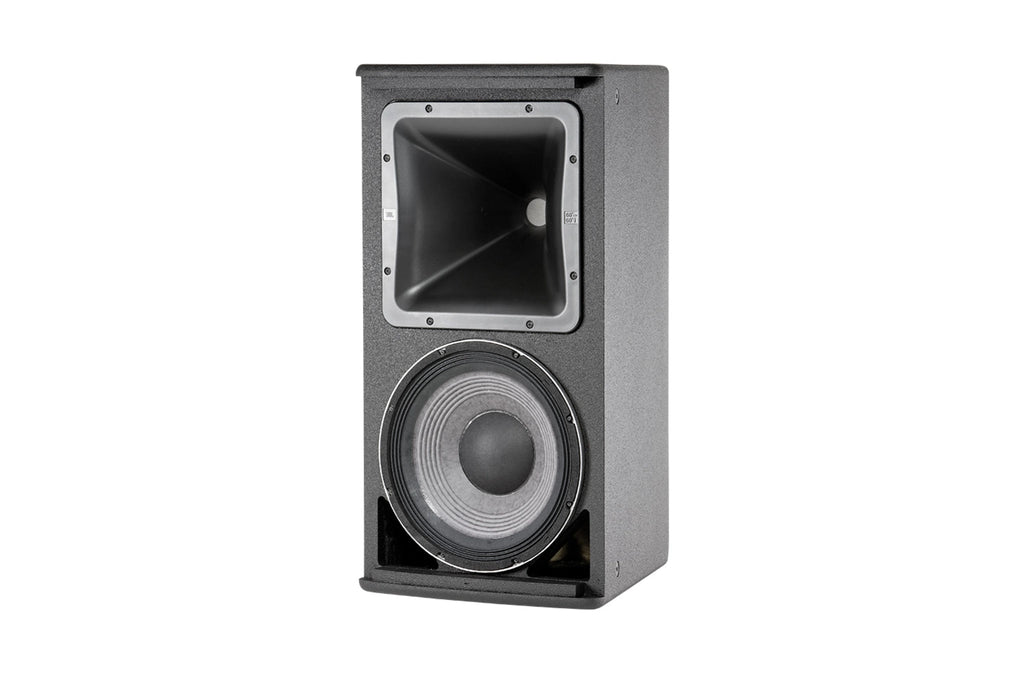

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Features
- 60° x 40° Coverage
- 2262H Differential Drive® Low- Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable waveguide for vertical or horizontal orientation
- Bi-Amp/Passive Switchable
- Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
- Available in Black, White and WRC/WRX finishes
Specifications
| Frequency Range (-10dB) | 36 Hz - 20 kHz |
| Frequency Response (±3 dB) | 42 Hz - 18 kHz |
| Coverage | /64: 60° x 40°/66: 60° x 60°/95: 90° x 50°/00: 100° x 100°/26: 120° x 60° |
| LF Driver | 1 x JBL 2262H 300 mm (12 in) Differential Drive® driver with 75 mm (3 in) dual voice coil |
| HF Driver | JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil |
| System Type | 12" Two - Way, High Power, Full - Range |
| Dimensions (H x W x D) | 711 x 369 x 458 mm (28 x 14.5 x 18 in) |
| Net Weight (each) | 23.1 kg (51 lb) |
| Crossover Modes | Bi-amp/Passive switchable |
| Passive Crossover Frequency | 1.8 kHz |
| Transducer Power Rating (AES) | LF: 1000 W (4000 W peak), 2 hr700 W (2800 W peak), 100 hrsHF: 100 W (400 W peak), 2 hrs |
| System Power Rating | Passive mode: 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | Bi-amp mode:LF: 126 dB-SPL cont avg (132 dB peak)HF: 135 dB-SPL cont avg (141 dB peak)Passive mode:123 dB-SPL cont avg (129 dB peak) |
| System Sensitivity (1w @ 1m) | Passive mode: 95 dB SPL |
| Nominal Impedance | 8 ohms |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529. |
