Compact High Power 12-inch Subwoofer

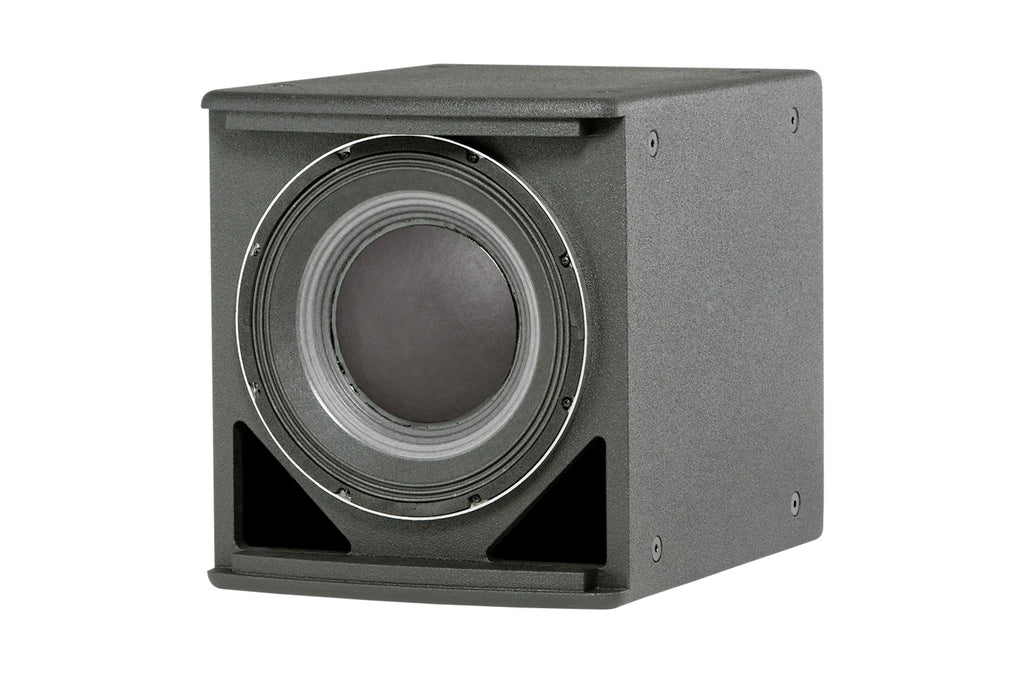

The ASB6112 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2263H Differential Drive® dual coil dual gap 12" woofer. This woofer features neodymium magnet and ultra robust cone for extra long life.
Features
- 2263H 12" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
- 1000 watts continuous pink noise,
4000 watts peak power handling capacity - Large vent area for high output with low distortion
- FIR Tuning Set Matches Phase Profile to Full-Range Models
- For ground-stacked or suspended applications in stand-alone arrays or in combination with other
AE Series products
Specifications
| Frequency Range (-10dB) | 35 Hz – 1 kHz |
| Frequency Response (±3 dB) | 43 Hz – 1 kHz |
| Transducer Power Rating (AES) | 1000 W (4000 W peak), 2 hrs. |
| System Power Rating | 700 W (2800 W peak), 100 hrs. |
| Maximum SPL (1m) | 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak) |
| System Sensitivity | 40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver |
| Enclosure | Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood |
| Suspension Attachment | 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware |
| Finish | Black DuraFlex™ finish.White available upon request. |

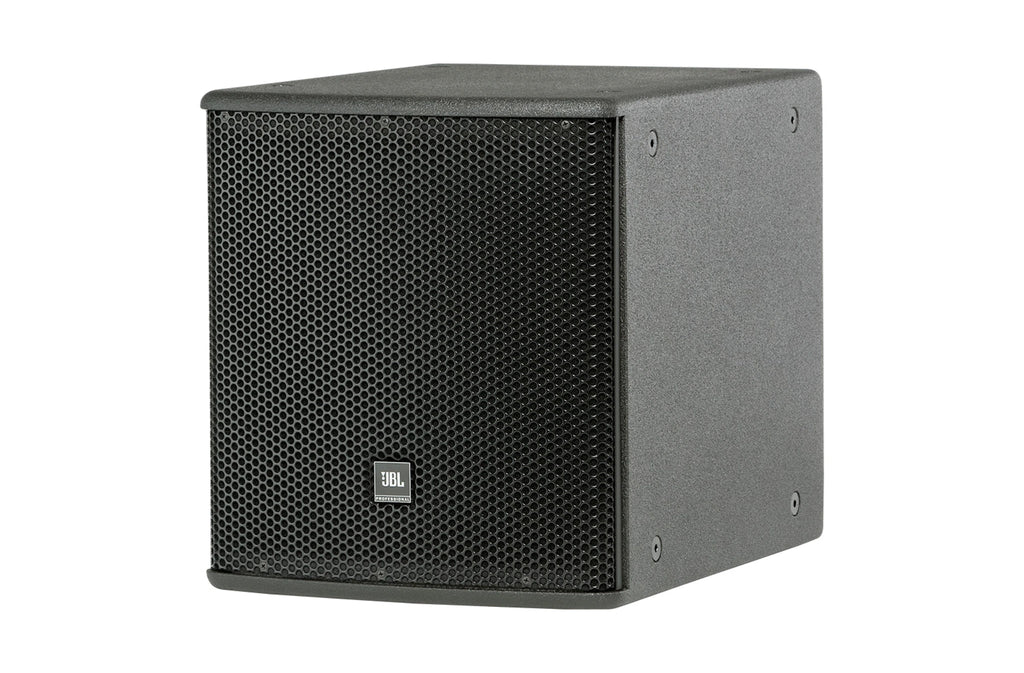

| Grille | Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. |
| Input Connector | NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through. |
| Environmental | Mil-Std 810; IP-x3 per IEC529. |
| Dimensions (H x W x D in vertical orientation) | 406 x 369 x 483 mm(16.0 x 14.5 x 19.0 in) |
| Net Weight (each) | 16.3 kg (36.0 lb) |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers. |
| Nominal LF Driver Impedance | 8 ohms |
