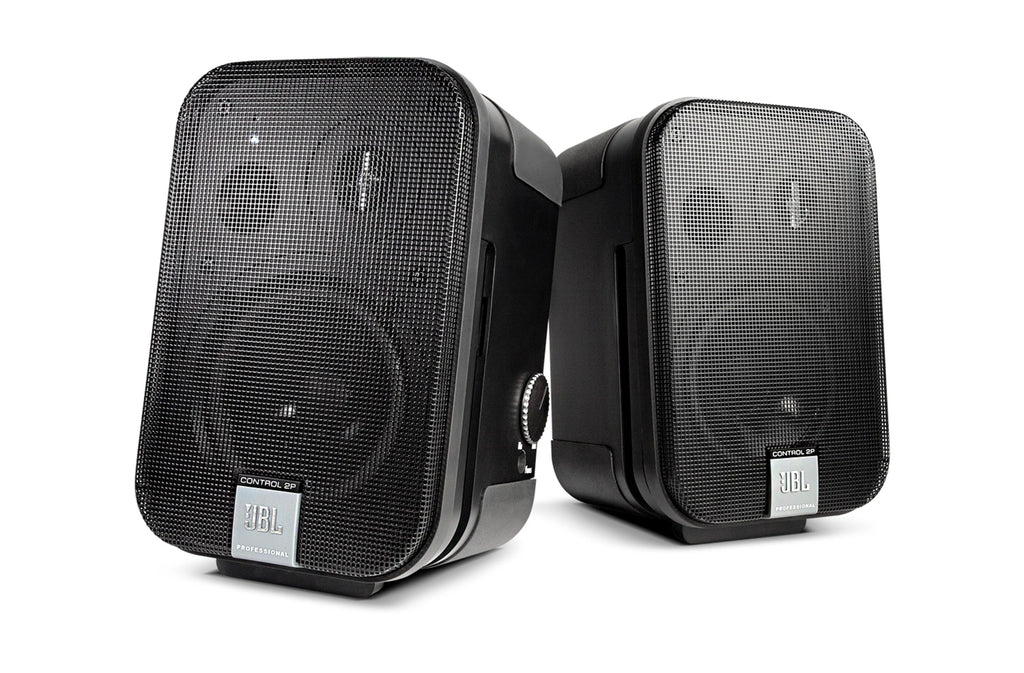

Model C2PS
Perfect for a range of professional applications including:
- Recording / Video Production
- Entertainment Installations
- AV Presentations
- Monitoring of Electronic Musical Instruments
Features
- Studio quality transducers for accuracy, and rich bass response: 80 Hz - 20 Khz
- 35 watt per-channel power amplifier and high sensitivity drivers produce exceptional output:
115 DB max SPL per pair - Balanced XLR, ¼”, and unbalanced RCA inputs allow connection to a range of signal sources
- Stereo headphone jack allows monitoring using headphones
- Ergonomic, side-mounted volume control - simultaneously controls left and right speakers
- High frequency adjust control - allows the user to contour HF response to application requirements
- Magnetically-shielded transducers for use near CRT monitors and magnetically sensitive equipment
- Internal peak limiter and overload protection circuit - protects the system from damage caused by continuous over-driving

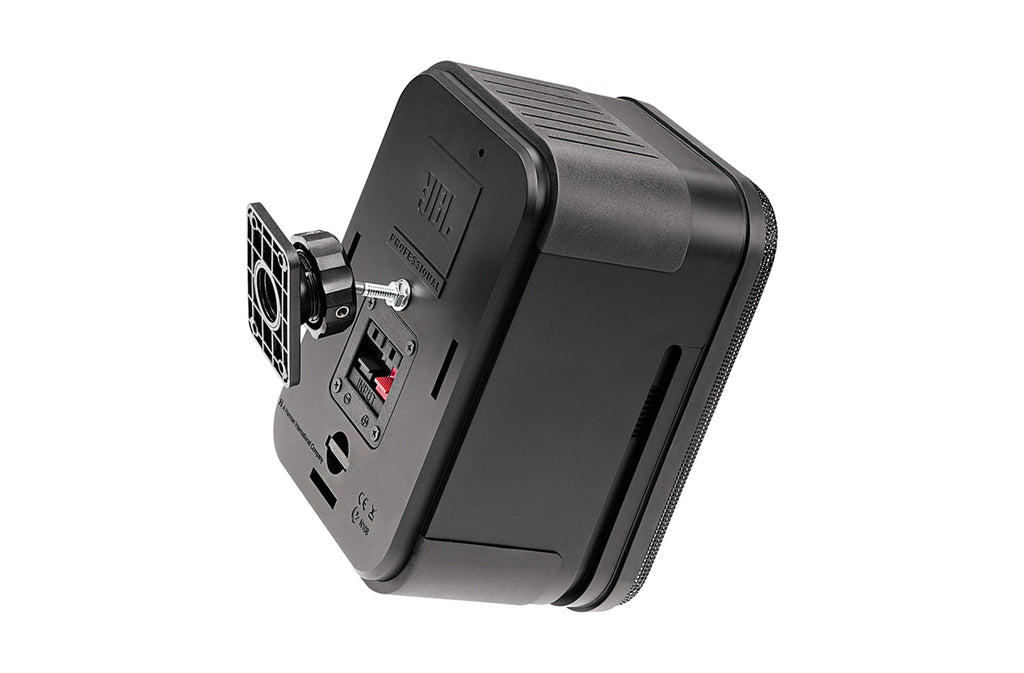

- Wall-mount capable using optional MTC-2P mounting kit
- Included snap-on pedestals optimize listening angle for desktop applications
Specifications
| Drivers | LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter |
| Frequency Range | 80 Hz - 20 kHz |
| Amplifier Power Rating | 35 Watts per channel |
| Maximum SPL (1m) | 115 dB per pair |
| Crossover Frequency | 4.2 kHz |
| Input Sensitivity | +4 dBu XLR 1/4"; 0 dBu RCA |
| Input Connectors | Balanced Neutrik®* Combo XLR 1/4" TRS; Unbalanced RCA |
| Power Requirements | 19 VDC / 3.42 A - use only supplied power supply |
| Headphone Jack | 3.5 mm (1/8") |
| Dimensions (H x W x D) | 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in) |
| Net Weight (each) | 4.8 kg (10 lb) |
| Grille | Zinc-plated steel |
| Mounting Hardware | Optional |
| Included Accessories | Speaker wire, power supply, 2 snap-on pedestals. |
| Optional Accessories | MTC-2P Mounting Kit (2 brackets, power supply holder) |
|   |
* Neutrik and the names of Neutrik products referenced herein are either trademarks and /or service marks |
| LF Driver | 5.25in (135mm) |
| LF Driver Power Handling | 35 Watts per channel |
| Frequency Response (±3 dB) | 100 Hz – 18 kHz |
| Maximum Peak SPL | 115 dB |
| Enclosure | Polypropylene Structural Foam |
| Coverage Angle | 120°H x120°V |
