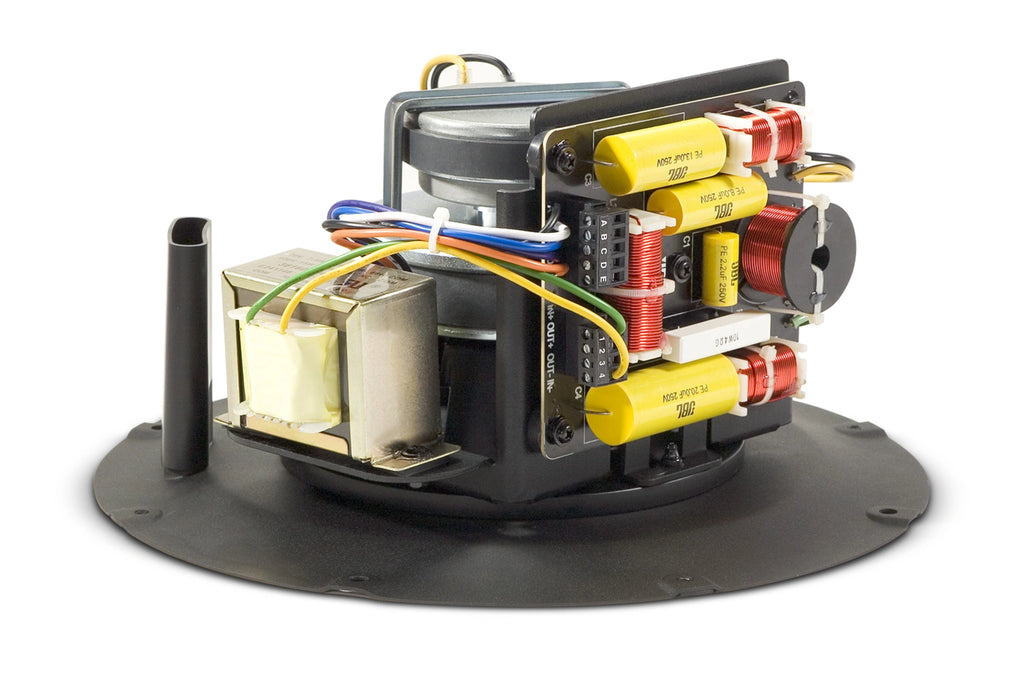

JBL Control 227CT, 6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver
Rs. 0.00
Sale price
Rs. 0.00
Regular price
Skip to product information
JBL Control 227CT, 6.5" Coaxial Ceiling Loudspeaker with HF Compression Driver
Rs. 0.00
Sale price
Rs. 0.00
Regular price
Taxes included.
The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.
Product Specifications
| Frequency Range (-10dB) | 43 Hz - 19 kHz |
| Transformer Taps | 68W, 34W, 17W (& 8.5W @ 70V) |
| Sensitivity | 90 dB (1 kHz - 16 kHz) |
| Coverage Angle | 120° conical, constant directivity |
| Frequency Response (-3 dB) | 75 Hz - 17 kHz |
| Drivers | LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Dimensions (H x Dia) | Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in) |
| Net Weight (each) | 5.2 kg (11.5 lb) |
| Shipping Weight (pair) | 6.6 kg (14.5 lb) |
| Power Rating | See transformer taps |
| Maximum SPL (1m) | 108 dB (top 70V/100V tap) |
| Input Connectors | Screw locking barrier strip for bare wire |
| Color | White |
| Backcan | formed steel (wood-lined; accessory) |
| Baffle/Rim | Metal, round, driver pre-mounted to baffle, ported. |
| Ceiling Cutout Size | 310 mm (12.2 in) diameter (for MTC-200BB6 backcan) |
| Included Accessories | Ported baffle pre-attached, transformer on 227CT |
| Optional Accessories | MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft) |
| Plenum Usage | Yes, with accessory backcan |
