Background/ Foreground Ceiling Loudspeakers
The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.
Features

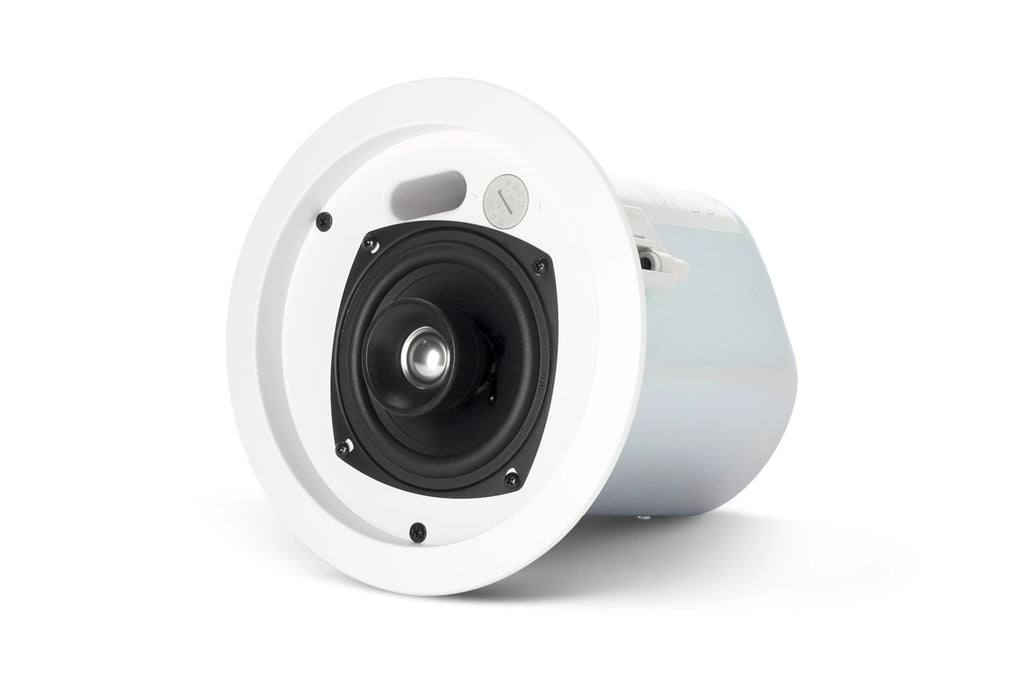

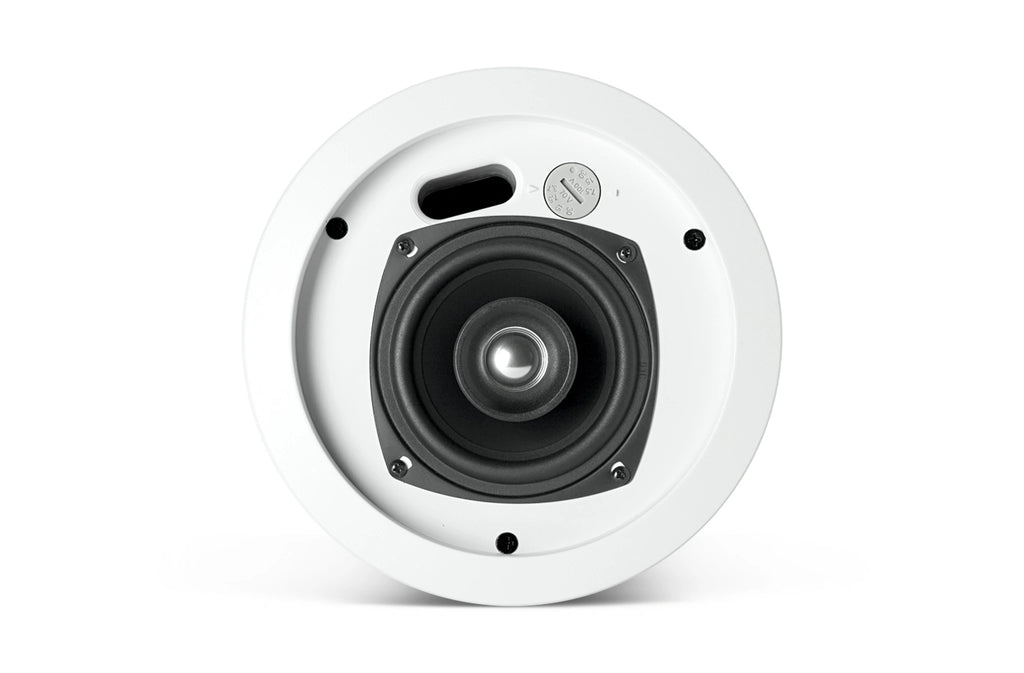

- Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
- High power, wide frequency response and low distortion for high sound level capability.
- Wide coverage allows fewer speakers, reducing the cost of

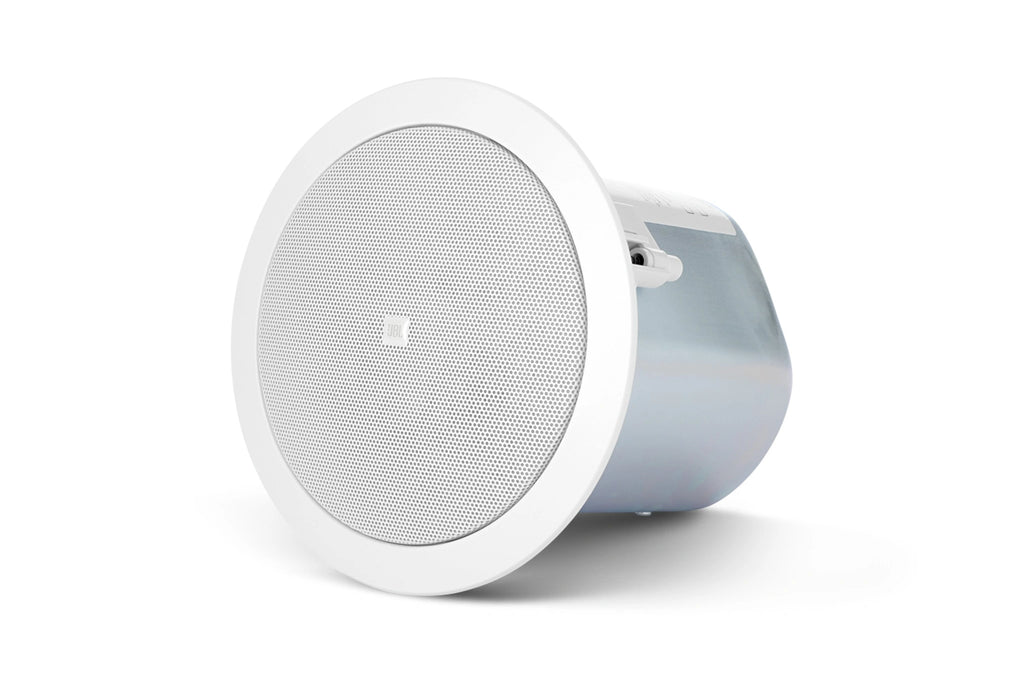

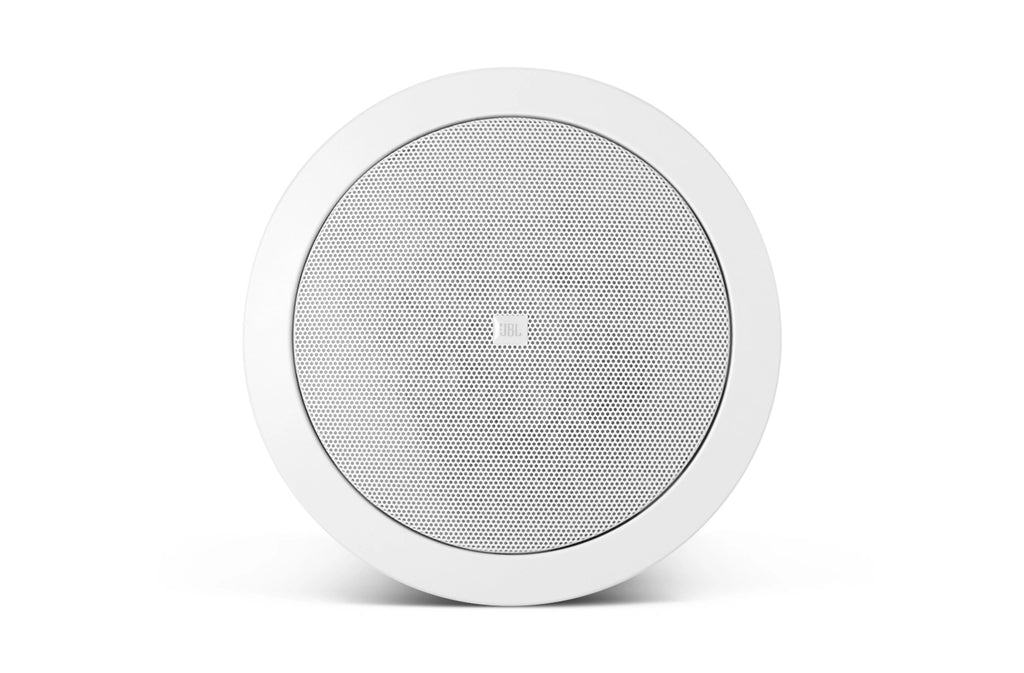

- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Specifications
| Frequency Range | 80 Hz - 20 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 70V: 30W, 15W, 7.5W (& 3.7W @ 70V) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 2.4 dB averaged 500 Hz to 4 kHz |
| Directivity Index (DI) | 3.8 dB averaged 500 Hz to 4 kHz |
| Maximum SPL (1m) | 102 dB (top 70V/100V tap) |
| Nominal Impedance | 16 ohms (Min Z 16.1 ohms @ 320 Hz) |
| Sensitivity | 86 dB (100 Hz - 10 kHz) |
| Input Connectors | Removable 4-pin locking connector with screw-down terminals. |
| Drivers | LF Driver: 100 mm (4.0 in) HF Driver: 19 mm (0.75 in) |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | formed steel (included "blind-mount") |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Ceiling Cutout Size | 168 mm (6.6 in) diameter (cardboard cutout template included) |
| Included Accessories | C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector |
| Plenum Usage | Yes, backcan included |
