Name: JBL Control HST Wide-Coverage Speaker
Brand: JBL
Price: 74099.00 INR
Availability: InStock

JBL Control HST Wide-Coverage Speaker

Rs. 74,099.00

JBL Control HST Wide-Coverage Speaker

Rs. 74,099.00

Taxes included.

Item #CONTROL HST

Wide-Coverage Speaker with 5-1/4" LF, Dual Tweeters and HST Technology™

Features

Technology

ELIMINATION OF WALL REFLECTION

The patent-pending design includes a wall-facing woofer, two horizontally splayed tweeters, a wall bracket that spaces the speaker the required distance from the wall, and a tapered cabinet that provides proper loading and dispersion of the sound. With most on-wall (surface-mount) speakers, the baffle of the speaker is some distance from the wall. It is the nature of low and low-mid frequency sound waves to wrap around the speaker, where they reflect back out from the wall, recombining with the original sound. When this occurs, some frequencies add coherently to the original sound and other frequencies cancel, causing peaks and dips in the resulting frequency response and inconsistencies from location to location within the listening space. By substantially reducing this occurrence, Control HST is able to provide a flatter resulting frequency response along with a more consistent sound character throughout the room.

Specifications

Frequency Range (-10dB)	50 Hz – 20 kHz
Frequency Response (±3 dB)	68 Hz – 18 kHz
Coverage Angle	180°H x160°V
Directivity Factor (Q)	5.4 (1 k – 16 kHz)
Directivity Index (DI)	7.2 dB (1 k – 16 kHz)
System Power Rating (IEC)	100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs.
Sensitivity	88 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL (1m)	Direct 8Ω: 108 dB (peaks of 114 dB) 60 W Tap: 97 dB @ 60W
Crossover Network	1.6 kHz, 3rd order (18 dB/oct) high-pass to HF, 2nd order low-pass to LF
Impedance	8 ohms

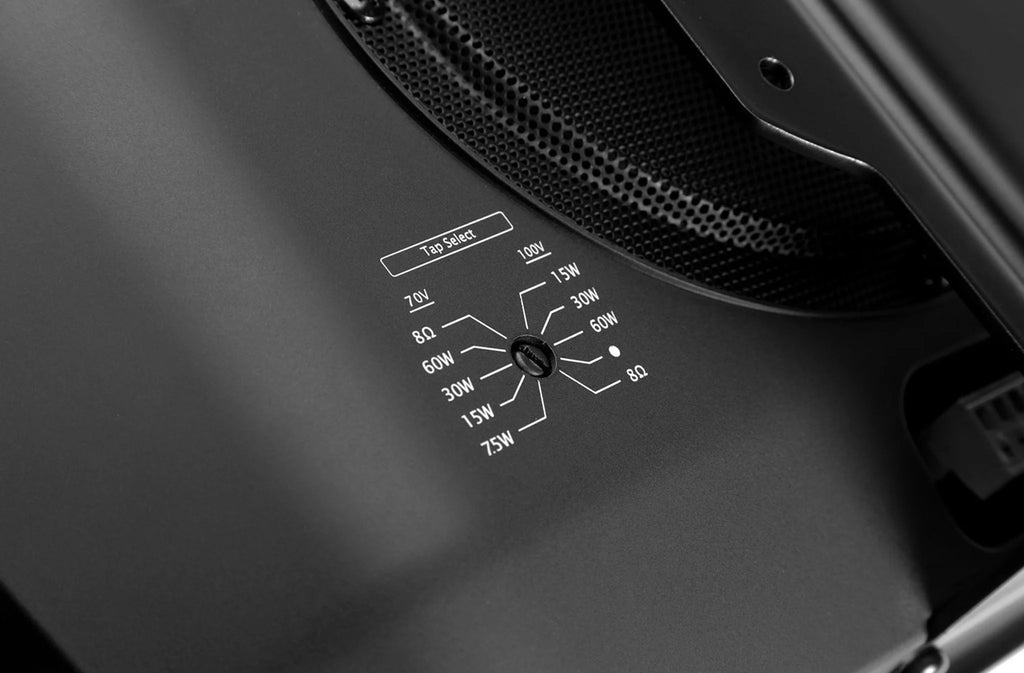

Transformer Taps	70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
Drivers	LF: CMMD™ ceramic metal matrix diaphragm cone, 25 mm (1 in) voice coil. HF: Two splayed tweeters with CMMD-treated aluminum diaphragms, polyurethane surround, polyimide bobbin, neodymium magnet, and fluid-cooling.
Enclosure	Fiberglass-reinforced ABS
Attachment	Four M6 points for included U-bracket. Additional M6 insert point provided for adding secondary safety attachment cable. U-bracket must be utilized. Must be mounted on wall surface. Do not mount on pole.
Grille	Aluminum grille, painted to match cabinet color.
Input Connectors	Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2).
Outdoor Capability	IP54 per IEC529. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
Dimensions (H x W x D)	362 x 256 x 184 mm (14.25 x 10.1 x 7.2 in), cabinet 208 mm (8.2 in) depth with included bracket.
Colors	Available in black (RAL9004) and white (-WH, RAL9016)
Net Weight (each)	3.6 kgs (8.0 lb), 4.3 kgs (9.5 lb) with U-bracket
Included Accessories	U-bracket, matches loudspeaker color (black or white), zinc-rich extra-thick powder coated steel.
Mounting Hardware	Included wall-mount bracket.
