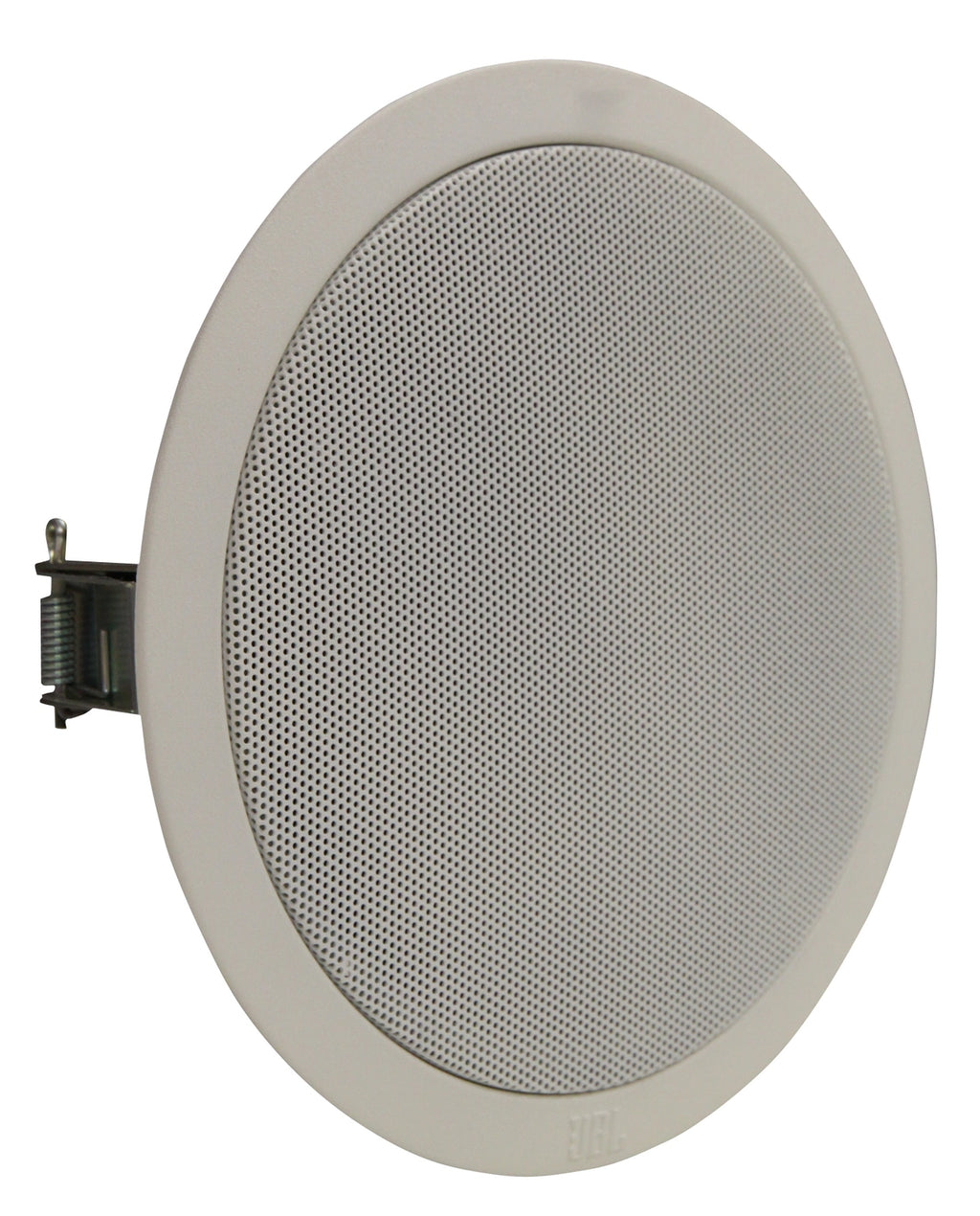

JBL CSS8006BM Full-Range Loudspeaker, Silver
Rs. 5,199.00
Sale price
Rs. 5,199.00
Regular price
Taxes included.
Item #CSS-8006BM
Full-range loudspeaker for background music and PA applications
The CSS-8006BM is a speaker unit with a diameter of 165mm (6.5 inches), a sensitivity of 94dB, good low-frequency extension and a 6-watt
(100V) multi-level transformer speaker. The dual voltage transformer installed on the speaker makes it flexible for use in 100V or 70V broadcasting systems. High sensitivity and can provide high sound pressure levels.
- Affordably priced, high-quality dual-cone ceiling speaker

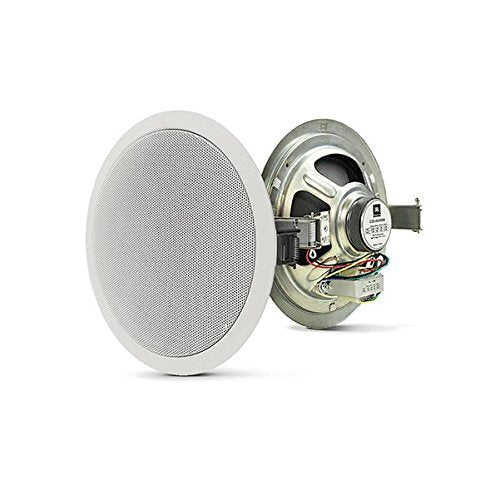

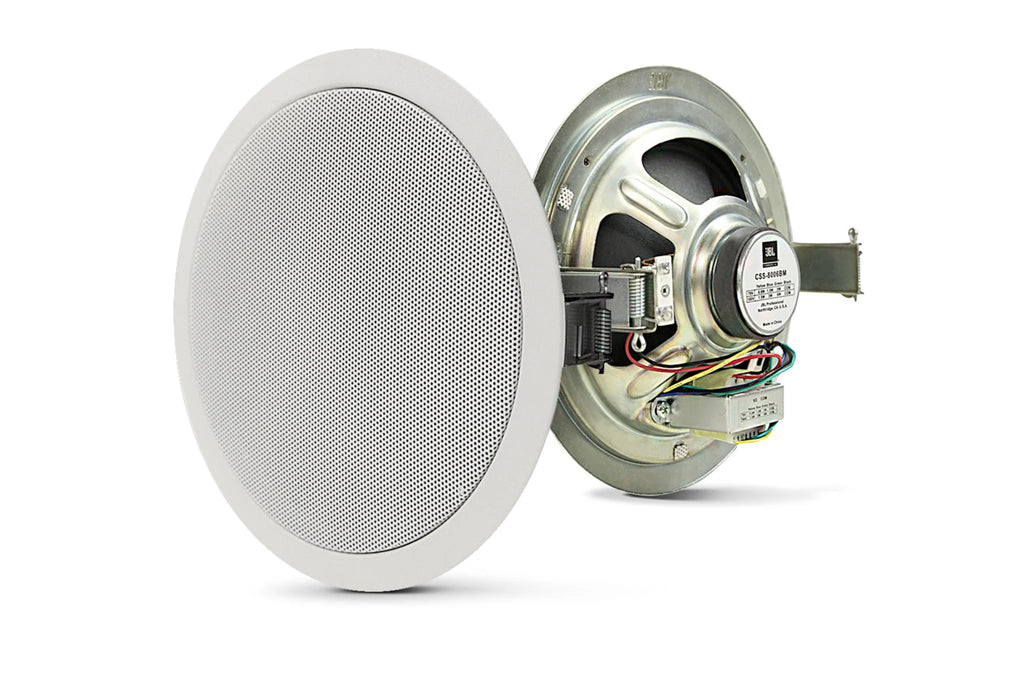

- Pre-assembled speaker / transformer grille assembly
- Suitable for most paging or background music applications, including retail stores, restaurants, schools and other facilities
- Very high sensitivity providing maximum sound levels using minimal amplifier power
- Multi-tap transformer for 100V and 70V distributed speaker lines
- Easy blind-mount installation from below the ceiling with spring clamp
- Optional CSS-BB6BM backcan for inhibiting fire, preventing dust, and limiting sound from the back of the speaker
Specifications
| Frequency range (-10dB) | 70 Hz-20 kHz |
| Power capacity | 6 W (100 hrs) |
|
Sensitivity |
94 dB (1 W[2.83 V]), 1 m, 300 Hz~16 KHz, driver) |
| Coverage (2 kHz) | 120th |
| Nominal Driver Impedance | 8 ohms |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer taps | 100V: 6W, 3W, 1.5W 70V: 3W, 1.5W, 0.8W |
| Ceiling Cutout Size | 175 mm (6.89 in) |
| Outside Dimensions (H x Dia) | 66 mm x 200 mm (2.6 in x 7.87 in) |
| Net Weight (each) | 0.63 kg( 1.4 lb) |
| Shipping Weight (each) | 0.85 kg (1.88 lb) |
| Optional Accessories | CSS-BB6BM backcan |
