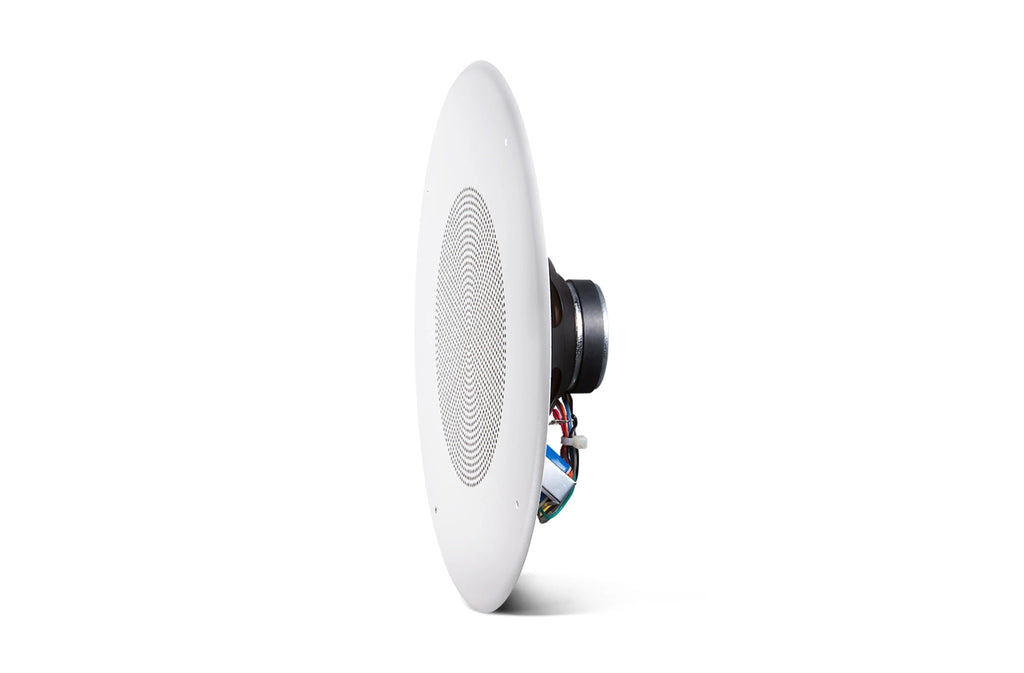

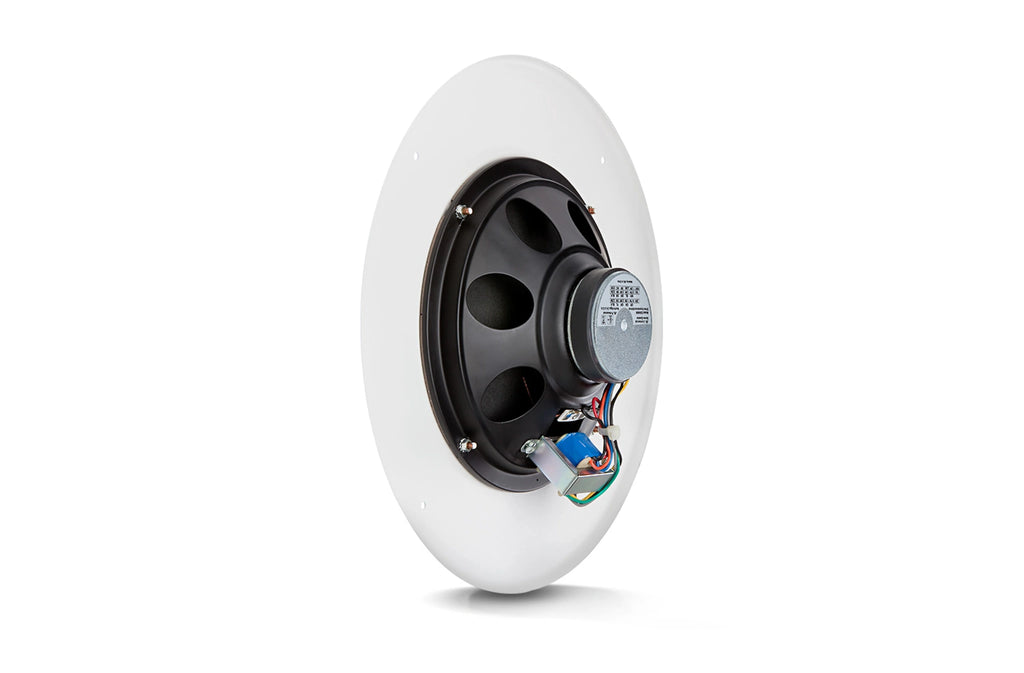

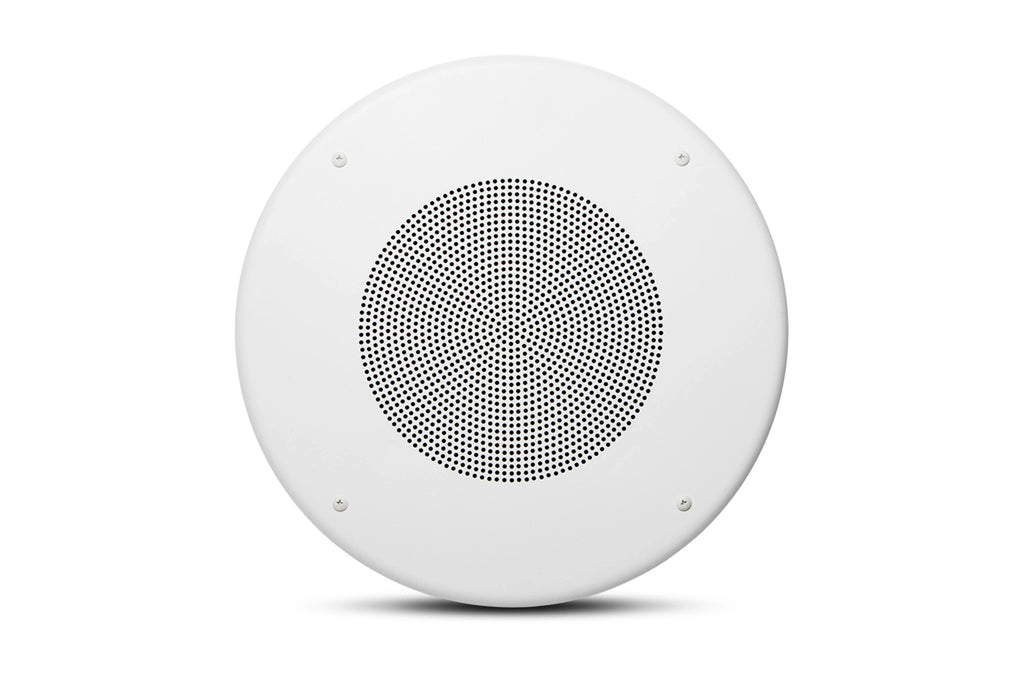

JBL CSS8008 200 mm (8 in) Commercial Series Ceiling Speakers
Item #CSS8008
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.
| Drivers | 200 mm (8 in) Full-Range |
| Sensitivity | 96 dB (2k - 6k Hz) |
| Frequency Range (-10 dB) Driver/Grille Assembly | 55 Hz – 16 kHz |
| Installed in CSS-BB backcan | 100 Hz – 16 kHz |
| Coverage Angle | 120° conical |
| Driver Continuous Power Handling | 15 Watts |
| Transformer Taps | 5W, 2.5W, 1.3W |
| Transformer Taps | 5W, 2.5W, 1.3W, 0.7W |
| Transformer Taps | 5W, 2.5W, 1.3W, 0.7W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare wire |
| Motor Mass | 200 g (7 oz) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Matching CSS Backcan | CSS-BB8 (0.15 cu ft) |
| Other Compatible Backcans | MTC-81BB8 (0.26 cu ft)MTC-200BB6 (0.5 cu ft)MTC-300BB8 (1.0 cu ft) |
| Bolt Mounting Circle to Backcan | 4 points on 286 mm(11.25 in) diameter |
| Cutout DiameterOpen-back | 216 mm (8.5 in) |
| In CSS-BB backcan | 295 mm (11.7in) |
| Depth (behind grille) | 71 mm (2.8 in) |
| Grille Diameter | 327 mm (12.9 in) |
| Net Weight (each) | 1.27 kg (2.8 lb) |
| Shipping Weight (ea) | 1.94 kg (4.3 lb) |
| Included Accessories | 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan. |
| Power Rating | See transformer taps |
| Transformer Taps | 100V Taps - 5W, 2.5W, 1.3W 70V Taps - 5W, 2.5W, 1.3W, 0.7W 25V Taps - 5W, 2.5W, 1.3W, 0.7W |
| Maximum SPL (1m) | 103 dB (top 25V/70V/100V tap) |
| Input Connectors | Bare wire |
| Color | White |
| Backcan | formed steel (accessory) |
| Baffle/Rim | Metal |
| Ceiling Cutout Size | 216 mm (8.5 in) |
| Plenum Usage | Yes, with accessory backcan |
