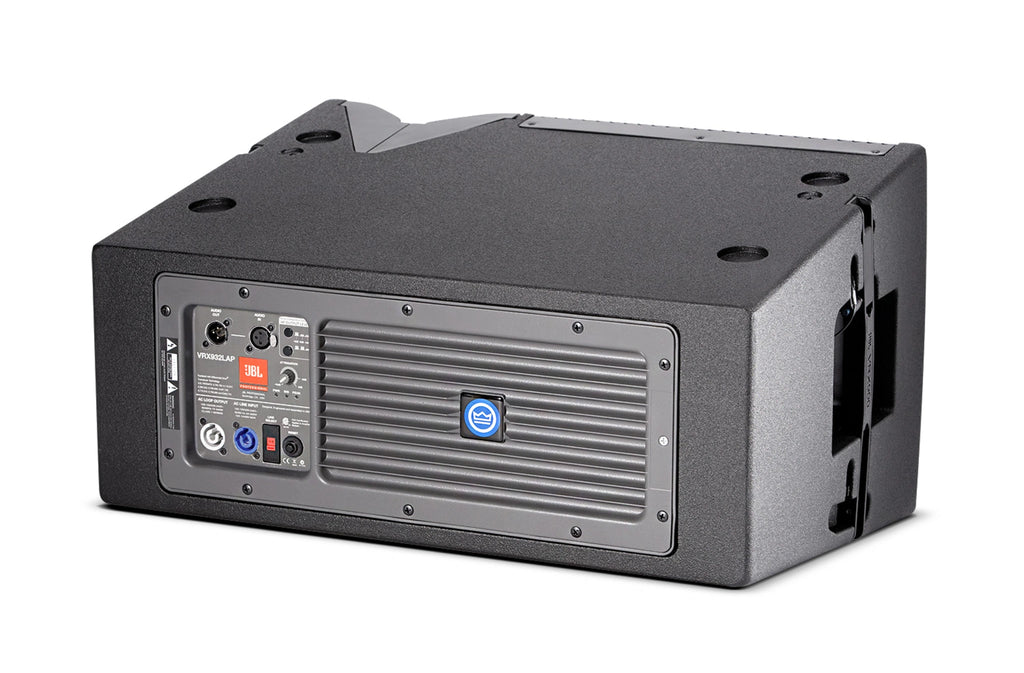

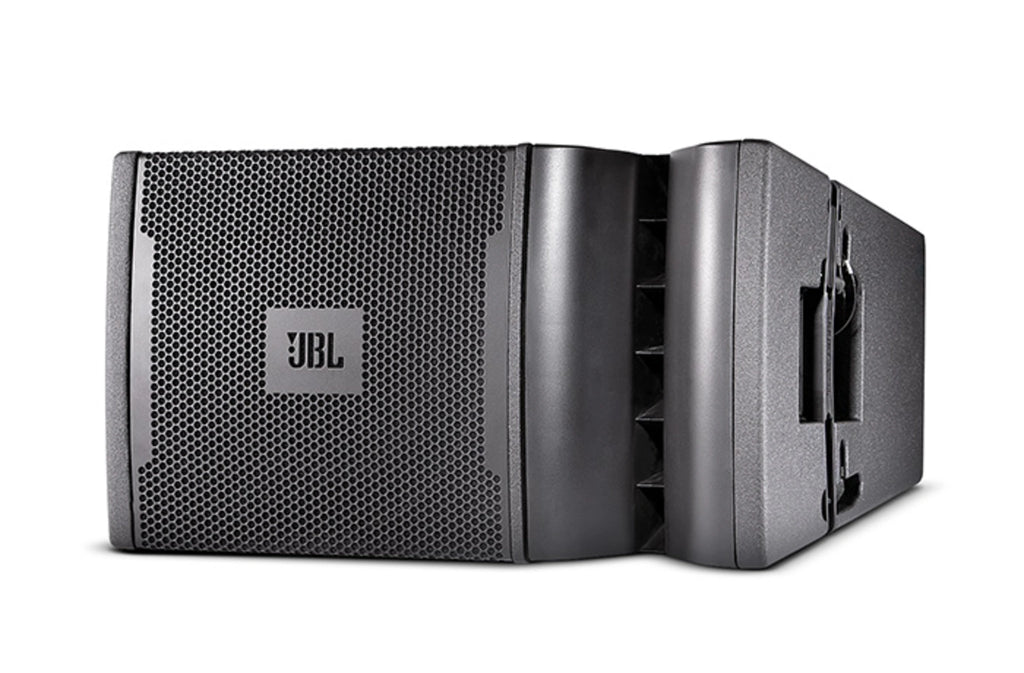

JBL VRX932LAP, Powered Loudspeaker System
Rs. 0.00
Sale price
Rs. 0.00
Regular price
Taxes included.
The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
Product Specifications
| Power Rating | 1750 Watts Peak875 Watts Continuous |
| Frequency Range (-10dB) | 57 Hz - 20 kHz |
| Dimensions (H x W x D) | 349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in) |
| Frequency Response | 75 Hz - 20 kHz (+/-3db) |
| Maximum SPL (1m) | 136 dB SPL |
| Coverage Pattern | 100 x 15 nominal |
| DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance) | LF: 750 Watts, HF: 125 Watts |
| DPC-2 Output Section | LF: Dual-Bridged Technology™, Class D |
| Inputs | XLR with loop through |
| LF Driver | 1 x JBL 2262FF 305 mm (12 in) neodymium magnet |
| HF Driver | 3 x JBL 2408J, 38 mm (1.5 in) |
| User Controls | Input Attenuator (0-16 dB) |
| Signal Processings | DSP based, resident in Input Module |
| AC Power Operating Range | 90-132 VAC or 216-264 VAC, 50/60 Hz |
| AC Input Connector | Neutrik PowerCon (NAC 3MPA) |
| AC Loop Through Connector | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirements | 6A per system at 120V, 3A per system at 240V |
| Enclosure | 25/15 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting |
| Finish | Black DuraFlex™ finish |
| Grille | Powder coated, black, 16-gauge perforated steel with with acoustically transparent foam |
| Net Weight (each) | 24 kg (52 lb) |
| Optional Accessories | VRX-AF: Suspension array frame |
| Outputs | 1 x XLR |
| System Type | Constant Curvature 12" Two-Way Powered Line Array System |
| Nominal Impedance | NA - amplification is integrated |
