Mag Audio PD-1x8 Power Distributor

The PD-1х8 is a power distributor that allows you to connect several sound amplifiers and serves to branch the main power cable for the most correct distribution of power during the mounting and installation of various acoustic systems.

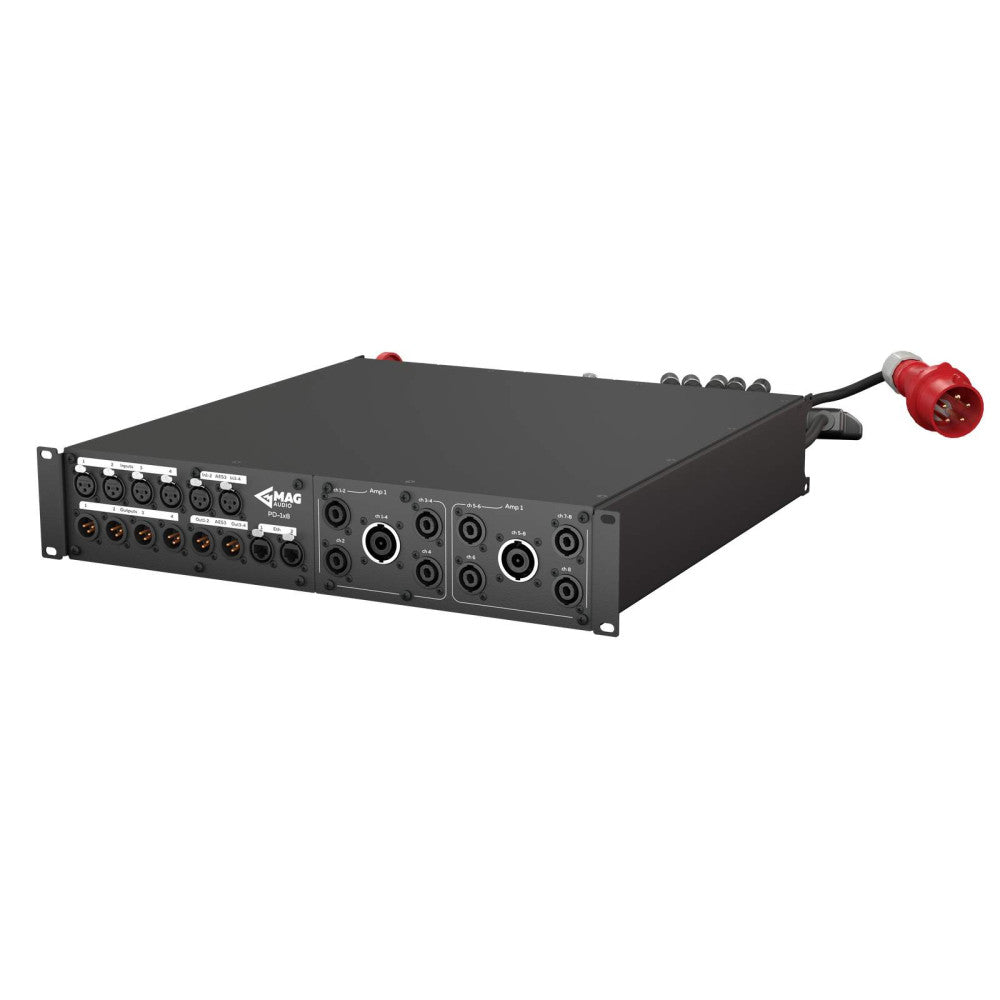

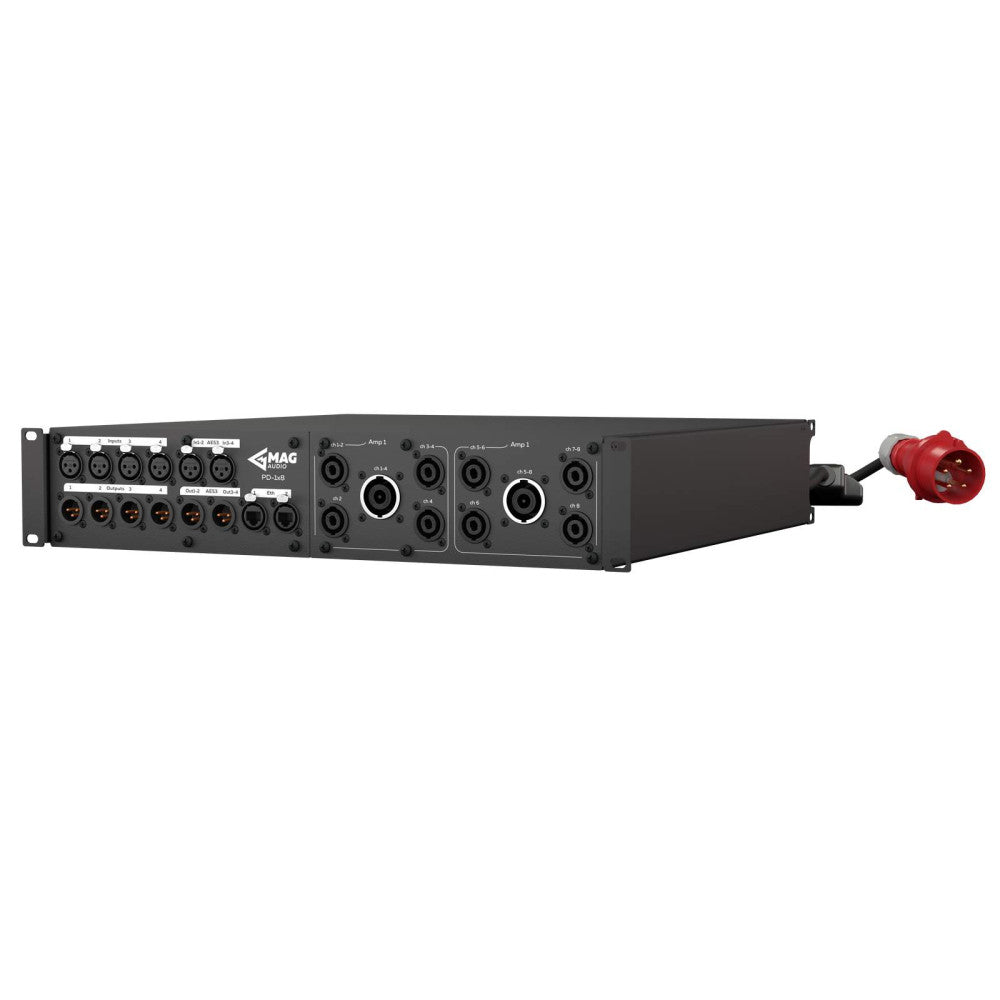

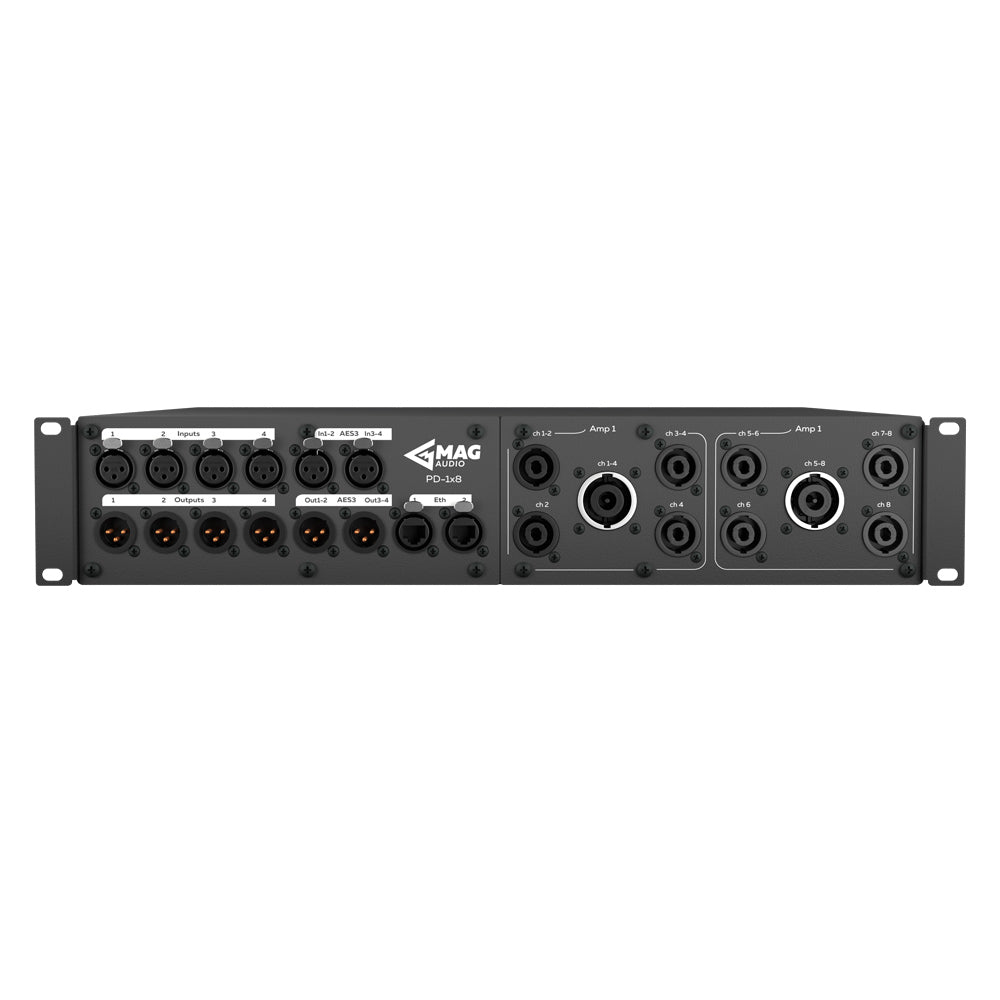

The PD-1х8 has a metal case standard 19” with a 2U front connecting panel, providing ultimate mounting convenience for any installation.

The PD-1х8 can be used with a wide range of MAG Audio systems. This Power Distributor is installed in MN Mounting racks, in a touring-grade AmpRack, and MAG Audio WAR universal fly racks hanging for group setups in the sound systems. It has a wide range of different applications for the most correct distribution of power during the mounting.

Inputs and Outputs:

Power Input:

• AC 16A 230V

Analog signal connection:

• 4 x XLR input;
• 4 x XLR link

AES/EBU:

• 2 x XLR input;
• 2 x XLR link

Ethernet:

• 2 x EtherCon

Speaker outputs:

• 8 x Speakon 4 pin,
• 2 x Speakon 8 pin

Main connections:

• CEE 32 3P+N+E (32A) input;
• CEE 32 3P+N+E (32A) link

Power output:

• 1 x Powersoft X-Series,
• 1 x AUX SHUCKO

Connectors:

• Neutrik
• PCE
