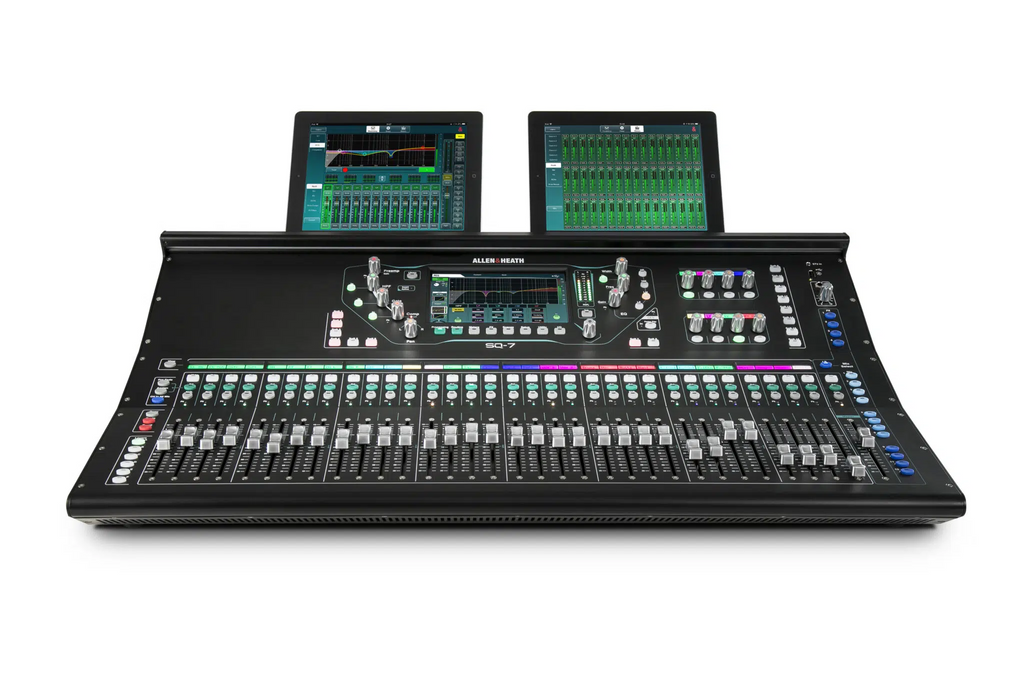

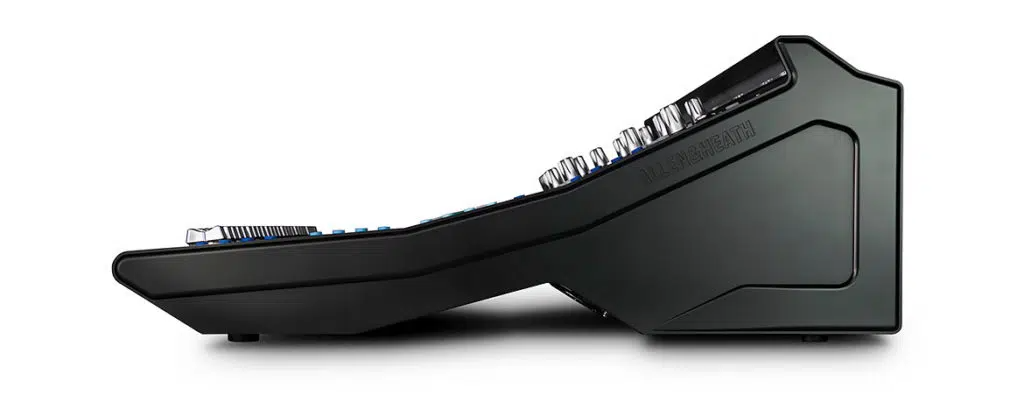

The Allen & Heath SQ-7 is the largest mixer in the SQ series, designed to meet the needs of demanding audio professionals. Featuring an expansive 32+1 faders, 32+1 onboard preamps, 16 assignable SoftKeys, and 8 assignable Soft Rotaries, the SQ-7 offers unmatched control and customisation.
Audio and Processing:
- 96kHz XCVI FPGA processing
- 48 input channels
- 12 stereo mixes + LR
- 3 stereo matrix
- 8 stereo FX engines + dedicated stereo returns
DEEP processing ready
Onboard I/O:
- 32+1 built-in mic preamps
- 2 stereo line inputs
- 16 XLR line outputs
- 2 TRS line outputs
- AES output
Control:
- 32+1 Faders / 6 Layers
- 7” capacitive touchscreen
- 16 assignable SoftKeys
- 8 assignable Soft Rotaries
- SQ-MixPad app
- SQ4You app
Expandability and Integration:
- SLink port for remote audio / expansion
- 64×64 I/O port for audio networking cards (Dante, Waves, MADI, SLink)
Recording and Streaming:
- SQ-Drive direct recording to USB
- 32×32 96kHz USB interface
