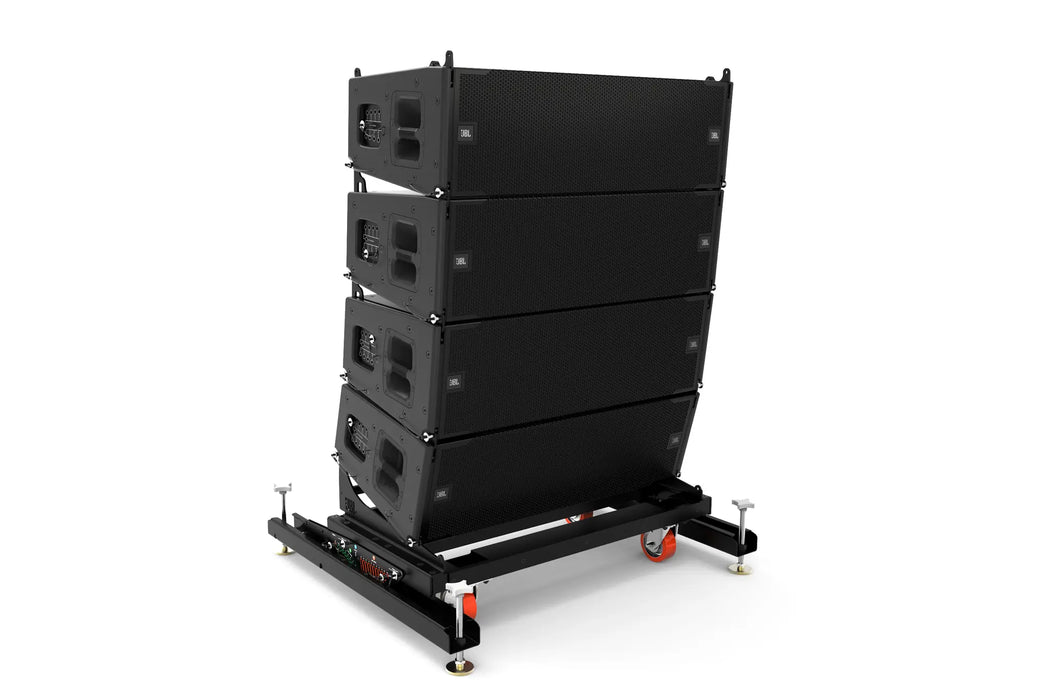

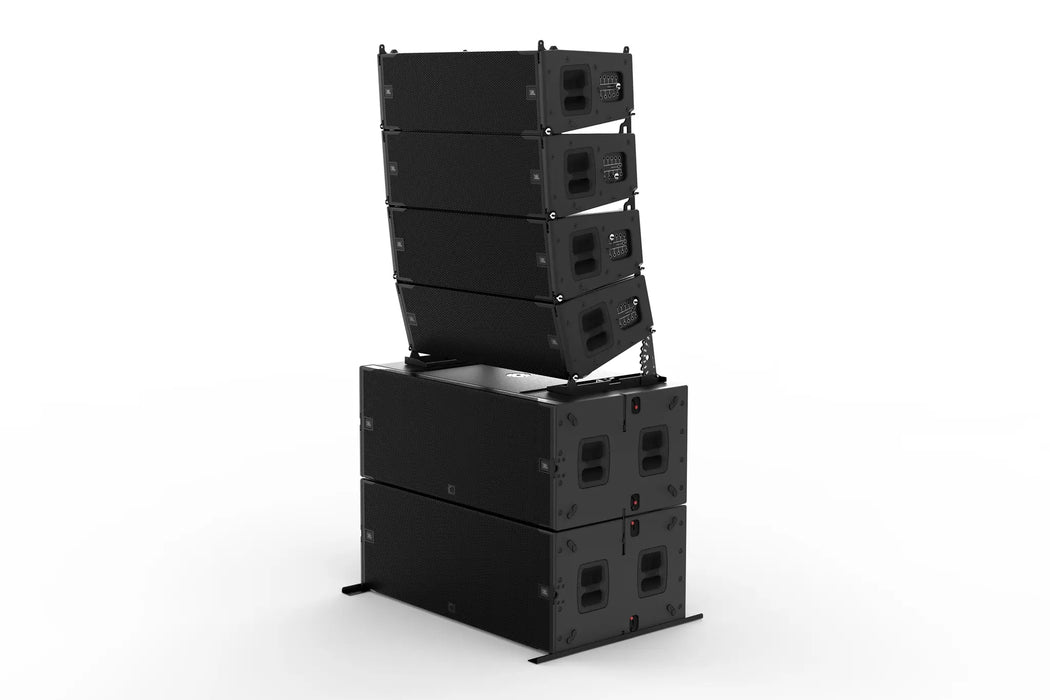

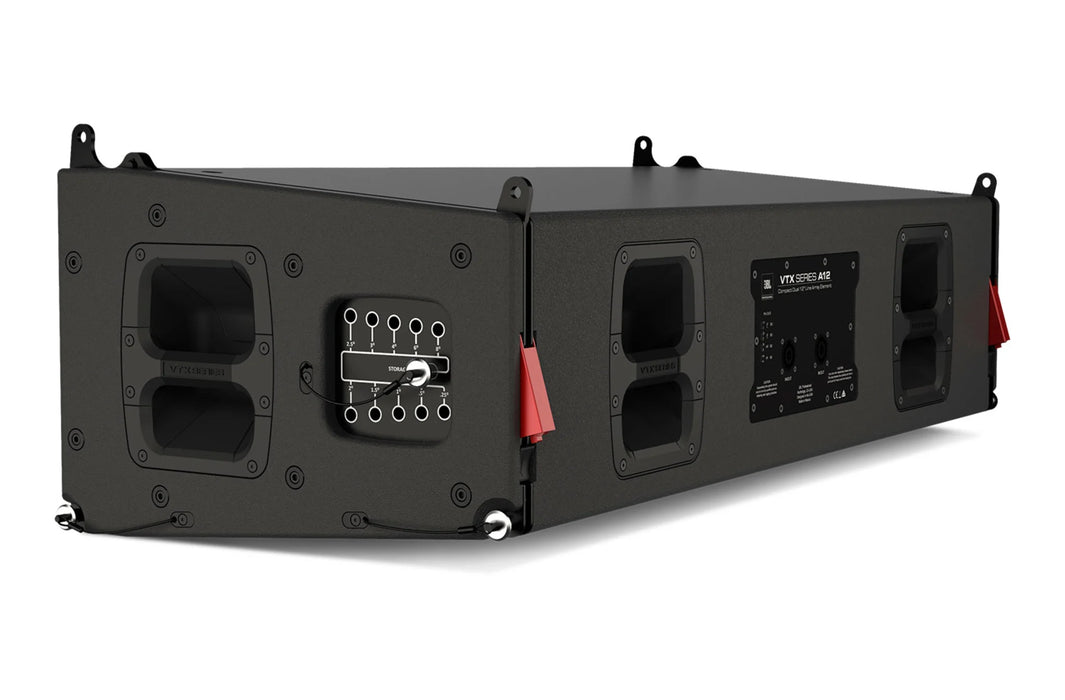

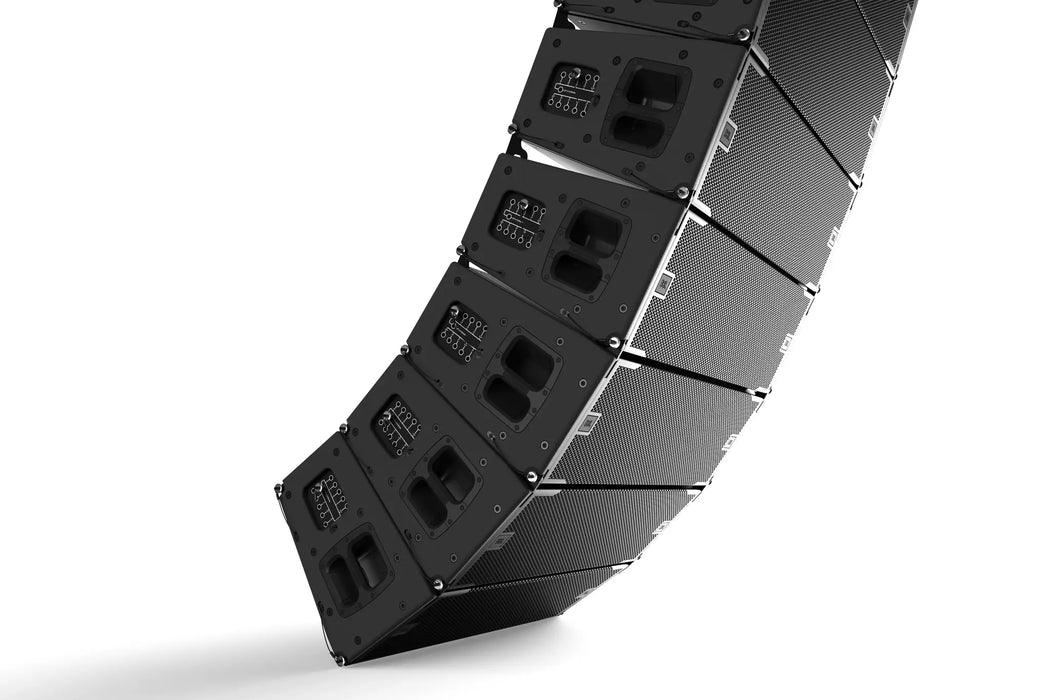

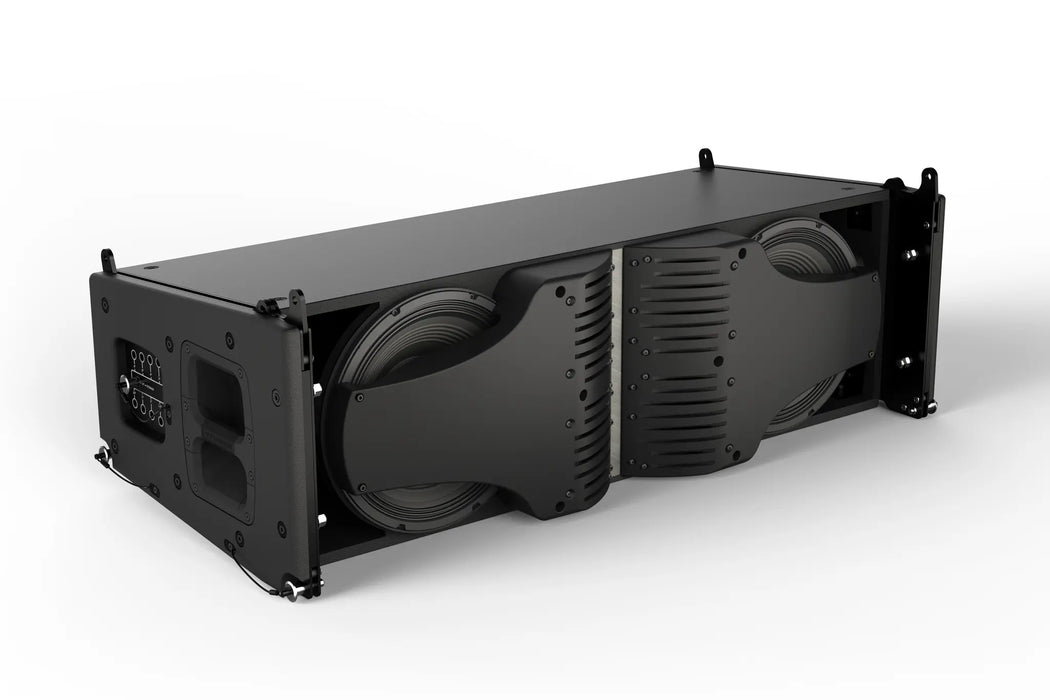

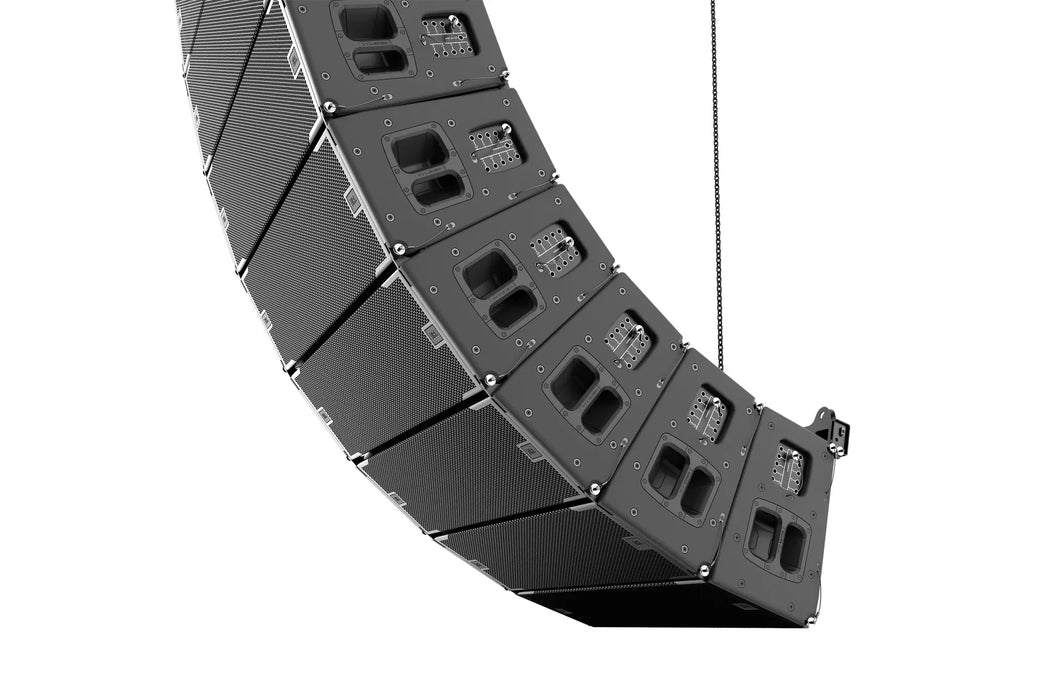

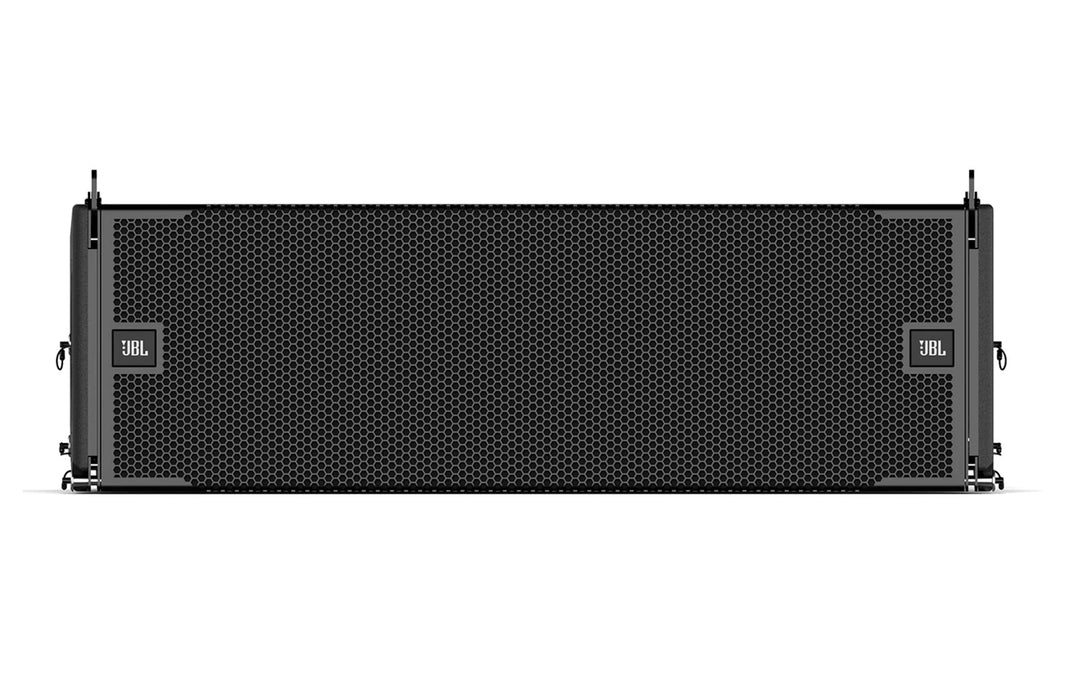

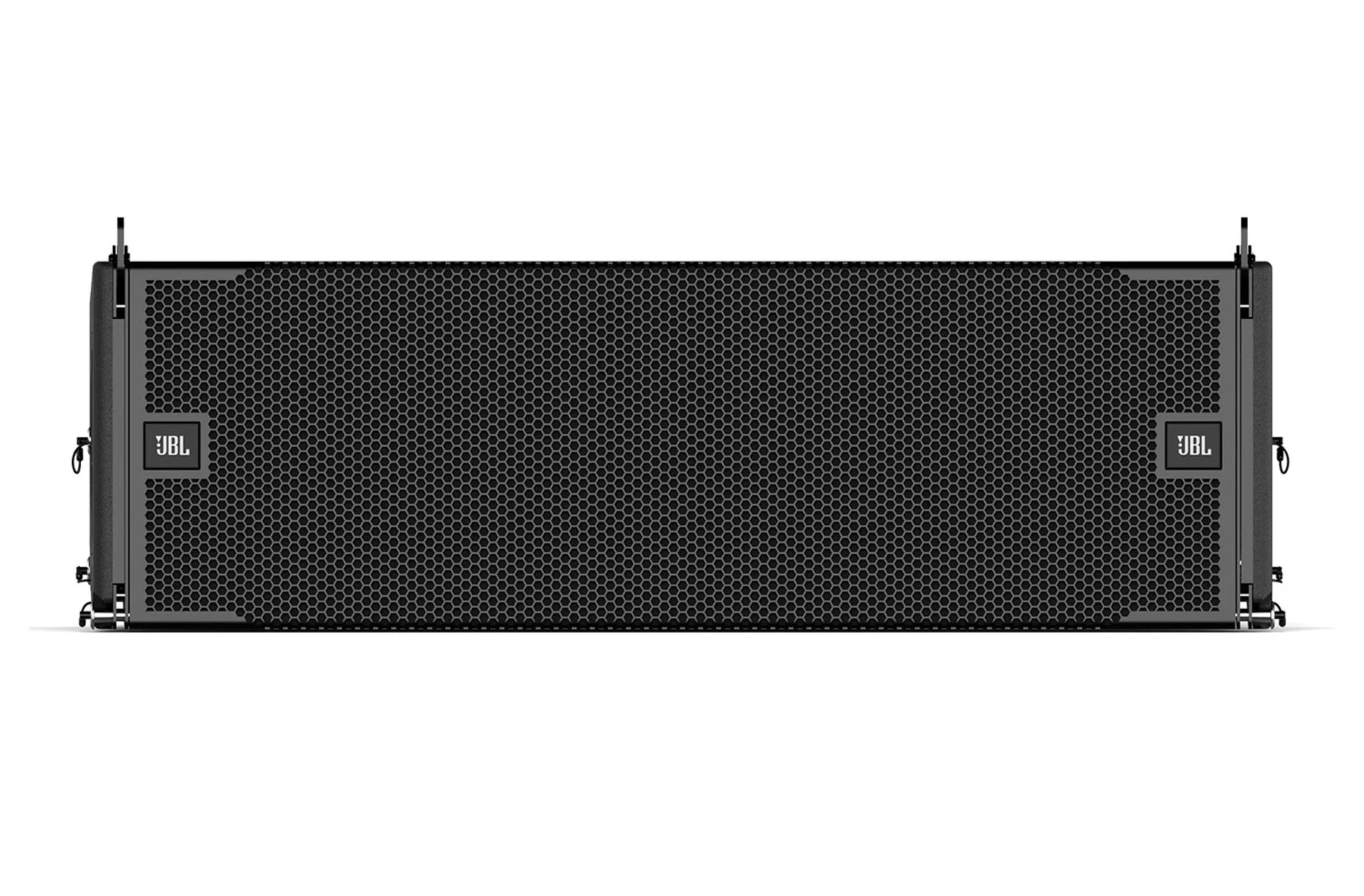

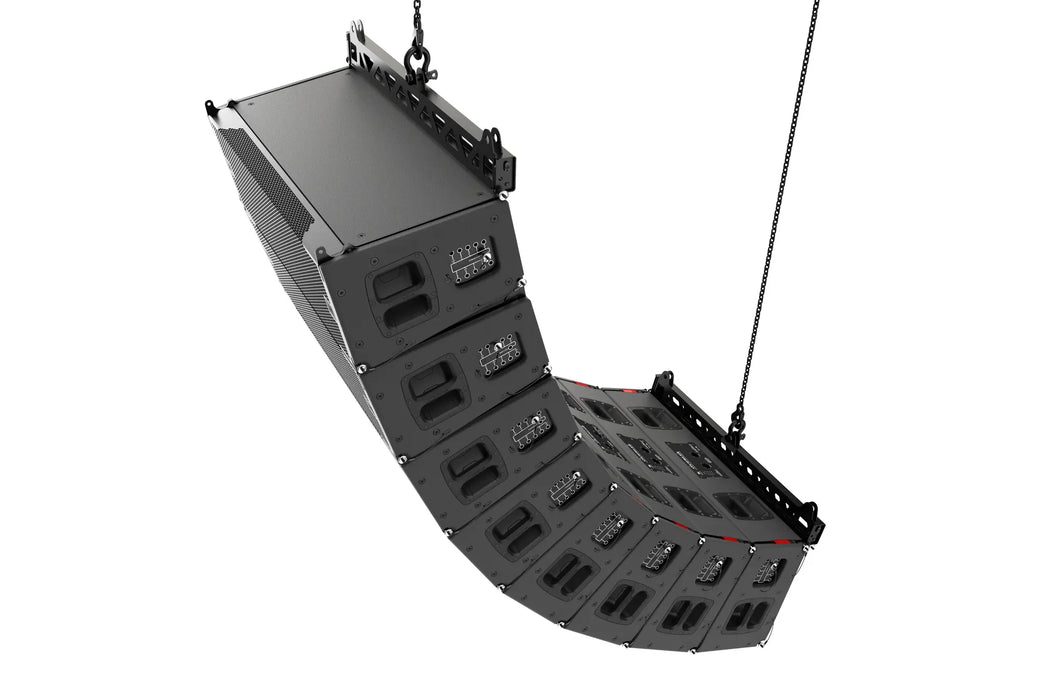

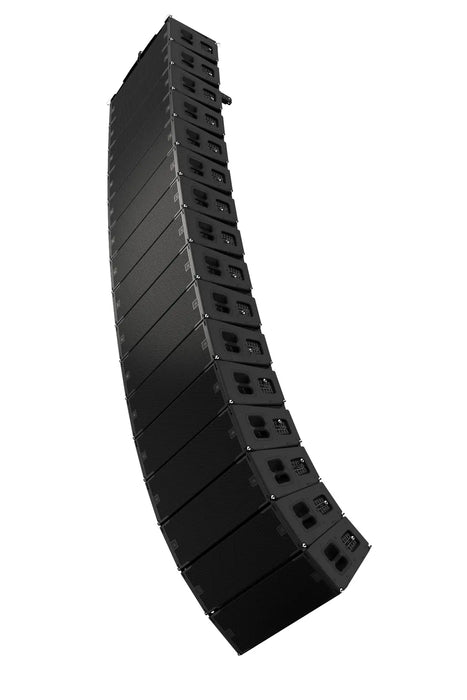

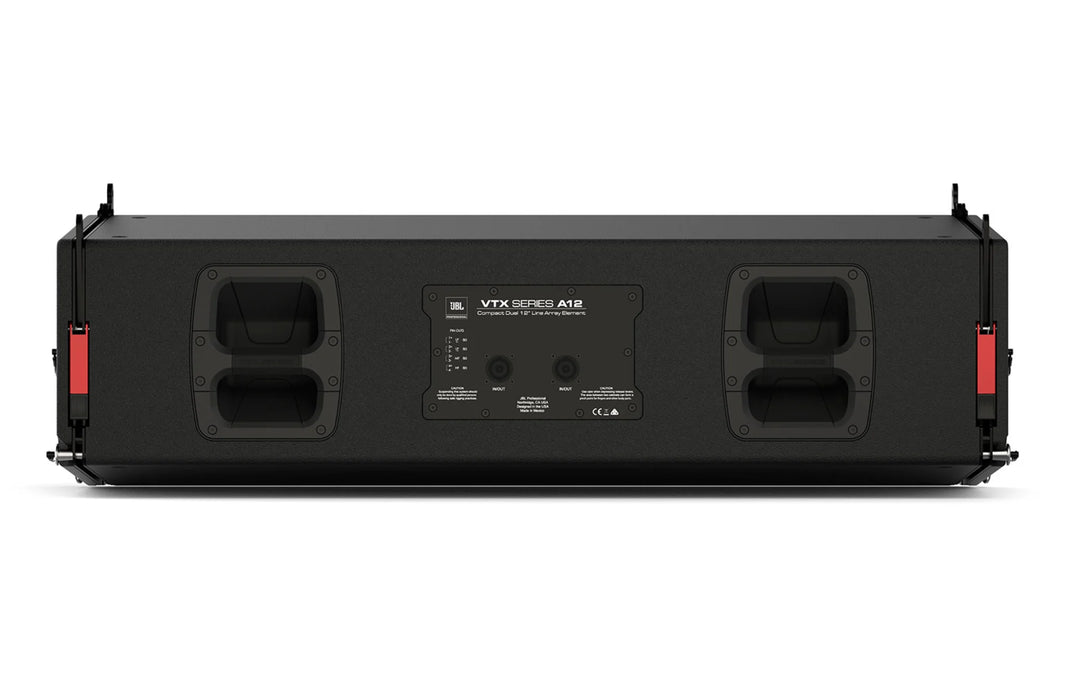

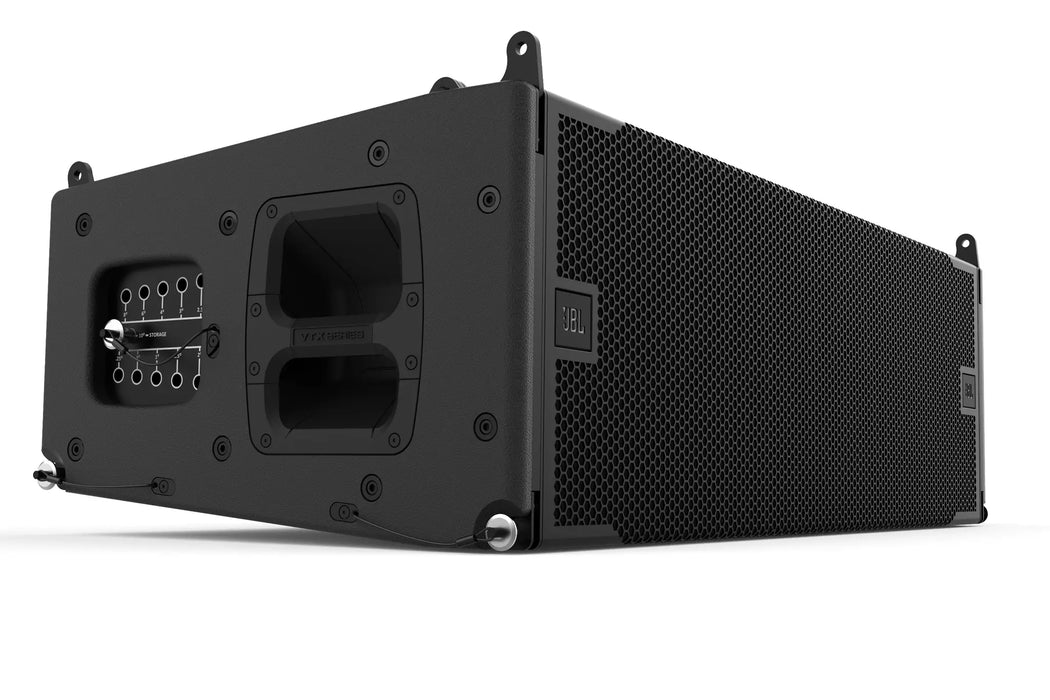

JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.
Product Specifications
| Frequency Range (-10dB) | 46 Hz - 19k Hz (Preset: VTX A12) |
| Horizontal Coverage (-6 dB) | 90 degrees nominal (250 Hz - 18k Hz) |
| Max SPL | 146 dB (Preset: VTX A12) |
| System Amplification | Crown Audio I-Tech HD |
| Nominal Impedance | LF: 2x 8 ohms MF: 8 ohms HF: 8 ohms |
| LF Driver | (2) JBL 2264H 12-inch Neodymium Differential Drive® woofer |
| MF Driver | (4) JBL 2165H 5.5-inch Neodymium Differential Drive® woofer |
| HF Driver | (3) JBL 2423K 2-inch annular diaphragm compression driver |
| Enclosure | Finnish birch plywood, Black DuraFlex finish, integral recessed handles |

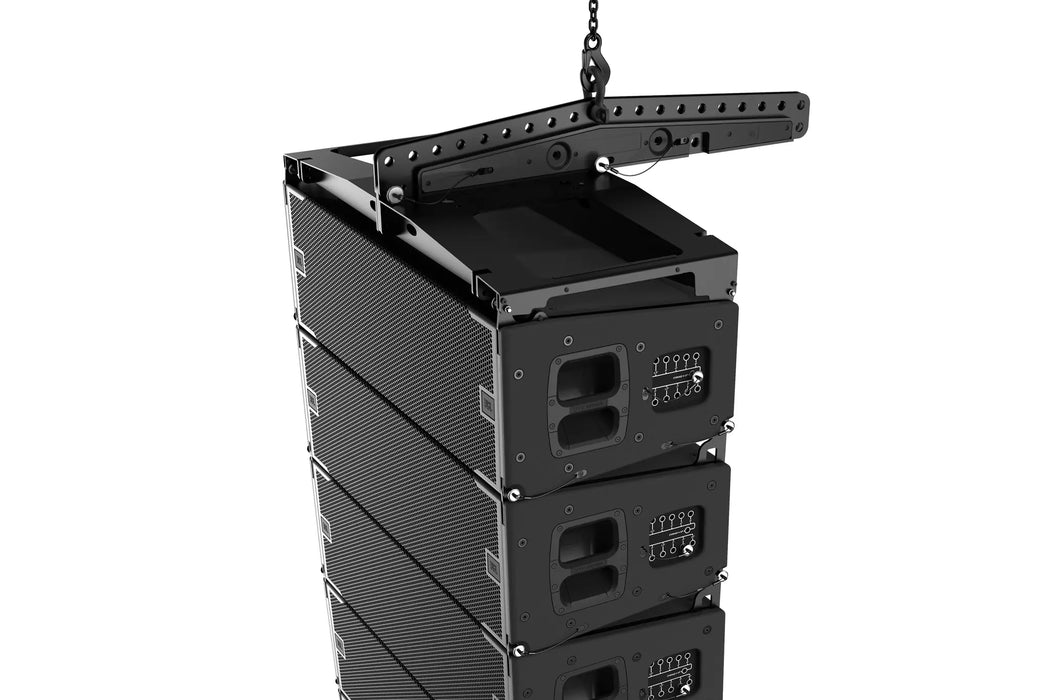

| Suspension / Mounting | High-grade steel with anti-corrosion coating, captive suspension plates, quick release pins, auto-locking mechanism for setting angles |
| Inter-enclosure Angle | 0.25 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 8 | 10 |
| Dimensions (H x W x D) | 330 mm x 1118 mm x 495 mm 13 in x 44 in x 19.5 in |
| Net Weight (each) | 60.8 kg (134 lbs) |
